ECHDCAP

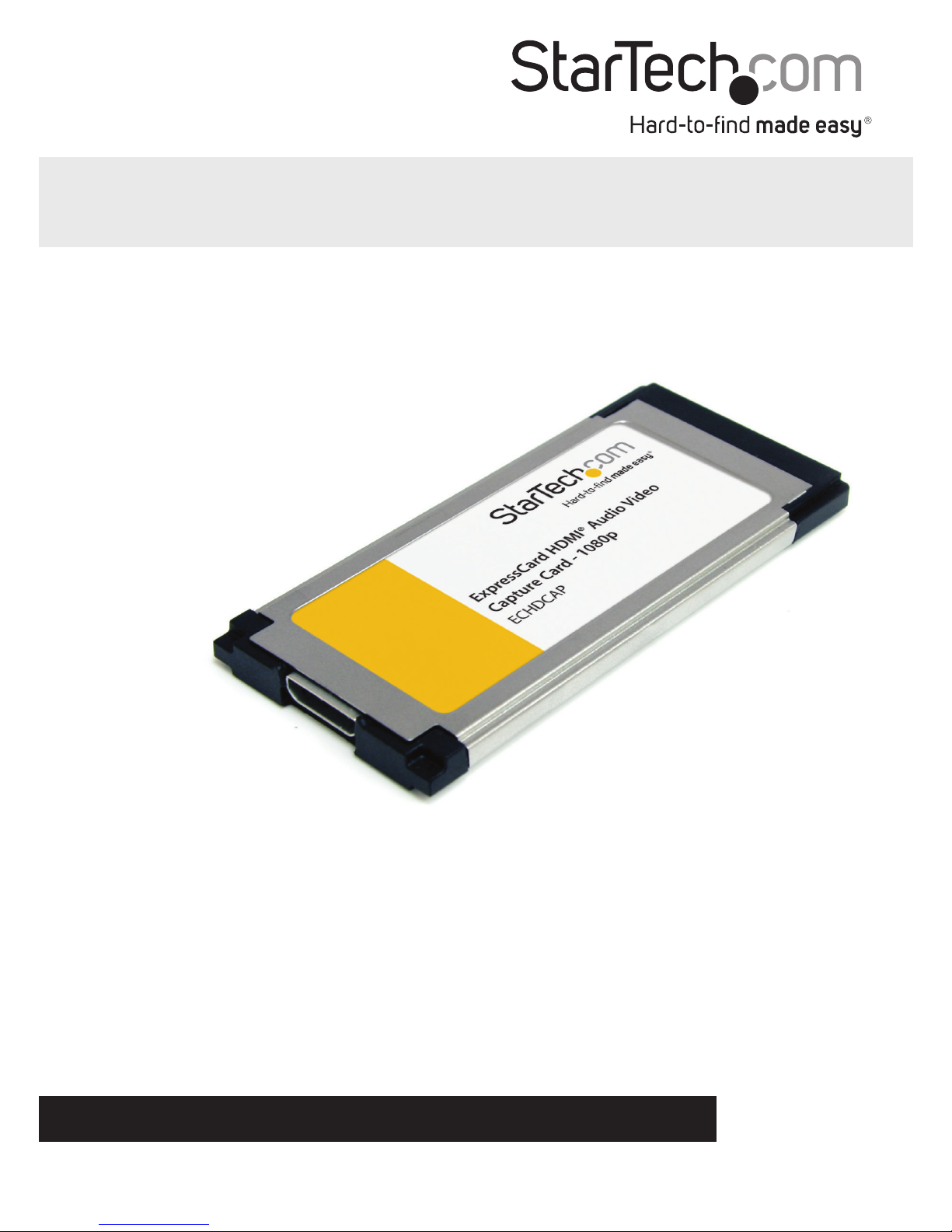

ExpressCard 1080p Capture Card for HDMI®

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Installation ..............................................................................................2

Hardware Installation .............................................................................................................................. 2

Driver/Software Installation.................................................................................................................. 2

How to Use ..............................................................................................3

Stream Catcher........................................................................................................................................... 3

Snapshot Files ...................................................................................................................................... 4

Record Files ........................................................................................................................................... 4

Schedule Recording........................................................................................................................... 5

Settings................................................................................................................................................... 5

Specications..........................................................................................7

Technical Support ..................................................................................8

Warranty Information............................................................................8

Instruction Manual

Introduction

The ECHDCAP ExpressCard Video Capture Card for HDMI® (1080p) lets you capture

high-denition video and audio from an HDMI source to your laptop computer

through an ExpressCard expansion slot.

Support for full 1080p video input, as well as HDMI audio makes this HD capture card

the perfect solution for creating digital copies of your videos for editing and compiling,

or for simply recording video to your laptop.

This ExpressCard-based capture card supports NTSC and PAL systems, and includes an

easy to use video capture software suite that enables you to record video or take still

screenshots and save them to your laptop/notebook computer.

The laptop capture card features a ushmount ExpressCard design that sits ush with

the sides of the laptop, creating a seamless add-on that can be left installed, even

while on the move.

Packaging Contents

• 1 x ExpressCard Video Capture Card

• 1 x HDMI to Mini HDMI Cable

• 1 x Driver CD

• 1 x Instruction Manual

System Requirements

• ExpressCard enabled computer system with available ExpressCard slot

• HDMI cable to connect video source

• CPU: Intel® Core2® Quad Q9400 2.66 GHz or better

• Memory : 512 MB

• Video : 1024×768, DirectX® 9.0c Compatible Graphics Card

• Microsoft® Windows® XP/ Vista/ 7 (32/64-bit), or Linux® kernel 2.6.14 or later

HDMI type A connector

Instruction Manual

Installation

WARNING! PCI Express cards, like all computer equipment, can be severely

damaged by static electricity. Be sure that you are properly grounded before

opening your computer case or touching your PCI Express card. StarTech.com

recommends that you wear an anti-static strap when installing any computer

component. If an anti-static strap is unavailable, discharge yourself of any

static electricity build-up by touching a large grounded metal surface (such

as the computer case) for several seconds. Also be careful to handle the PCI

Express card by its edges and not the gold connectors.

Hardware Installation

The ExpressCard adapter will simply slide into the ExpressCard slot on any compatible

system. Push the card all the way in, until it ‘clicks’and locks into place. To eject the

card, simply push the card further into the slot until it clicks, and then release and it will

then be automatically ejected from the slot.

NOTE: Some ExpressCard/54 slots do not rmly hold an ExpressCard/34 card, so a

34mm to 54mm stabilizer bracket may be necessary (StarTech.com ID: ECBRACKET).

Driver/Software Installation

1. Upon starting Windows, if the “Found New Hardware” wizard appears on the screen,

cancel/close the window and insert the included Driver CD into the computer’s CD/

DVD drive.

2. AutoPlay should automatically prompt you to run “Setup.exe”. If not, open “My

Computer” and double-click on the CD/DVD drive. Double-click the “Setup.exe”

icon.

3. Proceed through the Installation wizard.

4. Complete the wizard and this should automatically install all necessary drivers/

software. An icon for “StreamCatcher” should now be on the desktop.

Instruction Manual

How to Use

Connect the video/audio HDMI source to the video capture card using the appropriate

HDMI cable.

Stream Catcher

Double-click the “StreamCatcher” icon on the desktop to launch the video

capture application. This will bring up the main menu screen that contains

the video preview window and recording controls. Additional options and

congurations can be accessed through the Main Menu.

Initial Setup Note: If you have a video source connected, but are not able

to view anything in the video window, go to the “Settings”section rst, to make sure

the “device” is congured properly. If using an HDCP protected video source (i.e. retail

Blu-Ray movie), this will also result in no video preview/capture.

Video

Window

Record/Stop

button Snapshot

button Volume Control

Manually recording video can be done by simply pressing the “Record” button from the

control menu along the bottom of the Stream Catcher window. The frame around the

video window will turn red, while recording. When you wish to stop recording, press

the “Stop” button. The “Snapshot” button allows of taking a screen capture of the video

stream.

*screenshots are for reference only

Instruction Manual

Snapshot Files

Clicking this button will open the folder location where all of the snapshot les are

saved in Windows.

Record Files

Clicking this button will open the folder location where all of the recorded video les

are saved in Windows.

Instruction Manual

Schedule Recording

The software can be setup to start recording at a specic time and date and occur once

or multiple times. Setup the schedule and click the “Add” button to save it. Multiple

schedules can be maintained at the same time. To remove a schedule, simply select it

from the list, and click the“Delete” button.

Settings

The Settings menu is broken into dierent sections for conguring various aspects of

the software. System Settings contains conguration options for the user interface.

Device Settings contains conguration options for the video capture hardware. Video

and audio input source (HDMI, component, DVI/VGA), video system (NTSC/PAL), aspect

ratio and video properties (sharpness, contrast, saturation, hue, brightness) can all be

adjusted from this menu.

Instruction Manual

Record Settings contains settings related to video recording and snapshots. The

location to save recorded video les as well as recording quality can be congured.

The location to save the snapshot images and le format (JPG, BMP) are also set here.

Instruction Manual

Specications

Host Interface ExpressCard

Form Factor ExpressCard/34 (34mm)

Chipset ID MStar MST3367CMK-LF-170

External Connectors 1 x HDMI type A female

Audio Support Yes (Stereo)

Video Systems NTSC-M, PAL-B/M/60

Video Encoding H.264, MPEG-4

Supported Resolutions

TV: 480i/p, 576i/p, 720p, 1080i/p

PC: 800 x 600, 1024 x 768, 1280 x 720,

1280 x 1024, 1440 x 900, 1920 x 1080

HDCP Compliant No

Operating Temperature 0°C ~ 70°C (32°F ~ 158°F)

Dimensions (LxWxH) 75.0mm x 34.0mm x 5.5mm

Weight 30g

Compatible Operating Systems Windows XP/ Vista/ 7 (32/64-bit),

Linux kernel 2.6.14 or later
