StarTech.com PEXM2SAT3422 Manual de usuario

Manual Revision: 03/01/2016

For the latest information, technical specications, and support for

this product, please visit www.startech.com/PEXM2SAT3422.

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

PEXM2SAT3422

2x M.2 NGFF SSD RAID Controller Card

Plus 2x SATA Ports

*actual product may vary from photos

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per StarTech.com PEXM2SAT3422 o

cerca il tuo prodotto tra le migliori offerte diAltre Schede

Instruction manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment o and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

Changes or modications not expressly approved by StarTech.com could void the user’s

authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, RegisteredTrademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction manual

Table of Contents

Introduction............................................................................................1

Packaging contents.................................................................................................................................. 1

System requirements............................................................................................................................... 1

Product diagram ....................................................................................2

About LED indicators.............................................................................3

LED diagram................................................................................................................................................ 3

Hardware installation............................................................................4

Install a drive in the PCIe card............................................................................................................... 4

Install the low-prole bracket............................................................................................................... 4

Install the PCIe card.................................................................................................................................. 5

Software installation .............................................................................5

Install a driver ............................................................................................................................................. 5

Verify driver installation on a computer running Windows....................................................... 6

Verify driver installation on a computer running Mac OS.......................................................... 6

Initialize a drive ......................................................................................6

Prepare a drive for use on a computer running Windows.......................................................... 6

Prepare a drive for use on a computer running Mac OS............................................................. 7

About the Port Multiplier feature........................................................7

Conguring RAID ...................................................................................7

Use BIOS to create a virtual disk .......................................................................................................... 7

Use the Marvell Storage Utility to create a virtual disk................................................................ 8

Technical support...................................................................................9

Warranty information............................................................................9

Instruction manual

Introduction

You can use the PEXM2SAT3422 to install two M.2 NGFF drives into your desktop

computer. The controller card is equipped with two SATA III (6Gbps) ports and supports

hardware RAID. With its adjustable standos and multiple mounting holes, the card

supports 110 mm, 80 mm, 60 mm, and 30 mm SSDs. The PEXM2SAT3422 comes with

both a full-prole and low-prole bracket, and installs into x4, x8, or x16 PCIe slots.

The PEXM2SAT3422 features wide installation compatibility, with support for virtually

all M.2 NGFF drives (22110, 2280, 2260, 2242, 2230), as well as hybrid drives.

Packaging contents

• 1 x M.2 SSD RAID controller card

• 1 x low-prole bracket

• 2 x M.2 mounting screws

• 1 x quick-start guide

System requirements

• Computer enabled with PCI Express® and an available PCI Express x4, x8, or x16 slot

• Screwdriver

• Any of the following operating systems:

• Windows® 10 (32-bit or 64-bit)

• Windows 8.1 (32-bit or 64-bit)

• Windows 8 (32-bit or 64-bit)

• Windows 7 (32-bit or 64-bit)

• Windows Server® 2012

• Windows Server 2008 R2

• Mac OS 10.8 and later (tested up to 10.11)

• Linux® 3.5

System requirements are subject to change. For the latest requirements, please visit

www.startech.com/PEXM2SAT3422.

Instruction manual

Product diagram

Bracket (standard-prole

pictured)

PCIe x4 connector

4-pin power connector

(oppy small-drive power)

Drive-mount standos

Drive installation holes

2x M.2 SSD slots

2x SATA ports

2x bracket screws

Instruction manual

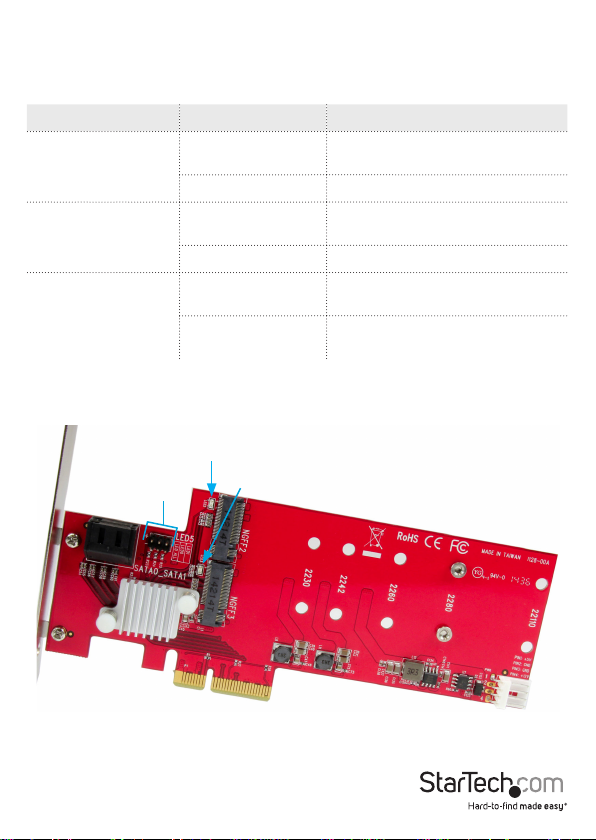

About LED indicators

LED/pin header Behavior Status

M.2 drive green LED

(LED2 and LED3)

LED is illuminated The drive is on and linked to the

computer.

LED is blinking The drive is being accessed.

SATA pin header

(LED0 and LED1)

LED is illuminated The drive is on and linked to the

computer.

LED is blinking The drive is being accessed.

LED all pin header

LED is illuminated Any of the four drives is on and

linked to the computer.

LED is blinking Any of the four drives is being

accessed.

LED diagram

LED2

LED3

LED ALL, LED0,

LED1

Instruction manual

Install the low-prole bracket

The PEXM2SAT3422 can be mounted in both low-prole and full-prole computer

systems. The full-prole bracket comes preinstalled in the adapter but you can install

the low-prole bracket instead.

1. Use a Phillips head screwdriver to remove the two bracket screws from the

PEXM2SAT3422.

2. Remove the full-prole bracket from the adapter.

3. Line up the low-prole bracket with the bracket holes on the back of the adapter.

4. Insert the two bracket screws you removed in step 1 and tighten them in place.

Hardware installation

Install a drive in the PCIe card

Warning! Drives and PCIe cards should be handled carefully, especially when they’re

transported. If you’re not careful with your drives, you may lose data as a result. Make

sure that you’re properly grounded by wearing an anti-static strap when you install

any computer component. If an anti-static strap isn’t available, touch a large, grounded

metal surface for several seconds to discharge any built-up static electricity.

1. By default, the PEXM2SAT3422 comes with the drive-mount standos preinstalled

in the 2280 position. Depending on the length of your drive, you may need to move

the preinstalled drive-mount standos. Place your drive next to the card and note

the drive installation holes that match the height of your drive. If the drive-mount

standos are already installed in the correct position, proceed to step 4.

2. Use a screwdriver (not included) to remove the screws on the reverse side of the

card that are holding the drive-mount standos in place.

3. Place the screws and drive-mount standos that you removed in step 2 in the drive

installation holes that match the length of your drive and use a screwdriver to

tighten the screws on the reverse side of the card.

4. Gently slide the M.2 connector on your drive into the corresponding connector on

the PEXM2SAT3422.

Note: The connector on your drive is keyed so that it only ts one way.

5. Place one of the included M.2 mounting screws in the drive-mount stando and use

a screwdriver to tighten the screw and hold the drive in place.

6. If necessary, insert a second drive.

To remove a drive, use a screwdriver to remove the M.2 mounting screw that is holding

the drive in place and pull the drive out of the PEXM2SAT3422.

Instruction manual

Install the PCIe card

Warning! PCIe cards can be severely damaged by static electricity. If an anti-static strap

isn’t available, discharge any built-up static electricity by touching a large grounded

metal surface for several seconds.

1. Turn o your computer and any devices or peripherals that are connected to it (for

example, printers, external storage, and so on).

2. Unplug the power cable from the back of your computer.

3. Disconnect any peripheral devices that are connected to your computer.

4. Remove the cover from your computer case. Consult the documentation that came

with your computer for details about how to do this safely.

5. Locate an open PCIe slot and remove the corresponding metal cover plate from

the back of your computer case. Consult the documentation that came with your

computer for details about how to do this safely. This card works in PCIe slots of x4,

x8, or x16 lanes.

6. Gently insert the card into the open PCIe slot and fasten the bracket to the back of

the case.

Note: If you install the card into a small form factor or a low-prole desktop system,

it may be necessary to replace the preinstalled standard-prole bracket with the

included low-prole (half-height) installation bracket.

7. As necessary, connect SATA cables from the SATA ports on the card to the SATA

drives inside of your computer.

8. Connect a 4-pin oppy power connector (small drive power) from the computer’s

power supply to the 4-pin power connector on the card.

9. Place the cover back onto your computer case.

10. Reconnect the power cable to the back of your computer.

11. Reconnect all of the peripheral devices that you disconnected in step 3.

12. Turn on your computer.

Software installation

Install a driver

1. To download the latest drivers, use a Web browser and navigate to www.startech.

com/PEXM2SAT3422.

2. Click the Support tab.

3. Download the driver.

4. When the download is complete, extract the contents of the compressed le that

you downloaded.

Instruction manual

5. Double-click the appropriate driver for the version of operating system that you’re

running and follow the on-screen instructions to complete the installation.

Note: You may be asked to restart your computer to complete the installation.

Verify driver installation on a computer running Windows

1. On your computer, navigate to Device Manager.

2. Under Storage Controllers, right-click Marvel 92xx and click Properties.

3. Conrm that the device is installed and working correctly. In some cases, an

exclamation mark appears next to devices that aren’t installed correctly.

Initialize a drive

Prepare a drive for use on a computer running Windows

If you install a drive that already has data on it, the drive appears under My Computer

or Computer with a drive letter assigned to it. If you install a brand-new drive that

doesn’t contain any data, you must prepare the drive for use.

Warning! When you complete the following steps, all of the data on your drive will be

deleted. If your drive has data on it that you require, you should create a backup le or

use a dierent drive.

1. Navigate to Disk Management.

2. A dialog window appears and asks you to initialize the drive. Depending on the

version of Windows that you’re running, you have the option to create either an

MBR or a GPT disk.

Note: GPT (GUID partition) is required for drives larger than 2 TB but GPT isn’t

compatible with some earlier versions of operating systems. MBR is supported by both

earlier and later versions of operating systems.

3. Locate the disk that is labeled Unallocated. To conrm that the drive is the correct

one, check the drive capacity.

4. Right-click the section of the window that says Unallocated and click New

Partition or New Simple Volume.

5. To initialize the drive in the format of your choice, complete the on-screen

instructions.

When the drive is successfully installed, it appears under My Computer or Computer

with a drive letter assigned to it.

Verify driver installation on a computer running Mac OS

1. On your computer, in the toolbar, click the Apple icon.

2. Click About This Mac > System Report > PCI Cards.

3. Conrm that Yes is listed next to Driver Installed.

Instruction manual

Prepare a drive for use on a computer running Mac OS

Warning! When you complete the following steps, all of the data on your drive will be

deleted. If your drive has data on it that you require, you should create a backup le or

use a dierent drive.

1. Do one of the following:

• In Spotlight, enter Disk Utility.

• Open Finder. Navigate to Applications and click Utilities. Open Disk Utility.

2. Select the new drive and click the Partition tab.

3. Enter a name for the partition.

4. Click Apply.

The drive should now appear on your desktop and be accessible in Finder.

About the Port Multiplier feature

If you use a port multiplier card with the PEXM2SAT3422, you can take advantage of

the Port Multiplier feature and connect multiple SATA drives (up to four) to a single

SATA host port. When you use the Port Multiplier feature, you can connect a multi-drive

SATA or eSATA drive enclosure or backplane using only a single cable, creating easy

and cost-eective storage scalability both inside and outside of the computer or server.

Note: Only the two SATA ports can use the Port Multiplier feature and only one of the

SATA ports can use the Port Multiplier feature at a time. The PEXM2SAT3422 supports

up to four drives connected using the Port Multiplier feature and supports seven drives

in total (including two M.2 SSDs and ve SATA drives).

The Mac OS doesn’t support the Port Multiplier feature.

Conguring RAID

You can use either the integrated card BIOS utility or the Marvell® Storage utility to

congure RAID on the PEXM2SAT3422.

Use BIOS to create a virtual disk

Warning! When you create a RAID virtual disk, you delete all of the data on the physical

disks included in the virtual disk set. Before you continue with the steps below, you

should back up the data contained on the disks.

1. Start up your computer and when the prompt appears, press Ctrl+M to enter the

BIOS utility.

2. Use the arrow keys to select HBA0: Marvell 0 and press Enter.

3. Press Enter to open the Conguration wizard.

Tabla de contenidos

Otros manuales de Tarjeta de red de StarTech.com

StarTech.com

StarTech.com ST2000SPEXI Manual de usuario

StarTech.com

StarTech.com ST10000SPEXI Manual de usuario

StarTech.com

StarTech.com USB300WN2X2C Manual de usuario

StarTech.com

StarTech.com NETRS2321E Manual de usuario

StarTech.com

StarTech.com EC1000S Manual de usuario

StarTech.com

StarTech.com ST1000SMPEX Manual de usuario

StarTech.com

StarTech.com PCIe 40G QSFP+ Manual de usuario

StarTech.com

StarTech.com EC1000BT Manual de usuario

StarTech.com

StarTech.com ST4000SPEXI Manual de usuario

StarTech.com

StarTech.com USB150WN1X1W Manual de usuario

StarTech.com

StarTech.com PEX1000MMSC2 Manual de usuario

StarTech.com

StarTech.com PCI555WG Manual

StarTech.com

StarTech.com ST20000SPEXI Manual de usuario

StarTech.com

StarTech.com ST10000SPEXI Manual de usuario

StarTech.com

StarTech.com UE1200CB Manual de usuario

StarTech.com

StarTech.com 2 Port IEEE-1394 CardBus Card with Digital Video Editing... Manual de usuario

StarTech.com

StarTech.com ST20000SPEXI Manual de usuario

StarTech.com

StarTech.com ST10000SPEX Manual de instrucciones

StarTech.com

StarTech.com PEX10000SRI Manual de usuario

StarTech.com

StarTech.com ST1000SPEX2 Manual de usuario

StarTech.com

StarTech.com P011GI-NETWORK-CARD Manual de usuario

StarTech.com

StarTech.com ST100S Manual de usuario

StarTech.com

StarTech.com PEX10000SRI Manual de usuario

StarTech.com

StarTech.com ST1000SPEX2 Manual de usuario

Manuales populares de Tarjeta de red de otras marcas

FirstComm

FirstComm OBiWiFi5G Manual de usuario

Sun Microsystems

Sun Microsystems Interface Adapter Manual de usuario

TRENDnet

TRENDnet TU2-ETG Manual de usuario

YASKAWA

YASKAWA SI-EN3 Manual de usuario

Paradyne

Paradyne BitStorm 2600 IP DSLAM Manual de usuario

Belkin

Belkin F5D7050 Manual de usuario

3Com

3Com EtherLink 3C509B Manual de usuario

TRENDnet

TRENDnet TEG-PCITX Manual de usuario

Cisco

Cisco MC16E Manual de usuario

Delta Electronics

Delta Electronics Braking Modules VFDB Series Manual de usuario

TwinMOS

TwinMOS Booming Manual de usuario

Dialogic

Dialogic Media Board DM/V1200BTEPEQ Manual de usuario

Buffalo

Buffalo AirStation WLI-PCM-L11GP Manual de usuario

National Instruments

National Instruments NI 9234 Manual de usuario

Hama

Hama 49276 Manual de usuario

Linksys

Linksys WCF54G - Wireless-G Compact Flash Card Manual de operación

Compaq

Compaq Wireless LAN 100 Manual de usuario

Bose

Bose PowerMatch Dante Manual de usuario
