ET1110PSE

PSE / PoE Gigabit Fiber Power over

Ethernet Media Converter - Open SFP

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction ............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements .............................................................................................................................. 1

Installation ..............................................................................................2

Software Installation ................................................................................................................................ 3

Conguration Diagram ........................................................................................................................... 4

Operation ................................................................................................5

Front Panel Pushbuttons ........................................................................................................................ 5

Keyboard Hotkeys ..................................................................................................................................... 5

KVM Switcher Software ........................................................................................................................... 6

Specications ..........................................................................................9

Technical Support ..................................................................................10

Warranty Information ............................................................................10

Instruction Manual

Introduction

The ET1110PSE PSE / PoE Gigabit Fiber Power over Ethernet Media Converter

with Open SFP creates an Ethernet-Fiber link, transparently converting from

10/100/1000Base-T copper to 1000Base-SX/LX ber, while acting as a Power Sourcing

Equipment (PSE) device. The PoE media converter oers the added exibility of an

open SFP slot, allowing you to choose the gigabit SFP that best suits your network

requirements for ber connection type and distance - see full line of compatible

Gigabit transceivers for this product at StarTech.com Accessories.

The open SFP media converter is capable of delivering up to 48V DC power to IEEE

802.3af devices such as wireless access points (WAP) or IP cameras, using standard Cat

5 (or better) cabling - an ideal solution for providing data and power to areas where

electrical wall outlets may not be available, saving the hassle and expense of running

new electrical wiring.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Packaging Contents

• 1 x PSE/PoE Fiber Media Converter

• 1 x Universal Power Adapter (NA/EU/UK)

• 1 x Instruction Manual

System Requirements

• Fiber, Gigabit, or 10/100 Mbps compatible network

Instruction Manual

LED Indicators

PWR

PSE

FX LNK

100/1000

FULL

UTP LNK

LED Function State Status

PWR Converter

Power

ON Power on

OFF Power o

PSE PSE Status ON PSE power in-use

OFF PSE standby

FX LNK Fiber link

Status

ON Fiber link is ok

OFF No Fiber link

100/1000 LAN Speed

Status

Orange 1000Mbps

Green 100Mbps

OFF 10Mbps

FULL LAN Duplex

mode

ON Full duplex

OFF Half duplex

UTP LNK UTP link

status

ON UTP link is ok

OFF No UTP link

Instruction Manual

DIP Switch Setting

The ET1110PSE is provisioned through the use of a single 4‐pole DIP (Dual Inline

Package) switch located on the front panel. Setting a switch down places it in

the ON position.

Switches 1&2: provide setting auto‐negotiation (Nway) or manual forced speed of 10,

100 or 1000. Default is all OFF.

Switch 3: when ON (down), sets the forced Half Duplex for either 10Base or 100Base, or

sets Full Duplex when OFF (up).

Switch 4: is used to enable the LFP (Link Fault Pass‐Thru) function. LFP is enabled

when the switch is ON (down).

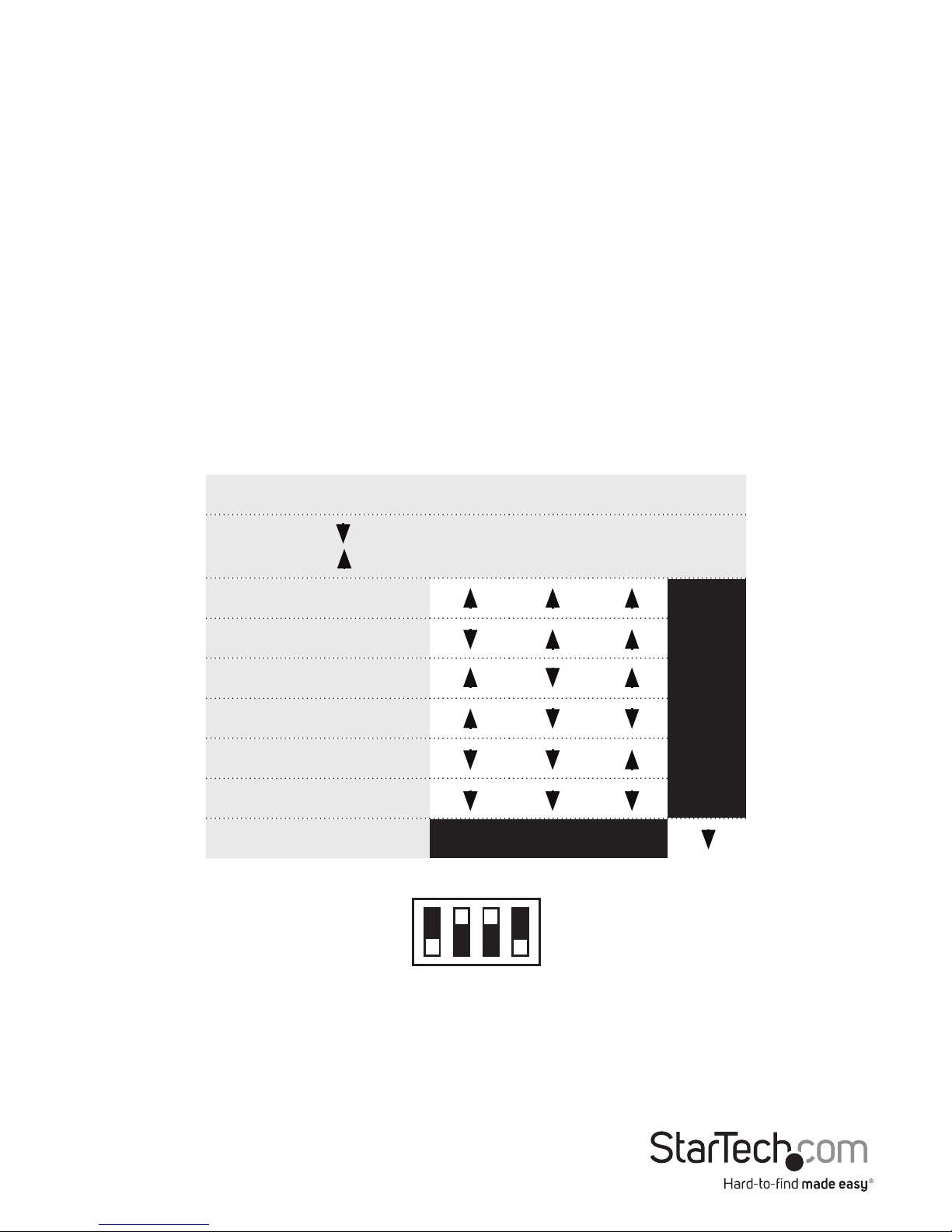

DIP Setting

ON “ “

OFF “ “ 1 2 3 4

UTP/NWAY

1000/FULL

100/FULL

100/HALF

10/FULL

10/HALF

LFP ON IGNORE

123 4 ON

Instruction Manual

Installation

1. Insert a compatible SFP Gigabit module into the open SFP slot

2. Connect the power supply to the Fiber Media Converter

3. Connect the appropriately terminated Fiber cable to the Fiber Tx/Rx port

4. Connect the other end of the ber cable into the router/switch/computer NIC/

another media converter (Remember to reverse the TX and RX leads between the

two devices)

5. Connect an Ethernet patch cable to the Fiber Media Converter “LAN”port

6. Connect the other end of the Ethernet patch cable to your endpoint device

Link-Fault-Pass Through (LFP) Note

This media converter incorporates a ber link pass through feature which allows

indirect sensing of a ber link loss via 10/100/1000 Base‐TX UTP connection. Whenever

the media converter detects a link loss condition on the receive ber (FX LNK O),

it disables its UTP transmitter so that a link loss condition is sensed on the receive

UTP port. (See the following gure) The link loss can then be sensed and reported by

network management agent at the remote UTP port’s host equipment.

The LFP feature has no eect on the media converter’s UTP Link LED, which continues

to function normally, independent of the state of the ber LNK LED and the UTP

transmitter. This feature is disabled by default from the factory.

UTP UTP

Link Link

Fiber

Remote Fault

Switch

or PC

Switch

or PC

TX (OFF)

RX (OFF)

Figure: Fiber Break Responses

Fail Fail

TX RX

RX TX

Instruction Manual

Specications

Connectors

1 x RJ45 Ethernet

1 x SFP slot

1 x DC Jack power connector

Power Output 48V DC @ 15.4W Supported

Transmission Standards

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-SX

IEEE802.3af PoE

IEEE802.3x Flow Control

Duplex Modes Full/Half Duplex Ethernet mode

Dimensions 145mm x 65mm x 35mm

Weight 600g

Note

Fiber data transfer speeds and distances

are dependant on the SFP used

(sold seperately)

Instruction Manual
