StarTech.com ST12MHDLNV Manual de usuario

Manual Revision: 06/12/2020

User Manual

For the latest information and specications visit

www.startech.com/ST12MHDLNV

HDMI® over IP Extender | 1080p

Actual product may vary from photos

SKU#: ST12MHDLNV

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Compliance Statements

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment o and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

• Reorientorrelocatethereceivingantenna

• Increasetheseparationbetweentheequipmentandreceiver

• Connecttheequipmentintoanoutletonacircuitdi󱐯erentfromthatto

whichthereceiverisconnected

• Consultthedealeroranexperiencedradio/TVtechnicianforhelp

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du

Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other

Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and

other protected names and/or symbols of third-party companies not related in

any way to StarTech.com. Where they occur these references are for illustrative

purposes only and do not represent an endorsement of a product or service

by StarTech.com, or an endorsement of the product(s) to which this manual

applies by the third-party company in question. Regardless of any direct

acknowledgement elsewhere in the body of this document, StarTech.com

hereby acknowledges that all trademarks, registered trademarks, service marks,

and other protected names and/or symbols contained in this manual and

related documents are the property of their respective holders.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Safety Statements

Safety Measures

• Wiringterminationsshouldnotbemadewiththeproductand/or

electriclinesunderpower.

• Cables(includingpowerandchargingcables)shouldbeplacedand

routedtoavoidcreatingelectric,trippingorsafetyhazards.

Mesures de sécurité

• Lesterminaisonsdecâblâgenedoiventpasêtree󱐯ectuéeslorsquele

produitet/oulescâblesélectriquessontsoustension.

• Lescâbles(ycomprislescâblesd’alimentationetdechargement)

doiventêtreplacésetacheminésdefaçonàévitertoutrisque

électrique,dechuteoudesécurité

安全対策

• 電源が入っている状態の製品または電線の終端処理を行わないでくださ

い。

• ケーブル（電源ケーブルと充電ケーブルを含む）は、適切な配置と引き回し

を行い、電気障害やつまづきの危険性など、安全上のリスクを回避するよう

にしてください。

Misure di sicurezza

• Iterminialideilielettricinondevonoessererealizzateconilprodotto

e/olelineeelettrichesottotensione.

• Icavi(inclusiicavidialimentazioneediricarica)devonoessere

posizionatiestesiinmododaevitarepericolidiinciampo,rischidi

scosseelettricheopericoliperlasicurezza.

Säkerhetsåtgärder

• Monteringavkabelavslutningarfårintegörasnärproduktenoch/eller

elledningarnaärströmförda.

• Kablar(inklusiveelkablarochladdningskablar)skadrasochplaceraspå

såsättattriskförsnubblingsolyckorochandraolyckorkanundvikas.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Table of Contents

Compliance Statements........................................................................1

Safety Statements..................................................................................2

Product Diagram....................................................................................4

Transmitter .................................................................................................................................................. 4

Receiver ........................................................................................................................................................ 5

Product Information..............................................................................6

Package Contents ..................................................................................................................................... 6

Requirements ............................................................................................................................................. 6

Connecting the Extender......................................................................7

Point to Point .............................................................................................................................................. 7

One Transmitter to Multiple Connections (Network Method).................................................. 9

One Transmitter to Multiple Connections (Cascading Method - Maximum of 3 HDMI

Receivers)..................................................................................................................................................... 11

(Optional) Installing the IR Receiver and Blaster ..............................12

(Optional) Mounting the Extender......................................................13

Changing the Power Adapter Clips .....................................................14

Video Resolution Performance ............................................................14

LED Indicators.........................................................................................14

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

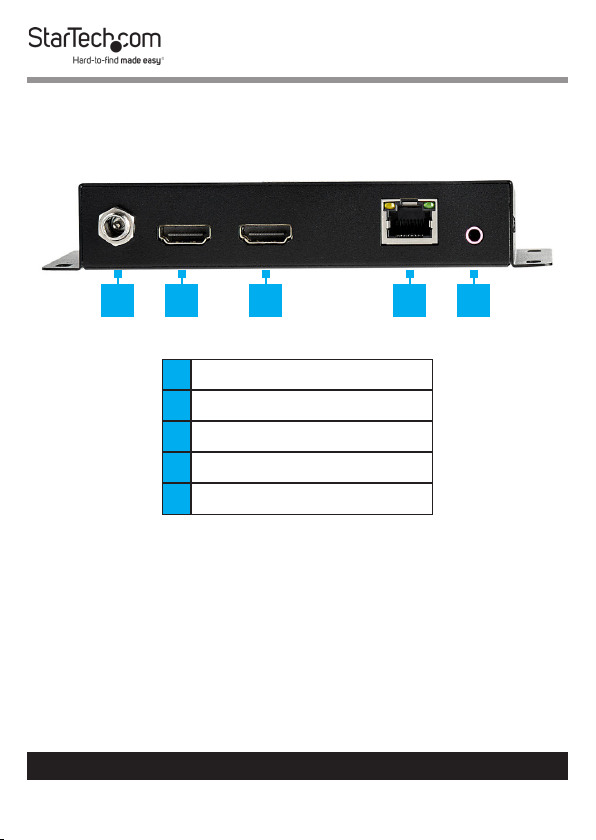

Product Diagram

Transmitter

112V DC Port

2HDMI In

3HDMI Out

4RJ45 Port

5IR Out Port

1 2 3 4 5

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Receiver

112V DC Port

2HDMI Out

3IR In Port

4RJ45 Port (x2)

1 2 3 4

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Information

Package Contents

• HDMI over IP Transmitter x 1

• HDMI over IP Receiver x 1

• Power Adapter (NA, UK, EU and AU clips) x 2

• IR Blaster x 1

• IR Receiver x 1

• Mounting Screws x 4

• Rubber Feet x 8

• User Manual x 1

Requirements

Display

• HDMI Display Device x 1

• (Optional) HDMI Display Device x 1

Video Source Device

• Video Source (e.g. Host Computer, Media Player) x 1

Cables

• CAT5e/6 Cable x 1

• HDMI Cables x 3

Optional

• Network Device (e.g. Switch) x 1

• IR Remote Control x 1

Tools

• Phillips Head Screwdriver x 1

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Connecting the Extender

Point to Point Conguration

Point to Point

Connecting the HDMI Transmitter

1. Place the HDMI Transmitter near the Video Source Device.

2. Connect an HDMI Cable (sold separately) to the HDMI In

Port on the HDMI Transmitter and the other end to an

HDMI port on the Video Source Device (e.g. host computer).

3. Connect an HDMI Cable to the HDMI Out Port on the HDMI

Transmitter and the other end to an HDMI Port on the

Display Device (e.g. Monitor).

Connecting the HDMI Receiver

1. Place the HDMI Receiver near the Display Device.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

2. Connect an HDMI Cable to the HDMI Out Port on the HDMI

Receiver and the other end to an HDMI port on the Display

Device (e.g. monitor).

3. Connect an Cat5e/Cat6 Cable to the RJ45 Port on the

HDMI Receiver and the other end to an RJ45 Port on a

HDMI Transmitter.

Powering the Extender

• Connect the Power Adapters to the 12V DC Port on both

the HDMI Transmitter and the HDMI Receiver and the other

ends to AC Electrical Outlets.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

One Transmitter to Multiple

Connections (Network Method)

One to Multiple Connection

In order to use this conguration, an existing IP network,

Network Switch (sold separately), and multiple HDMI Receivers

(sold separately) are required.

Notes: A minimum of 100Mbps of bandwidth is required per

Receiver (e.g. 100Mbps is needed for one transmitter and

one receiver).

Each Ethernet connection in the setup needs to be at least

100Mbps.

Only one transmitter can be connected to a network at a

time.

A DHCP Server is required to be connected to the network in

order to automatically assign an IP Address to the Extender.
