StarTech.com SVID2USB23 Manual de usuario

Manual Revision: 02/11/2011

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

SVID2USB23

USB 2.0 Video Capture Cable

*actual product may vary from photo

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual i

Table of Contents

Introduction ............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements .............................................................................................................................. 1

Installation ..............................................................................................2

Verifying Installation ................................................................................................................................ 3

Software Installation (Optional) ........................................................................................................... 4

Specications ..........................................................................................5

Technical Support ..................................................................................6

Warranty Information ............................................................................6

Instruction Manual 1

Introduction

The StarTech.com SVID2USB23 USB 2.0 S-Video/Composite video Capture Cable lets

you connect devices that output S-Video or Composite video to a computer, through

an available USB 2.0 port. The cable also features two channel RCA stereo audio inputs,

that let you capture the audio that accompanies the S-Video or Composite video

signal. Support for TWAIN drivers to enable various third party video capture software,

the capture cable oers real time MPEG1 and MPEG2 recording.

Packaging Contents

• 1 x USB Video Capture Cable

• 1 x Driver Installation CD

• 1 x Software Installation CD

• 1 x Instruction Manual

System Requirements

• USB 2.0 enabled computer system with available USB port

• Microsoft® Windows® 2000/XP/Vista/7 (32/64-bit)

Instruction Manual 2

Installation

1. Please insert the included Driver CD into the CD-ROM Drive.

2. At the Windows desktop, click the Start button, then “Run”. If this option is not

available from the Start menu, press and hold the Windows key ( ) on the

keyboard and press “R”.

3. Type “D:\EM2860\Setup.exe” into the Run window and click the OK button. (Change

D: to match your CD-ROM drive letter)

4. The Driver install program will being. Proceed through any prompts as necessary.

If a Windows Security dialog window appears, click the “Install this driver software

anyway” or “Continue Anyway” option to proceed.

5. Restart Windows to complete the driver installation.

6. Once the computer has booted into Windows, plug the SVID2USB22 adapter cable

into an available USB2.0 port.

7. Windows should automatically detect new hardware and begin to load the drivers.

Instruction Manual 3

8. If a Windows Security dialog window appears, click the “Install this driver software

anyway” or “Continue Anyway” option to proceed.

9. Connect the video source to the video capture adapter either through S-Video

(black) or composite video (yellow) using the appropriate cables. Stereo audio (red/

white) can also be connected to the adapter.

Verifying Installation

From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then

select Manage. In the new Computer Management window, select Device Manager

from the left window panel.

Click on the “+” (plus sign) in front of “Sound, video and game controllers”, a “USB 2861”

or “AV Grabber” device and/or a USB audio device should be displayed under this

category depending on the operating system.

*actual device name may vary

Instruction Manual 4

Software Installation (Optional)

To install Ulead® VideoStudio® for use as video capture and editing software, follow

these installation steps. If other video capture/editing software is to be used, then this

is not necessary.

1. Place the Ulead Video Studio SE CD into a CD-ROM drive and setup should launch

automatically. If setup does not launch, use Windows Explorer to navigate to

appropriate CD-ROM drive and run the Setup.

2. The installation wizard will start the installation process, click OK to start installing.

NOTE: The serial installation key is included on the back of the CD sleeve.

3. Follow the installation wizard and complete the steps to nish Ulead VideoStudio 11

SE DVD software.

NOTE: For any further assistance with installation, how-to-use or troubleshooting

VideoStudio problems, please contact the developer of the software, Ulead (www.

ulead.com).

Instruction Manual 5

Specications

Host Interface USB 2.0

Chipset ID eMPIA EM2860

External Connectors

1 x USB type A male

1 x RCA composite female (yellow)

2 x RCA stereo audio female (red/white)

1 x S-Video female (black)

LEDs 1 x Power

Supported Video Systems NTSC, PAL, SECAM

Maximum Video Resolution 720x480 (NTSC), 720x576 (PAL)

Video Encoding Support MPEG1, MPEG2

Audio Yes

Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)

Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)

Humidity 5% ~ 85% RH

Dimensions 92.0mm x 33.0mm x 11.0mm

Weight 60g

Compatible Operating Systems Windows 2000/XP/Vista/7

(32/64-bit)

Instruction Manual 6

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in materials and

workmanship for the periods noted, following the initial date of purchase. During

this period, the products may be returned for repair, or replacement with equivalent

products at our discretion. The warranty covers parts and labor costs only. StarTech.

com does not warrant its products from defects or damages arising from misuse, abuse,

alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

StarTech.com has been making “hard-to-nd easy” since 1985, providing high

quality solutions to a diverse IT and A/V customer base that spans many channels,

including government, education and industrial facilities to name just a few. We

oer an unmatched selection of computer parts, cables, A/V products, KVM and

Server Management solutions, serving a worldwide market through our locations in

the United States, Canada, the United Kingdom and Taiwan.

Visit www.startech.com today for complete information about all our products and

to access exclusive interactive tools such as the Cable Finder, Parts Finder and the

KVM Reference Guide. StarTech.com makes it easy to complete almost any IT or A/V

solution. Find out for yourself why our products lead the industry in performance,

support, and value.

Tabla de contenidos

Otros manuales de Cables y conectores de StarTech.com

StarTech.com

StarTech.com DPMDPHD2HD Manual de usuario

StarTech.com

StarTech.com ST122LE Manual del sistema

StarTech.com

StarTech.com SVID2USB2NS Manual de usuario

StarTech.com

StarTech.com USB2LINK Manual de usuario

StarTech.com

StarTech.com USBC3LINK Manual de usuario

StarTech.com

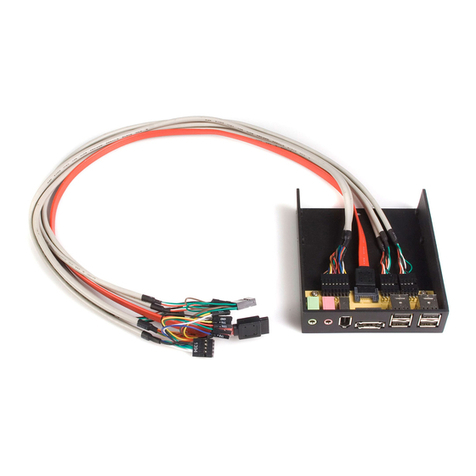

StarTech.com 35BAYPANELBK Manual de usuario
