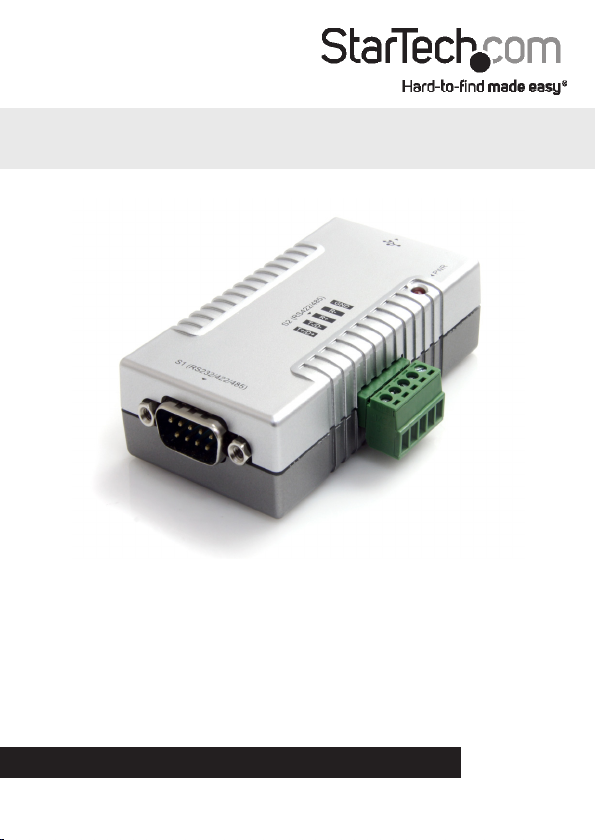

ICUSB2324852

2 Port USB to RS232/422/485 Serial

Adapter with COM Retention

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use ofTrademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Side 1 View................................................................................................................................................... 2

Side 2 View................................................................................................................................................... 2

Installation ..............................................................................................3

Dip Switch Settings .................................................................................................................................. 3

Pinout Diagram ......................................................................................4

Specications..........................................................................................5

Technical Support ..................................................................................6

Warranty Information............................................................................6

Instruction Manual

Introduction

The StarTech.com 2-Port USB to RS232/422/485 Serial Adapter provides two serial

ports to a USB compatible desktop, laptop or netbook computer system. Capable of

RS232/422/485 serial modes, and both a DB9 and 5-wire terminal block connector, this

serial adapter is a versatile solution for adding external serial connectivity to a newer

computer system that does not have any serial ports.

Packaging Contents

• 1 x USB to Serial adapter

• 1 x Wall Mounting Bracket

• 1 x USB cable

• 1 x Driver Installation CD

• 1 x Instruction Manual

System Requirements

• USB enabled computer system with available USB port

• Microsoft®Windows®2000/XP/Server 2003/Vista/Server 2008 R2/7 (32/64-bit), XP

Embedded, Windows CE 4.2/5.2/6.0, or Windows Mobile 2003/5/6, or Apple®Mac

OS®9.8/10.x, or Linux®kernel 2.4.x or later

Instruction Manual

Side 1 View

Side 2 View

USB connector (Host) Power connector

DB9 connector (S1)

Supports RS232/422/485

Terminal Block (S2)

Supports RS422/485

Power LED

*actual product may vary from photos

Instruction Manual

Installation

1. Connect the USB adapter into an available USB port on the computer. If the USB

adapter is unable to draw enough power from the USB port, connecting an external

power adapter (not included) may be required.

2. Insert the Driver Installation CD into the computer’s CD/DVD drive.

3. Access the CD and go into the “USB_to_IO \ FDTI” folder. Enter the folder for the

operating system of the computer system.

4. Run the driver installation program (e.g. CDM20600.exe) and follow the prompts.

Once the installation program nishes, the drivers for the adapter should be

installed. Unplug and reconnect the adapter if not.

5. Set the DIP switches on the bottom of the unit to the appropriate serial mode (see

“How to Use”).

6. Connect the serial devices to the DB9 serial connector (S1) and/or the 5-wire

Terminal Block serial connector (S2).

7. If mounting the USB adapter to a wall or surface, rst mount the included wall

mount bracket to the surface with four mounting screws (not provided). Make sure

to use the appropriate type of mounting hardware for the intended wall/surface.

8. Once the bracket is mounted, the USB adapter can be placed into the bracket and

it will simply snap into place. The USB adapter can be removed from the bracket by

simply pulling it free.

Dip Switch Settings

There are 4 DIP switches for each port on the adapter, used to set the operating mode

(serial protocol) and terminator settings. The DIP switches are located on the bottom

of the unit, and each port can be congured independently of the other.

DIP Switches for S1 and S2

NOTE: The port S2 can only operate in RS422/485 modes.

Instruction Manual

DIP Switch Setting Description

RS485 - 2-wire

(default)

RS485 - 4-wire

RS422

RS232

NOTE: switch 3 and 4 must be set to OFF for RS232

mode to work correctly.

Pinout Diagram

RS232

RS422(4-wire)/485 (4-wire/2-wire)

TxD- (Data-)

TxD+ (Data+)

RxD-

RxD+

GND

Instruction Manual

Specications

Bus Interface USB 2.0

Chipset ID FTDI FT2232H

Connectors

1 x DB9 male

1 x 5-wire Terminal Block

1 x USB type B female

LEDs 1 x Power

Supported Protocols RS-232/422/485

Maximum Data Transfer Rate 921.6 Kbps

Operating Temperature 0°C ~ 55°C (32°F ~ 131°F)

Storage Temperature -20°C ~ 85°C (-4°F ~ 185°F)

Humidity 5% ~ 95% RH

Dimensions 82.3mm x 44.2mm x 22.2mm

Weight 300g

Compatible Operating Systems

Windows 2000/XP/Server 2003/Vista/

Server 2008 R2/7 (32/64-bit), XP Embedded,

Windows CE 4.2/5.2/6.0, or Windows Mobile

2003/5/6, Mac OS 9.8/10.x,

Linux kernel 2.4.x or later

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.
