Star Trac 4-TR Manual de usuario

OWNER'S

MANUAL

CORE HEALTH & FITNESS

4-TR TREADMILLS

Page 1

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS................................................................................................................2

IMPORTANT LABEL LOCATIONS ........................................................................................................................4

PRODUCT SPECIFICATIONS ........................................................................................................................5

PART IDENTIFICATION ........................................................................................................................7

OPERATION - LCD CONSOLES ........................................................................................................................8

CONSOLE KEY FUNCTIONS ................................................................. 10

OPERATION - 10IN

TOUCHSCREEN CONSOLES ......................................................................................................................12

SCREEN VIEWS ................................................................. 14

WORKOUT SELECTION KEYS AND PROGRAM DEFINITIONS.................. 16

OPERATION - OPENHUB

TOUCHSCREEN CONSOLES ......................................................................................................................17

SCREEN VIEWS ................................................................. 20

WORKOUT SELECTION KEYS AND PROGRAM DEFINITIONS.................. 22

PROGRAM UPLOAD ................................................................. 23

MENU MAP - TREADMILL ................................................................. 25

MAINTENANCE MODE ......................................................................................................................26

LCD CONSOLE ................................................................. 26

CALIBRATION - 4TR LCD ................................................................. 29

CALIBRATION - 4TR 10” TOUCHSCREEN.................................................. 30

CALIBRATION - 4TR 15” EMBEDDED......................................................... 31

ADJUSTING MOVING SURFACE TENSION ................................................ 33

MAINTENANCE ......................................................................................................................34

TOOLS ................................................................. 34

MAINTENANCE SCHEDULE ................................................................. 35

SUPPORT & SERVICE ......................................................................................................................37

Page 2

Before using this product, it is essential to read the ENTIRE Owner’s Manual and ALL

installation instructions. The Owner’s Manual describes equipment setup and instructs

members on how to use correctly and safely.

Read all warnings posted on the machine.

Health related injuries may result from incorrect or excessive use of exercise equipment.

Core Health & Fitness strongly recommends you to encourage your members to discuss their

health program or ﬁtness regimen with a health care professional, especially if you or they

have not exercised for several years, are over 35, or have known health conditions.

WARNING!

IMPORTANT SAFETY INSTRUCTIONS

DANGER - to reduce the risk of electrical

shock:

1. Always unplug the machine from the electrical

outlet before cleaning or servicing.

2. This machine is not intended to be serviced by

the end user, refer servicing to qualiﬁed personnel

only.

3. This Treadmill is designed for aerobic exercise

in a gymnasium or heath club environment (FOR

COMMERCIAL USE). It is wired for either 110

VAC 20A OR 230 VAC 15A nominal power input.

It is factory-equipped with a speciﬁc electric

cord and plug to permit connection to the proper

electric circuit. Make sure that the treadmill is

connected to a dedicated power line having an

outlet with the same conﬁguration as that of the

plug:

• 20A for 110V models

• 15A for the 230V models

4. If the power supply cord is damaged, it must be

replaced by the manufacturer, its service agent,

or similarly qualiﬁed persons in order to avoid

hazard.

5. Do not operate treadmill in damp or wet

locations.

WARNING - to reduce the risk of injury to

person:

24 in (0.6 m)

79 in (2.0 m)

Fig. 1 Required Clearance

1. Assemble and operate the machine on a solid

level surface. Position the machine with a

minimum of 24 inches (0.6 meters) of clearance

on each side to allow for ease of mounting and

dismounting. Allow for 79 inches (2.0 meters) of

clearance behind the machine. Leave a minimum

of 19.7 inches (0.5 meters) between two adjacent

units. These dimensions are the recommended

minimum distances.

The actual area for access and passage shall be

the responsibility of the facility and should take

into account this training envelope, Americans

with Disabilities Act Accessibility Guidelines

(ADAAG) requirements and any required local

codes or regulations (www.access-board.gov/

ada).

Page 3

2. Do not exceed the maximum allowable weight

limit of:

• 4-TR - 450 lbs. / 204 kg.

3. Familiarize yourself with the location of the

STOP buttons on the console. If you experience

difﬁculties during the workout, pushing the STOP

button will bring the machine to a stop.

4. Lock your treadmill when not in use. Use the

Lockout EN option in MAINTENANCE MODE

to enable or disable treadmill lockout. When

the treadmill is locked, the display shows the

message “TREADMILL LOCKED, PRESS 0 TO

ENTER ID”. The user must press “0”, enter the

3-digit ID number (default=999), then press

ENTER to unlock the treadmill. The treadmill will

then operate as normal (NOTE: The treadmill will

lock back up if it is idle for 30 seconds).

5. Use care when getting on or off the treadmill.

Always use the handrails. Do not step off of the

treadmill while it is moving. Press the STOP

button and wait for the treadmill to come to a

complete stop before dismounting.

6. Inspect the treadmill for incorrect, worn, or loose

components and then correct, replace, or tighten

prior to use.

7. Obtain a medical exam before beginning any

exercise program. If at any time during exercise

you feel faint, dizzy, or experience pain, stop and

consult your physician.

8. Keep children away.

9. Do not wear loose or dangling clothing while

using the treadmill.

10. Do not operate the machine if the motor shroud

is removed or if the power cord is damaged in

any manner. Keep all air openings free from dirt

or any material that would block the ﬂow of air to

the motor.

11. Keep the top side of the moving surface clean

and dry.

12. The safety and integrity of this machine can only

be maintained when the equipment is regularly

examined for damage and wear and repaired.

It is the sole responsibility of the owner of this

equipment to ensure that regular maintenance

is performed. Worn or damaged parts must be

replaced immediately or the equipment removed

from service until the repair is made.

13. WARNING: Heart rate monitoring systems

may be inaccurate. Over-exercising may result

in serious injury or death. If you feel faint stop

exercising immediately.

14. Noise emission under load is higher than without

load.

SAVE THESE INSTRUCTIONS

Page 4

This page shows examples of the warning labels and communication stickers placed on the equipment as part of the manufacturing process. It is critical that own-

ers maintain the integrity and placement of these stickers. If you ﬁnd any stickers missing or damaged the replacement numbers are shown on the support site.

See Support and Service to order replacements. For console warnings, refer to console documentation for part replacement. NOTE: STICKERS AND LABELS

ARE NOT SHOWN TO SCALE

Serial Label

050-2159

Console Warning

050-5587

Fig. 2 15” OpenHub Console Shown

050-2159

LABEL, CAUTION, PINCH POINTS, TR

050-5587

LABEL, STAR TRAC, 398.6 X 58.8

IMPORTANT LABEL LOCATIONS

P/N: 050-5456 Rev C

CERTIFICATIONS

PHASE

MAX USER

WEIGHT

WATTS

VOLT

AMPS

CYCLES

DATE

DESIGNED IN THE USA

MADE IN CHINA

Patents: www.corehealthandfitness.com/patents

PRODUCT NAME:

1-888-678-2476

Vancouver, WA 98662 USA

4400 NE 77th Avenue, Suite 300

Core Health & Fitness, LLC

Class SB Fitness Equipment for Commercial use.

Conforms to STD EN ISO 20957-1 & EN957-6.

4005712

MM/YYYY

SINGLE

50/60 Hz

1650

110V/15A

9-3613-MUNBP0

TR3613L15433100

450 lbs

(204 kg)

4-TR

Treadmill

Page 5

Fig. 3 15” OpenHub Console shown

SKU: 9-3613 110V, 15AMP, UL/CSA

9-3614 220V, UL/CSA/CE

Desc: 4-TR Treadmill

Unit Weight Width Length Height Belt Width

Max User

Weight

873 lbs

396 kg

32 in

81 cm

82 in

208 cm

60.5 in

154 cm

21.5 in

55 cm

0-450 lbs

0-204 kg

PRODUCT SPECIFICATIONS

Page 6

Other Consoles

Fig. 4 10” Touchscreen Console

Fig. 5 LCD Console

Page 7

Fig. 6 4-TR Features, 15” OpenHub Console Shown

PART IDENTIFICATION

# Part # Part # Part

AConsole FSafety Stop (Cord) KFoot

BFront Handlebar GMoving Surface LElevation Frame

CHeart Rate Grips HDeck MMotor Shroud

DSafety Stop (Button) IRear Roller Shroud

EHandrail JRear Roller

Page 8

SAFETY FIRST

Your treadmill is equipped with an easy to

reach HOT BAR® that provides you with an

additional PAUSE/STOP button and a Stop

Switch.

The Stop Lanyard Clip attached to the HOT

BAR® is provided for your protection to stop

the machine.

Always attach the Stop Lanyard Clip

to your clothing before each workout.

Attach it to your clothes near the waistline.

If the cord is pulled the Stop Switch will be

activated and the treadmill will stop operating.

If the Stop Switch has been activated, press

the smaller yellow RESET button to reset the

treadmill and resume normal operation.

During use, press the red STOP button to PAUSE your workout. Press the STOP button a second time while in

Pause mode to stop and cancel the workout program.

Important: Facility owners, managers, personal trainers and personnel. Remind users of the importance of

using the Stop Lanyard Clip. It is the facility’s responsibility to train and instruct the proper use of this treadmill,

including the safety features.

Note: A clipping feature is provided in the display housing to store the Stop Lanyard Clip when the treadmill is

not in use.

SAVE THESE INSTRUCTIONS

Stop Lanyard Clip

Stop Button

Reset Button

Fig. 7 10” Non-Touchscreen Shown

OPERATION - LCD CONSOLES

Page 9

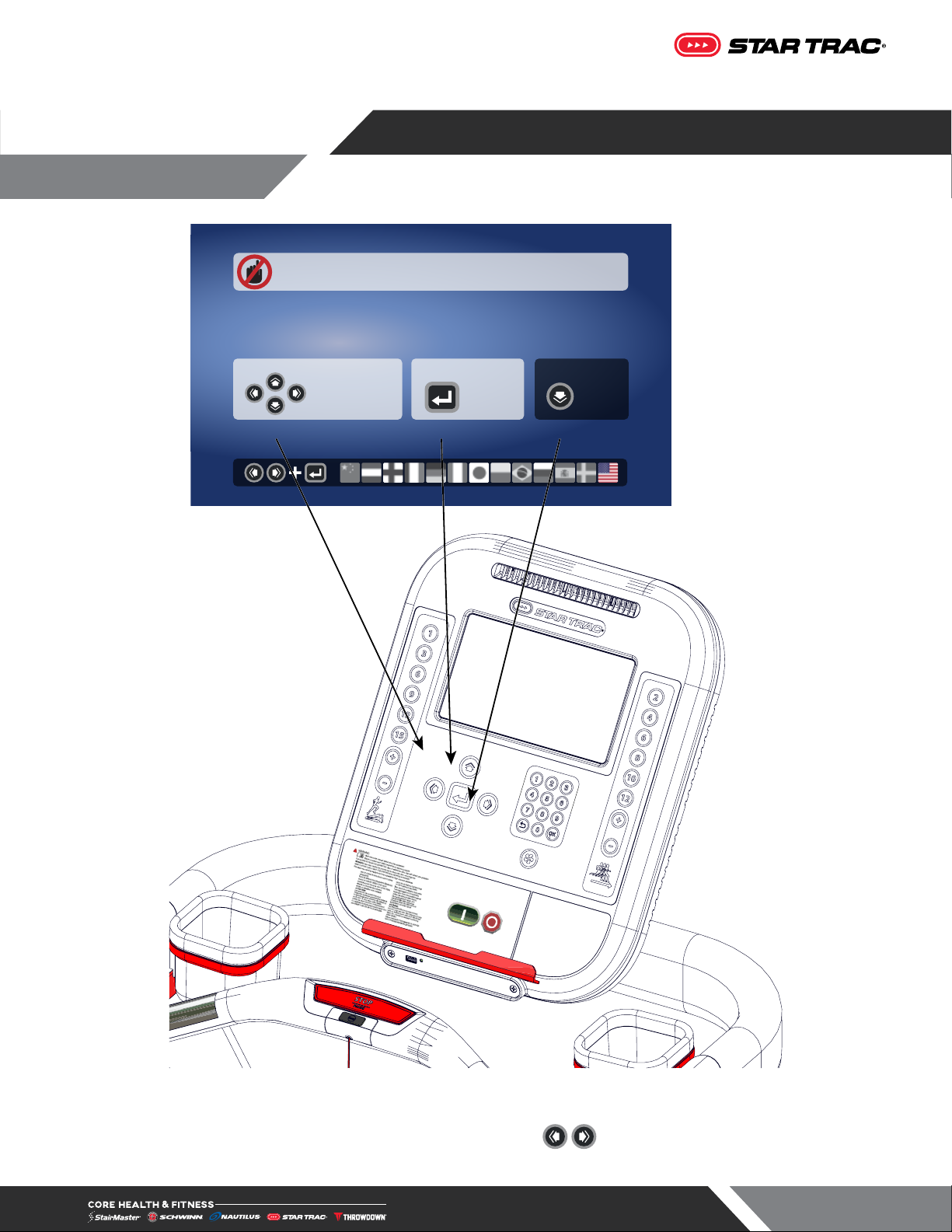

NOT A TOUCHSCREEN

31 2

to highlight

selection options

USE

to select

USE

to begin

Press

Fig. 8 10” Non-Touchscreen Shown

Use the keypad controls on the console to select through the screens. After selecting options or immediately

after selecting quick start, the active screen will display. Use the buttons to switch between active

views.

Otros manuales para 4-TR

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Rueda de andar de Star Trac

Star Trac

Star Trac E-TR Manual de usuario

Star Trac

Star Trac E-TRx Manual de usuario

Star Trac

Star Trac E-TRe Manual de usuario

Star Trac

Star Trac TR901 Manual de usuario

Star Trac

Star Trac Pro Manual de usuario

Star Trac

Star Trac 2000 series Manual de usuario

Star Trac

Star Trac FREERUNNER 10-TRx Manual de usuario

Star Trac

Star Trac TR1800 Series Manual de usuario

Star Trac

Star Trac TR 3900 Dimensiones

Star Trac

Star Trac Pro S Manual de usuario

Star Trac

Star Trac 4-TR Manual de usuario

Star Trac

Star Trac 1000 Manual de usuario

Star Trac

Star Trac E-TRx Manual de usuario

Star Trac

Star Trac E-TRx Manual de usuario

Star Trac

Star Trac 3900 Manual de usuario

Star Trac

Star Trac E Series Manual de operación

Star Trac

Star Trac Pro S Manual de usuario

Star Trac

Star Trac 3900 Manual de usuario

Star Trac

Star Trac E-TR Manual de servicio

Star Trac

Star Trac E Series Manual de uso y cuidado

Star Trac

Star Trac 1500 Manual de usuario

Star Trac

Star Trac 8TRx Manual de usuario

Star Trac

Star Trac 1500 Manual de usuario

Star Trac

Star Trac Star Trac Fitness S-TR Manual de usuario

Manuales populares de Rueda de andar de otras marcas

Treadly

Treadly TREADLY 2 Manual de usuario

HEALTH ONE

HEALTH ONE Walk Ro Manual de usuario

NordicTrack

NordicTrack NTL12941 Manual de usuario

NordicTrack

NordicTrack T7.5 S Manual de usuario

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Manual de usuario

Merax

Merax MS282992 Manual de usuario

FYTTER

FYTTER RU-2SX Manual de usuario

Precor

Precor 903 Manual de usuario

FitLogic

FitLogic freewill d225 Manual de usuario

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Manual de usuario

Horizon Fitness

Horizon Fitness Adventure 5 Plus Manual de usuario

Stamia

Stamia InMotion II Manual de usuario

Smooth Fitness

Smooth Fitness EVO 3i Manual de usuario

NordicTrack

NordicTrack NETL81810.0 Manual de usuario

Schwinn

Schwinn 830/Journey 8.0 Manual de usuario

Keys Fitness

Keys Fitness HealthTrainer HT-740T Manual de usuario

Spirit

Spirit XT8 Manual de usuario

NordicTrack

NordicTrack T 14.0 Treadmill Manual de usuario
