Star Progetti ATEX EHSAFE15 Manual de usuario

OPERATING INSTRUCTIONS

HELIOS SAFE INDUSTRY

ATEX

1500 Watt COD. EHSAFE15

2000 Watt COD. EHSAFE20

HELIOS ELECTRIC INFRARED IRK

SAFE INDUSTRY MODEL

1500 Watt (cod. EH SAFE 15) / 2000 Watt (cod. EH SAFE 20)

DIRECTIONS

PLEASE NOTE: safe use of this equipment can only be ensured if the user complies with these directions. Users must

therefore keep these directions at hand at all times.

Helios Safe Industry is an extremely versatile infrared heater designed and constructed according to good practice

and assembled with the best components conforming to standards and/or certificates for ensuring safety during use.

TECHNICAL DATA

* ALL SPECIFICATIONS INCLUDED ARE BASED ON TESTS. OTHER RESULTS DEPEND UPON ENVIRONMENTAL

CONDITIONS DURING USE

Mark EHSAFE 5 nA IIC T2 Gc Mark EHSAFE20 nA IIC T2 Gc

ct III B T230° Dc IP66 ct III B T290° Dc IP66

-5°C £Ta£+25°C -5°C £Ta£+25°C

CONSTRUCTION

* Steel body, oven epoxy powder coating

* Extra-pure, buffed, anodically oxidized aluminium parabolic reflector

* Front (ceramic, glass)

* Silicone rubber seal

* Supply cable: length .5 m and; resistant to Temperature = 80° C

* Adjustable wall anchorage

WARNING

PLEASE NOTE: THIS HEATER IS SUITABLE FOR INSTALLATION IN EXPLOSIVE ATMOSPHERE CONDITIONS, CLASSIFIED

ZONE 2-22, PURSUANT TO DIRECTIVES 94/9 AND 99/92 EC ATEX

ZONE 2-22 indicates that the atmosphere, which is normally not explosive during routine use, may, on rare

occasions, briefly become explosive (generally in the presence of a malfunction). The heater therefore cannot be

installed in zones other than those classed as ZONE 2-22. T2 indicates that the ignition temperature of the flammable

gasses of the classified zone must be higher than 300°C. The table below (from EN 3463- ) lists other temperature

classes.

Temperature Class Maximum Surface Temperature (°C)

T 450

T2 300

T3 200

T4 35

T5 00

T6 85

Read the various i dicatio s o the ame plate. Co ditio s of use must correspo d to the data i dicated

o the ame plate.

ENGLISH

TRANSPORT

Any damage noted after delivery of low voltage appliances must be immediately reported to the transport

company. Do not set the appliance at work. Notify the technical support team for all controls required.

VENTILATION

Distance between the heater and wall or ceiling is to be as specified in the drawing on page .

PLEASE NOTE: The applia ce is certified for o -co ductive combustible dust.

Pursuant to It legislative decree no. 233/03, the employer (user) is responsible for classifying the zones. Under the

employer’s own responsibility, the said party must therefore check that the zone in which this heater is to be

installed corresponds to the category assigned to these heaters. The manufacturer of these heaters declines all

responsibility for any errors in this regard on the part of the customer, or for the heater if installed in another zone.

Use of the heater in normal (non-explosive) atmospheric conditions has no adverse effects on the functioning of the

heater or on workplace safety. Use of the heater in explosive atmospheric conditions in zones other than the certified

zone constitutes a grave danger to personal health and safety. This use and maintenance handbook contains

important indications regarding safety measures and special directions for transport, installation and use. Users must

read these directions before transporting, installing and setting at work. The symbols included below indicate safety

measures and supplementary instructions in these operational directions.

SPECIAL SAFETY INSTRUCTIONS AND GUARANTEE PLEASE NOTE

To prevent damage to objects and personal injury, users must proceed strictly in accordance with the safety measures

and supplementary instructions contained in these operational directions.

PLEASE NOTE: DO NOT SET THIS HEATER AT WORK IF IT HAS BEEN DAMAGED DURINGTRANSPORT OR IN THE

PRESENCE OF VISIBLE DAMAGE. CONTACT THE MANUFACTURER FOR FURTHER INSTRUCTIONS.

MISUSE OF THESE HEATERS MAY CAUSE DAMAGE TO OBJECTS AND LEAD TO PERSONAL INJURY

All heaters must be installed and used only by qualified persons

To prevent all risks, if the supply cable is damaged, it must be replaced by the constructor.

●≥ 8 Nm tightening torque of bracket adjustment screwsThe appliance is to be installed on non-combustible surfaces

●The devices must be connected to an earth connection system

●The components for disconnecting the devices from the power distribution network must enable complete

●disconnection under overvoltage III class conditions, in compliance with the rules for installation

●Appliance suitable for installation above a height of 2.5 m

●The distance between the glass front and the surface to be heated must be at least .5 m

●The appliance must not be used without the glass front

●The appliance must be installed outside the normal accessibility volume

●THE APPLIANCE MUST ALWAYS BE INSTALLED HORIZONTALLY

The CE mark indicates that the appliance was constructed in accordance with the EU low voltage directive

IMPORTANT NOTICE: TO PREVENT OVERHEATING OF THE BULB, THE EXTERNAL SURFACE OF THE GLASS MUST

ALWAYS BE KEPT CLEAN DISCONNECT POWER SUPPLY BEFORE CLEANING

* Connect Helios Safe Industry to a 220-240V power source, single-phase, according to the country in which the

appliance is used

* Helios Safe Industry must be connected to an earth connection system

* Check that the input power is appropriate for the electrical load to be installed

* THE APPLIANCE MUST ALWAYS BE INSTALLED HORIZONTALLY

* Do not cover or obstruct the appliance when operating

INSTALLATION/ SETTING AT WORK

These appliances can be installed, connected and set at work only by qualified persons. These persons must be

familiar with the types of anti-ignition protection, the regulations and the rules applying to the means of production

in the zone exposed to the risk of explosion. Check if the class (see the “Specifications” section above and the label

on the appliance) is suitable for specific use of the appliance.

INSTRUCTIONS FOR INSTALLATIONS/ASSEMBLY

The applia ce must always be i stalled horizo tally

Proceed in accordance with current regulations and national provisions and the pertaining instructions provided by

the manufacturer. Protect the appliances and cables to prevent all possible damage. Attach the appliance to the wall

at a minimum distance of 30 cm from the ceiling (see installation illustrations). The height at which the appliance is to

be installed generally ranges from 2.0 m to a maximum 3.5 m. Wall installation ensures an ideal position for optimal

heating results, at a tilt angle of 45° (the appliance must be perfectly horizo tal). The appliance can also be installed

on the ceiling, with chains (not supplied).

POSITIONING

Point the Helios Safe Industry reflector beam as required during wall installation. Normally the appliance is tilted at

approx. 45° with respect to the horizontal line. Never install Helios SafeIndustry on a flammable surface or direct it

toward a a flammable surface. The appliance must be positioned at a distance (line of sight) of no less than 2.0 m,

unencumbered, from objects such as cardboard, fabrics, curtains etc. or, likewise, from glass panes.

Make sure that the bracket is correctly attached and fixed to the wall. [---]

MAINTENANCE: (The applia ce is sealed, also with lead. Ope i g the applia ce or tamperi g with it is ot

permitted).

CLEANING THE GLASS AND DUSTING THE APPLIANCE

Before cleaning/dusting the appliance, make sure the atmosphere has been rendered non-explosive. When the

atmosphere cannot be rendered non-explosive, please note that operations in such environments can only be carried

out by qualified personnel, trained in regard to the specific risks. Such persons must also be provided with protection

devices (e.g. spark-proof tools etc.).

LAYERS OF DUST

Deposited dust will reduce the appliance’s capacity to dissipate heat and will therefore raise surface temperatures to

a level at which deposited combustible dust may, in certain circumstances, be ignited. To prevent such risks, the user

must plan cleaning of the heater so that it shall be as dust-free as possible.

PLEASE NOTE

Periodic maintenance of the heater is vitally important in order to constantly ensure appliance safety over time in

regard to the risk of explosions. The user must therefore proceed in conformity with the maintenance table included

in the pertaining chapter of the directions handbook. 9

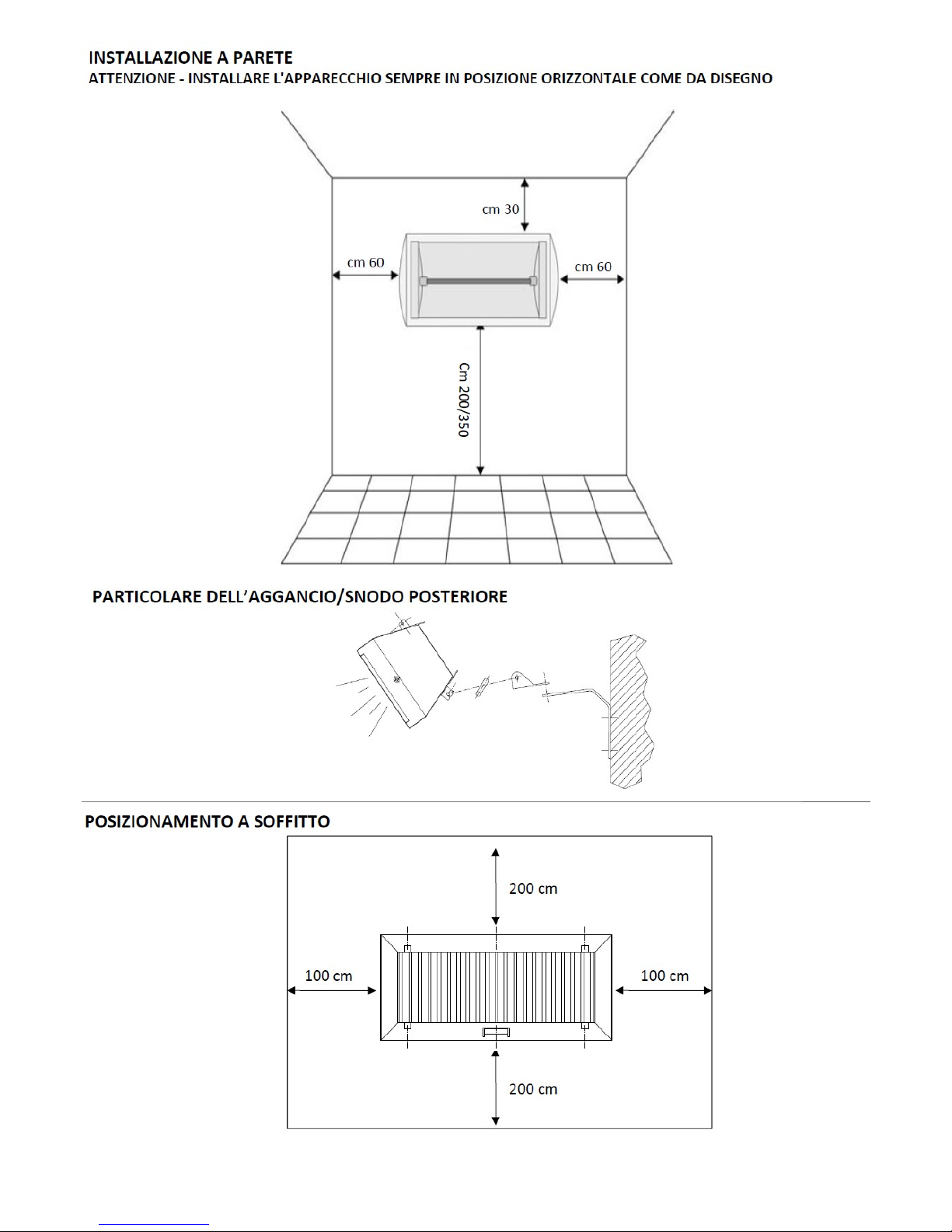

/ DIAGRAM

WALL INSTALLATION

PLEASE NOTE - THE APPLIANCE MUST ALWAYS BE INSTALLED HORIZONTALLY, AS ILLUSTRATED IN THE DRAWING

- ANCHORAGE/ REAR JOINT (DETAIL)

- CEILING INSTALLATION

www.heatxl.com/atex-infrarood-verwarming.html
