USB Installation Guide

Windows 2000 and XP

1150 King Georges Post Rd.

Edison, NJ 08837-3729 System Sales Team

Page 2

USB2.0 Installation Procedure

Before beginning installation:

•Must have a TSP600 (TSP613/643), TSP700 (TSP743) or TSP800 (TSP847) with

USB2.0 ready firmware.

Printer Firmware Version

TSP613 / TSP643 Ver3.2 –b1.1

TSP743 Ver3.2 –b1.1

TSP847 Ver4.3 –b2.1

*** Note: If you have a firmware version that was releases prior to the above-mentioned versions, please

contact a Star Micronics Customer Support Specialist today to get your printer updated ***

•Printer being used must have USB2.0 chip on printer USB interface card

*** Note: Interface version can be determined by removing interface card from the back of the printer ***

•If the printer being used has the appropriate firmware version, change the dip

switches as follows:

Dip Switch 1- 5 / 1- 6 Functionality Application

1-5 Off 1-6 On

1-6 On 1-5 Off Vender Class

Printer Class OPOS

Normal Windows Operation

•If Using the printer with OPOS, the Star Micronics OPOS drivers (Version 1.4.11 or

higher) and the Vender Class Drivers will be required

*** Note: If you do not have Version 1.4.11 of the OPOS driver or the Vender Class Driver,

please call a Star Micronics Customer Support Specialist today ***

Once all steps above are completed, installation of the USB port can occur.

To begin installation of the ‘Printer Class’ USB port, go to the next page

To begin installation of the ‘Vender Class’ USB port, go to page 7

To begin installation of the ‘OPOS Drivers’, go to page 14

To start the ‘Add Hardware Wizard’, click on ‘My Computer | Control Panel | Add/Remove

Hardware.

The ‘Add / Remove Hardware Wizard’ will open (see next page…)

1150 King Georges Post Rd.

Edison, NJ 08837-3729 System Sales Team

Page 3

InstallingUSB Printer– ‘Printer Class’ Functionality

Prior to beginning the installation of the USB ‘Printer Class’ drivers, it will be necessary for

you to obtain:

•The newest Windows Raster drivers (for drivers – www.starmicronics.com)

•Save the driver to your hard drive and extract the driver files that were downloaded

*** Note: Write down the location the driver was extracted to.

This information will be important to know for later reference ***

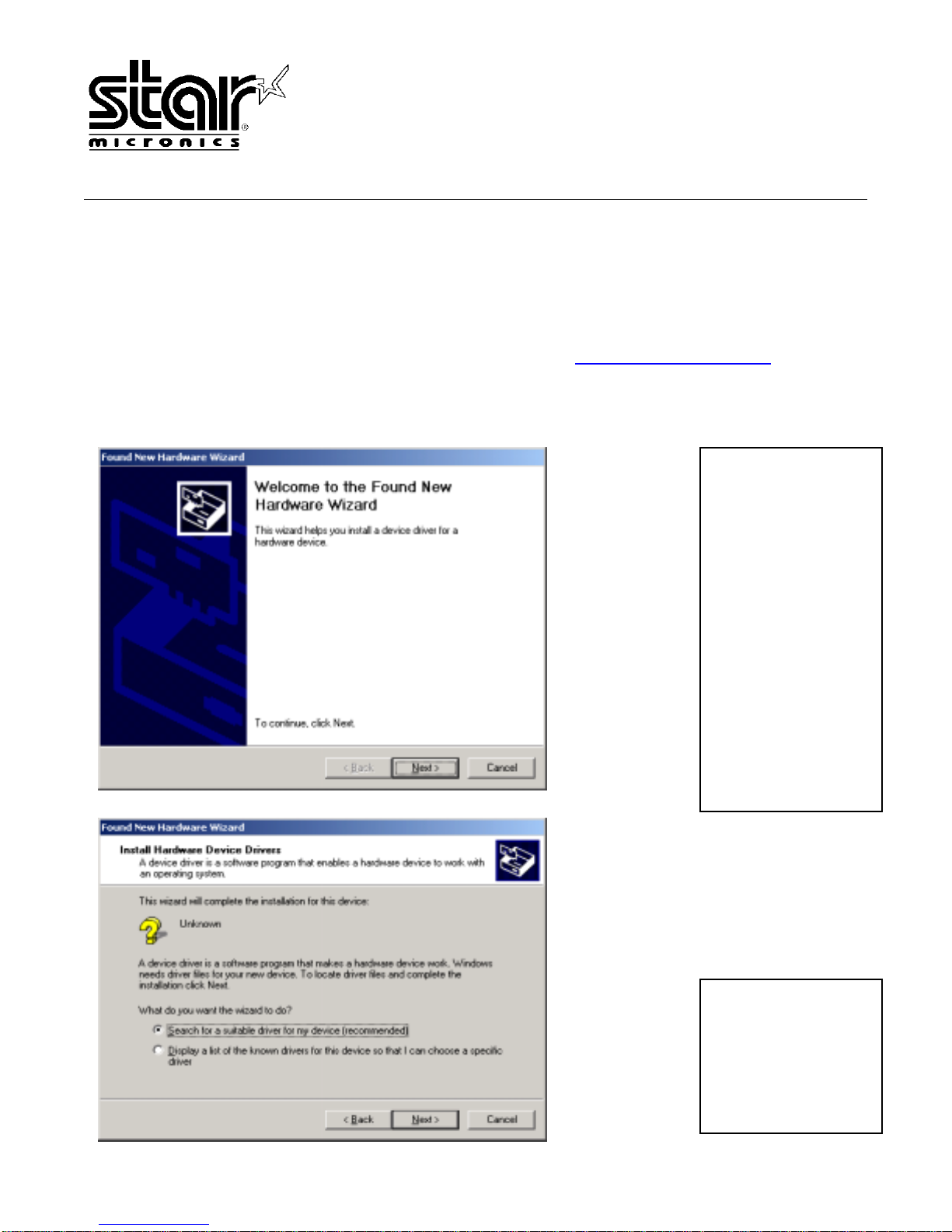

Connect the

printer to the PC

and power the

printer ‘On’

The PC will

automatically

detect the

hardware and the

‘Add New

Hardware Wizard’

will appea

Click ‘Next’

Select ‘Search for

a suitable driver

for my device’

Click ‘Next’

1150 King Georges Post Rd.

Edison, NJ 08837-3729 System Sales Team

Page 4

Check ‘Specify a

location’ and

uncheck the rest o

the options

Click ‘Next’

Click ‘Browse’ and

than locate the

extracted driver

files

1150 King Georges Post Rd.

Edison, NJ 08837-3729 System Sales Team

Page 5

Click ‘Next’

The ‘Digital

Signature Not

Found’ message

will appea

Click ‘Next’

1150 King Georges Post Rd.

Edison, NJ 08837-3729 System Sales Team

Page 6

Once the ‘Finish’ button is selected, the driver installation will be complete. At this point, the

printer will be ready for use.

Click ‘Finish’

1150 King Georges Post Rd.

Edison, NJ 08837-3729 System Sales Team

Page 7

Installing USB Printer – ‘Vender Class’ Functionality

Prior to beginning the installation of the ‘USB Vendor Class Drivers’, it will be necessary to

obtain:

•VenderClassDriver_2K-XP_20021031.ZIP

•OPOSPrinter_Win32_20021211 (OPOS Ver1.4.11)

*** Note: Version of OPOS must be at least release 1.4.11 ***

Click ‘Next’

1150 King Georges Post Rd.

Edison, NJ 08837-3729 System Sales Team

Page 8

Select

‘Add/Troubleshoot

a device’

Click ‘Next’

Select ‘Add a new

device’

Click ‘Next’

1150 King Georges Post Rd.

Edison, NJ 08837-3729 System Sales Team

Page 9

Select ‘No, I want

to select the

hardware from a

list’

Click ‘Next’

Select ‘Ports

(COM & LPT)’

Click ‘Next’

1150 King Georges Post Rd.

Edison, NJ 08837-3729 System Sales Team

Page 10

Select ‘Have

Disk…’

Click ‘Next’

Select ‘Browse’
