ENGLISH

– 1 –

ENGLISH

1. Parts Identification and Nomenclature

Roll paper User’s manual

Cover open lever

Pull this lever in the

direction of the

arrow to open the

printer cover.

Control panel

Features LED indica-

tors to indicate printer

status and switches to

operate the printer.

Ferrite core Fastener

(Parallel interface

model only) (Parallel interface

model only)

Printer cover

Open this cover to load or

replace paper.

Power switch

Used to turn on/off

power to the printer.

Power connector

For connection of

the AC adapter.

Never unplug the

AC adapter while

the printer is on.

Peripheral drive connector

Connects to peripheral

units such as cash

drawers, etc.

Do not connect this to a

telephone.

Interface connector

For connection to a

host computer.

– 2 –

ENGLISH

Choosing a place for the printer

Before actually unpacking the printer, you should take a few minutes to

think about where you plan to use it. Remember the following points

when doing this.

✓Choose a firm, level surface where the printer will not be exposed to

vibration.

✓The power outlet you plan to connect to for power should be nearby

and unobstructed.

✓Make sure that the printer is close enough to your host computer for

you to connect the two.

✓Make sure that the printer is not exposed to direct sunlight.

✓Makesurethattheprinteriswellawayfromheatersandothersources

of extreme heat.

✓Make sure that the surrounding area is clean, dry, and free of dust.

✓Make sure that the printer is connected to a reliable power outlet. It

should not be on the same electric circuit as copiers, refrigerators, or

other appliances that cause power spikes.

✓Make sure that the room where you are using the printer is not too

humid.

– 3 –

ENGLISH

2. Consumable Parts and AC Adapter

When consumable parts have run out, use those specified in the table below.

Make sure that the AC adapter specified in the table is used.

Use of consumable parts or AC adapter which are not specified in the table may

result in damage to the printer, fire or electric shock.

(1) Roll paper specification

Thermal paper

Thickness: 65~150

Width: 111.5±0.5 mm

Outer roll diameter: ø100 mm or less

Take up paper roll width: 112 mm

Core outer/inner diameter

Paper thickness Core outer Core inner

65~75

m ø18±1 mm ø12±1 mm

65~75

m ø32±1 mm ø25.4 mm

75~150

m ø32±1 mm ø25.4 mm

Printed surface: Outer edge of roll

Tail end handling: Do not use paste or glue to secure the roll paper or

its core.

Do not fold the tail end of the paper.

(2) Recommended paper

Mitsubishi Paper Mills Limited

P220AG (normal type paper), 65

m (thickness)

HP220A (high image stability paper), 65

m (thickness)

HP220AB-1 (high image stability paper), 75

m (thickness)

P220AB (normal type paper, card ticket), 85

m (thickness)

P220AC-1 (normal type paper, card ticket), 95

m (thickness)

P220AC (normal type paper, card ticket), 105

m (thickness)

P220AD (normal type paper, card ticket), 130

m (thickness)

P220AE-1 (normal type paper, card ticket), 150

m (thickness)

Oji Paper Co., Ltd.

PD150R (normal type paper), 75

m (thickness)

PD160R (high image stability paper), 65/75

m (thickness)

Nippon Paper Industries

TF50KS-E2C (normal type paper), 65

m (thickness)

Depending on the type and thickness of the paper, it may be necessary to change

the settings for printing darkness. To change the darkness settings, use the

printing darkness settings command <ESC><RS> ‘d’ n. Refer to the separate

programmer’s manual for details.

+0.3

-1

– 4 –

ENGLISH

(3) AC adapter (option)

Model name: PS60-24 A

Input: 100 to 240 V AC, 50/60 Hz

Output: DC24±5%, 2.0 A (5.0 A Load 10 sec. Max)

Important!

AccessthefollowingURLfortheinformationoftherecommendedpaper.

http://www.star-micronics.co.jp/

– 5 –

ENGLISH

3. Connecting Cables and AC Adapter

3-1. Interface Cable

3-1-1. Ferrite Core Installation (Parallel interface model only)

(1)Foronlytheparallelinterfacemodel,

affix the ferrite core onto the cable

as shown in the illustration below.

(2)Pass the fastener through the ferrite

core.

(3)Loop the fastener around the cable

and lock it. Use scissors to cut off

any excess.

Ferrite core

Interface cable

5 cm

maximum

Fastener

Pull and cut

– 6 –

ENGLISH

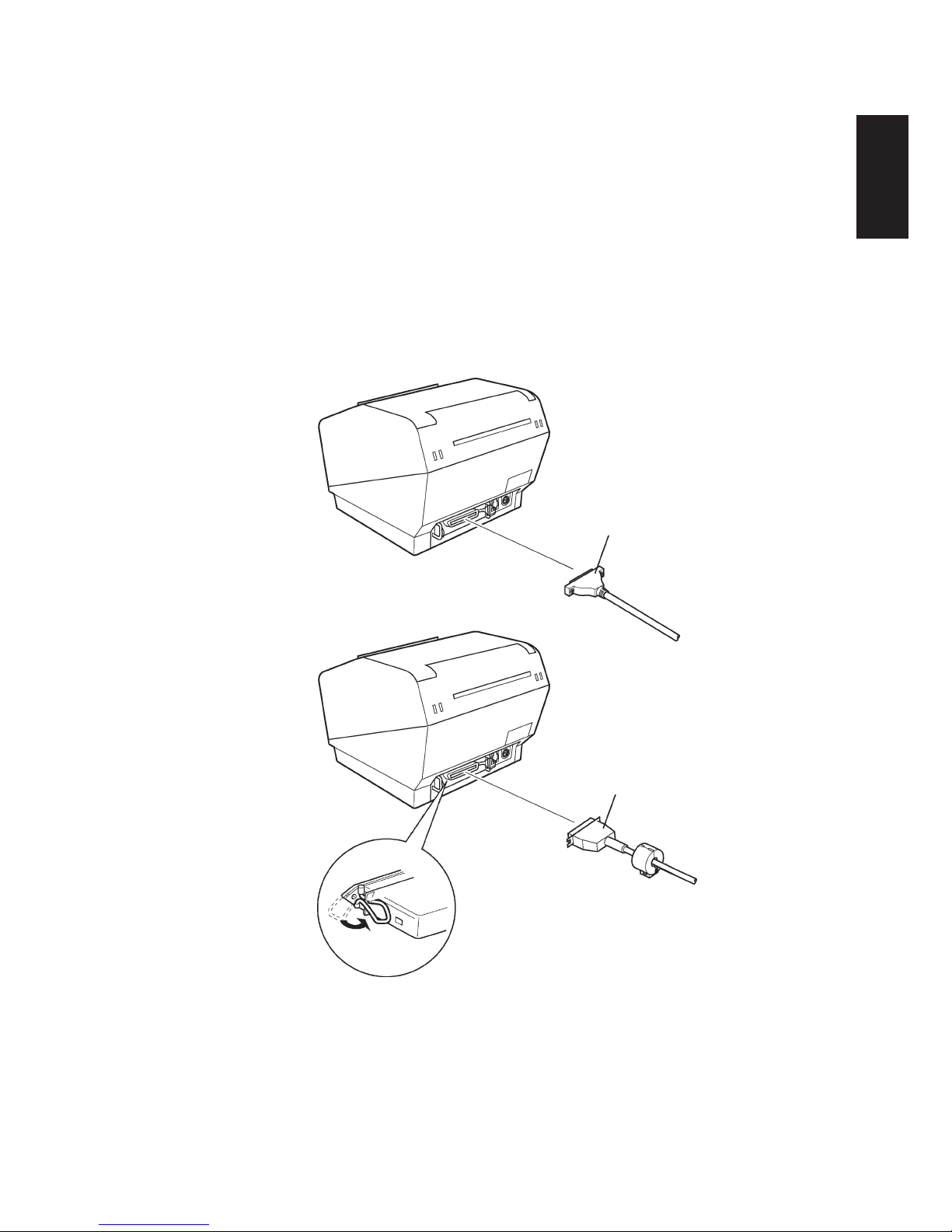

3-1-2. Connecting the Interface Cable

Note: Before connecting/disconnecting the interface cable, make sure that

power to the printer and all the devices connected to the printer is

turned off. Also make sure the power cable plug is disconnected from

the AC outlet.

(1)Connect the interface cable to the connector on the rear panel of the printer.

(2)In the case of a serial interface, tighten the connector screws. In the case of a

parallel interface, fasten the connector clasps.

Serial interface cable

Parallel interface cable

– 7 –

ENGLISH

3-2. Connecting to a Peripheral Unit

You can connect a peripheral unit to the printer using a modular plug. The

followingdescribeshowtoinstalltheferritecoreandmaketheactualconnection.

See “Modular plug” on page 80 for details about the type of modular plug that is

required. Note that this printer does not come with a modular plug or wire, so it

is up to you to obtain one that suits your needs.

Important!

Make sure that the printer is turned off and unplugged from the AC outlet and

that the computer is turned off before making connections.

(1)Connect the peripheral drive cable to the connector on the rear panel of the

printer.

Otros manuales para TSP800 Series

Tabla de contenidos

Idiomas:

Otros manuales de Impresora de Star Micronics

Star Micronics

Star Micronics SP2000 Manual de operación y mantenimiento

Star Micronics

Star Micronics TSP043 Series Manual de usuario

Star Micronics

Star Micronics lC-10 Manual de usuario

Star Micronics

Star Micronics LC-240C Manual de usuario

Star Micronics

Star Micronics TUP900 Series Manual de usuario

Star Micronics

Star Micronics TSP200 Series Manual de usuario

Star Micronics

Star Micronics DP8340RC Series Manual de usuario

Star Micronics

Star Micronics TSP400 Series Manual de operación y mantenimiento

Star Micronics

Star Micronics WinType 800C Manual de usuario

Star Micronics

Star Micronics Star SCP700 Series Manual de operación y mantenimiento

Star Micronics

Star Micronics TUP900 Series Manual de usuario

Star Micronics

Star Micronics TSP650II SERIES Manual de usuario

Star Micronics

Star Micronics Delta Manual de usuario

Star Micronics

Star Micronics TCP300 Series Manual de operación y mantenimiento

Star Micronics

Star Micronics TSP700 Series Manual de usuario

Star Micronics

Star Micronics TSP1000 Series Manual de usuario

Star Micronics

Star Micronics NX-2460C Manual de usuario

Star Micronics

Star Micronics FVP-10U Manual de usuario

Star Micronics

Star Micronics TSP700 Series Manual de usuario

Star Micronics

Star Micronics SP300 Series Manual de operación y mantenimiento

Star Micronics

Star Micronics NX-1040 Manual de usuario

Star Micronics

Star Micronics WinType 4000 Manual de usuario

Star Micronics

Star Micronics NX-1020 Manual de usuario

Star Micronics

Star Micronics NP-255 Instrucciones de instalación

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series Manual de usuario

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Canon

Canon LASER SHOT LBP-1210 Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Canon

Canon PIXMA PRO-1 Series Manual de usuario

Canon

Canon PIXMA G3560 Guía de configuración

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Canon

Canon CLBR 460ps Manual de usuario

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

Canon

Canon imagePASS-A2 Manual de usuario

Canon

Canon S820D Manual de usuario
