Star Micronics Mobile Printers

Logo Store Utility

Introduction

l This utility enables you to print logos on a receipt.

This utility supports the following logo data formats.

∙ BMP (*Index color mode is not supported.)

∙ JPEG (supporting 24-bit color mode)

∙ PCX (supporting 1-bit monochrome mode)

Note: Logo data shall not exceed 384 pixels in width x 2400 pixels in height.

Logo data exceeding this size cannot be properly stored.

l This manual supports the Star Mobile Logo Store Utility version 2.0 or later.

l The following table shows compatible printer models and their firmware versions:

Compatible Model Firmware Version

SM-S200 series Version 1.1 or later

SM-S220 series Version 1.0 or later

SM-S300 series Version 1.1 or later

SM-S400 series Version 1.1 or later

SM-T300 series Version 1.1 or later

SM-T400 series Version 2.4 or later

l The logo store utility supports the following Windows OS versions:

aWindows XP (Service Pack 3 or later)

aWindows Vista 32-bit and 64-bit

aWindows 7 32-bit and 64-bit

aWindows 8 32-bit and 64-bit ( Except Windows RT )

l When using Windows Vista, Windows 7 or Windows 8 :

Administrator privilege is required to execute this utility.

l You can use this logo store utility uncompressing the file in any folder you like.

l To use this utility, connect the dedicated RS-232C cable that came with the printer.

Star Micronics Mobile Printers

Logo Store Utility

Getting Started

Before you can start using this logo store utility, you must prepare your printer. To prepare your printer,

proceed as follows.

1. Perform a self-test, and check the memory switch settings. (For instructions on how to perform a self-

test, see the hardware manual of your printer.)

2. Check that the printer is turned off.

3. Use the dedicated RS-232C cable that came with the printer to connect the printer to your PC.

*You must connect the RS-232C cable to read and write the stored logos and settings from this logo

store utility.

4. Turn the printer on.

Caution

Do not turn o the printer or unplug the cable while using this logo store utility.

Star Micronics Mobile Printers

Logo Store Utility

1. Executing the Logo Store Utility

The executing steps vary according to the operating system. Therefore, refer to the section for the

environment that you are using.

1.1 Windows XP

To execute the logo store utility, proceed as follows.

1. Double-click the “StarMobileLogoStoreUtility.exe” le created when the “StarMobileLogoStoreUtility_Vxxxx.zip” le is

unzipped.

* The Vxxxx is the version number of the logo store utility.

2. The port setting window appears as shown on the next page.

1.2 Windows Vista / 7 / 8

To execute the logo store utility, proceed as follows.

1. Right-click the “StarMobileLogoStoreUtility.exe” le created when the “StarMobileLogoStoreUtility_Vxxxx.zip”

le is unzipped, and select [Run as administrator].

* The Vxxxx is the version number of the logo store utility.

2. The conrmation dialog appears. Click “Yes” to continue.

3. The port setting window appears as shown on the next page.

Star Micronics Mobile Printers

Logo Store Utility

2. Using the Utility

2.1 Connecting to the Utility

1. After executing the logo store utility the port setting window appears. Select the port that the printer is

connected to and the printer model, and click “OK”.

2. If the connection is successful, the following window will appear.

Star Micronics Mobile Printers

Logo Store Utility

2.2 Storing Logos

1. Click the [Image] icon to select the logo to be stored.

* You can select the logos by selecting [File] – [Load le].

2. Select the desired Image le and click “Open”.

The same window appears again. If you want to select any more logos, repeat these steps.

When you complete the selection, click “Cancel”.

Star Micronics Mobile Printers

Logo Store Utility

3. The selected logos are shown on the window. Click the icon in the red circle to store the logos.

* You can store the logos by selecting [Transfer] – [Download ].

4. When the download is executed, the following window appears.

Click “Yes” to print.

Note: If the download to the printer is not completed, the printer will not execute printing when you click “Yes.”

When the download is completed, the printer beeps. Please execute printing after conrming the beep

sound.

Star Micronics Mobile Printers

Logo Store Utility

If the download is completed successfully, the following message will appear and the [LOGO TEST PRINT] icon

will be available.

Star Micronics Mobile Printers

Logo Store Utility

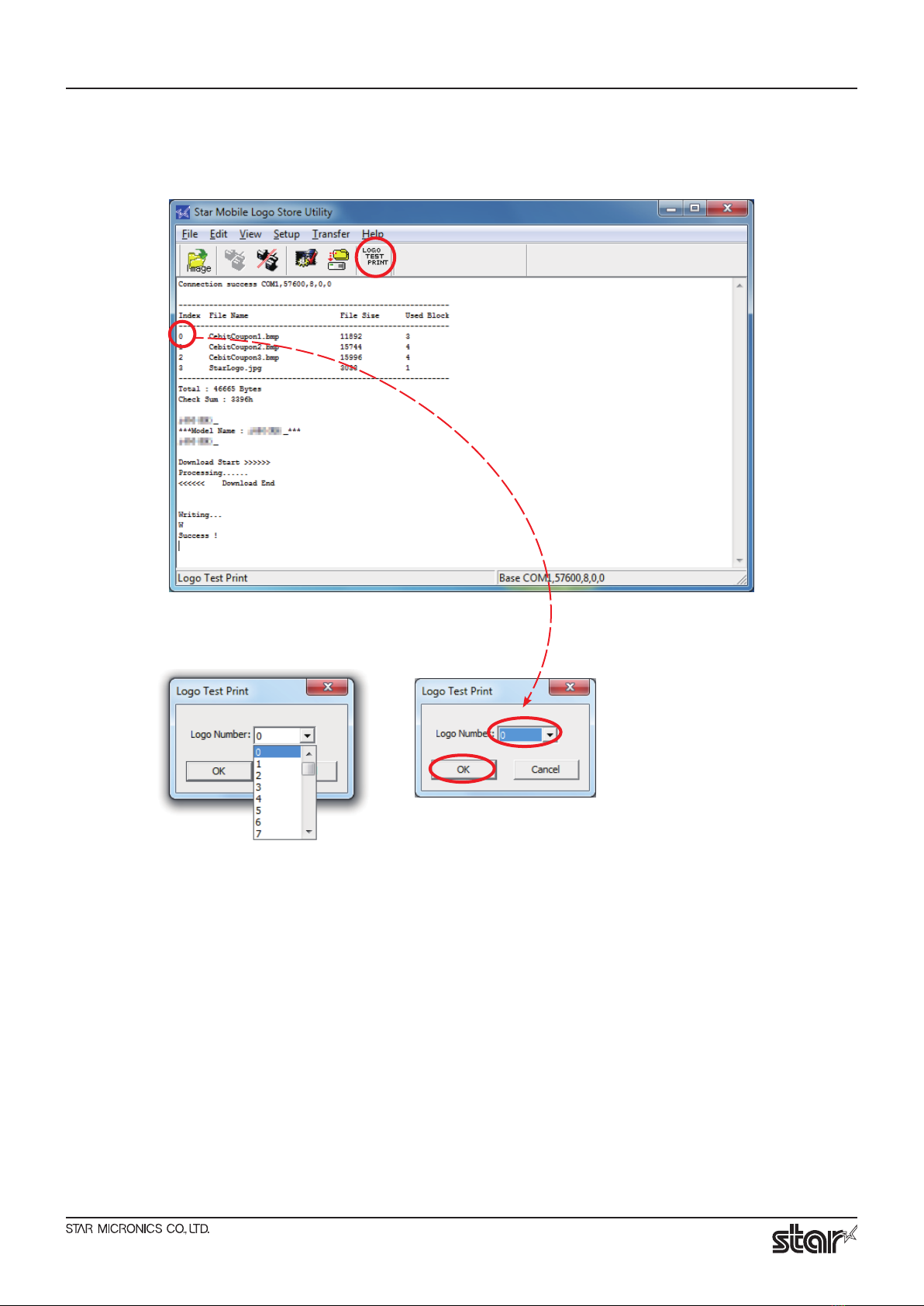

2.3 Printing Logos

1. Click the [LOGO TEST PRINT] icon.

2. Select the logo number of the logo data that you want to print.

Click “OK” to print.
