Star Micronics DP8340RC Series Manual de usuario

DOT MATRIX PRINTER

DP8340RC SERIES

[PARALLEL INTERFACE]

USERS MANUAL

Federal Communications Commission

Radio Frequency Interference

Statement

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassAdigitaldevice,

pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection

against harmful interference when the equipment is operated in a commercial environment.

Thisequipment generates,uses andcan radiateradio frequencyenergy and,if notinstalled and

used in accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause harmful

interferenceinwhichcasetheuserwillberequiredtocorecttheinterferenceathisownexpense.

For compliance with the Federal Noise Interference Standard, this equipment requires a

shielded cable.

This statement will be applied only for the printers marketed in U.S.A.

Statement of

The Canadian Department of Communications

Radio Interference Regulations

Thisdigitalapparatus doesnotexceed theClassA limitsforradio noiseemissionsfrom digital

apparatus set out in the Radio Interference Regulations of the Canadian Department of

Communications.

Le présent appareil numérique n’émet pas de bruits radioélectiques dépassant les limites

applicables aux appareils numériques de la classe A prescrites dans le Règlement sur le

brouillage radioélectrique édicté par le ministère des Communications du Canada.

The above statement applies only to printers marketed in Canada.

Trademark acknowledgments

DP8340RC: Star Micronics Co. Ltd.

Notice

permission, is strictly forbidden.

• The contents of this manual are subject to change without notice.

• All efforts have been made to ensure the accuracy of the contents of this manual at the time of printing. However,

should any errors be found, STAR would greatly appreciate being informed of them.

• The above notwithstanding, STAR can assume no responsibility for any errors in this manual.

TABLE OF CONTENTS

1. OUTLINE..............................................................................................1

2. UNPACKING AND INSTALLATION................................................2

2-1. Unpacking ....................................................................................2

2-2. Installation of Paper Holders and Re-Roll

Prevention Guard .........................................................................3

2-3. Handling Notes.............................................................................4

3. PART IDENTIFICATION AND NOMENCLATURE ........................5

3-1. Power Supply Unit .......................................................................5

3-2. Printer...........................................................................................6

3-3. Part Functional Description..........................................................7

4. INSTALLATION OF INK RIBBON AND PAPER.............................8

4-1. Installation of Ink Ribbon ............................................................8

4-2. Removal of Ink Ribbon................................................................9

4-3. Paper Insertion ...........................................................................10

4-3-1. For Roll Paper .................................................................10

4-3-2. Roll Paper Installation

(When using the optional Printer Cover 8340R).............11

4-3-3. Validation Option Installation .........................................12

4-4. Roll Paper Removal ...................................................................12

5. CONTROL CODES ............................................................................13

6. GENERAL SPECIFICATIONS..........................................................20

7. INTERFACE .......................................................................................24

7-1. Interface Specifications ..............................................................24

7-2. Interface Timing.........................................................................24

7-3. Connectors and Signals ..............................................................25

7-4. Setting of DIP Switches .............................................................26

7-5. Peripheral Unit Drive Circuit .....................................................27

7-6. Error Condition Alarm Mode.....................................................27

8. WHEN POWER IS SUPPLIED BY THE USER ...............................28

9. CHARACTER CODE LIST................................................................30

– 1 –

1. OUTLINE

The DP8340RC series of serial dot matrix printers is for use in ECR, POS,

electronic instruments, banking machines and computer peripheral equipment.

The DP8340RC series include the following features;

1) 2 color printing (Red and Black)

2) High-speed bidirectional printing (2 line/sec, 29 or 44 columns per line)

3) 9-pin print head

4) Parallel interface (Centronics compatible)

5) Commands for expanded characters, inverted characters, emphasized

characters, red and black printing, and 10CPI or 15CPI characters etc. are

provided, which makes the printer very versatile.

6) Simultaneous Data Communication and Printing

7) 2 Peripheral Drivers

8) One line validation printing (Option)

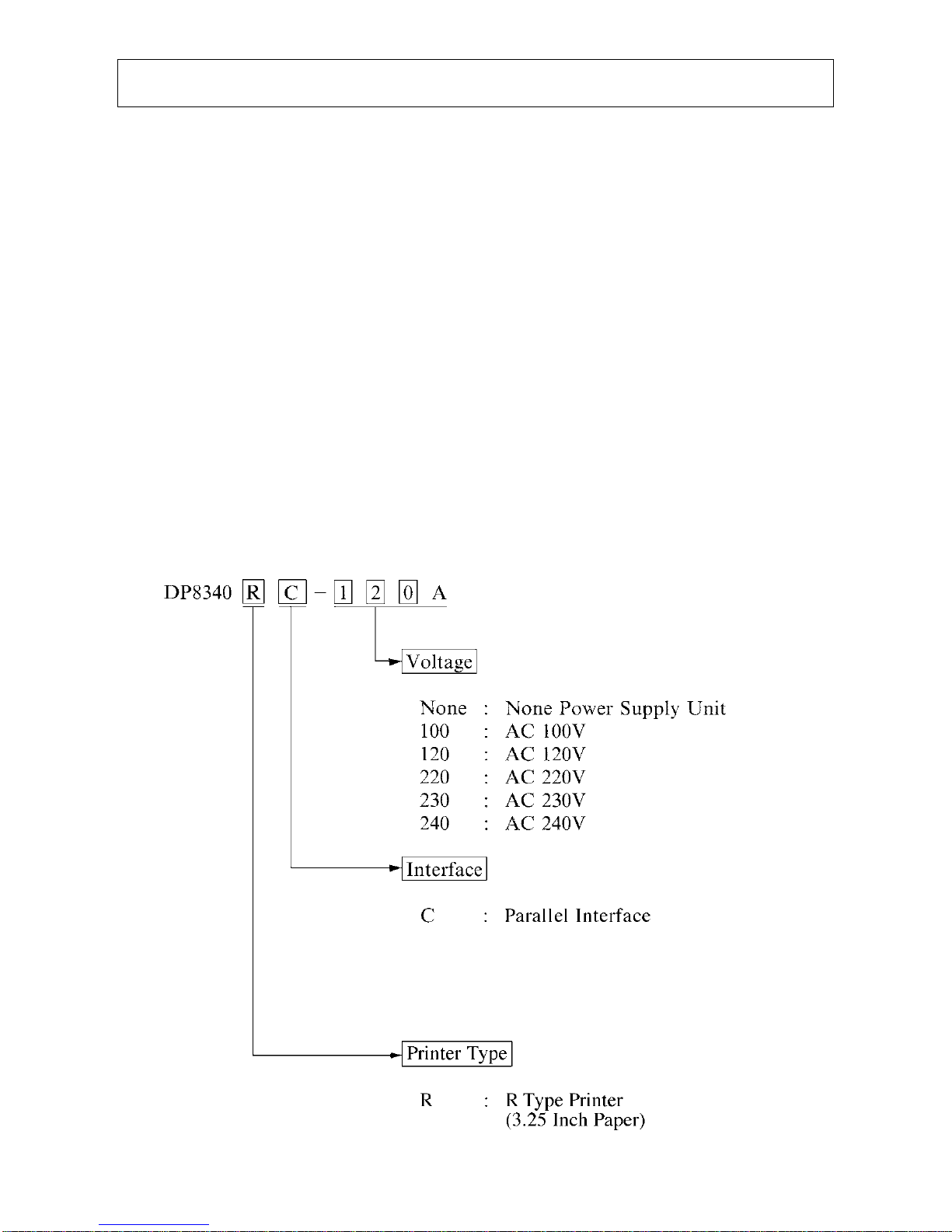

Model Name Notation

– 2 –

2. UNPACKING AND INSTALLATION

2-1. Unpacking

After opening the box, check if all necessary accessories are included.

(A) Printer

(B) Power Supply Unit

Figure 2-1. Unpacking

1Printer

2User’s Manual

3Paper Holders

4Re-Roll Prevention Guard

5Ink Ribbon

6DIP Switch Cover

1Power Supply Unit

2User’s Manual

– 3 –

2-2. Installation of Paper Holders and Re-Roll Prevention Guard

Install the Paper Holders in the intermost holes in the rear of the printer.

Figure 2-2. Installation of Paper Holders

– 4 –

InstalltheRe-RollPreventionWireintheholesoftheprintercover.Twistingthe

Wire as shown in the figure below, will make the installation easier.

Figure 2-3. Installation of Re-Roll Prevention

2-3. Handling Notes

(1) Install the printer near an easily accessible socket-outlet.

(2) Place the unit on a flat and stable surface for operation.

(3) Do not connect the AC Power Plug to the same outlet used for other noise

generating devices (large motors, etc.).

(4) Be careful not to drop paper clips, pins and other foreign objects into the

unit.

(5) Wipe off dirt with a soft cloth soaked in alcohol or benzine. Do not use

Lacquer thinner, Trichlorethelene or Ketone solvents because they may

damage plastic parts.

(6) Use a soft brush, etc. for cleaning the printer mechanism and PCB.

(7) Keep hands out of printer while power is on.

(8) Do not attempt to print when there is no ink ribbon or paper in the unit. The

print head life could be severly reduced.

(9) Ifthepaperisfastened tightly to the roll, the paper may not detach from the

roll when the end is reached.

If this happens, the no paper detection function and paper feed will not

operate.

(10) Always keep the printer cover attached when printing to prevent paper

jams, noise, and other problems.

(11) Always turn the power off before opening the printer cover. (e.g. When

renewing a ink ribbon)

– 5 –

3. PART IDENTIFICATION AND NOMENCLATURE

3-1. Power Supply Unit

Figure 3-1. Power Supply Unit

DC Power Connector (Output)

Shape of AC Power plug will

vary according to destinations.

– 6 –

3-2. Printer

Figure 3-2. Printer: Front View

Figure 3-3. Printer: Rear View
