Stanley IntelliLaser Pro Manual de usuario

WARNING: Protect Your Eyes Wear Safety Goggles

AVERTISSEMENT: Protégez vos yeux, portez des

lunettes de sécurité.

ADVERTENCIA: Protéjase los ojos, use gafas de

seguridad

One Year Warranty

Garantie de un an

Garantía de un año

The Stanley Works, New Britain, CT 06053

T5336

85-109-401-001

114-GB(cover,p1-12) 25/08/2003 10:49 AM Page

IntelliLaser Pro

Stud Finder and Laser Line Level

with Continuous

AC Warning

INSTRUCTION

MANUAL

77-260

™

METAL

WOOD

EDGE

METAL

WOOD

LASER

SAFETY INSTRUCTIONS:

Failure to follow warnings may result in bodily

injury.

The following warnings must be followed to avoid

injury:

• DO NOT remove warning labels.

• DO NOT use optical tools such as a transit to

view laser beam. Serious eye injury could result.

• DO NOT project the laser beam directly into the

eyes of others.

• DO NOT stare directly at the laser beam.

• DO NOT project laser beam onto a reflective

surface.

• DO NOT operate around children, or allow

children to operate.

• DO NOT disassemble the laser.

• Always turn off laser when the tool is not in use.

WARNINGS:

IMPORTANT: Read all instructions prior to operating

the IntelliLaser™ Pro and DO NOT remove any labels

from the tool.

The 77-260 produces a straight line on the same

surface on which the tool is placed. Any reflection of

the line on another surface should be considered

reference.

–1–

DANGER

Class IIIA Laser Product

Laser radiation emitted from tool

Max. Power Output < 5mw

Wavelength: 630-670 nm

Do Not Stare Into Beam

AVOID DIRECT EYE EXPOSURE

THIS TOOL EMITS A LASER RADIATION

This caution

notice is

reminded with

a sticker

located on

one side of

the unit.

114-GB(cover,p1-12) 25/08/2003 10:49 AM Page

IntelliLaser™Pro (77-260)

The Stanley®IntelliLaser™ Pro uses electronic signals

to locate the position of studs, joists or live AC wires

through drywall and other common wall materials.

Once the edge of the stud has been detected, the

IntelliLaser™ Pro LCD display gives visual and audio

indications that allow you to easily pinpoint the stud’s

edge position. A pencil line allows you to quickly note

the location of the stud edges.

The Stanley®IntelliLaser™ Pro generates a laser plane

vertically and pivoting 90 degree clockwise or counter-

clockwise to generate a laser straight line.

The IntelliLaser™ Pro allows the user to locate wood

and metal studs up to 3/4 inch for metal and wood

stud.

The IntelliLaser™ Pro provides automatic calibration

for metal and wood stud modes, auto shut off and

heavy duty ABS construction.

Detection mode is selected by keypad function - metal

and wood stud. Default mode is wood stud detection.

Mode should be selected before “on” key is pressed.

–2–

114-GB(cover,p1-12) 25/08/2003 10:49 AM Page

–3–

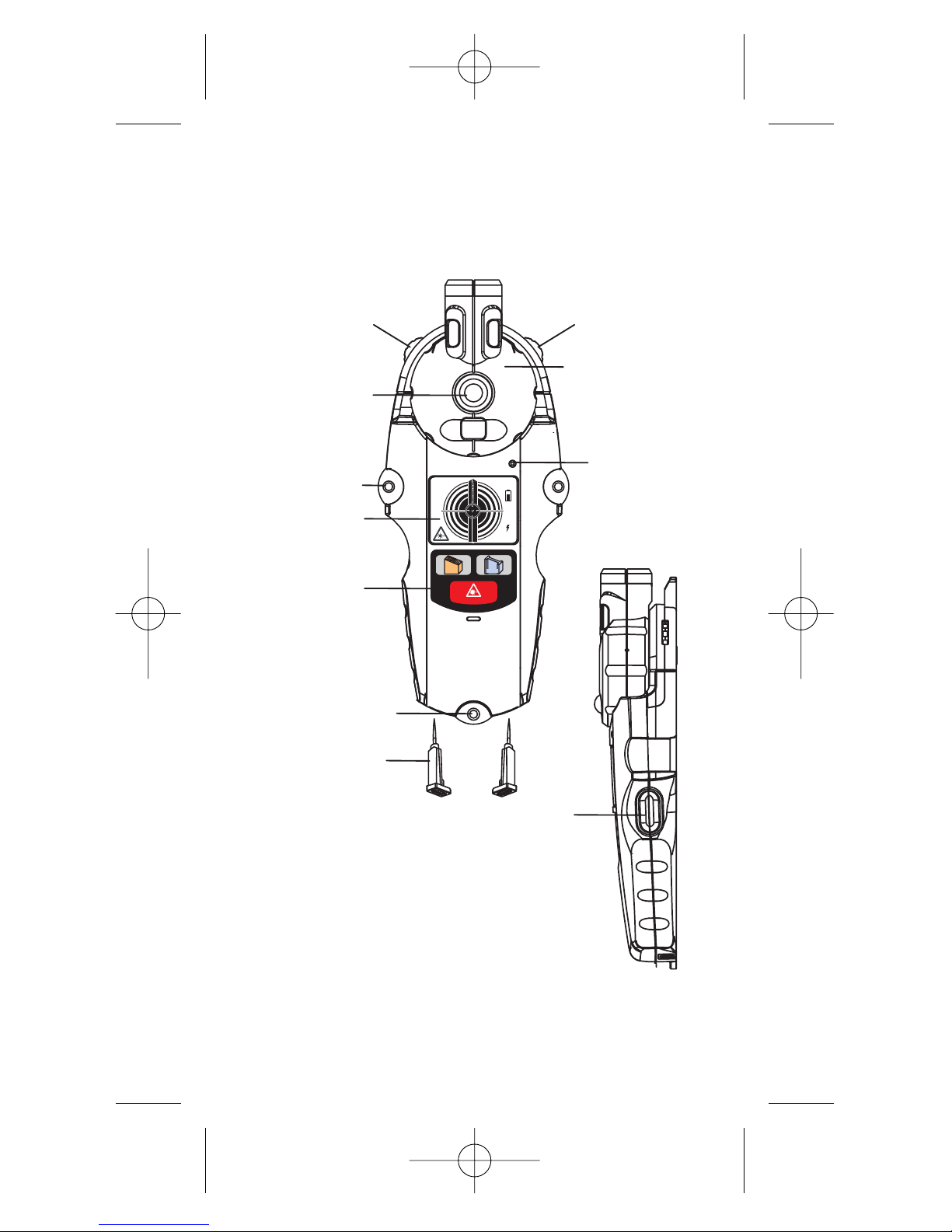

ILLUSTRATION 1

"ON"

Button

Adjustment Feet

Push Pin

Mounting Hole

Keypad

Adjustment Feet

Mounting Hole

Lock/Release

Button

Laser Plane

Live Wire

LED

LCD

METALWOOD

EDGE

METAL

WOOD

LASER

114-GB(cover,p1-12) 25/08/2003 10:49 AM Page

–4–

METAL

WOOD

LASER

ILLUSTRATION 2

ILLUSTRATION 3

A: Wood Stud detection mode

B: Metal Stud detection mode

C: Laser line on/off button

Wood Metal

Laser Plane

Indicator Graphic

Laser Plane

Live Wire

Low

Battery

Indicator

METALWOOD

EDGE

114-GB(cover,p1-12) 25/08/2003 10:49 AM Page

Operating Instructions

Battery Replacement

Open the battery door on back of unit

and connect a 9-volt battery to clip.

Place battery back into case and snap

battery door on. Recommend to replace

a new 9 volt battery when low battery

indicator is on.

Calibration

Calibrate the unit on wall before scanning for wood or

metal stud.

Note: While calibrating, the IntelliLaser™ Pro must

not be placed directly over a stud, dense material such

as metal, wet or newly painted areas as this will

prevent the unit from calibrating properly. If this is done

over wood or metal stud the unit will give no indication

when moved away from the area. Move to a different

location and try again.

1. Hold the IntelliLaser™ Pro flat against the surface,

making firm contact. Press and hold the “On”

button. All indicators on the LCD are displayed while

the unit goes through its’ 1 to 3 second calibration

cycle. When calibrated, and illustration 5 will be

shown on the LCD and a beep sound comes out.

2. Laser line is always on when

holding the “On” button.

3. Keep holding “On” button during

the stud detection.

–5–

IL L U S T R AT IO N 4

Battery

Door

DEEP READ

WOOD

IL L U S T R AT IO N 5

USAGE

Detecting Wood Studs

Wood Stud detection is set as the default when

the unit is on.

1. Slide the unit across the surface in a straight line.

The closer the unit is to the stud the more bars will

be shown as illustration 6. When the stud edge is

detected the Wood indicator and the edge bar will

be shown as illustration 7 and the unit will sound a

repeating beep.

2. Use the indicator line to mark the stud edge.

3. Continue sliding past the stud. When the indicator

turns off and the unit stops beeping the other edge

has been detected.

4. Double check stud

location by coming

back from the

other direction.

Make additional

markings.

5. The midpoint of the marks indicates the

stud center

–6–

WOOD

IL L U S T R AT IO N 6 IL L U S T R AT IO N 7

WOOD

EDGE

Detecting Metal Studs

1. Press “Metal” button once and

the LCD as shown in illustration 8.

Press & keep holding the

“On”button all the time during the

stud detection

2. Repeat the procedure 1-5 as described in“Detecting

Wood Stud”.

Detecting Live Wires

The Live Wire Detection feature is always on and the

“Live Wire” icon will be displayed on the LCD. When

a Live Wire is detected, the red live wire LED indicator

will be on.

Static electricity charges that can develop on drywall

and other surfaces will spread the voltage detection

area many inches to each side of the actual electrical

wire. To aid in locating the wire position, scan holding

the unit 1/2 inch away from the wall surface or place

other hand on surface approximately 12 inches from

sensor.

Warning: shielded wires or live wires in metal

conduits, casings, metalized walls or thick,

dense walls, will not be detected. Always turn

AC power off when working

near wiring.

The IntelliLaser™ Pro is designed to detect 110 volts

(for USA version) and 230 volts for (European version)

AC in live electrical wires. It will also detect the

presence of live wires having greater than 230 volts.

–7–

ILLUSTRATION 8

METAL

114-GB(cover,p1-12) 25/08/2003 10:49 AM Page

–8–

Laser Plane

1. Laser plane in the stud detection mode is

always on, a laser plane icon is also shown on

the LCD. It can be turned off by pressing “Laser”

button once.

2. Laser plane can also be turned on individually by

pressing “Laser” button once or pressing again to

turn it off.

3. The Laser plane will be auto - off after 1 hour.

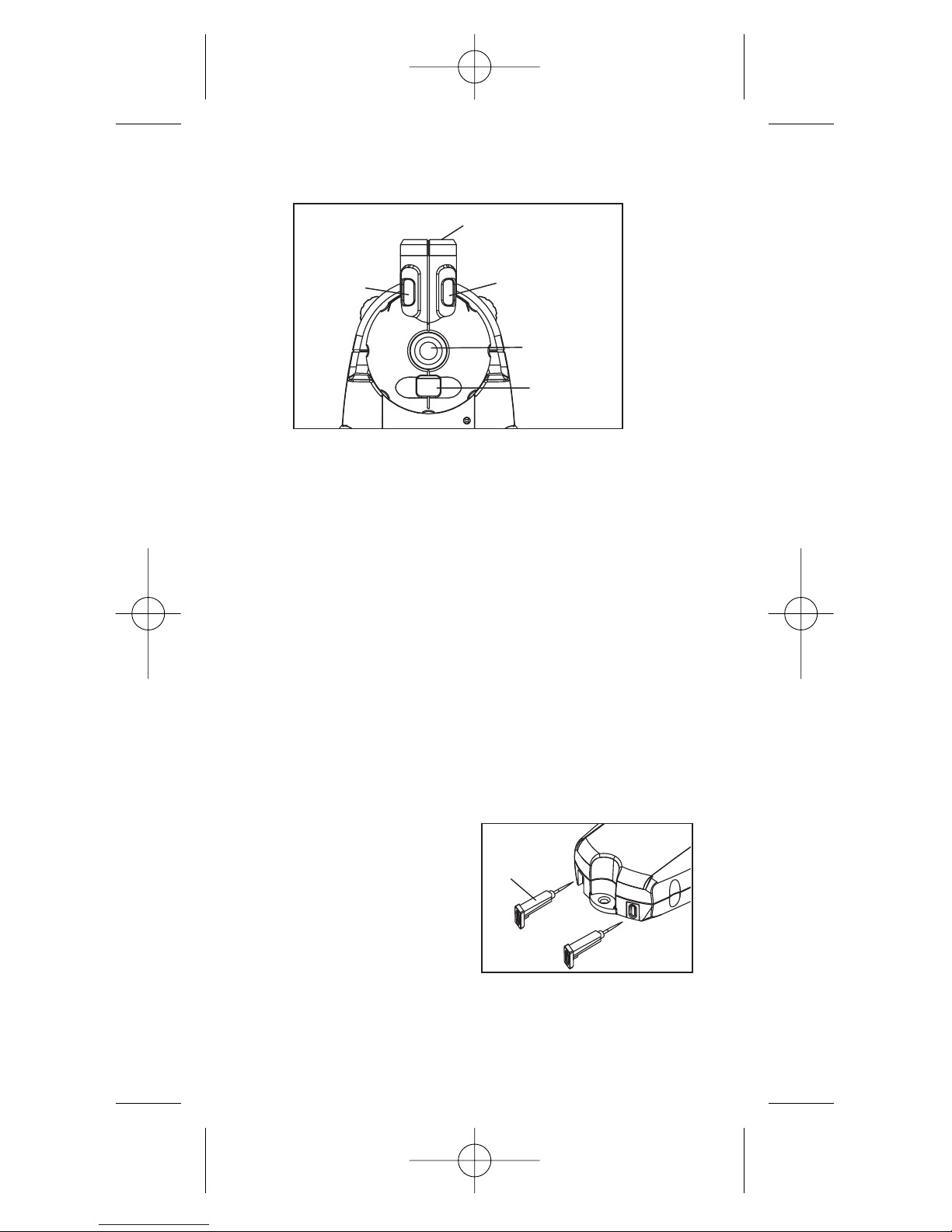

4. Laser plane can be pivoted 90° degree clockwise

or counter clockwise with 45° degree detents by

pressing the laser plane lock/release button.

Mounting Hole an Push Pins

Two push pins are stored

at the bottom part of

IntelliLaser™ Pro. They are

used to mount the

IntelliLaser™ Proon the

wall through the mounting

holes when needed.

ILLUSTRATION 1

Push Pin

ILLUSTRATION

Laser aperture

Level Vial

Lock/Release

button

114-GB(cover,p1-12) 25/08/2003 10:49 AM Page
