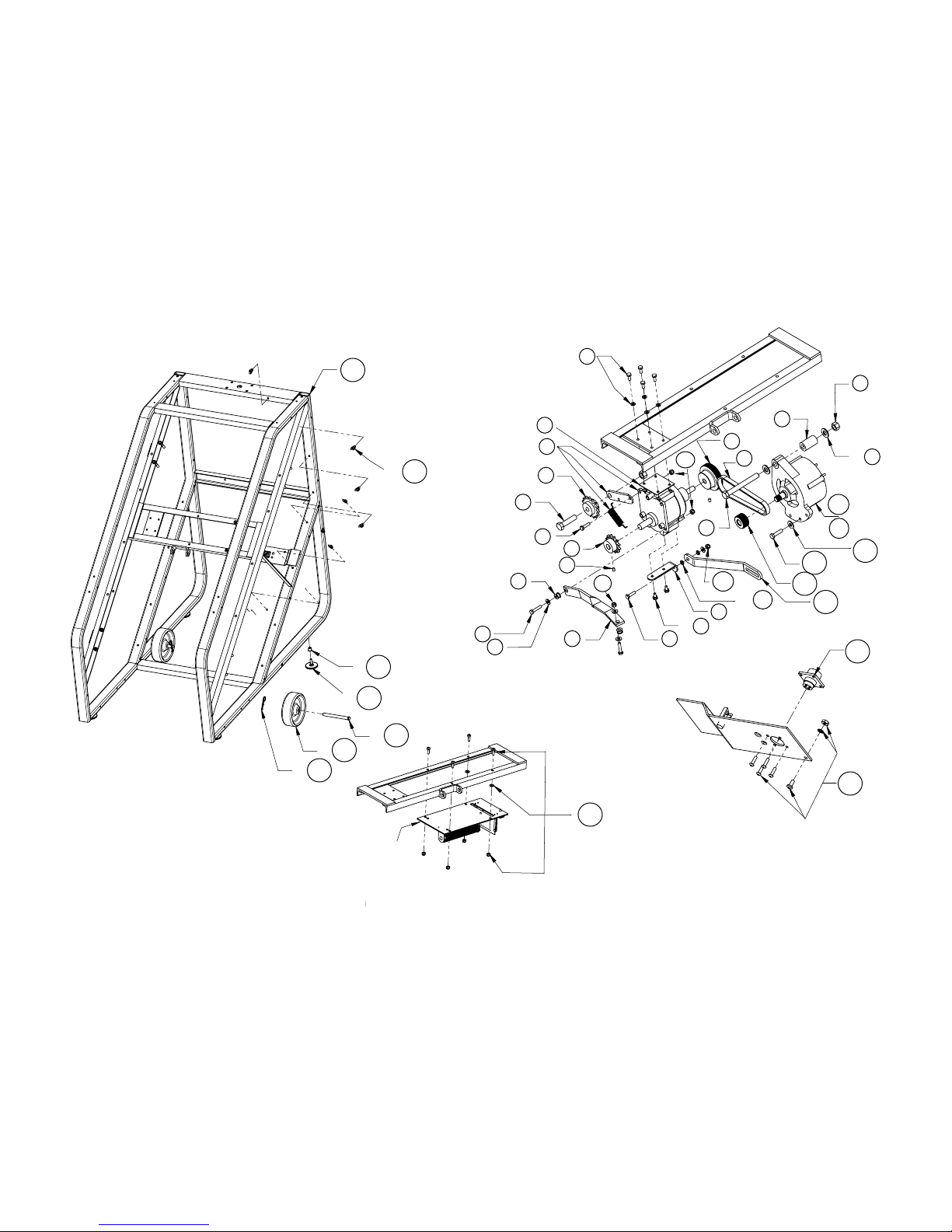

Stairmaster StepMill SM916 Guía de inicio rápido

7X 2

4X 4

2X 7

2X 6

2X 5

4X 3

2X 42

16 INCLUDES ALT./BELT/PULLEYS

4X 28

2X 30

2X 29

2X 31

2X 25

2X 23

Includes Sprockets and Pulley 33

See Appendix A

Cable Assy

INCLUDES ALT. W/PULLEY

SM916

PAGE 1

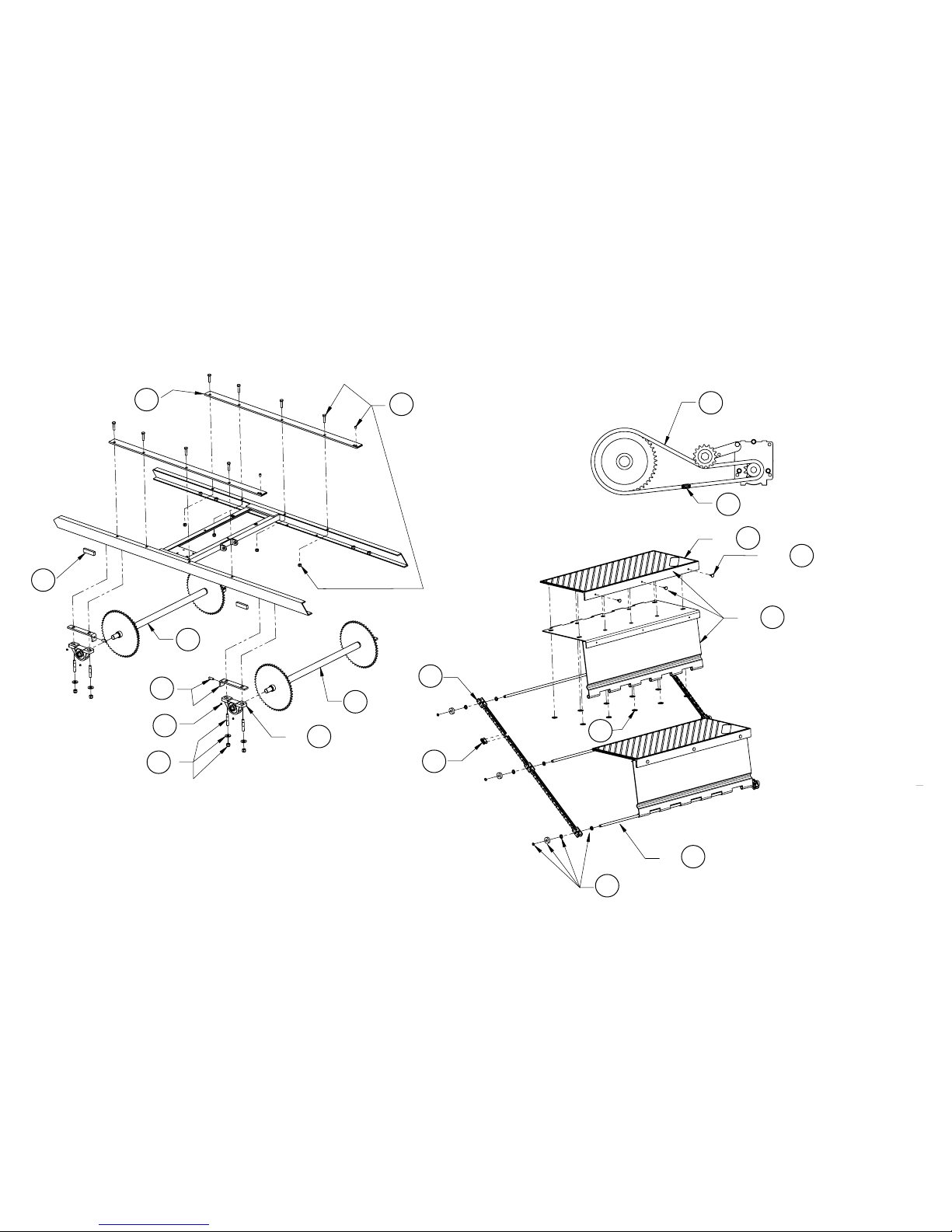

2 x 46

4 x 47

8 x 48 4 x 49

4 x 50

8 x 55

24 x 56

8 x 57 Weldment w/Tread complete

59 Kit includes hardware for all eight Step shafts

8 x 60

2 x 61

Page 2

SM916

16X 75

28X 76

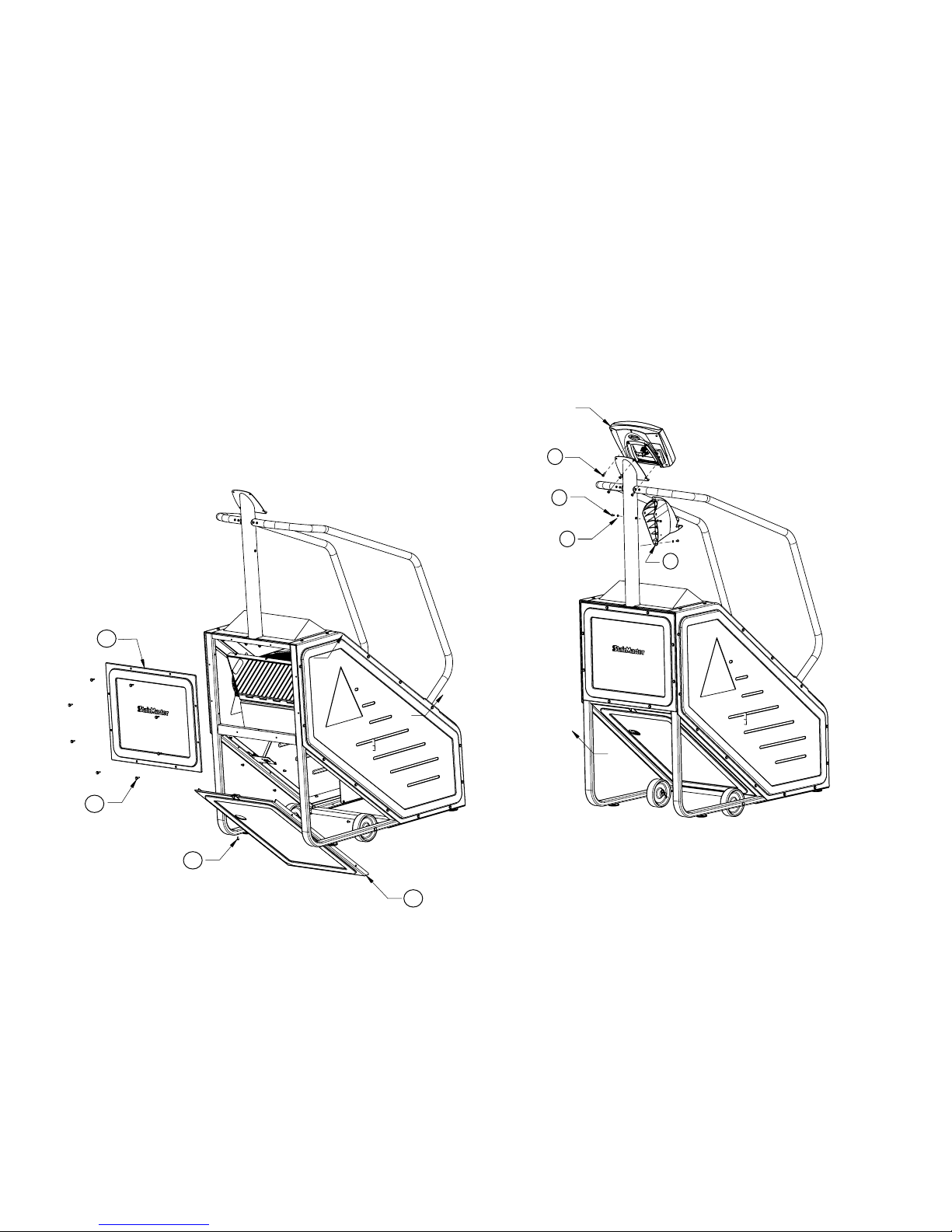

HANDRAIL W/GRIP 64

71 HANDRAIL W/GRIP

PART OF KIT (67)

4X 70

4X 18

4X 69

4X 66

4X 28

4X 22

2X 67

GRIP ONLY 65

65 GRIP ONLY

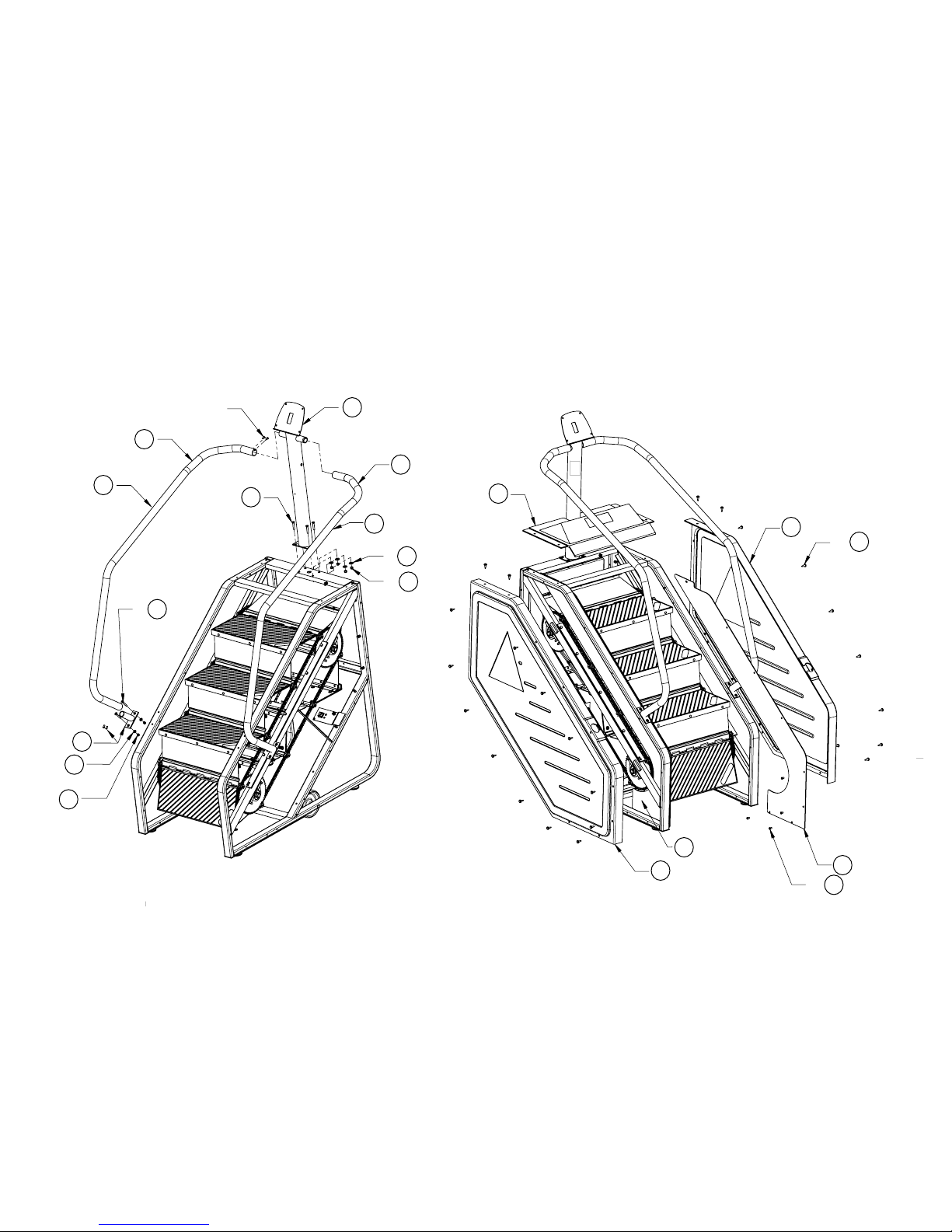

PAGE 3

SM916

8X 76

7X 75

SEE APPENDIX B

4X 82

3X 63

PAGE 4

SM916

3X 97

BROWN (fEILD)

WHITE(B+)

POWER

B+ (WHT)

RELAY BOARD

ALTERNATOR

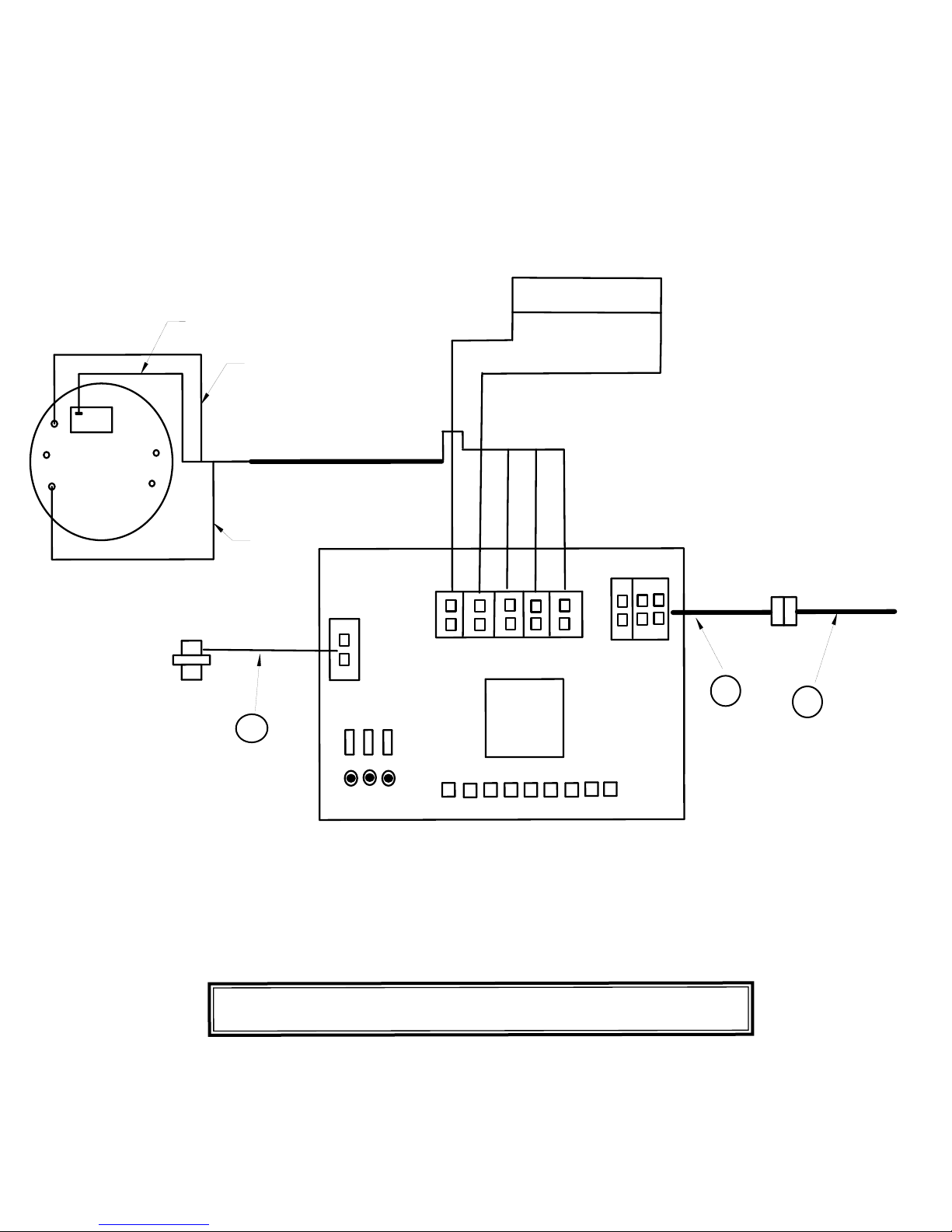

SM916 Stepmill Main Power

Wiring Diagram

J2 J1

RELAY

TACH (BLUE)

FIELD (BRN)

GND (RESISTOR)

WHT (RESISTOR)

RESISTOR

BLACK (GND)

93 94

TO CONSOLE

NOTE: OTHER END CONNECTED TO

BLACK WIRE OF RESISTOR

PAGE 5

TO RELAY BOARD

(CONSOLE)

FROM BOTTOM

OF MACHINE

(T.V. MACHINE MODEL ONLY)

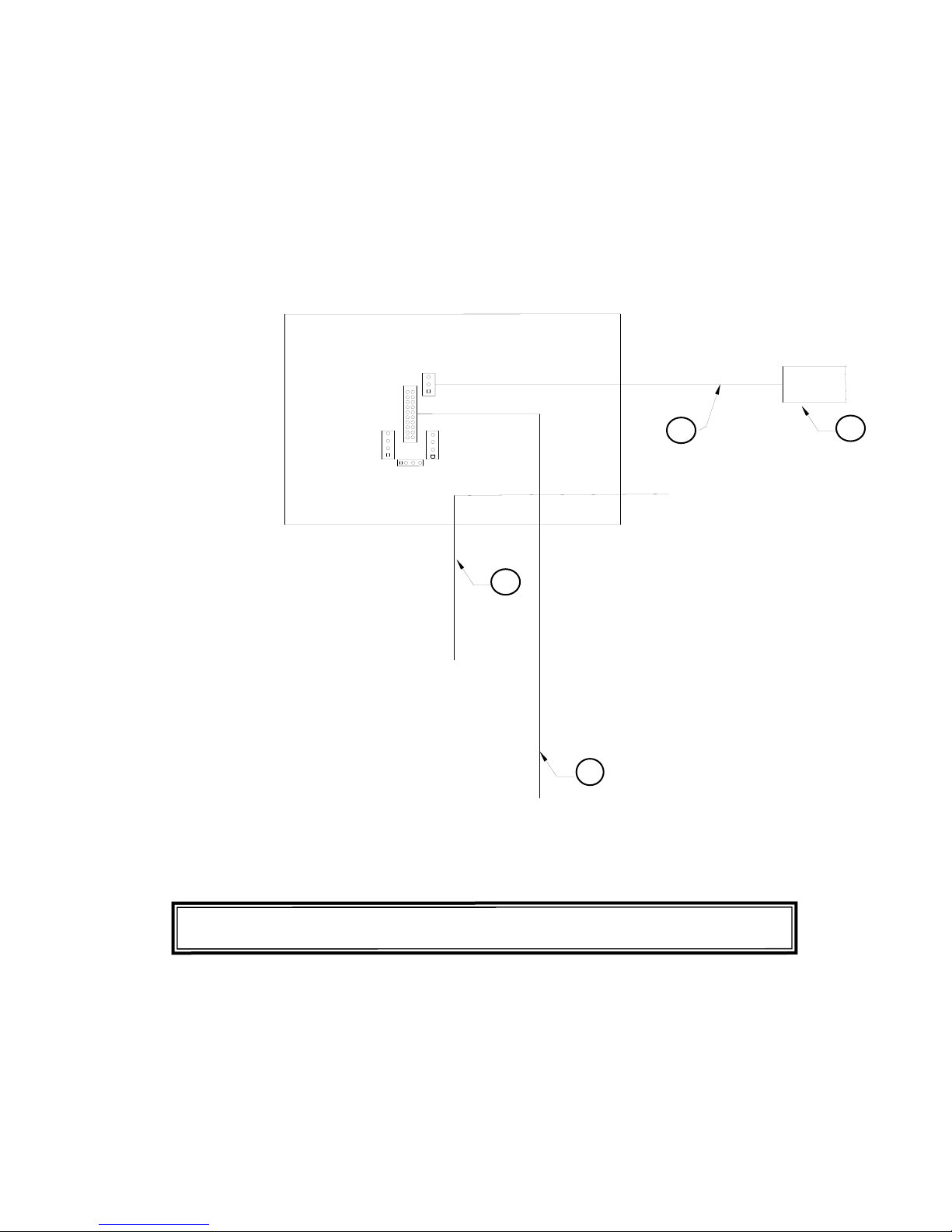

SM916 Stepmill Console Telemetry Heart RateWiring Diagram

Notes:

If installing the optional LCD Monitor,

refer to the NV915 installation

manual.

If not installing the LCD Monitor,

wrap the ends of the TV Cables with

electrical tape and tuck them into the

Mast.

PAGE 6

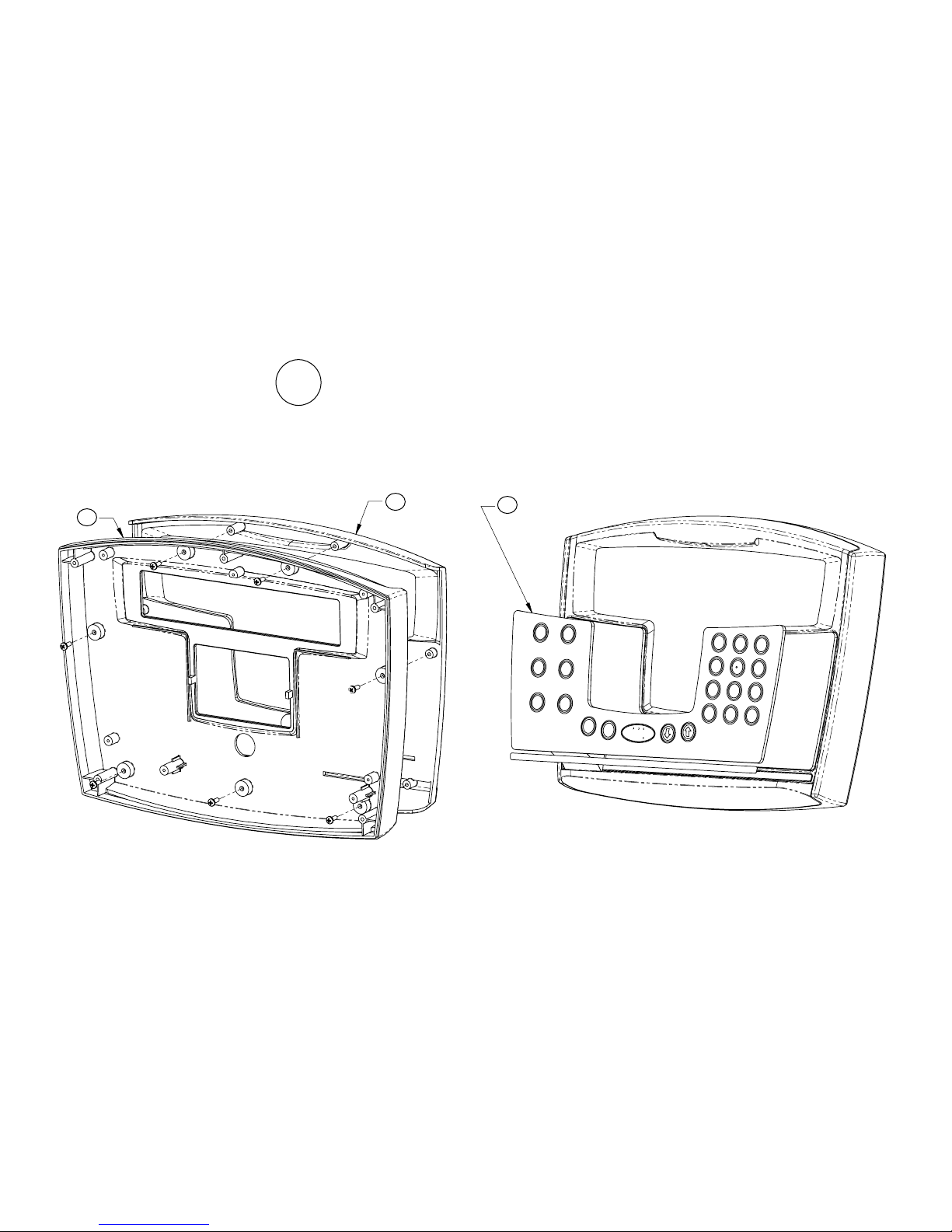

10 Includes all components

APPENDIX A

PAGE 7

85 (ASSY,CONSOLE,SM916)

PAGE 8

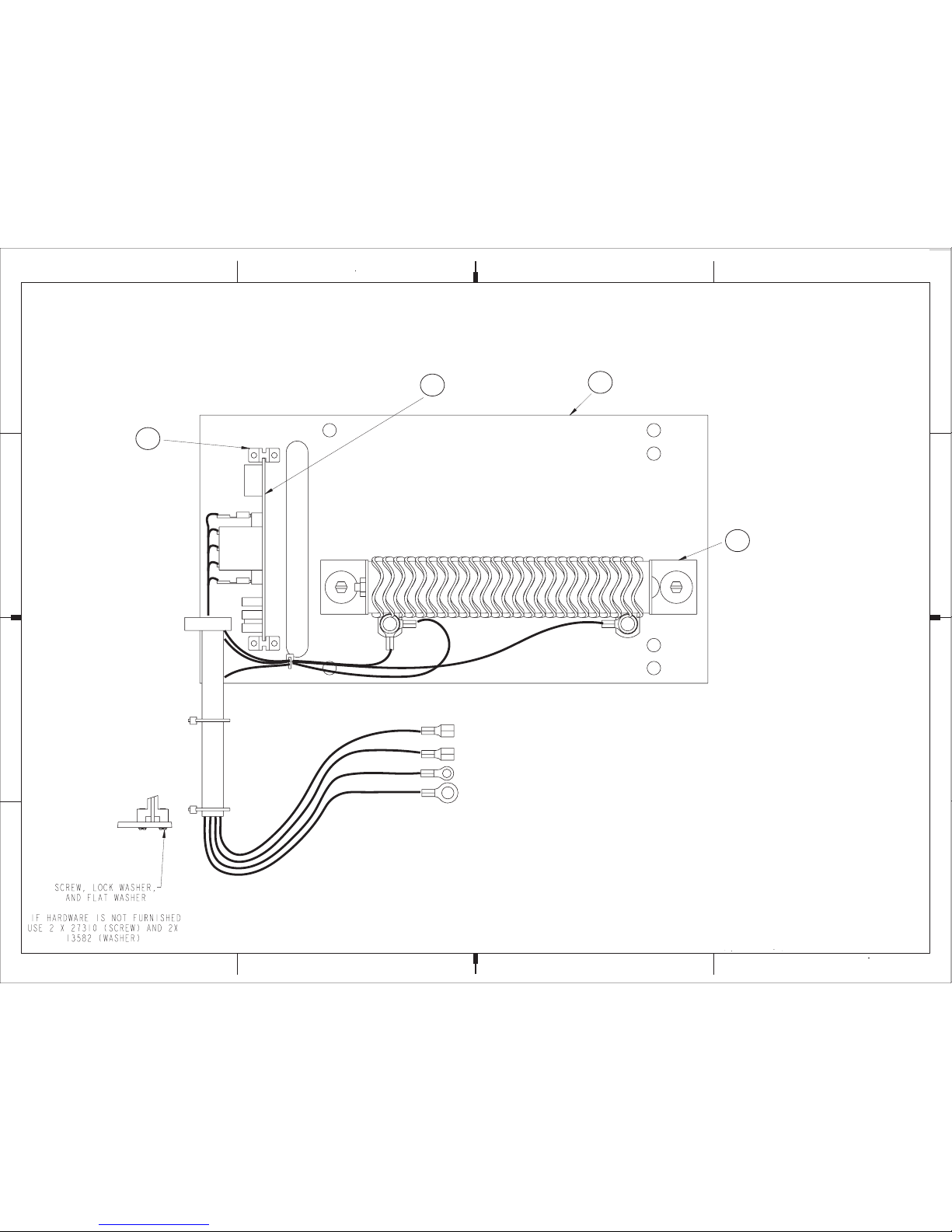

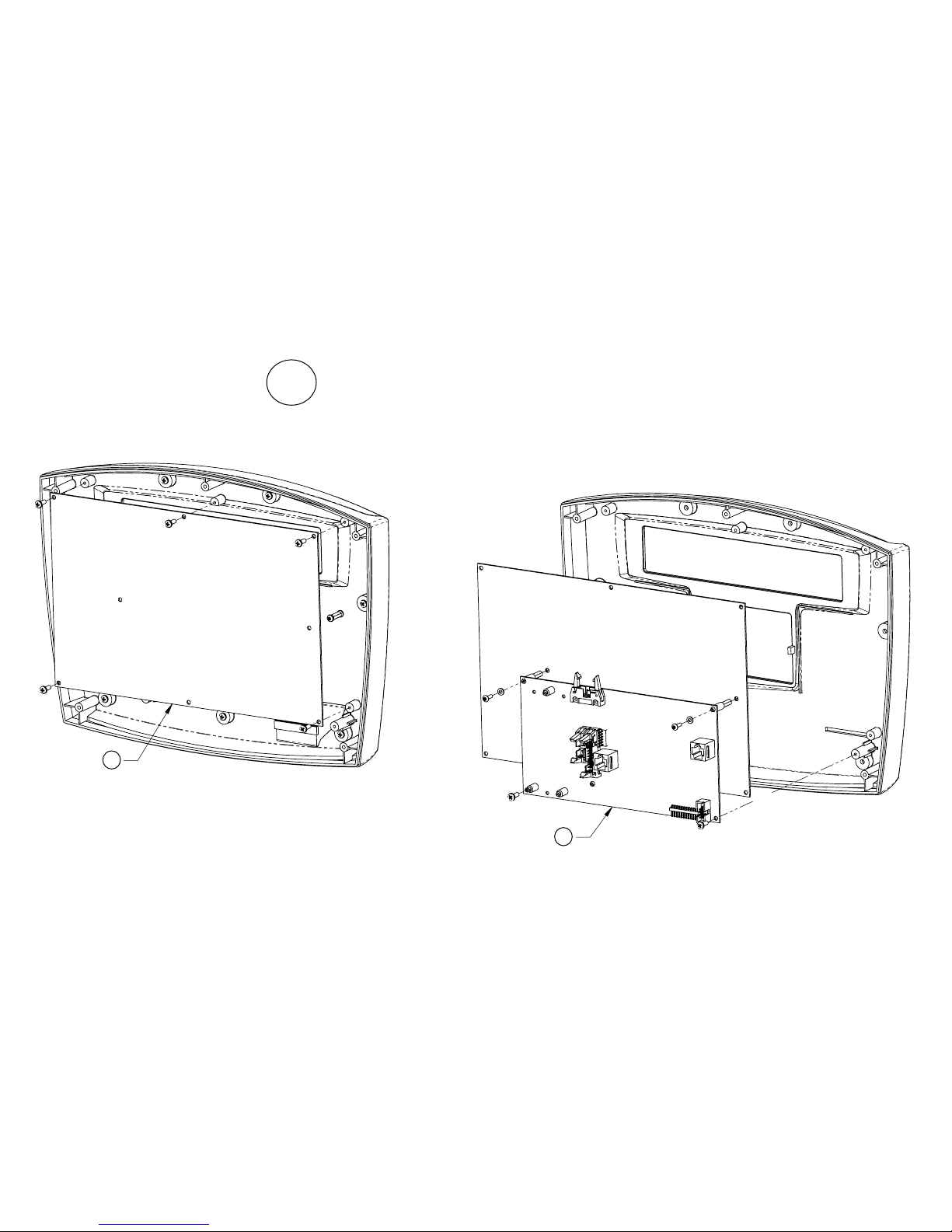

APPENDIX B

85 (ASSY,CONSOLE,SM916)

PAGE 9

PAGE 10

APPENDIX B

85 (ASSY,CONSOLE,SM916)
