ST STEVAL-LLL011V1 Manual de usuario

STEVAL-LLL011V1 Quick Start

Guide

12 Channel LED driver evaluation board based on LED1202 (for STM32

Nucleo64)

Version 1.2 (Feb 02, 2021)

Hardware overview 2

STEVAL-LLL011V1 Hardware Description

•The STEVAL-LLL011V1 contains 4 LED1202 ICs and 16

RGB LEDs. It can work in standalone mode or together with

the STSW-LED1202GUI PC SW by the onboard USB

connector. Two user buttons allow to interact with the board

by implementing user scripts. Additionally, an external Li-

ION battery can be connected to the board (see the slide 4).

•The PWR button is used to switch on/off:

•A short press to switch the board on

•A long press to switch the board off

•User scripts can be developed and uploaded on the board,

using the SW GUI. Then, the scripts are launched by

pressing the DEMO button. Each time the DEMO button is

pressed, the next script is executed.

Configuration Setup 3

Close this side of JP1

by soldering. Be sure to

have the other side

opened.

JP2 is for GYRO IRQ line

selection.

Connect 5V Power Supply to J3.

Polarity indication is on the

bottom side of the board.

1 2

SWDIO

SWCLK

VDD

RST

GND

GND

VCC

GND

GND

GND

GND

GND

GND

GND

ST-LINK Connection for FW Programming

JTAG CONNECTOR

NAME NUMBER

VCC 1,2

SWDIO 7

SWCLK 9

RST 15

GND 2..20 Even Pins

Battery Option

•The STEVAL can be supplied by using an external Li-ION

battery. Charge current is configured in order to charge a

320mAh battery in about 80 minutes: D2 LED lights when

charging.

4

Close this side of JP1 by

soldering. Be sure to have

the other side opened.

Connect a small Li-ION

battery here.

STSW-LED1202GUI

•The STEVAL-LLL011V1 comes

with a SW PC that gives the user

a total access to the 4 LED drivers

functionalities. For details about

the use of the SW GUI, please

refers to the SW user manual

(UM2747).

5

STEVAL –GUI communication

•Once the STEVAL is supplied:

•Connect the USB cable.

•Press the Power Button (SW4) : the PWR LED lights up (D1).

•If the USB cable has been connected for the first time, please wait that OS

registers and enumerates the new HW, as Virtual COM port.

•Launch the SW GUI.

6

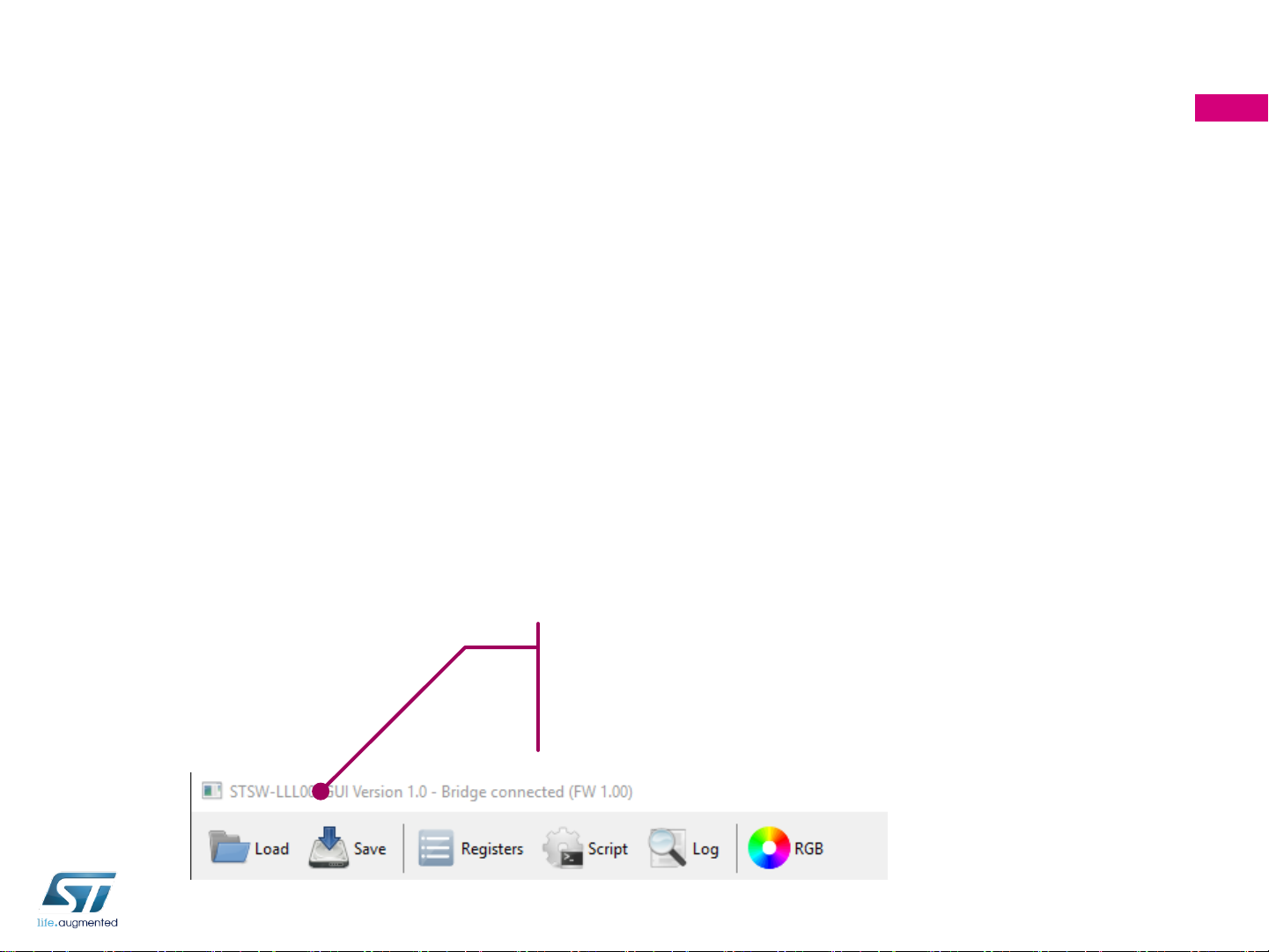

The GUI title will show the SW version, together with

the connection status of the STEVAL board.

STEVAL-LLL011V1 user scripts 7

Instructions on how to develop and

upload the scripts are reported on the

SW user manual (UM2747).

Once uploaded, the scripts are

launched by pressing the SW2 button.

The STEVAL-LLL011V1 can be programmed in order to launch small

user scripts. These scripts are developed inside the SW GUI and then

uploaded on the STEVAL.

Revision History 8

Rev Date Description

1.0 12/07/2019 First Release

1.1 22/10/2019 First Review

1.2 02/12/2021 Added details on board startup
