ST EMotion Manual de usuario

November 2006 Rev 1 1/29

UM0289

User manual

eMotion: a motion control kit based on ST10F276

Introduction

This user manual describes the features of the eMotion Kit, and explains how use the kit to

perform generic speed control of DC and BLDC motors.

Figure 1. eMotion kit

Key features

■GUI software (Windows XP OS-compatible)

■Control board MDK-ST10 (ST10F276 core, 16-bit DSP @ 64 MHz)

■Shielded interface board (for encoder feedback)

■powerSPIN boards (L6205 / L6235 eval)

■Configurable PID closed speed loop for up three motors DC or BLDC

■RS232 communication

www.st.com

Contents UM0289

2/29

Contents

1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.1 Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2 Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.1 MDK-ST10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.2 PowerSPIN boards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.2.1 L6205 Eval board (DC Motor) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.2.2 L6235 Eval board (BLDC Motor) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.3 Feedback board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3 PC software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.1 eMotion GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.1.1 EVAL 6235 window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.1.2 EVAL 6205 window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.1.3 Log window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4 ST10 firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4.1 Communication protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4.2 Control algorithm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5 Using eMotion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.1 Evaluate eMotion kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.1.1 Installing eMotion GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.1.2 Board configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5.1.3 Control operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

6 Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

6.1 Hardware issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

7 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Appendix A Bibliography . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

UM0289 Overview

3/29

1 Overview

1.1 Getting started

eMotion is a motion control kit able to manage up to 3 motors (DC or BLDC) simultaneously,

it can be used as starting point for the evaluation of control algorithms, motors and drivers.

The complete kit is composed of:

●Windows GUI (XP-compatible): a Multi-Windows software for managing, through a

serial connection, the control of up three motors.

●MDK-ST10 board: control board based on microcontroller ST10F276 and three

connectors compatible with a powerSPIN board (eval 62xx)

●Interface board: a board with two shielded connectors, to be stacked into the sockets of

MDK-ST10 to allow motor feedback of encoder signals.

●powerSPIN boards: the eMotion kit can manage up to three motor driver boards based

on L6205 (DMOS dual full bridge motor driver) and L6235 (DMOS fully integrated

three-phase motor driver) chips, for DC and BLDC motors respectively.

●Firmware for open/closed loop operation: a complete source library is developed to

manage the control of DC and BLDC motors in open loop mode (PWM and driver

settings) and closed loop mode (speed regulation with encoder feedback) using 62xx

eval boards.

●Protocol communication: a complete frame-based protocol is developed to allow the

exchange of data with GUI via standard RS232 channel.

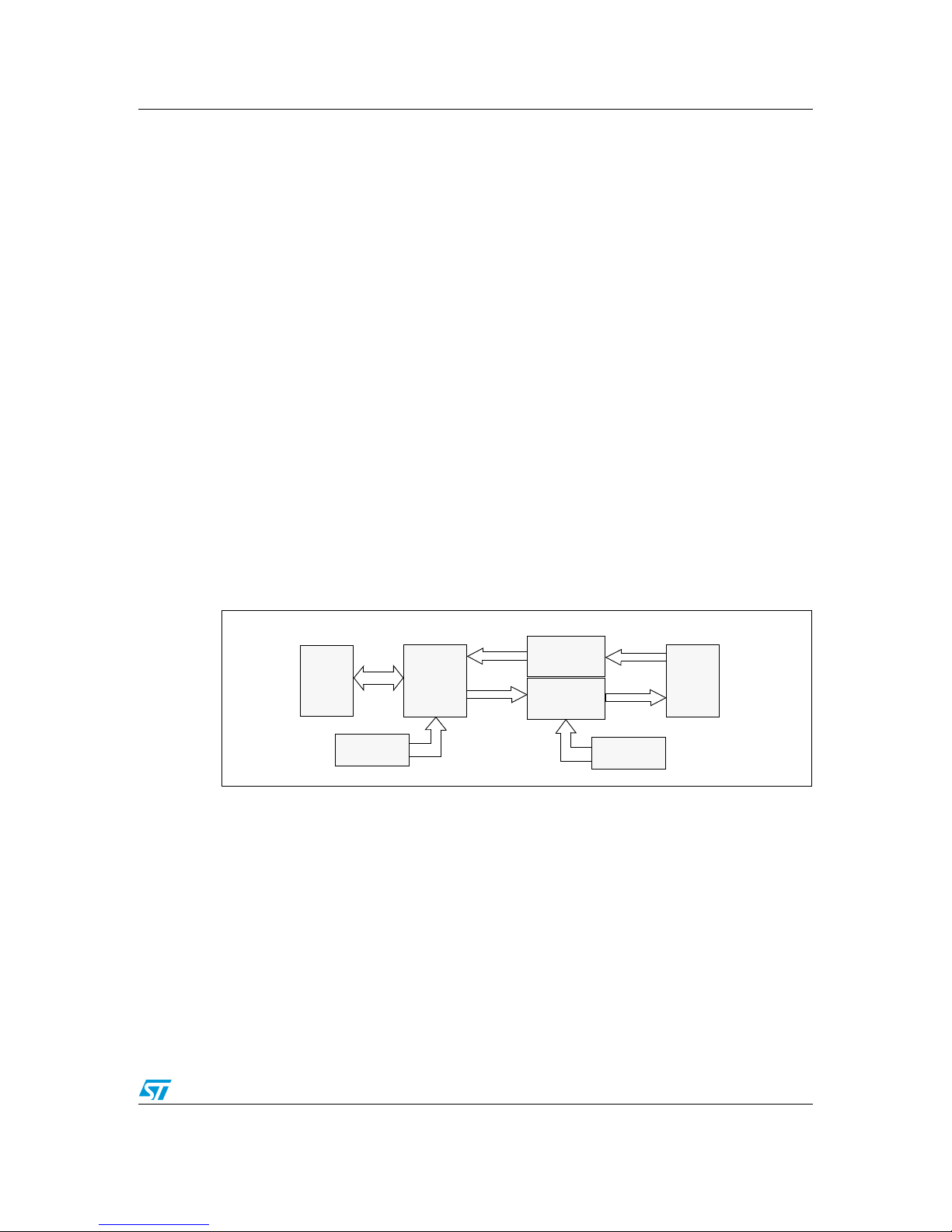

Figure 2. eMotion kit block diagram

It is possible via the GUI to interact with the ST10F276 control board (MDK-ST10) and

generate open loop signals for up three DC or BLDC motors. The PWM frequency (17-30

kHz) and duty cycle (0-100%) can be managed together with driver signals such as

enable/disable, brake/unbrake (BLDC) and forward/reverse (DC).

The closed loop operation can be performed in terms of motor speed with encoder

feedback.

A complete PID (Proportional, Integrative, And Derivative) control algorithm is implemented.

The user can configure:

●the value of PID terms (from 0.01 to 100)

●the speed (from 1 to 3000 rpm)

●the control loop time (from 1 to 52 ms)

●the number of encoder pulses per revolution (1 to 65536)

PC + GUI

Board

Power

Control

board MDK

ST10

Feedback

board

(shielded)

PowerSPIN

boards

Encoder

signals Encoder

signals

Power

signals

PWM/

Driver

BLDC or

motors

Driver

Power

RS232

Serial

Protocol

Overview UM0289

4/29

Encoder feedback signals are directly managed by the ST10F276 through its dedicated

peripherals.

In order to guarantee an optimum quality of encoder waveforms, a special adapter is

included to shield the signals and to avoid interference (refer to Section 2.3 on page 9 for

further information).

UM0289 Hardware

5/29

2 Hardware

2.1 MDK-ST10

(Refer to the MDK-ST10 User manual (UM0288) for more detailed information)

The core of the eMotion Kit is the control board which is based on the ST10F276

microcontroller, in which all the driver board management routines are implemented.

Board key features:

●ST10F276 core (16-bit with DSP @ 64 MHz, 832 KB Flash,68 KB RAM)

●RS232

●RS485

●2 CAN

●I2C (3.3V and 5V)

●MC Connector

●3 powerSPIN connectors

●VN808 board / GP connector

●All pin outs available

The board design allows the user to develop a high-end motion control system based on this

16-bit microcontroller. The features of this powerful device allow the integration of complex

routines to create advanced motion control algorithms.

Referring on Figure 2, the eMotion kit uses the connectors PowerSpin_1, 2, 3 as indicated

on the silkscreen of the board with the text "PractiSpin 1", "PractiSpin 2", "PractiSpin 3".

To allow the compatibility with powerSPIN evaluation boards, for each board connector is

inserted a jumper (VCC PRACTI X, located close to the connector) that, if closed, provides

a 5V power supply to the respective board.

Communication with a PC and GUI system is achieved via an RS232 channel through a

standard DB9 female connector and using a standard RS232 cable.

Hardware UM0289

6/29

Figure 3. MDK-ST10 board

Note: Refer also to Section 5.1.2: Board configuration on page 23

The default configuration of the board (once programmed) is:

●EA jumper: 1 (in order to obtain the fetch of the code from internal flash of

microcontroller)

●SW3 switches: all OFF

●

SW5 switches:

–Switch 2 (CSEL 0): ON

–Switch 7 (CLK 1): ON

–Other switches: OFF

●Selector J206: "PRACTI" position (in order to connect micro lines to powerSPIN

connectors)

These configurations impose a 60 MHz core clock frequency and leave port 6 of

microcontroller free for I/0s (needed because P6.0=CS0 is used to manage powerSPIN

boards)

To better understand how powerSPIN boards are managed by control board, Ta bl e 1

provides a description of the powerSPIN connectors:

MC_CONNECTOR

POWERSPIN_2

ST10F276

VN808 / GP

POWERSPIN_3

RS232

RS485

I2C

CAN2

CAN1

POWERSPIN_1

UM0289 Hardware

7/29

Table 1. PractiSPIN connectors description

2.2 PowerSPIN boards

eMotion kit can manage up to three boards based on monolithic driver of L62xx family. This

first release of system works with DC and BLDC drivers so with boards L6205 and L6235

but also with similar boards for the same motors.

2.2.1 L6205 Eval board (DC Motor)

(refer to application note AN1762 and the L620x datasheet for more details)

PIN No. PractiSPIN 1 PractiSPIN 2 PractiSPIN 3 Functionality

5V via Jumper

J207 (VCC

PRACTI 1)

5V via Jumper

J208 (VCC

PRACTI 2)

5V via Jumper

J209 (VCC

PRACTI 3)

2 P2_10 P2_11 P2_12 Interrupt

3 P5_5 P5_6 P5_7 ADC

4 P0L.0 P0L.1 P0L.2 GPIO

5, 6 NC NC NC -

7 P1L.0 P1L.1 P1L.2 ADC

8 P0L.3 P0L.4 P0L.5 GPIO

9NC NC NC -

10 P0L.6 P0L.7 P6.3 GPIO

11, 13 NC NC NC -

14 P6.0 P6.1 P6.2 GPIO

15, 16, 17, 18, 19 NC NC NC -

20 P2.0 P2.1 P2.2 GPIO / Capcom

21 NC NC NC -

22 P8.0 P8.1 P8.2 PWM / GPIO

23 GND GND GND -

24, 25 NC NC NC -

26 P7.4 P7.5 P7.6 GPIO / Capcom

27 NC NC NC -

28 P7.0 P7.1 P7.2 PWM / GPIO

29, 30 NC NC NC -

31 P2.13 P2.14 P2.15 GPIO / Capcom

32 P2.3 P2.4 P2.5 GPIO / Capcom

33 P1H.4 P1H.5 P1H.6 GPIO / Capcom

34 NC NC NC -

Hardware UM0289

8/29

eMotion kit can manage the evaluation board based on DMOS full bridge ICs

(L6205,L6206,L6207).

Figure 4. Eval 6205N board

Refer to Section 5.1.2: Board configuration on page 23 for a description of the board

configuration using eMotion.

2.2.2 L6235 Eval board (BLDC Motor)

(refer to application note AN1625 and the L6235 datasheet for more details)

eMotion kit can manage the evaluation board based on L6235 three phase brushless DC

motor.

Figure 5. Eval 6235 board

Refer to Section 5.1.2: Board configuration on page 23 for a description of the board

configuration using eMotion.

UM0289 Hardware

9/29

2.3 Feedback board

In order to interface the control system with encoder signals coming from motors, a special

board, with two 20 pins connectors in the top side, is used (Feedback board).

This is a stackable board and has to be inserted using the four 36-pin connectors around the

microcontroller in the MDK-ST10 board. The insertion orientation is indicated with a dot in a

corner of the board (corresponding to pin 1 of the ST10 MCU)

The two connectors (Conn1 J3, Conn2 J4), used to allow the encoder feedback, are

shielded with the pair of pins connected to GND.

The dimensions of this board are about 6.5 x 6.5 cm. The following tables show the pin

assignments for each connector.

Table 2. Conn1 Feedback board

Table 3. Conn2 Feedback board

Conn.1 MDK-ST10 Pin Functionality

1 P3.7 T2IN (encoder_1 A)

2GND-

3 P5.15 T2EUD (encoder_1 B)

4GND-

5 P3.6 T3IN (encoder_2 A)

6GND-

7 P3.4 T3EUD (encoder_2 B)

8GND-

9 P3.5 T4IN (encoder_3 A)

10 GND -

11 P5.14 T4EUD (encoder_3 B)

12 GND -

13 P2.6 CC16 (capture / GPIO)

14 GND -

15 P1L.3 GPIO / ADC In

16 GND -

17 P1L.4 GPIO / ADC In

18 GND -

19 +5V -

20 GND -

Conn.2 MDK-ST10 Pin Functionality

1 P1L.5 GPIO/ ADC In

2GND-

3 P2.7 CC7 (capture / GPIO)

Hardware UM0289

10/29

Figure 6. Feedback board schematic

4GND-

5 P1L.6 GPIO / ADC In

6GND-

7 P1L.7 GPIO / ADC In

8GND-

9 P1H.0 GPIO

10 GND -

11 P1H.7 CC27 (capture / GPIO)

12 GND -

13 P1H.1 GPIO

14 GND -

15 P1H.2 GPIO

16 GND -

17 P1H.3 GPIO

18 GND -

19 +5V -

20 GND -

Conn.2 MDK-ST10 Pin Functionality

Tabla de contenidos

Otros manuales de Unidad de control de ST

ST Teseo-LIV4F Manual de usuario

ST ST5-IP Manual de usuario

ST X-NUCLEO-LPM01A Manual de usuario

ST Teseo-LIV3F Manual de usuario

ST AN4070 Instrucciones de instalación y funcionamiento

ST X-NUCLEO-IDB05A1 Manual de usuario

ST VL53L1X API Manual de usuario

ST SPBT2632C2A Manual de usuario

ST FP-SNS-FLIGHT1 Manual de usuario

ST SP1ML-915 Manual de usuario

ST ACEPACK DMT-32 Guía del usuario

ST STM32Cube FP-SNS-MOTENVWB1 Manual de usuario

ST PC58 Series Manual de instrucciones

ST SPLML-868 Manual de instrucciones

ST STM32F051R8T6 Manual de usuario

ST SPC58XXADPT100S Manual de usuario

ST STM8 Manual de usuario

ST ACEPACK 1 Manual de usuario

ST UM0993 Manual de usuario

ST L6472 Manual de usuario

ST STM32WB5MM-DK Manual de usuario

ST SPSGRF Manual de usuario

ST STM32 Nucleo Manual de usuario

ST Teseo-LIV4FM Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario

ST eMotion Manual de usuario

Manuales populares de Unidad de control de otras marcas
