Quick Reference Card

Before fitting the SYMBIONIC®LEG, charge the unit for 2-4 hours to ensure a

full charge.

Turn the SYMBIONIC®LEG on

Bench alignment

a) Fit the foot with the selected cover and shoe.

b) Heel height adjustment on bench.

c) Optimize length/alignment of pylon and adaptors.

d) The alignment reference line should pass through a sagittal plane bisection

of the socket, the knee center and the posterior 1/3 of the Flex-Foot.

NOTE: If stability modifications are desired after patient assessment; the

reference line can be shifted up to 5 mm anterior or 5 mm posterior to the knee

center.

Static Alignment

a) Select appropriate heel wedge.

b) Check reference line during static alignment and adjust if required.

c) Optimize knee settings in RHEOLOGIC.

POWER

ON/OFF

2 BEEP = ON

3 BEEP = OFF

Function Hold

Sound

SET

HEEL

HEIGHT x2

1 BEEP = Start

1 BEEP = Move

1 BEEP = Complete

Function

Hold Press Sound

CALIBRATION

ON/OFF 2 BEEP =

ON/OFF

Function Hold Press Sound

d) Ankle calibration.

www.ossur.com QRC 0042 EN Rev. 1

©Copyright Össur 2013

Training checklist

1) Train user on level ground.

2) Train user on ramps/stairs.

Make sure the user knows how to:

1) Charge the unit and recognize low battery level warning.

2) Turn power ON/OFF and unlock the keypad.

3) Adjust the heel height when changing shoes.

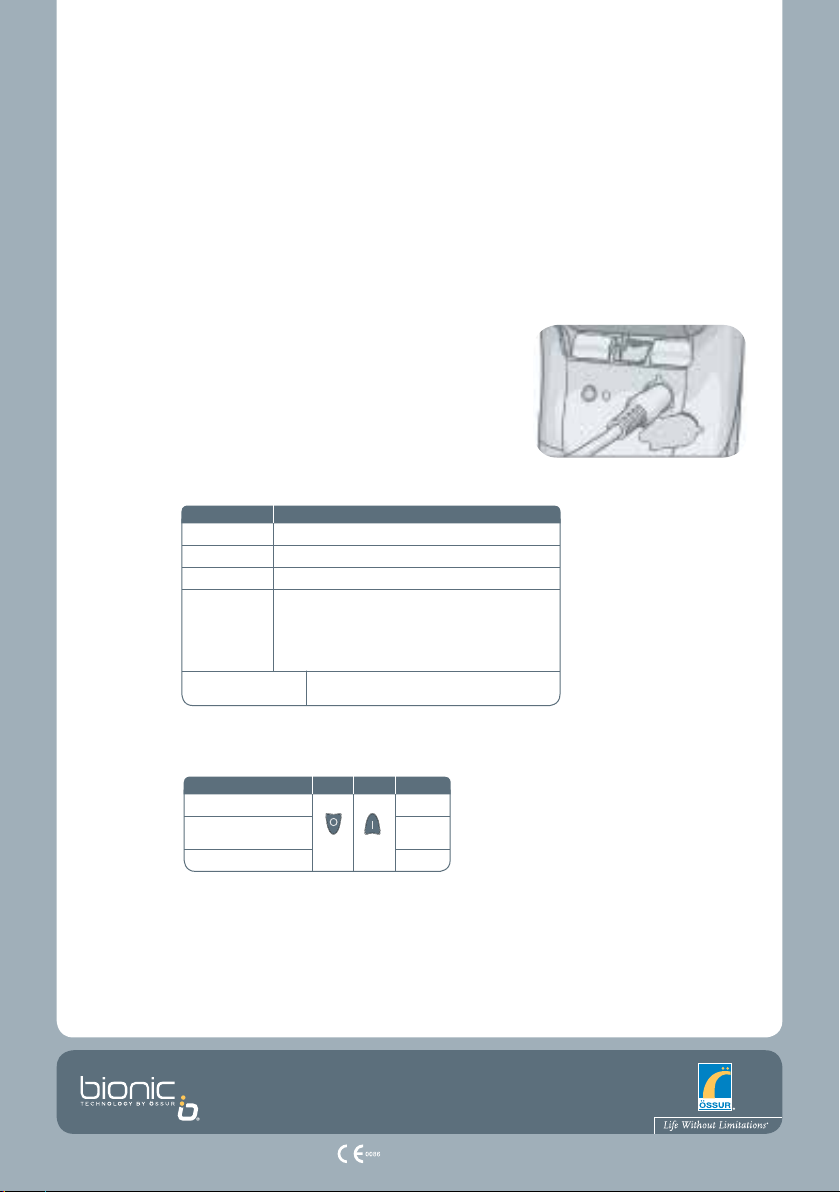

Charging and power

Insert the charger cable into the charging port on the user interface panel on the knee module.

Charging: The yellow light on the ankle unit blinks when

charging and becomes a solid light when it is fully

charged.

The knee module does not indicate charging status.

Power: Fully charged battery is sufficient for 16-24 hours of

continuous use, depending on activity.

Warnings: Auditory warning signals indicate impending power

loss.

Relax Mode OFF

Relax Mode ON

(with chair exit mode)

Chair Exit Mode only

1 BEEP

2 BEEP

3 BEEP

Mode Sequence Hold Press Sound

RELAX MODE

2x BEEP

3x BEEP

Approx. 5 hrs left

Warning Indicates

4x BEEP

5x BEEP

Approx. 4 hrs left

Approx. 3 hrs left

Approx. 2 hrs left

Ankle will return to neutral

(last set heel height)

Yellow LED is solid ON

1 x long high pitch

beep Ankle will return to neutral position and

SYMBIONIC LEG will turn OFF
