Front Suspension

Setup and Tuning Guide

GEN.00000000005623 Rev A

Table of Contents

Introduction ...................................................................................................................................................................... 4

Set Sag.............................................................................................................................................................................. 5

Dampers ............................................................................................................................................................................................ 6

Air Springs - Solo Air™, DebonAir™, Dual Position Air™ ............................................................................................................7

Coil Spring - Dual Crown Forks ..................................................................................................................................................10

Coil Spring - External Preload Adjuster Knob.........................................................................................................................12

Coil Spring - Paragon™ Silver.......................................................................................................................................................15

Rebound Damping..........................................................................................................................................................17

Rebound - Optimal .........................................................................................................................................................................18

Rebound - Too Fast........................................................................................................................................................................19

Rebound - Too Slow......................................................................................................................................................................20

Low Speed Compression Damping............................................................................................................................. 21

Rolling Terrain.................................................................................................................................................................................22

Bumps............................................................................................................................................................................................... 23

High Speed Compression Damping............................................................................................................................24

Square Bumps and Drops ...........................................................................................................................................................25

Threshold (Pedal)...........................................................................................................................................................26

Lockout............................................................................................................................................................................ 27

Compliance and Blow-Off...........................................................................................................................................................28

Air Spring Bottom Out Tuning - Bottomless Tokens™ ...............................................................................................29

Fork Models and Damper Adjustments......................................................................................................................30

Service and Settings ..................................................................................................................................................... 31

To achieve maximum suspension performance, proper setup and tuning is essential.

This guide will help you identify and understand the features and adjustments that may be included on

your RockShox® suspension fork, as well as guide you through spring setup, damper adjustments and

tuning, and air spring bottom out tuning.

Tuning suggestions are starting points. It may take trying various adjustments to find the settings that

work best for each individual rider and trail condition.

Try the Quarq® ShockWiz™ suspension tuning device for more detailed ride data analysis and setting

suggestions. Go to www.quarq/shockwiz.com for more information.

For quick setup after fork service and tuning has been performed, make a note of your fork

settings on page 31.

Go to www.rockshox.com/app for suggested air spring pressure and rebound damper

settings for your fork.

Go to www.sram.com/service for additional product and technical information.

• Air spring pressure and coil spring tables are available in the RockShox® Front

Suspension Oil, Air, Coil, Token, and Specification documents.

• For a complete list of available coil springs and Bottomless Tokens™,

consult the RockShox Spare Parts Catalog.

• Consult the RockShox service manual for your fork for complete

disassembly and assembly procedures.

Your product's appearance may differ from the images in this

publication.

All setup procedures picture the fork only. Perform actual fork

sag and tuning on a complete, assembled bicycle.

All performance examples illustrated are for conceptualization

and may vary from actual performance.

Compression

Damper

Adjusters

Spring

(Air or Coil)

Rebound

Damper

Adjuster

Introduction

Suspension sag can be used to set the proper suspension spring rate.

Sag is the amount of travel, measured as a percentage of full travel, that the

suspension compresses when the rider, including gear, is on the bicycle in

the normal riding position. Setting the correct sag allows the suspension to

actuate effectively and efficiently.

• More sag (20% - 30%) increases bump sensitivity and suspension

movement. More bump sensitivity results in a smoother ride and is

typically preferred on longer travel bicycles.

• Less sag (10% - 20%) decreases bump sensitivity and suspension

movement. Less bump sensitivity results in a more firm, efficient ride and

is typically preferred on shorter travel bicycles.

Air pressure recommendations on the back of your fork, or at

www.rockshox.com/app, are suggested for initial spring setup. After sag is

set, your fork's optimal air pressure may differ based on fork travel, bicycle

geometry, and rider preference.

Important - Sag must be set before making any damping adjustments.

Many RockShox® forks include sag percentage gradients and a sag o-ring

on one of the upper tubes.

If a sag o-ring is not on your fork, install a plastic cable tie around the upper

tube just tight enough so it does not slide down the upper tube. Remove the

cable tie before riding.

If your fork does not have sag percentage gradients, multiply the target sag

percentage by the total amount of suspension fork travel. Use a ruler to

measure the length of exposed upper tube above the dust wiper seal to the

sag o-ring.

If your fork's travel is unknown, before sag is measured, fully compress

the fork to bottom out. Release and use a ruler to measure the length of

exposed upper tube below the sag o-ring.

Set Sag

Before setting sag, set the dampers to the full open positions. Rotate the knobs counter-clockwise until they stop.

Dampers

Adjust

Pressurize the air spring to the

recommended starting air pressure.

Remove the pump.

For Dual Position Air forks, pressurize the

fork in the full travel position. Proceed to

step 6.

Solo Air and DebonAir only: Compress the

fork through at least 50% of its travel five

times to equalize positive and negative air

pressures.

Air pressure equalization ensures the

positive air spring is accurately pressurized.

Pressurize the air spring to the

recommended starting pressure once more.

Remove the pump.

≥50%

Air Springs - Solo Air™, DebonAir™, Dual Position Air™

AdjustRemove Measure

Solo Air™ and DebonAir™ only: Compress

the fork through at least 50% of its travel five

more times to equalize positive and negative

air pressures.

With riding gear on, and an assistant holding

the bike, stand on the pedals, and compress

the fork three times. Then sit or stand in your

normal riding position.

Have your assistant slide the sag o-ring

down to the top of the dust wiper seal.

≥50%

Adjust Measure

Note the sag percentage where the o-ring

stopped.

Gently step off the bicycle without

compressing the fork any further.

If your target sag percentage is not

achieved, air pressure must be adjusted.

Increase air pressure to decrease sag.

Decrease air pressure to increase sag.

Repeat the sag process until your target sag

percentage is achieved.

<10%

40%

Adjust Measure

Gently step off the bicycle without

compressing the fork any further.

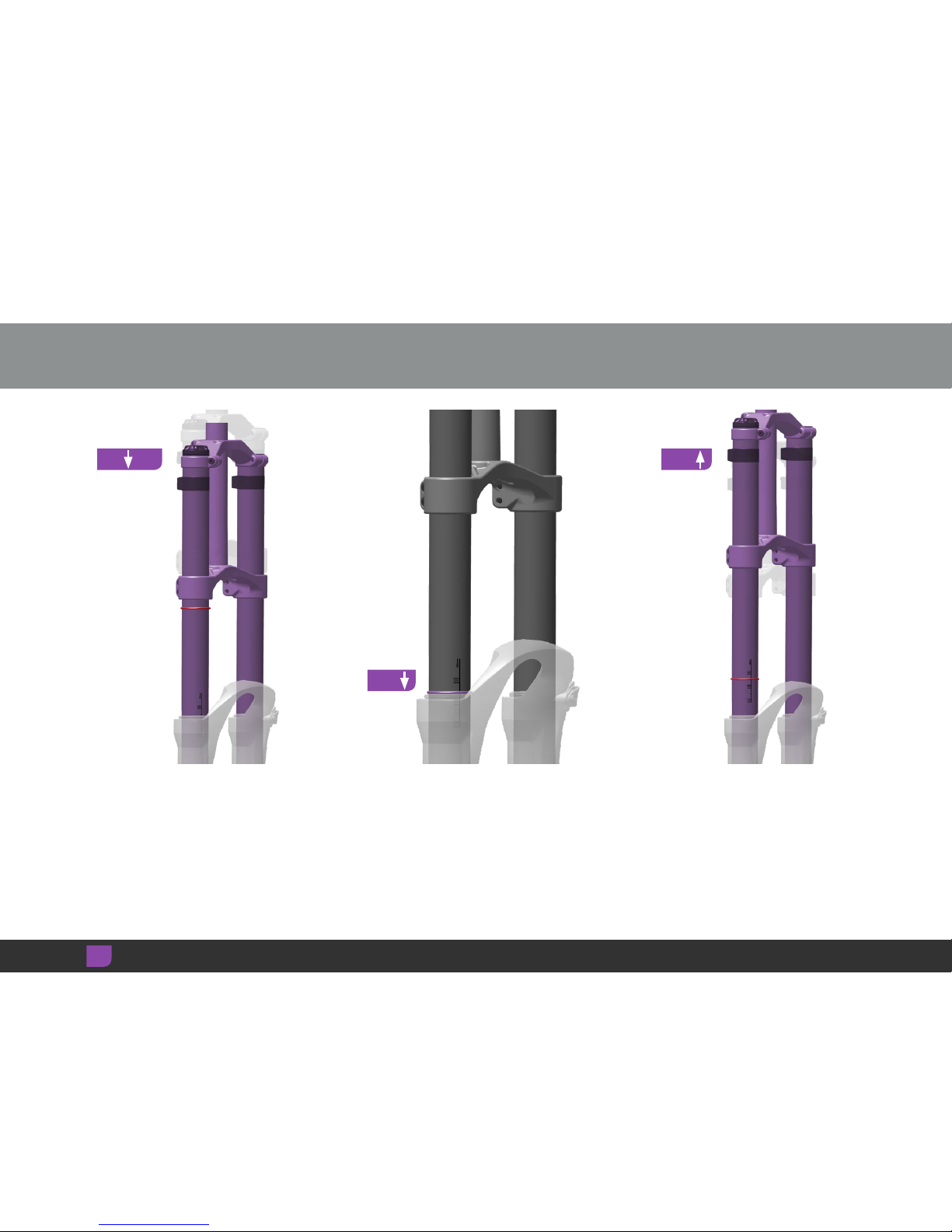

Coil Spring - Dual Crown Forks

With riding gear on, and an assistant holding

the bike, stand on the pedals, and compress

the fork three times. Then sit or stand in your

normal riding position.

Have your assistant slide the sag o-ring

down to the top of the dust seal.

Adjust
