SR Instruments SRScales SRV947R Manual de servicio

Model SRV947R 24 X 48 Remote Display Platform

Operating and Service Manual

Part No. MAN947R _190624 Page 1 of 16

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

SRV947R

REMOTE DISPLAY

PLATFORM SCALE

by SR Instruments, Inc.

Operating and Service

Manual

Model SRV947R 24 X 48 Remote Display Platform

Operating and Service Manual

Part No. MAN947R _190624 Page 2 of 16

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

TABLE OF CONTENTS

TABLE OF FIGURES......................................................................................................................2

PACKING CHECKLIST –MODEL SRV947R............................................................................3

ASSEMBLY.......................................................................................................................................3

SYSTEM DESCRIPTION AND INTENDED USE.......................................................................4

MAINTENANCE AND CLEANING..............................................................................................5

STORAGE AND TRANSPORTATION ........................................................................................5

SPECIFICATIONS...........................................................................................................................6

BUTTON FUNCTIONS...................................................................................................................7

BASIC SYSTEM OPERATION......................................................................................................8

THEORY OF OPERATION ...........................................................................................................9

CALIBRATION..............................................................................................................................10

TROUBLESHOOTING.................................................................................................................14

DISPLAY MOUNTING TEMPLATE..........................................................................................15

TABLE OF FIGURES

Figure 1: SRV947R Button Label .................................................................................................7

Figure 2: Calibration Button ........................................................................................................10

Figure 3: Select and Toggle Button..............................................................................................10

Model SRV947R 24 X 48 Remote Display Platform

Operating and Service Manual

Part No. MAN947R _190624 Page 3 of 16

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

PACKING CHECKLIST –Model SRV947R

Remote Display Platform Scale

ASSEMBLY

STEP 1: Unpack the scale system and check parts against the PACKING CHECKLIST. If

there are any missing or damaged parts, call the Service Hotline at: 1-800-654-6360.

STEP 2: Determine installation location for scale and display, keeping in mind the display cable

length is six (6) feet and the display power cord length is four (4) feet. The display may lay flat on

a desk or end table. If desired, provisions for wall mount have been incorporated, and can be

accomplished in the manner described below.

A. The display should be installed by qualified personnel. The mounting hardware provided

will cover most wall applications.

B. Determine a position on the wall comfortable to the user. Mark the location of the two (2)

mounting holes on the wall (holes are spaced 2.5” on center apart) using the template

provided on page 15.

C. Drill the two (2) pilot holes, no larger than ¼” diameter in the locations marked. Install the

two (2) self-drilling screw anchors.

D. Install the two (2) #8 x 1” flat head screws supplied, leaving approximately ¼” projecting

from the wall.

STEP 3: Connect signal cable to the underside of the platform.

STEP 4: Place SRV947R scale system on a flat, hard floor surface. Ensure all six feet of the

scale are in contact with the floor and scale does not rock.

NOTE: Scale should not be placed on carpet or uneven floor surfaces as this may interfere with

scale accuracy.

STEP 5: Connect the display cable to the scale, then connect the power cable to the display and

plug power adapter into wall.



DESCRIPTION

QUANTITY

SCALE BASE

1 ea.

SCALE DISPLAY

1 ea.

MOUNTING HARDWARE

1 ea.

AC WALL POWER SUPPLY (MEDICAL GRADE)

1 ea.

CERTIFICATE OF CALIBRATION

1 ea.

MANUAL

1 ea.

Model SRV947R 24 X 48 Remote Display Platform

Operating and Service Manual

Part No. MAN947R _190624 Page 4 of 16

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

SYSTEM DESCRIPTION AND INTENDED USE

SYSTEM DESCRIPTION

The SRV947R Portable Platform Scale is a low profile design, 2 in. height, which allows the

animal easy step access. The SRV947R Scale can be used in a fixed location or as a portable

scale. The Scale employs the latest in microprocessor and load cell technology to provide accurate

and repeatable weight data. Six (6) identically matched transducers are strategically placed to

ensure an accurate representation of the patient’s weight.

The patient’s weight is displayed on an LCD screen. With a push of a button, weight data may be

viewed in either pounds or kilograms.

INTENDED USE

The SRV947R Portable Platform Scale is a lightweight portable scale designed for use as a

weighing system for animals not exceeding 400 pounds or 182 kilograms, gross weight. Please

read the following warnings to avoid injury to the animal or attendant.

WARNING

DO NOT USE FOR ANIMAL TRANSPORT

DO NOT EXCEED MAXIMUM LIMIT OF 400 LBS / 182 KG

Model SRV947R 24 X 48 Remote Display Platform

Operating and Service Manual

Part No. MAN947R _190624 Page 5 of 16

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

MAINTENANCE and CLEANING

The SRV947R Portable Platform Scale is made with a polyurea-coated aluminum platform.

Exercise caution when cleaning the display window as it is made of a clear plastic and can be

scratched by abrasive cleaners. Mild soap and water is recommended for general cleaning and

disinfecting.

STORAGE and TRANSPORTATION

STORAGE

If storing this equipment for periods longer than three (3) months, remove the batteries. To

maintain proper operation of this instrument, storage and transport conditions should not vary

outside the following conditions: Relative Humidity 0% to 85%, Ambient Temperature 14F to

122F (-10C to +50C).

TRANSPORTATION

The SRV947R Portable Platform Scale has four (4) recessed handles on the underside of the scale

for easy portability.

WARNING

DO NOT use pressurized water or steam.

The scale system contains microprocessor

circuitry and strain gauge sensors that may

be adversely affected by exposure to such an

environment.

Model SRV947R 24 X 48 Remote Display Platform

Operating and Service Manual

Part No. MAN947R _190624 Page 6 of 16

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

SPECIFICATIONS

MAXIMUM WEIGHT CAPACITY

400 lb / 182 kg

PLATFORM SIZE

24 in x 48 in x 2 in

(61 cm x 122 cm x 5 cm)

DISPLAY TYPE

1.0”LCD display with 5 active digits

DISPLAY RESOLUTION

0.2 lb / 0.1 kg

ACCURACY

0.2% +/- 2 digits of displayed resolution for calibrated

range

AUTO ZERO

One button operation

AUTO WEIGH

Scale will automatically turn on and lock in on a stable

weight.

AVERAGING

Automatic digital filter

POWER SUPPLY

AC Wall Power Supply (Medical Grade)

CALIBRATION

Calibration is traceable to NIST standards

OPERATING CONDITIONS

Normal operating conditions for this product:

Ambient Temperature Range: 68F to 85F (20C to

30C), Relative Humidity Range: 0%-85%. Avoid

exposure to high-pressure water or steam.

TRANSPORT and STORAGE

Storage and transport conditions should not vary

outside the following conditions: Relative Humidity

0% to 85%, Ambient Temperature 14F to122F (-10C

to +50C). Remove batteries if storing longer than

three (3) months.

Model SRV947R 24 X 48 Remote Display Platform

Operating and Service Manual

Part No. MAN947R _190624 Page 7 of 16

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

MODE

ZERO

HOLD/

RECAL

BUTTON FUNCTIONS

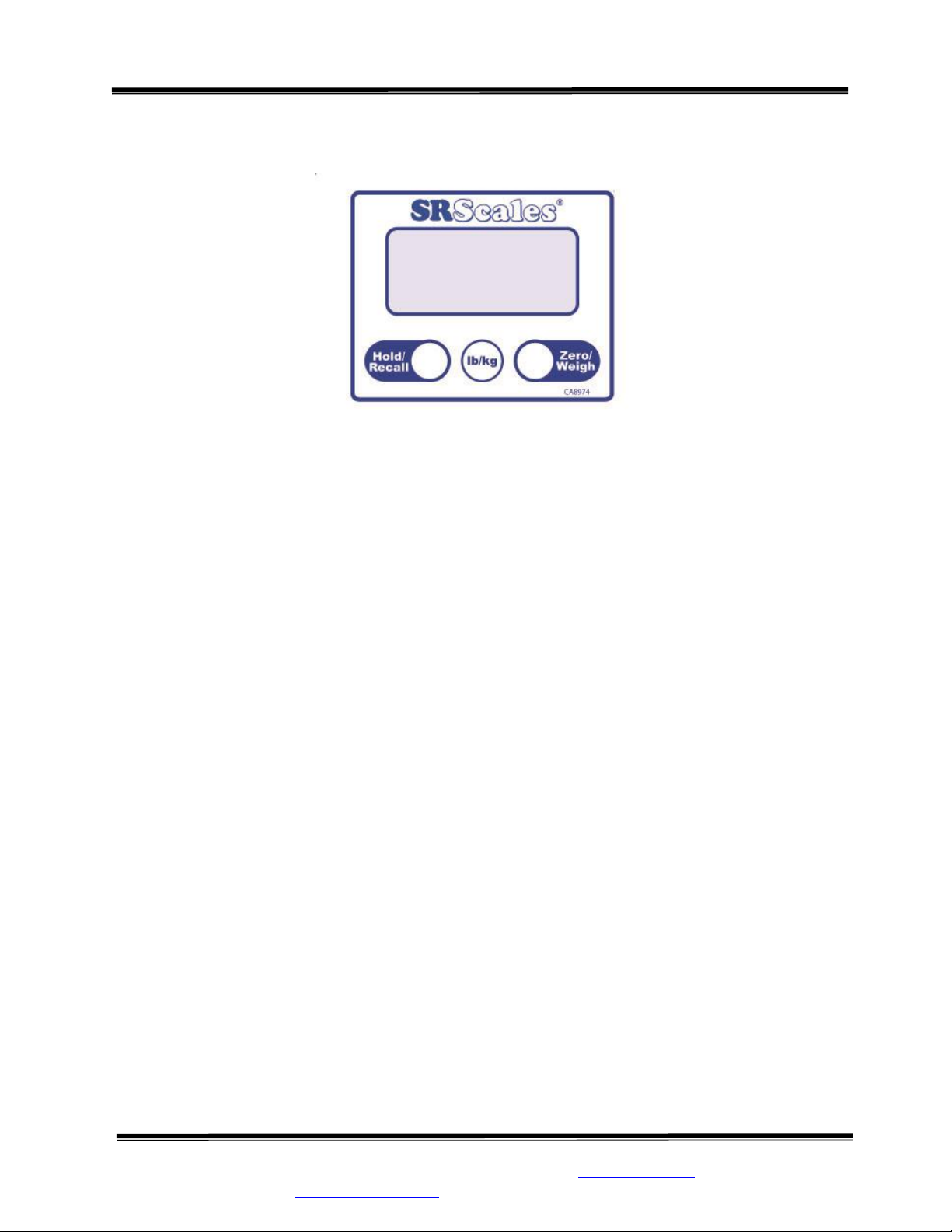

Figure 1: SRV947R Button Label

The “ZERO/WEIGH” button is used to clear the Recall memory and start a new

weighing cycle. Press and hold for 3 seconds to zero the display.

The “MODE” button is used to select pounds or kilograms.

The “HOLD/RECALL”button is used to “lock in” the weight currently displayed,

or to recall the last saved weight, if nothing is on the scale platform.

Model SRV947R 24 X 48 Remote Display Platform

Operating and Service Manual

Part No. MAN947R _190624 Page 8 of 16

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

BASIC SYSTEM OPERATION

TURNING SYSTEM ON

Make sure the scale is free and clear of any obstructions and all six feet are touching a level

surface. Press the “ZERO” button and hold for 3 seconds. The display will read “ZERO” then

display “0.0” when system is ready for weighing.

UNIT

Press the “MODE” button to toggle between pounds or kilograms. The system will remain in the

same mode as last used unless manually changed.

WEIGH

The “WEIGH” button is used to clear the “Recall” memory and start a new weighing cycle.

HOLD/RECALL

The “HOLD/RECALL” button is used to “lock in” and store the weight currently displayed in

system memory. With no weight on the platform pressing the button again will recall the last

stored weight and display it for 15 seconds.

AUTOHOLD

With autohold enabled, when the system detects a stable weight, that value will be stored in

system memory. This value can later be recalled by pressing the “HOLD/RECALL” button with

no weight on the platform.

SCREEN DISPLAYED SYMBOLS

Scale is zeroed and stabilized

MEM Weight is locked in memory (next stable weight will override memory).

Applied weight load has stabilized

Model SRV947R 24 X 48 Remote Display Platform

Operating and Service Manual

Part No. MAN947R _190624 Page 9 of 16

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

THEORY OF OPERATION

SR Instruments patient weighing systems are digital scales. Strain-gauge force cells convert the force

of an applied weight into an analog signal. This signal is amplified by an operational amplifier and

converted to a digital signal by analog to digital converter. The digital signal is transferred to a micro-

controller where it is filtered, converted to appropriate units, and displayed on a liquid crystal display.

Strain-gauge force cells each contain four strain gauges mounted in a full Whetstone-bridge

configuration. These bridges convert the physical movement of the force cell, due to the applied mass

on the system, into minute changes in electrical resistance. These changes in resistance produce a

voltage difference across the Whetstone-bridge, which is amplified by the operational amplifier.

The output of the operational amplifier is digitized by the analog to digital converter. The converter

integrates the analog signal onto the integrating capacitor over a short interval. The integrating

capacitor is then discharged at a rate proportional to the reference voltage applied to the converter.

The residual voltage on the integrating capacitor is then multiplied by a factor and again discharged at

a rate proportional to the reference voltage. The residual voltage from this discharge is again

multiplied by a factor and again discharged. The time taken to discharge the capacitor is proportional

to the voltage from the operational amplifier, which is proportional to the applied load on the force

cells. The time is stored as a binary number in the analog to digital converter and is transferred to the

micro-controller when the conversion is complete.

The micro-controller averages and filters the digital output of the analog to digital converter, subtracts

the value saved during the system zero operation and scales the filtered output, then displays the result

on the liquid crystal display. The micro-controller performs a rolling average of data for continuous

weigh and averages the data before locking in on the reading.

Model SRV947R 24 X 48 Remote Display Platform

Operating and Service Manual

Part No. MAN947R _190624 Page 10 of 16

SInstruments, Inc., 600 Young Street, Tonawanda, NY 14150

Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com

CALIBRATION

Figure 2: Calibration Button

Figure 3: Select and Toggle Button

CAUTION

The integrated circuits and semiconductors

on the printed circuit boards may be

damaged by electrostatic discharge (ESD).

Be sure to use proper handling precautions at

all times.

IMPORTANT

CALIBRATION CHECK Qualified service personnel only should perform this

procedure. Load cells have no user serviceable components and should not be tampered

with for any reason. Re-calibration is generally not required, but should be verified

periodically to ensure accuracy. The recommendation for calibration check is at least

once every 12 months, or as individual maintenance policy requires.

CALIBRATION

BUTTON

SELECT

BUTTON

TOGGLE

BUTTON

Tabla de contenidos

Otros manuales de Escala de SR Instruments

SR Instruments

SR Instruments SR Scales SRV415 Manual de servicio

SR Instruments

SR Instruments SRSCALES SRV411i Manual de servicio

SR Instruments

SR Instruments SRScales SR555 Manual de servicio

SR Instruments

SR Instruments SRScales SRV947R-BT Manual de servicio

SR Instruments

SR Instruments SR Scales SR7010i Manual de servicio

SR Instruments

SR Instruments SRScales SRV949-BT Manual de servicio

SR Instruments

SR Instruments SR Scales SRV957IFS Manual de servicio

SR Instruments

SR Instruments SR Scales SR630i-KG Manual de servicio

SR Instruments

SR Instruments SR Scales SR7005i-KG Manual de servicio

SR Instruments

SR Instruments SR Scales SR241KG Manual de servicio

SR Instruments

SR Instruments SR300 Manual de usuario

SR Instruments

SR Instruments SRScales SR465 Manual de usuario

SR Instruments

SR Instruments SRScales SRV714 Series Manual de servicio

SR Instruments

SR Instruments SR Scales SR2555 Manual de usuario

SR Instruments

SR Instruments SR Scales SR755i-KG Manual de servicio

SR Instruments

SR Instruments SR Scales SR555i Manual de servicio

SR Instruments

SR Instruments SR755KG Manual de servicio

SR Instruments

SR Instruments SRV710W Series Manual de servicio

SR Instruments

SR Instruments SRScales SR575 Manual de servicio

SR Instruments

SR Instruments SRScales SRV713W Manual de servicio

SR Instruments

SR Instruments SR Scales SRV713 Manual de servicio

SR Instruments

SR Instruments SR Scales SR7020i Manual de servicio

SR Instruments

SR Instruments SR Scales SRV712W Manual de servicio

SR Instruments

SR Instruments SR725 Manual de servicio

Manuales populares de Escala de otras marcas

AWS

AWS ZEO-50 Manual de usuario

Gima

Gima Glass Body Fat Analyzer Manual de lista de piezas

Seca

Seca 374 Manual de usuario

TEC

TEC TEC SL59 SERIES Manual de usuario

Axis

Axis B/E Series Manual de usuario

Alecto

Alecto ACW-40 Manual de usuario

Rice Lake

Rice Lake MSI-4260 IS Manual de usuario

IKA

IKA RCT basic safety control Manual de usuario

ADE

ADE M20011 Manual de usuario

Duronic

Duronic KS3000 Manual de usuario

Digi

Digi SM-720 Manual de usuario

Cardinal

Cardinal CS Series Manual de usuario

Korona

Korona Kastella Manual de usuario

A&D

A&D FC-50Ki Manual de usuario

BDA

BDA CAMARGUE Manual de usuario

Tanita

Tanita HD-357 Manual de usuario

Leifheit

Leifheit 03173 Manual de usuario

Lumme

Lumme LU-1340 Manual de usuario
