Spypoint IR-B Manual de usuario

Digital Surveillance

Camera

IR-B model

User’s manual

www.spy-point.com

INT

SPYP

Thank you for purchasing SPYPOINT IR-B

product. You can now enjoy the many benefits of a full feature

and easy to use digital surveillance camera. This 7 MP infrared

digital camera features the latest scouting camera technology

and captures crisp and clean digital photo or video either day or

night without the use of a flash.

FEATURES

• Still photos 7 MP

• Video resolution 640 x 480

• File formats JPG/AVI

• External memory SD card up to 8 GB

• Internal memory 32 MB built-in memory

• Exposure Auto

• Play modes Computer / TV

• TV-out PAL / NTSC

• PIR distance Adjustable from 5 to 50 ft.

• Motion detection angle 95°

• Power source 6 C-cell batteries or

external 12V DC power

jack or lithium rechargeable

battery pack

• Operating temperature (-20 °C to +50 °C)

(-4 F to +122 F)

• Storage temperature (-30 °C to +75 °C)

(-22 F to + 167 F)

• Computer operating system WIN 2000 / XP / VISTA /

Mac OS X

English

KIT INCLUDES

• SPYPOINT IR-B camera

• Mounting Kit

• USB cable

• Video cable

• User’s manual

Main features

1. LCD display mode: date, time and number of pictures.

2. Adjustable PIR sensitivity.

3. Color day time images, black and white night images.

4. Multi-shot of 1, 2, 3 or 4 pictures per detection.

5. Video length adjustable from 10 to 90 sec.

6. Ajustable delay between motions from 4 sec to 30 min.

7. NO FLASH-Uses 48 Infrared emitters to illuminate

the area.

8. Water-resistant housing case.

9. Date and time stamp on each picture.

10. Auxiliary power jack for external 12 V DC input.

11. Optional use of a solar panel SP-12V (sold separetely)

to recharge the lithium battery pack LIT-C-1

(sold separetely).

POWER

Alkaline batteries

This camera requires 6 type “C” batteries. We recommend

the use of good quality alkaline batteries. Install the batteries

according to the instructions inside camera case. Exact polarity

MUST be followed. Battery power is displayed on the LCD

panel. The camera will take pictures even if the batteries are

half full, but we strongly recommended that you replace them

before they are empty. (See figure below)

English

Lithium battery pack LIT-C-1

SPYPOINT camera model IR-B can be powered with a

rechargeable lithium battery pack (sold separately). This type

of battery is less affected by cold temperatures and lasts up to 3

times alkaline batteries. A solar panel SP-12V (sold separately)

can be used to recharge the lithium battery.

12V Power

SPYPOINT camera model IR-B can be used with an external

12V DC input. When using 12V DC power, we recommend

removing alkaline batteries to prevent surcharges. A 12V cable

CB-12ft (sold separately) allows connecting the camera to a

12V battery.

MEMORY CARD

The SD slot in the SPYPOINT camera model IR-B can accept

optional SD memory cards up to 8GB. Before inserting or

removing the memory card, the camera MUST be turned off.

Failing to do so may cause loss of photos or damage to the

memory card. When the internal memory or the SD card is full,

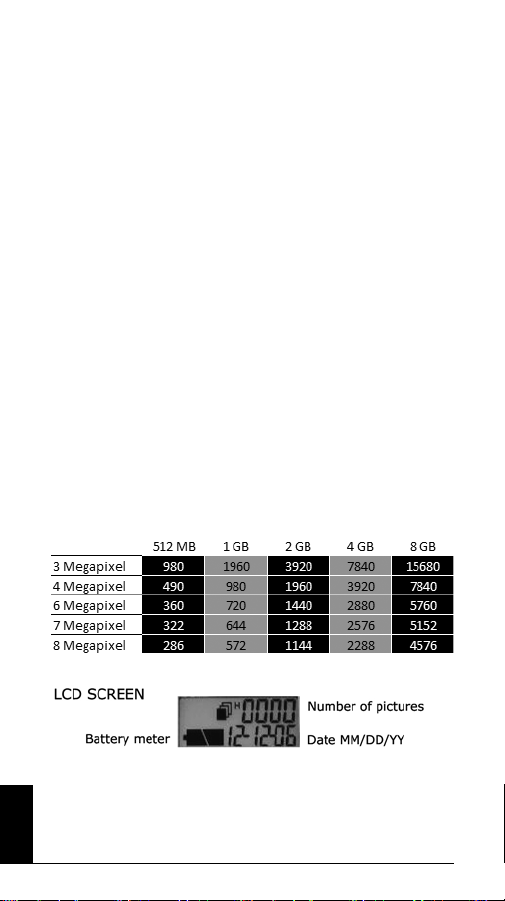

the LCD panel will show “FULL”. The following data shows

an approximate quantity of photos that can be recorded by the

camera depending on the memory card capacity.

English

SETTINGS

Picture Quality, Date and Time

Turn off your camera, set the mode switch to «Test» and set

the power switch to «ON». Press «MENU» once. The default

setting «H» (7MP) icon will flash. Use «DOWN» if you want to

change to «L» resolution (4MP). Press «MENU» button to set

date and time. Use «UP» and «DOWN» to change the blinking

number. Press «MENU» to set next option. Press «OK» and

turn off the system to record the changes. The camera’s internal

memory (32MB) can store approximately 30 pictures in 4MP

mode (low resolution) and 20 pictures in 7MP mode (high

resolution). The SD slot accepts optional SD card to record

more pictures.

MODE

When you select «Photo» or «Video», the test

light on the front of the unit will light up for

60 seconds while the motion detector charges

up. When you select «Test» you can set your

system or test the distance setting. The test

light on the front of the unit will light when the camera detects

motion. When you notice how the camera reacts to your

motion, you may want to adjust the distance setting, change

the direction or height of the camera. The camera doesn’t take

pictures while in «Test» mode. When «MODE» switch is set to

«View», you can review the recorded pictures or videos. When

«MODE» switch is set to «View», you can review the recorded

pictures or videos.

WORK

Day : Photos or videos daytime only

Night : Photos or videos night-time Tonly

24H : Photos or videos anytime

English

DELAY

Selects the time the camera will wait before

recording another photo or video. This option

prevents taking too many photos or videos of

the same object should it remain in front of the

camera for a lengthy period of time.

MULTI-SHOT

Allows for a 20 second interval between 4

consecutive photos. This option shows a different

view of all 4 photos.

VIDEO-LENGTH

Selects the video length when the camera is set in video mode

DISTANCE

The distance dial sets the motion detector

sensitivity. Use this feature to set the

detection range required. Turn dial to the

right to increase distance. Range of detector

is between 5 and 50 ft. The best method

to determine a proper distance is to turn

«MODE» switch to «Test» and to walk

perpendicularly to the front of the camera where action is

anticipated. When the detector is activated, the test light on the

front of the camera will blink once. At this moment, the camera

operator may want to adjust the distance setting, and/or change

the direction or height of the camera.

English

DOWNLOAD TO A COMPUTER

To transfer or view photos and videos on a PC, you must first

turn the camera off and use the USB cable (supplied) to connect

the camera to your computer. The computer will then recognize

the camera as a removable disk drive. Camera operator must

wait until the termination of computer software installation

(few seconds) before clicking on Desktop. Then, click on

removable disk and look to find folder with DCIM. Click on

the DCIM folder and all the photos and videos will be found in

100DSCIM folder. Photos and videos can be viewed, edited or

deleted with your computer’s software.

Taking the SD card out of the camera and inserting it in the

computer port will achieve same results. If no SD slot is built

into the computer, a multi-card reader RD25-1 (sold separately)

must be used.

TELEVISION

To project photos and videos on a TV screen, turn OFF your

camera and select «View». Use the video cable (supplied) and

plug in TV/OUT port of the camera to «Video IN» of TV set.

Turn ON the camera. Viewing screen menu will also appear on

TV screen. You will see the latest picture taken by your system.

To change pictures use «UP» or «DOWN» keys. When you

push «MENU», you will see these option:

View Date/Time: Increases size of date and time

imprinted on the picture

Erase one: Erases the photo or the video on the screen

Erase All: Erases all stored photos and videos,

exclusive of protected photos and videos.

Format: Formats memory card and erases all

protected photos and videos.

Protect: Protects the photo or video on the screen.

English

Language: Selects language.

Exit: Returns to viewing screen.

TROUBLESHOOTING

No person / animal on photos

Rising sun can trigger sensor. Camera must be reoriented.

At night, motion detector may detect beyond range of the

IR Illumination. Reduce distance setting.

Small animal may be triggering unit. Reduce distance

setting and/or raise height of camera.

Motion detector may sense animals through foliage.

If person/animal moves quickly, it may move out of

camera field of view before photo is taken. Move camera

further back or redirect camera. Camera must be set on a

stable and immovable object. i.e. large tree.

Make sure the mounting post or tree is stable and doesn’t

move.

Red light in front of camera blinks

Main mode switch is in test mode.

Main mode switch is in Photo or Video mode. Red light

blinks during 60 sec. allowing the operator to walk away

from camera.

English

OPTIONS

See your local dealer or visit www.spy-point.com to find

available products. The following items are popular options

that can be added to a SPYPOINT camera model IR-B.

SD Memory card

Increases capacity of photos and videos

recorded by the camera. Most users work with

2 SD cards to avoid bringing the camera home.

If so, an optional multi-card reader RD25-1

may be needed.

Multi-card reader RD25-1

Allows downloading photos and videos directly

into a personal computer without the use of the

SPYPOINT camera. This reader works with 25

different types of memory cards and is compatible

with SD card.

12v power cable, CB-12ft

Connects a 12’ long cable to an external 12V

DC power.

Lithium battery pack kit including charger,

LIT-C-1

Used to recharge SPYPOINT lithium

battery pack only. Charger operates under

110V/240V.

Additional lithium battery pack, LIT-02

An additional lithium battery pack is a handy

spare.

English

Solar Panel, SP-12V

This small solar panel will recharge the lithium

battery pack included in a LIT-C-1 kit or the

lithium battery pack LIT-02 without having to

remove it out of the camera. The panel is supplied with a special

aluminium bracket for easy mounting.

Solar panel must not be used to recharge rechargeable C

batteries. Only LIT-C-1 or LIT-02 lithium battery can be

recharged with the solar panel.

Cable lock, CL-6ft

6 ft. long locking cable with key used for

maximum theft protection.

12-volt rechargeable battery and charger,

BATT-12V

Allows using external rechargeable battery

to power the camera.

Water-Resistant battery box, KIT-12V

Water-resistant battery box including 12-

volt rechargeable battery and charger to

power the camera.

Picture viewer, PV-2.4

Picture viewer, SD card slot, 2.0" viewing

screen, radio, 1GB internal memory, MP3,

MP4, rechargeable battery, charger, and

headphone included.

Photo and video viewer, PV-9

Photo and video viewer, 2,5" viewing

screen, video cable included

English

Otros manuales para IR-B

Tabla de contenidos

Otros manuales de Cámara de seguridad de Spypoint

Spypoint

Spypoint BF-10HD Manual de usuario

Spypoint

Spypoint LIVE Manual de usuario

Spypoint

Spypoint C4 Manual de usuario

Spypoint

Spypoint HD-12 Guía de inicio rápido

Spypoint

Spypoint SMART Manual de usuario

Spypoint

Spypoint TINY-W2 Manual de usuario

Spypoint

Spypoint I-6 Manual de usuario

Spypoint

Spypoint BF-6 Manual de usuario

Spypoint

Spypoint HAWK Manual de usuario

Spypoint

Spypoint HD-10 Guía de inicio rápido

Spypoint

Spypoint IR-10 Manual de usuario

Spypoint

Spypoint HD-12 Manual de usuario

Spypoint

Spypoint IR-C Manual de usuario

Spypoint

Spypoint FL-8 Manual de usuario

Spypoint

Spypoint HAWK Manual de usuario

Spypoint

Spypoint TINY Manual de usuario

Spypoint

Spypoint TINY-HD Manual de usuario

Spypoint

Spypoint TINY-W Manual de usuario

Spypoint

Spypoint LINK-EVO Instrucciones de funcionamiento y mantenimiento

Spypoint

Spypoint Pro-X Manual de usuario

Spypoint

Spypoint IR-A Manual de usuario

Spypoint

Spypoint IR-A Manual de usuario

Spypoint

Spypoint BF-8 Manual de usuario

Spypoint

Spypoint FL-A 2012 Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
