Spon NAS-8530 Manual de usuario

Contents

Summarize ...............................................................................................................................................................................................................1

Safety precaution.....................................................................................................................................................................................................1

Products Introduction...............................................................................................................................................................................................2

Hardware Interface Introduction............................................................................................................................................................................3

Introduction .............................................................................................................................................................................................................4

Packing list ................................................................................................................................................................................................................4

Installation..................................................................................................................................................................................................................5

Wiring..........................................................................................................................................................................................................................6

Interface Description................................................................................................................................................................................................6

Basic Network Settings...........................................................................................................................................................................................7

User-Define Terminal Parameters.....................................................................................................................................................................8

Login WEB interface................................................................................................................................................................................................8

Network Parameters................................................................................................................................................................................................8

Server Parameters...................................................................................................................................................................................................9

Shortcut Function.................................................................................................................................................................................................. 10

Offline Intercom..................................................................................................................................................................................................... 11

WEB management................................................................................................................................................................................................ 12

Reboot..................................................................................................................................................................................................................... 13

Reset to Defaults................................................................................................................................................................................................... 13

Update Firmware ( Note:otherwise special needs, please do not update thefirmware) ......................................................................... 13

Other functions ...................................................................................................................................................................................................... 13

Terminal List Settings........................................................................................................................................................................................... 13

FTP Operation ( audio file management )........................................................................................................................................................ 14

Basic Function......................................................................................................................................................................................................15

Intercom.................................................................................................................................................................................................................. 15

Broadcast................................................................................................................................................................................................................ 16

Monitoring............................................................................................................................................................................................................... 16

Fault Exclude.........................................................................................................................................................................................................17

IP Paging Microphone User Manual

Summarize

Safety precaution

Please abide by the warning and the relevant safety tips.

Please take this manual in convenient place after you reading the guide for future reference.

Warning

The sign means there is potential safety hazard, when operate wrong may result in death or serious injury.

The sign is used to remind user of this equipment is attached the important data of operation and

maintenance.

Setting and Installation

（1）Avoid being wet with the water.

Don’t make the machine or exposed to rain water or other liquid contamination of the environment, or lead to fire or get an

electric shock.

（2）Don’t use voltage outside of the designation

Using the marked voltage on the machine.

Using more than the logo of voltage could lead to fire or shock.

（3）Don’t scratch the power cord.

Don’t scratch the power cord or cut it.

Simultaneousl, keep the power line far way from heated objects, put heavy things on it will lead to fires or electric shock.

Using machine

（1）Once the anomalies

In use, immediately cut off power supply when finding the abnormal phenomena, please connect with the agency. if you

continue to use, it will likely fires or shock.

·The smoke or odor of the machine.

·The inside of the machine is flooded by water or foreign bodies intrusion.

·Machine falling or machine shell damage.

·The power cord damage(wire core is exposed of broken, etc)

·Fault(eg it can’t network, no sound ect)

（2）Don’t open the machine internal or modification of the machine.

Do not let foreign matters invade the machines internal.

Don’t let the metal items or inflammable objects inserting machine such as foreign inserting machines or throw into the vents

machines internal, otherwise will likely cause fires or electric shock.

（3）Please do not touch it when thunder

To avoid electric shock, please do not touch the machine and the plug when lightning, etc.

（4）Please do not place containers with liquid or small metal objects on machine above.

If gets upset containers, and let the fluid inflow to the machine that will likely fires or cause shock.

（5）Do not open the machine internal or modification of the machine.

The machine internal contains high voltage parts, once the open cover, or modification of the machine, it will likely fires or

cause shock. All about maintenance and other such matters within the machine to transform should be operated by

professional personnel.

（6）Maintenance or the precautions when not in use for long time.

IP Paging Microphone User Manual

When Maintenance, if the machine not in use in 10 days or more than 10 days, in order to ensure the safe, please shut off

power supply switch, and will power plug. If failure to comply with this provision, it will likely cause electric shock or fires.

Products Introduction

IP network paging microphone is embedded with IP Audio digital network audio technology which is in our company own

intellectual property, with power input interface, SD card interface, audio input and output interface, RJ45 network interface.

With 4.3” TFT True Color LCD, directly indicate the corresponding shortcut zones.

With high speed industrial grade dicaryon ((ARM + Dual DSP) processing chip, start time ≤3 seconds

Built-in 3W power loudspeaker, large voice, small distortion; With detachable hose type microphone pole, longer life，

good maintenance.

Support for “incoming calls/ outgoing calls” which is showed in Chinese and English bilingual indication.

Built-in high-capacity memory, used for save intercom recording file, broadcasting MP3 audio; And remote operate the

memory file.

To operate the device audio file within broadcasting, it can realize the voice remote playing.

With selection menu for hang the call to switch the intercom mode during talking.

Automatically detect the audio input and output, it`s good for audio circuit switching.

It can select 16 keys expansion panel, using double TFT true color LCD to display the custom function, the intercom

and broadcasting is rapidly.

It can select the receiver, it`s convenient for privacy communication.

With Ethernet port access, support for across network segment and route.

IP Paging Microphone User Manual

Hardware Interface Introduction

Front

1.IP network paging microphone 2.Expansion panel（optional configuration) 3.Telephone receiver panel（optional configuration)

①Microphone pole

Collect the live voice

②Loudspeaker

Built-in loudspeaker, restore the

far-end and local voice.

③Keyboard

Mutual input channel, accept

Command input.

Keyboard Operation

Key

Function Description

Emergency Key

Press Emergency Key on 1 second, it may broadcast to all zones.

File Key

Check the SD card file through this key, press the F1-F8, it will play the

corresponding file by pressing the F1-F8 key.

Information Key

Check the terminal network parameters, system parameters and system

software version information etc.

Recording Key

Reserved, it`s not enabled at present.

Monitor Key

Press this key to enter into the monitoring status.

Broadcast Key

Press this key to enter into the broadcasting status.

Volume + Key

When it`s playing the audio by pressing this key to increase the speaker

volume.

Volume - Key

When it`s playing the audio by pressing this key to decrease the speaker

volume.

Intercom Key

Press this key to enter into the intercom status.

Cancel Key

Press this key to cancel the operation or back to the main interface.

“ ” Key

Press this key to realize the left page turning.

“ ” Key

Confirmation Key

“ ” Key

Press this key to realize the right page turning.

“ ” Key

The key is located on the expansion panel to match the double display screen, it

can realize the shortcut intercom or broadcasting when pressing this key.

“F1-F8”

Press the corresponding key to enter into the shortcut key left corresponding

function interface.

“0-9”

Used for the intercom and broadcasting zones selection.

①Key

②Display screen

True color display screen indicate

complete machine login status,

volume value, partition list and

other relevant information

①Earphone

Built-in loudspeaker and

microphone，restore the far-end

and collect scene voice.

IP Paging Microphone User Manual

Back

①Audio input interface

Used for connect the earphone or other 3.5mm audio plug.

②Audio output interface

The interface output is restored audio signal, it can used as the sound source to amplifier or active loudspeaker, used for

broadcasting back background music, the factory setting is audio output.

③Ethernet interface

Connect with the server related cables in order to make the terminal login normally.

④Alarm input or output interface

With alarm input and output port for linkage with external device, factory defaults as alarm output.

⑤Power input interface

To provide 12V input voltage for the terminal

Introduction

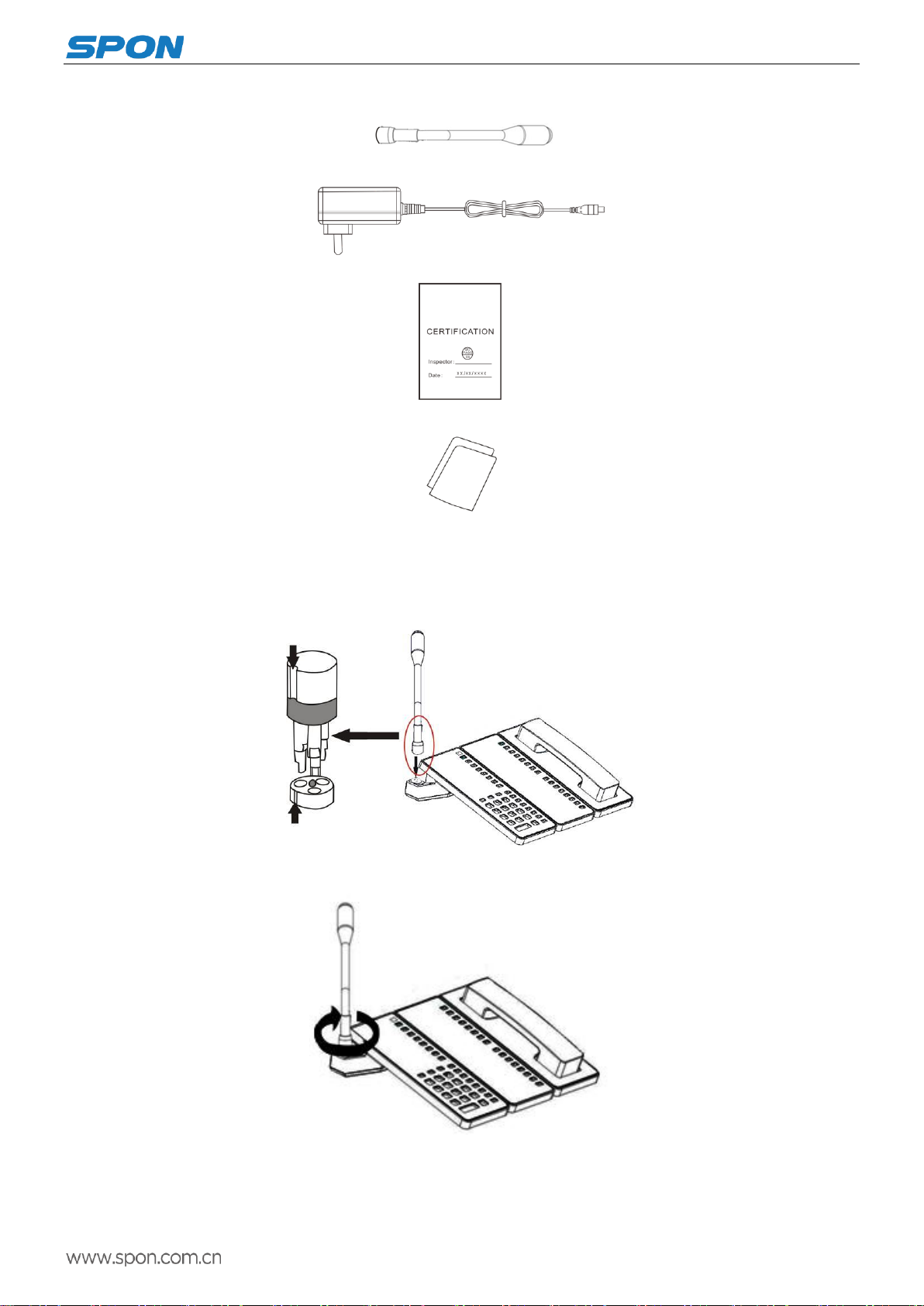

Packing list

IP network paging microphone is including the following fittings, please check the fittings before the installation, if any

missing, please contact the distributor.

（1）IP Paging Microphone 1pcs (Remark: expansion panel and receiver panel is optional configuration.)

IP Paging Microphone User Manual

（2）Microphone pole（DC-300B）1pcs

（3）Power adapter（DC12V/2A）1pcs

（4）Certification 1pcs

（5）Installation instructions 1pcs

Installation

（1）Microphone pole groove install accordance with the pedestal raised groove，as follows：

（2）Screwing the rotary knob tightly according to the graphic direction

Remark: expansion panel and receiver panel is optional.

IP Paging Microphone User Manual

Wiring

（1）Make one port of the power adapter connect with theIP Paging Microphone DC12V port, and the other Port connect

with the power socket.

（2）Make one port of the Ethernet line connect with the IP Paging Microphone LAN port, and the other port connect with

the switcher.

Interface Description

After the power on for 15 seconds to enter the main interface successful, it will display the time and date information.

Main interface

①IP paging microphone ID

②Terminal status icon

Icon(color)

Terminal Status

Blue

Terminal login the server

Cables is not properly connect

③File: Display audio file list

Press “ ” or【File】key to enter the list of file broadcasting. Press the corresponding shortcut key to the right of the

IP Paging Microphone User Manual

music to play the audio file. Press “cancel” key to end the music.

Remark: The contents of the file playlist can be set via the FTP server.

④Information: Display terminal parameters information. Press “ ” or 【info】key, enter password 【123456】and login

into the system setting interface.

Basic Network Settings

Connect the IP paging microphone terminal well as per the installation manual, plug in the power, press “info” key for network

parameters checking, and modify the network parameters according to the using environment, there are two methods:

Keyboard Operation

（1）Press or【info】key, input the terminal password 【123456】enter the system setting interface. Press , key

to move, press numeric keys to modify equipment ID, IP address, server IP and other parameters, then press button to save.

(Note: ID and IP can not be same as other terminal or mainframe.)

Remark: modify the password only can through the server, the detailed steps are: setting-advanced setting-input default

password( default one is 123456)-parameter2-input new password-modify all terminal`s password -OK(confirm).

If you choose to modify all terminal`s password, then all the terminal`s password in the same server will be modified to the

IP Paging Microphone User Manual

same one.

Web Page Mode

Enter into the IP Paging Microphone web interface, then modify the terminal each parameters according to the environment,

after setting completed, click “save”.

Specific operation please refer to the custom terminal network parameters setting.

User-Define Terminal Parameters

（1）Please input the IP Paging Microphone IP address to the browser address column (the factory default IP address is

192.168.1.101), then enter.

（2）Enter the user name and password in the web page （the default is : admin, password : Rdc070#*）.

（3）Click OK to enter terminal web page.

Network Parameters

Enter Network settings, relevant parameters list：

Device ID

The only number to identify mainframe, it can`t repeat with other device or mainframe.

Otros manuales para NAS-8530

Tabla de contenidos

Otros manuales de Micrófono de Spon

Spon

Spon NAS-8530 Manual de usuario

Manuales populares de Micrófono de otras marcas

IK Multimedia

IK Multimedia iRig Stream MIC PRO Manual de usuario

DAPAudio

DAPAudio RM-101 Manual de usuario

AKG

AKG CHM 21 Manual de usuario

Sennheiser

Sennheiser evolution wireless series EM 100 Manual de usuario

Sony

Sony C-48 Manual de usuario

GIGAMEDIA

GIGAMEDIA GGM PAMICUHFG Manual de usuario

Shure

Shure WH30TQG Manual de usuario

auna PRO

auna PRO MIC-900 Manual de usuario

AKG

AKG D 3800 Manual de usuario

Shure

Shure KSM141 Manual de usuario

MAIIN SOUND

MAIIN SOUND IIN style Manual de usuario

Earthworks

Earthworks TC25 Manual de usuario

Sennheiser

Sennheiser evolution D1 Manual de usuario

Alesis

Alesis MicLink Wireless Manual de usuario

DSPPA

DSPPA D6234 Manual de usuario

Monacor

Monacor IMG STAGELINE ECM-300B Manual de usuario

Ansr Audio

Ansr Audio Scan16 Manual de usuario

Shure

Shure MXA710 Series Manual de usuario
