Sper scientific 840063 Manual de usuario

VIBRATION METER

840063

Instruction Manual

SPER

SCIENTIFIC LTD.

- 2 -

CONTENTS

Title Page

I. Introduction .................................................................. 2

II. Panel Description......................................................... 3

III. Operating Instructions

A. General Measurement Procedures ......................... 3~4

B. Peak ........................................................................ 5

C. Data Hold ................................................................ 5

D. Datra Record........................................................... 5

E. Automatic Shut Off .................................................. 5

F. RS232 PC Serial Interface....................................... 5~6

G. Battery Replacement............................................... 6

H. Optional Accessories............................................... 6

I. Classification Ranges .............................................. 6~7

J. ISO 2954 Sensitivity Relative Table........................ 7

IV. Specifications............................................................... 7~8

V. Warranty ...................................................................... 8

I. INTRODUCTION

The level of vibration is a useful guide to the balance, alignment and gen-

eral condition of pumps, motors, and other machinery. Poor balance, mis-

alignment and looseness results in higher levels of vibration and indicates

maintenance is required for operational as well as safety reasons.

Measures velocity and acceleration. The large display indicates RMS,

Peak, min-max, hold, and low battery. Features auto power off and an

RS232 computer interface. Comes ready to use in a foam-lined, hard-

shell carrying case, with a detachable strongly magnetic probe, 9V battery

and instructions.

[email protected]

www.ponpe.com

- 3 -

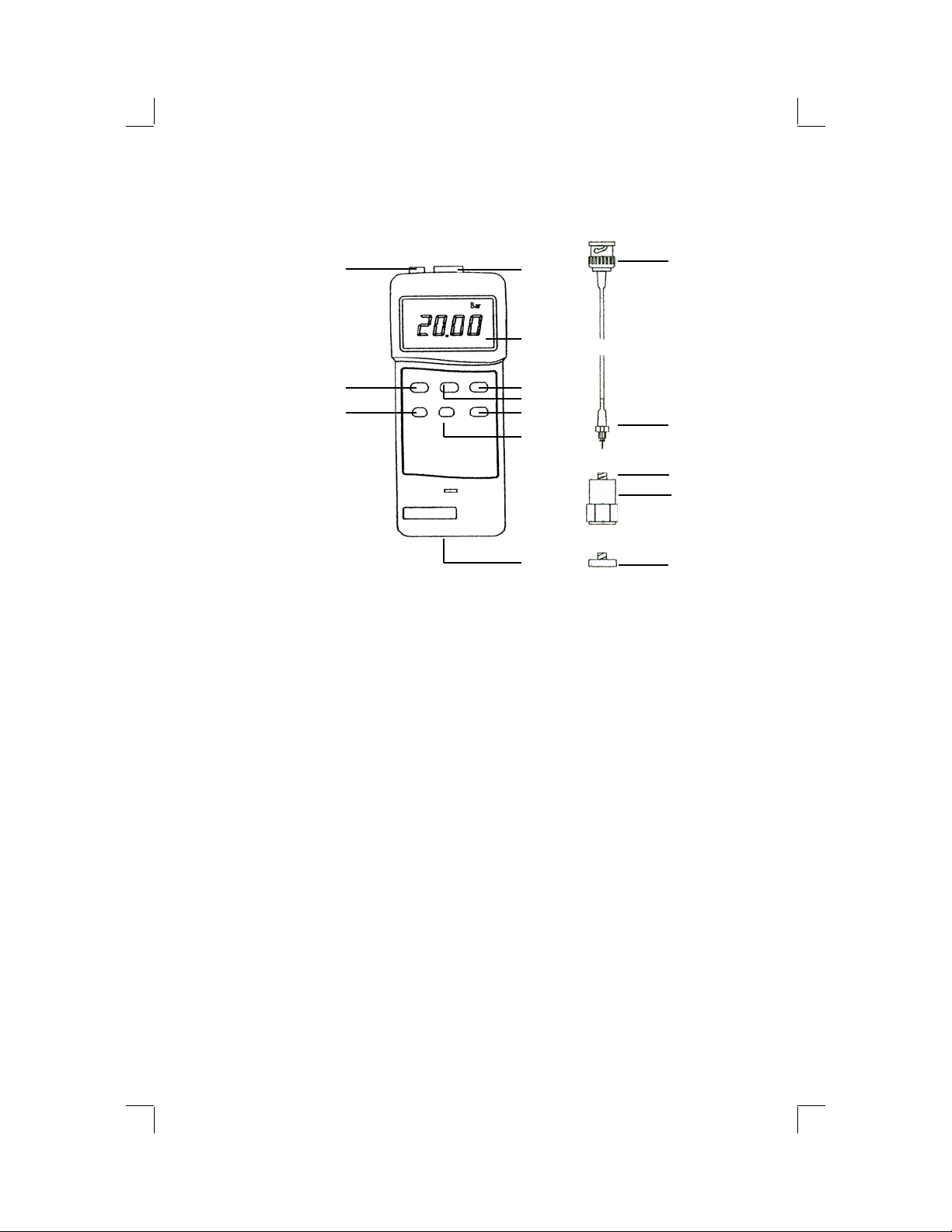

II. PANEL DESCRIPTION (fig. A)

III. OPERATING INSTRUCTIONS

A. GENERAL MEASUREMENT PROCEDURES

1. Attached the BNC PLUG (A11) to the BNC SOCKET (A10).

2. Attached the MINI PLUG (A12) to the INPUT SOCKET (A13).

3. a. Acceleration (ACC) Measurement:

Switch the ACC/VEL SELECTOR (A7) to the "ACC" position.

b. Velocity (VEL) Measurement:

Used for general industrial vibration. Switch the ACC/VEL

SELECTOR (A7) to the "VEL" position.

4. Switch the RMS/PEAK SELECTOR (A4) to the "RMS" position.

5. Press the POWER BUTTON (A2) once to turn on the meter.

1. DISPLAY

2. POWER BUTTON

3. HOLD BUTTON

4. RMS/PEAK SELECTOR

5. RECORD BUTTON

6. RECALL BUTTON

7. ACC/VEL SELECTOR

8. BATTERY COVER

9. RS232 OUTPUT TERMINAL

10. BNC SOCKET

11. BNC PLUG

12. MINI PLUG

13. INPUT SOCKET

14. VIBRATION SENSOR

15. MAGNETIC BASE

www.ponpe.com

[email protected]

- 4 -

6 a. If the surface material of the object

you are testing is a non-magnetic

material, hold the VIBRATION

SENSOR and touch the tip to the

object (above).

b.If the surface material is magnetic,

connect the VIBRATION SENSOR

to the MAGNETIC BASE (left) and

touch it to the object's surface

(below).

www.ponpe.com

[email protected]

- 5 -

B. PEAK VALUE

Switch the RMS/PEAK SELECTOR (A4) to the "PEAK" position.

Peak value = 1.414 RMS value.

C. DATA HOLD

1. Press the HOLD BUTTON (A3) during measurement to freeze the

displayed value. "D.H" is shown on the LCD.

2. Press the HOLD BUTTON (A3) a second time to resume

measurement.

D. DATA RECORD (Displays the Maximum and Minimum readings.)

1. To start the Data Record function, press the RECORD BUTTON (A5)

once. The LCD display will indicate "REC."

2. Press the RECALL BUTTON (A6) and the "Max" symbol (along with

the maximum value) will appear on the LCD display.

3. Press the RECALL BUTTON (A6) again and the "Min" symbol (along

with the minimum value) will appear on the display.

4. To exit the memory record function, press and hold the RECORD

BUTTON (A5) for approximately 2 seconds. The display will revert

back to the current reading.

E. AUTOMATIC SHUT OFF

This unit has a built-in automatic shut off function to prolong battery life.

The meter will shut off automatically if no buttons are pressed within 10

minutes. To deactivate this feature, select the memory record function

during measurement, by pressing the RECORD BUTTON (A5).

F. RS232 PC SERIAL INTERFACE

The unit features an RS232 output via 3.5 mm Terminal. The connector

output is a 16 digit data stream which can be utilized by user's specific

application. An RS232 lead with the following connection will be required

to link the instrument with the PC serial input.

The 16 digit data stream will be displayed as follows:

Meter (3.5 mm jack plug) PC (9W "D" Connector)

Center Pin Pin 2

Ground/Shield Pin 5

D15D14D13D12D11D10D9D8D7D6D5D4D3D2D1D0

www.ponpe.com

[email protected]

- 6 -

Each digit indicates the following status:

G. BATTERY REPLACEMENT

When the top left corner of LCD display indicates "LBT," it is time to

replace the battery. Accurate readings may be taken for several hours

after the low battery indicator appears. Open the battery cover, install a

fresh 9V battery and replace the cover.

H. OPTIONAL ACCESSORIES

850080 Software

840094 RS232 to USB Adaptor Cable

840055 RS232 cable 48" required for use w/software

840090 Water Resistant Instrument Pouch

I. CLASSIFICATION RANGES

There are 4 different machine groups with 4 classification ranges and

limits for ISO 2372 and VDI 2056, machinery.

DO End Word

D1 to D4 Upper Display reading, D1=LSD, D4=MSD

D5 to D8 All "?" (?, ?, ?, ?)

D9 Decimal Point(DP), position from right to the left

0 = No DP, 1 = 1 DP, 2 = 2 DP, 3 = 3 DP

D10 to D14 All Zeros (0, 0, 0, 0, 0)

D15 Start Word

RS232 FORMAT: 9600, N, 8, 1

GROUP K: Small machines, especially production electrical motors

of up to 15 KW.

Good 0 ~ 0.71 mm/s

Acceptable 0.72 ~ 1.80 mm/s

Still permissible 1.81 ~ 4.5 mm/s

Dangerous > 4.5 mm/s

Good 0 ~ 1.12 mm/s

Acceptable 1.13 ~ 2.80 mm/s

Still permissible 2.81 ~ 7.1 mm/s

Dangerous > 7.1 mm/s

GROUP M: Medium sized machines, especially electrical motors

with 15 to 75 KW output, without special foundations.

www.ponpe.com

[email protected]

- 7 -

IV. SPECIFICATIONS

Range Resolution Accuracy

Acceleration 0.5 ~ 199.9 m/s20.1 m/s2 +/- (5% +2d) rdg,

160 Hz, 80 Hz.

@ 23 +/- 5ºC

Velocity 0.5 ~ 199.9 mm/s 0.1 mm/s

GROUP G: Large machines on heavy foundations.

Good 0 ~ 1.80 mm/s

Acceptable 1.81 ~ 4.50 mm/s

Still permissible 4.51 ~ 11.2 mm/s

Dangerous > 11.2 mm/s

GROUP T: Largest machines and turbo machines with

special foundations.

Good 0 ~ 2.80 mm/s

Acceptable 2.81 ~ 7.10 mm/s

Still permissible 7.11 ~ 18.0 mm/s

Dangerous > 18 mm/s

J. ISO 2954 Sensitivity Relative Table

Frequency Hz Relative sensitivity

Normal Value Minimum Value Maximum Value

10 1.0 0.8 1.1

20 1.0 0.9 1.1

40 1.0 0.9 1.1

80 1.0 1.0 1.0

160 1.0 0.9 1.1

500 1.0 0.9 1.1

1000 1.0 0.8 1.1

www.ponpe.com

[email protected]

- 8 -Rev. 2/15/06

SPECIFICATIONS (continued)

Frequency 10 Hz~ 1 KHz, sensitivity relative during the frequency

range meets ISO 2954 (see pg 6).

Weight Meter with battery: 10 oz (230 g).

Probe with magnetic base: 2 oz (50 g).

Dimension Meter: 17" × 3" × 1 ½" (80 × 75 × 35 mm)

Probe cord: 49" (125 cm), probe diameter: (19 mm)

Display 61 mm x 34 mm super large LCD display.

15 mm (0.6") digit size.

Calibration

Point

Velocity: 50 mm/s (160 Hz)

Acceleration: 50 m/s2(160 Hz)

Sampling

time

Approx. 1 second.

Operating

conditions

Temperature: 0 ~ 50°C (32 ~ 122°F)

Humidity: Less than 80% R.H.

Power

supply

Alkaline or heavy duty type DC 9V battery.

Power

consumption

Approx. DC 6 mA.

Circuit Exclusive microcomputer circuit.

V. WARRANTY

Sper Scientific warrants this product against defects in materials and

workmanship for a period of five (5) years from the date of purchase, and

agrees to repair or replace any defective unit without charge. If your

model has since been discontinued, an equivalent Sper Scientific product

will be substituted if available. This warranty does not cover probes, bat-

teries, or damage resulting from accident, misuse, or abuse of the prod-

uct. In order to obtain warranty service, simply ship the unit postage pre-

paid to:

SPER SCIENTIFIC. 7720 East Redfield, Suite 7 Scottsdale, AZ 85260

(480) 948-4448, info@sperscientific.com, www.sperscientific.com.

The defective unit must be accompanied by a description of the problem

and your return address. Register your product online or return your

warranty card within 10 days of purchase.

www.ponpe.com

[email protected]
