Spectra GL1425C Manual de usuario

GL1425C Hands-on

Roland Grimm | Product Manager

March, 2023

GL1425C Spectra Precision Dual Grade Laser

GL1425C Controls

Menu button

Enter button

Manual mode / Escape / Standby button Power button

Battery Status LED

LCD display

Level- / Bluetooth LED

Shock Warning (HI)

Manual

Standby LED

Left/right button (X axis)

Up/Down button (Y axis)

GL1425C Peripherals

Sighting guides

Scope notches

Beam Exit

Handle

Battery door

Charger jack

5/8“ X 11

Battery door latch

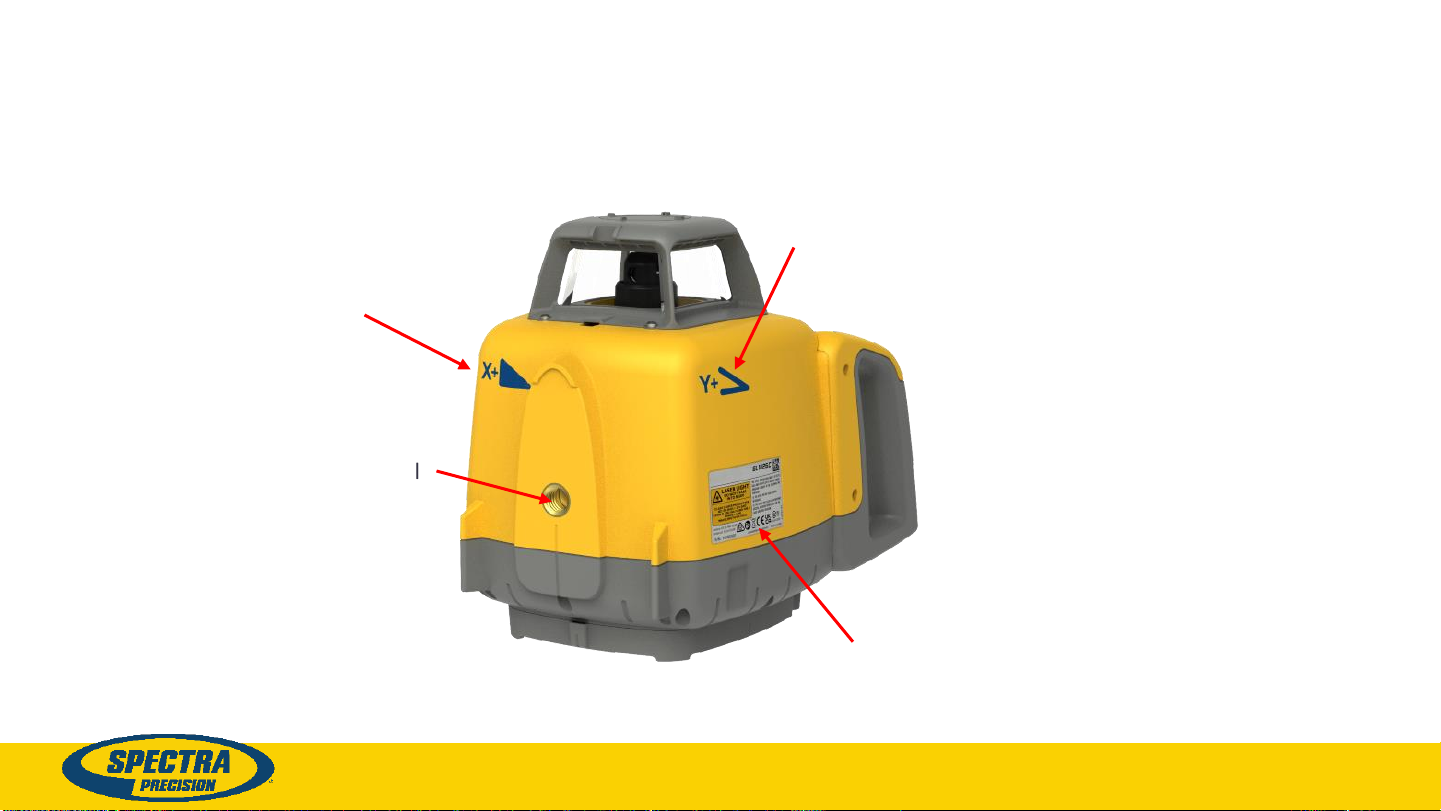

GL1425C Peripherals

5/8“ X 11 for vertical

Serial label including the laser safety label

Indication of the

positive X slope

Indication of the

positive Y slope

GL1425C Installing the batteries

Open the battery

door by pulling the

latch here.

Battery Pack NiMH

(B10)

Charger worldwide

(CH10)

Install/remove the

battery pack. The

design prevents miss-

insertion. Do not open

the cage for exchanging

the rechargeable

batteries.

If using 4 x D-Cell alkaline batteries, note the plus (+) and minus

(-) diagramm within the battery pocket.

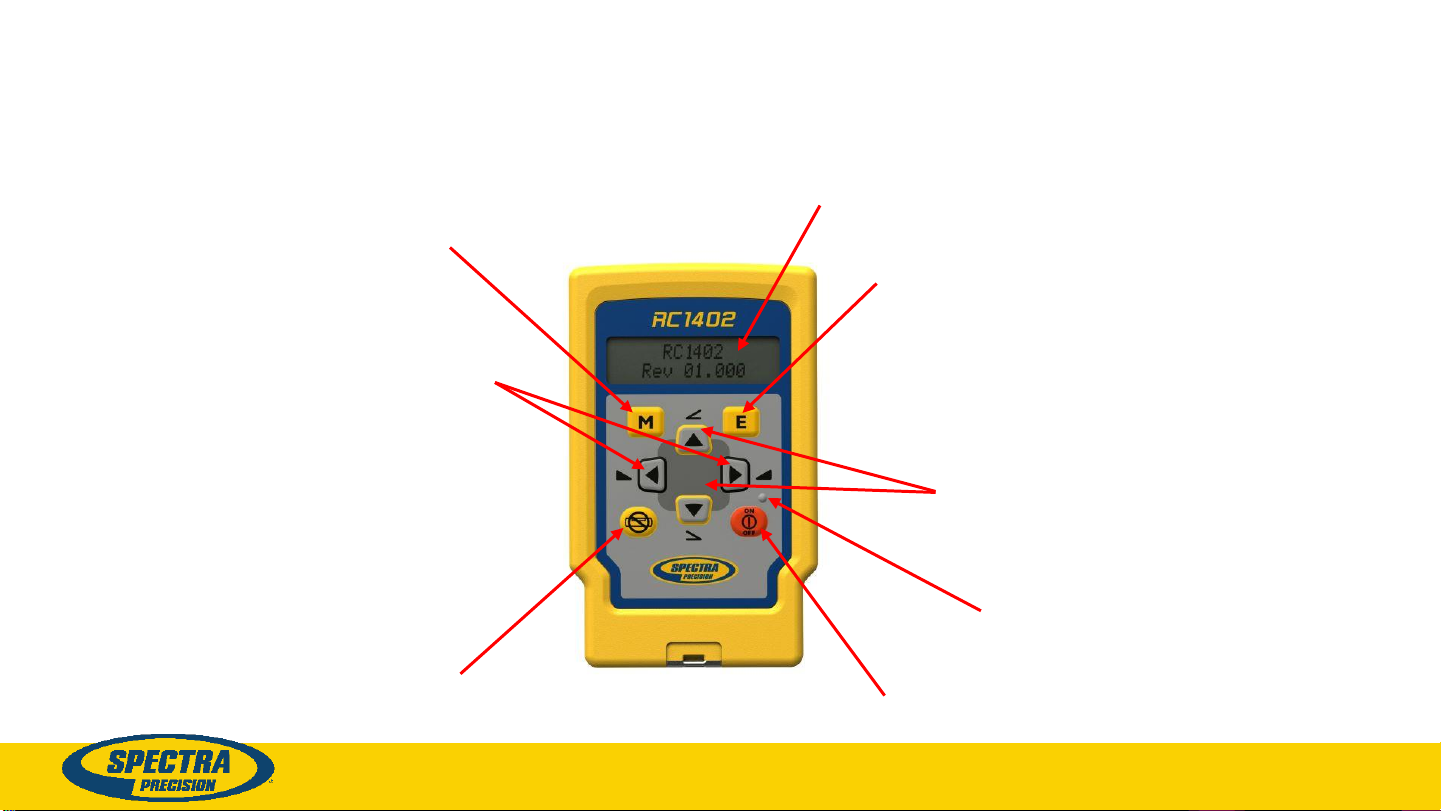

RC1402 Remote Control

Menu button

Enter button

Manual mode / Escape / Standby button Power button

Battery Status LED

LCD display

Left/right button (X axis)

Up/Down button (Y axis)

RC1402 Remote Control

Powering the RC1402

1. Open the battery door using a coin or similar pry device

to release the battery door tab on the RC1402N.

2. Insert two AA batteries noting the plus (+) and minus (-)

diagrams inside the battery housing.

3. Close the battery door. Push down until it „clicks“ into

the locked position.

Turning On the RC1402

Press the Power button to turn on the radio remote control.

The RC1402 mirrors the functionality of the GL1425C

keypad.

Turning Off the RC1402

Press and hold the Power button for two seconds.

The RC1402 is backwards compatible with the products GL412N, GL422N, HV302(G) and LL300S

RC1402 pairing with the laser

Option 1:

1. Make sure both the laser and the remote control are turned off.

2. Start with the laser: Press and hold the manual button and turn on the laser

pressing the power button. Result: the laser battery LED flashes fast.

3. Continue with the remote control: Within six seconds press and hold the

manual button and turn on the remote control pressing the power button.

4. The laser and the RC1402 display show „Pairing OK“ for one second. Finally

the RC1402 shows the laser information to indicate the laser has been

machted with the remote control.

Option 2:

Bring the laser into pairing mode using the Menu

1. Press the M button.

2. Scroll to Settings, press the E button.

3. Scroll to Pairing, press the E button.

4. Scroll to Radio, press the E button. Result: the laser is in pairing mode.

5. Do step 3 from option 1.

6. The laser and the RC1402 display show „Pairing OK“ for one second. Finally

the RC1402 shows the laser information to indicate the laser has been

machted with the remote control.

HL760 pairing with the laser

Start with bringing the HL760 into pairing mode.

1. Turn on the HL760.

2. Press and hold the (A) and (B) buttons for two seconds simultaneously.

3. The display shows MENU first, then RDIO.

4. Press the (C) button to display the radio mode:

5. Check if MODE LS is shown to connect the HL760 with a laser (LS).

6. If yes, proceed with step 10.

7. If no, press (C) button. Result: the current mode (HL or OF) flashes.

8. Press (A) or (B) button until MODE LS is blinking.

9. Press (C) button to enter MODE LS. Result: MODE LS stops blinking.

10. Press (B) button. Result: Shows „PAIR“.

11. Press (C) button again. Result: Shows „PAIR“ and a rotating bar.

Switch to laser.

12. Make sure laser is turned off.

13. Press and hold (manual button) and press (power button). Result: Battery LED flashes fast.

14. „PAIR OK“ will be displayed. The laser turns back to the standard display.

15. Press (HL760 power button) twice to show the receiver standard display.

16. Result: the receiver display shows the laser and antennna symbol to confirm the radio connection:

or or
