Speco ONSIP 02S1 Manual de usuario

ONSIP 02S1

r’

’s

s M

Rev.1.0 (Nov., 2011)

Note

This equipment has been tested and found to comply with the limits for a Class a digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generate, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications

However, there is no guarantee that interference

will not occur in a particular installation

If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:



Reorient or relocate the receiving antenna



Increase the separation between the equipment and receiver



Connect the equipment into and outlet on a circuit different from that to which the receiver is

connected



Consult the dealer or an experienced radio/TV technician for help

r’

’s

s M

Revision History

Rev.1.0 (Nov., 2011)

Date

Revision

Details

2011-11-01

1.0

First manual revision creation

Caution

Any changes or modifications to this device could void the warranty.

Directions

▪Be careful not to cause any physical damage by dropping or throwing ONSIP O2S1.

▪Especially keep the device out of reach from children.

▪Do not disassemble ONSIP O2S1. No After Service is assumed when disassembled

▪Use only the power adapter provided with ONSIP O2S1.

▪Be careful to prevent moisture or water penetration into the unit. Particular attention is needed wh

en installing ONSIP O2S1. The screw holes for the installation screws and pipe should be maintaine

d water tight during the whole life time of the product.

▪All the electrical connection wires running into the unit should be prepared so that water from the

outside cannot flow into the unit through the surface of the wires. Penetration of the moisture throu

gh the wire for extended period can cause malfunction of the unit or deteriorated image.

r’

’s

s M

Contents

Contents..........................................................................................................

.Introduction ...............................................................................................

1.1

. Overview .................................................................................................................

1.2

. Specification ...........................................................................................................

1.3

. Applications of ONSIP O2S1................................................................................

.Product Description

..................................................................................

2.1

. Contents..................................................................................................................

2.2

. Product Preview ................................................................................................... 10

2.3

. Physical description............................................................................................. 11

2.4

. Functional Description ........................................................................................ 13

2.5

. Sensor-IN and Relay-OUT.................................................................................. 15

.Getting Started........................................................................................

3.1

. PC Requirement ................................................................................................... 18

3.2

. Quick Installation Guide..................................................................................... 19

. Trouble Shooting

.....................................................................................

4.1

. Video movement is slow. ................................................................................... 25

Rev.1.0 (Nov., 2011)

r’

’s

s M

4.2

. The image is dull and I see green, pink dots. ............................................... 25

4.3

Mosaic phenomenon. .......................................................................................... 25

4.4

. Cannot connect to the Video............................................................................. 25

4.5

. Windows Vista or Windows 7 ............................................................................ 26

4.6

. Technical Assistance

........................................................................................... 29

Rev.1.0 (Nov., 2011)

r’

’s

s M

Introduction

1.1

Overview

The ONSIP O2S1 is a state-of-the-art Megapixel, multi-codec (H.264, MJPEG) Day/Night IP camera built with

embedded software and hardware technology

It enables real time transmission of synchronized video of up to 2

Megapixels and audio data. Remote clients can connect to ONSIP O2S1 for the real time video/audio data

through

various

client

solutions

running

PC,

Smart

Phones

(iPhone/Android)

Real

time

2-way

communication is available through bidirectional audio communication feature.

Designed to be a stand-alone streaming audio & video transmission device, ONSIP O2S1 can be applied to

various application area such as video security, remote video monitoring, distance education, video conference

or internet broadcasting system.

Use the optional integrated backup battery to insure connection continuity when local power is unreliable.

Additional options are, IR illumination, and integrated Pan/Tilt motor.

Based on Speco Technology’s Embedded Software Solution (Embedded Web Server, Embedded Streaming

Server & Network Protocol), the ONSIP O2S1 delivers unprecedented performance and stability.

Weather

your application is basic, or scaling to the enterprise, Speco Technology Network Video Recording Applications

(NVR PRO) offer highly reliable methods of managing your security video.

Additional options are:

Integrated Battery backup

(Provides valuable standby power in the event of a power failure)

Integrated IR Illumination for super reliable “Day/Night” Video

Integrated Motorized Pan/Tilt

(Allowing for remote Pan /Tilt camera movement)

Rev.1.0 (Nov., 2011)

r’

’s

s M

Details

H.264/MJPEG

**Refer to the datasheet.

32 Kbps G.726

64 Kbps PCM

100BaseT, IEEE 802.11b/g/n

Static, DHCP, PPP/PPPoE

RTP, RTSP, SMTP, FTP, HTTP, SDP,

NTP, DNS, HTTPS

NC, NO Selectable

For alarm annunciation or

remote ON/OFF control (30V, 1A)

For factory use only

Proprietary Power over Ethernet

Wall Mount Bracket

Arbitrary shape with independent sensitivity

Firmware upgrade over IP network

Remote administration over IP network

Simple viewing over Internet Explorer

Standard CMS software

Supported

ID and Password protection

IP filtering for restricting administrative access for audio and bi-audio

Sync to PC Synchronize to PC

Manual Manual time setting

Internet Time Server Synchronize to Time Server

DLS Day Light Saving

Active-X

HTTP

Rev.1.0 (Nov., 2011)

1.2

Specification

Category

Video

Audio

(Bi-directional)

Network

I/O

Power Supply

Mounting

Motion Detection

Upgrade

Administration

Client & Viewer

Dynamic IP support

Security

Time management

SDK support

Sub-Category

Compression

Resolution

Down

Interface

Access network

Application

Sensor In

Relay Output

RS-232C

3 zones

Web Viewer

Speco-NVR

DDNS support

r’

’s

s M

1.3

. Applications of ONSIP O2S1



Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities,

military, etc.)

Remote monitoring (hospitals, kindergartens, traffic, public areas, etc.)

Teleconference (Bi-directional audio conference).

Real time Internet broadcasting

Distance (Remote) Learning/Education



Rev.1.0 (Nov., 2011)

r’

’s

s M

2. Product Description

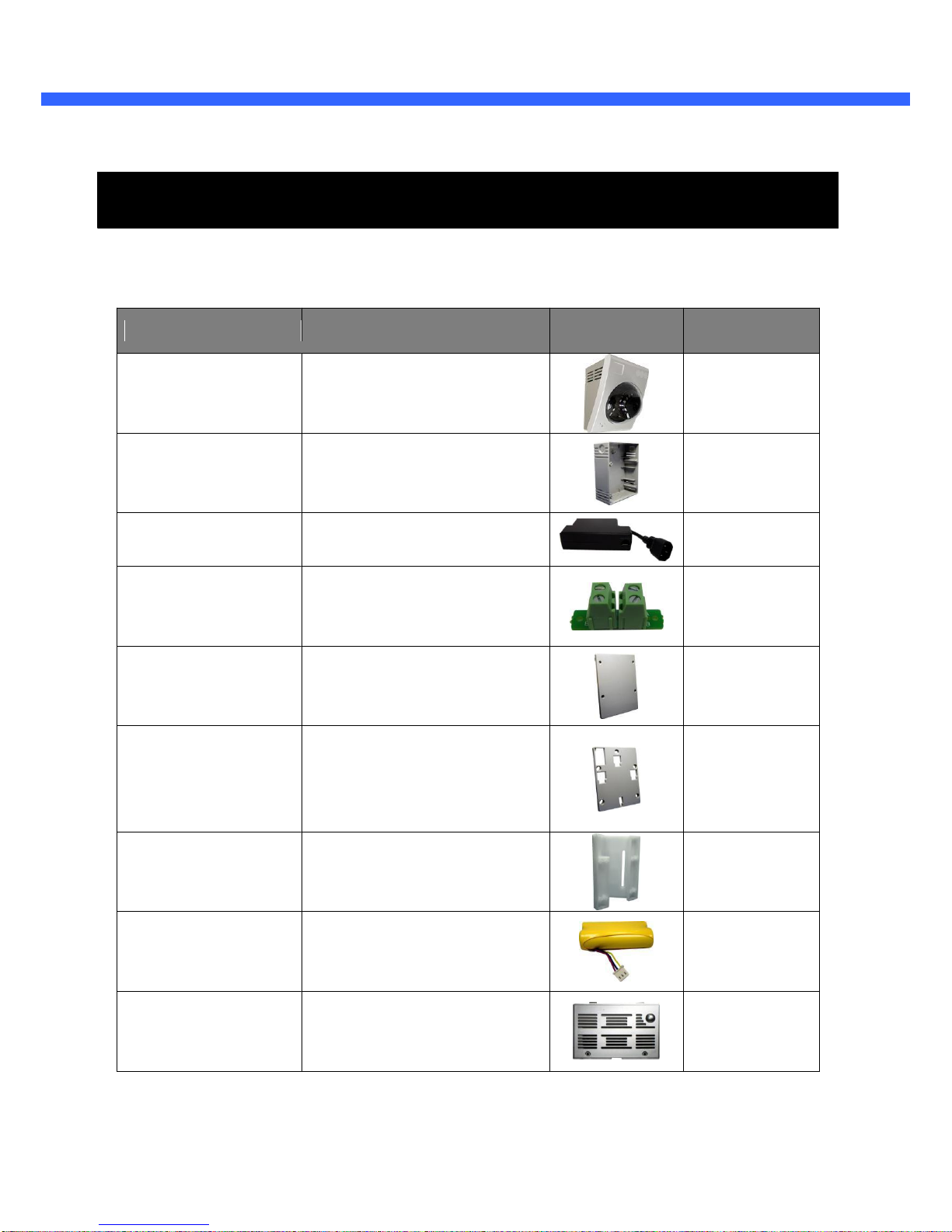

2.1

. Contents

The product package contains followings:

Description

Shape

Remarks

ONSIP O2S1 IP Camera

Back Box for housing adaptors

Power adaptor with proprietary

PoE.

Installed inside the Back box for

connecting AC power to the power

supply.

Back box cover.

Mounting bracket for installing the

main body on the wall or

connecting the power adaptor box

with the main body.

Corner Mount Adapter

Li-ion battery pack

Battery compartment cover.

Rev.1.0 (Nov., 2011)

Contents

Main Body

Adaptor Box

Power Adaptor

AC connector PBA

Adaptor box cover

Mounting bracket

Corner Mount Bracket

Battery

Battery cover

AC cable

Short Network LAN cable for

Ethernet and PoE applications

Screws (33 pieces or 7 types) and

washers (15 pieces of 3 types)

Terminal block for connecting one

sensor input and one relay output.

Software & User’s Guide

IP-Installer

PC software to allocate an IP

address to the IP Camera

Rev.1.0 (Nov., 2011)

CMS Software

(Speco-NVR)

PC software to view and record

the A/V streaming data transmitted

from IP camera.

(Simultaneous support of up to 64

IP cameras)

r’

’s

s M

AC cable

LAN cable

Screws and mounting

fixtures

Terminal block

CD & Documents

2.2

Product Preview

ONSIP O2S1

Mega pixel IP Camera
