Speco HINT13D7G Manual de usuario

HINT13D7G

650Line Intensifier3

Tamperproof Dome

w/Chameleon Co er

3.6mm lens

Wall/Ceiling Mount

Please read this manual thoroughly before operation and keep

it handy for further reference.

Wall/Ceiling Mount

All manuals and user guides at all-guides.com

all-guides.com

The lighting flash with an arrowhead symbol, within an equilateral triangle is

Intended to alert the user to the presence of un-insulated “dangerous voltage”

within the product’s enclosure that may be of sufficient magnitude to constitute

a risk of electric shock to persons____________________________________

The e clamation point within an equilateral triangle is intended to alert the user

to the presence of important operating and maintenance (serving) instructions

i n

the

l i t e r at u r e

a cc o mp a n y i ng

the

appliance

__________________

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK

D O N O T R E M O V E C O V E R ( O R B A C K ) .

N O U S E R S E R V I C E A B L E P A R T S I N S I D E

R E F E R S E R V I C I N G T O Q U A L I F I E D

S E R V I C E P E R S O N N E L . _______________

CAUTION

WA NING & CAUTION

DO NOT use power sources other than that specified.______

i n

the

l i t e r at u r e

a cc o mp a n y i ng

the

appliance

__________________

I N F O M A T I O N - T h i s e q u i p m e n t h a s b e e n t e s t e d a n d f o u n d t o c o mp a n y w i t h

l i m i t s f o r a c l a s s a d i g i t a l d e v i c e P u r s u a n t t o p a r t 1 5 o f t h e F C C r u l e s .

T h e s e l i m i t s a r e d e s i g n e d t o p r o v i d e r e a s o n a bl e p r ot e c ti o n a g ai n s t h a r m f u l

I n t e r f e r e n c e W h e n t h e e q u i p m e n t s o p e r a t e d i n a c o m m e r c i a l e n v i r o n m e n t .

T h i s e q u i p me n t g e ne r a t es , u s e s, a n d C a n R ad i a t e ra d i o f re q u e n cy e n e r gy a n d

i f n o t in s t al l e d an d us e d i n a c co r d an c e w i t h t h e i n s tr u c ti o n ma n u a l , m a y C a u se

H a r mf u l i n t e rf e r en c e to r a di o c o mm u n i c at i o n s. O p er a ti o n o f t h i s e q u i p me n t i n a

r e s i d e n t i a l a r e a i s l i k e l y t o c a u s e h a r m f u l i n t e r f e r e n c e i n w h i c h

C a se t h e u se r w i l l b e r e q u i r e d t o c or r e c t t h e i n te r f e r en c e a t h i s o wn e p en s e .

WA NING – Change or modification not e pressly approved by the manufacturer could void

the user’s authori ty to operate the equipment__________________________________

CAUTION : To prevent electric shock and risk of fire hazards.

DO NOT e pose this appliance to rain or moisture.000

This installation should be made by a qualified service person and should conform to all local codes.

All manuals and user guides at all-guides.com

PACKAGE CONTENTS

Please make sure that the following items are included

in the Package:

-3 Mounting Screws and Anchors

-1 Set Screw

-1 Video Test Connector

-1 Power Cable

-1 Chameleon Cover

All manuals and user guides at all-guides.com

CAME A INSTALLATION

Place the Chameleon Dome over the camera and push until it snaps

into position.

CHAMELEON COVE

* Spray the color of your choice onto the Chameleon cover

* If necessary, apply a second coat

* Painting method for the Chameleon Dome

●

Notes : Optional painting before installation

All manuals and user guides at all-guides.com

FEATU ES

More Powerful Performance in low light condition.

High quality Pictures to be captured in very low light condition.

INTENSIFIER 3

Horizontal resolution of 650 TV lines is achieved by using a

SONY Super-HAD CCD with 410,000 pi els, and a custom DSP

yielding pictures with a high S/N ratio.

650TVL Resolution

PRESETS (Outdoor, Indoor, Elevator, Lobby, Hallway & Low Light)

Used for a quick and easy setup for the installation environment.

Now with “PRESETS”

The Intensifier camera has a DSP chip that can remove image

noise efficiently showing clean images in low light conditions.

SPECO DNR

More Powerful WDR in strong back lighting.

Your camera allows you to get a clear image.

WDR

This function reverses bright spots in the picture (such as

headlights). This enables the entire system to do a better job of

resolving and displaying grayscale information such as a

license plate.

LC ( igh Light Compensation)

All manuals and user guides at all-guides.com

FEATU ES

This function removes image jitter that is caused by vibrations in

the building and reduces the amount of hard drive space.

STABILIZER

It also has the ability to mask up to 8 areas of the picture where

Viewing is not desired. Each zone can be independently

programmed via the OSD

PRIVACY MASK

The picture could be enlarged by this function in digital.

DIGITAL ZOOM

All camera functions are menu driven for easy use.

OSD

The Intensifier camera can show color pictures in all lighting

conditions, or you can have it automatically switch to a B/W

picture in low light conditions

DAY/NIG T

All manuals and user guides at all-guides.com

all-guides.com

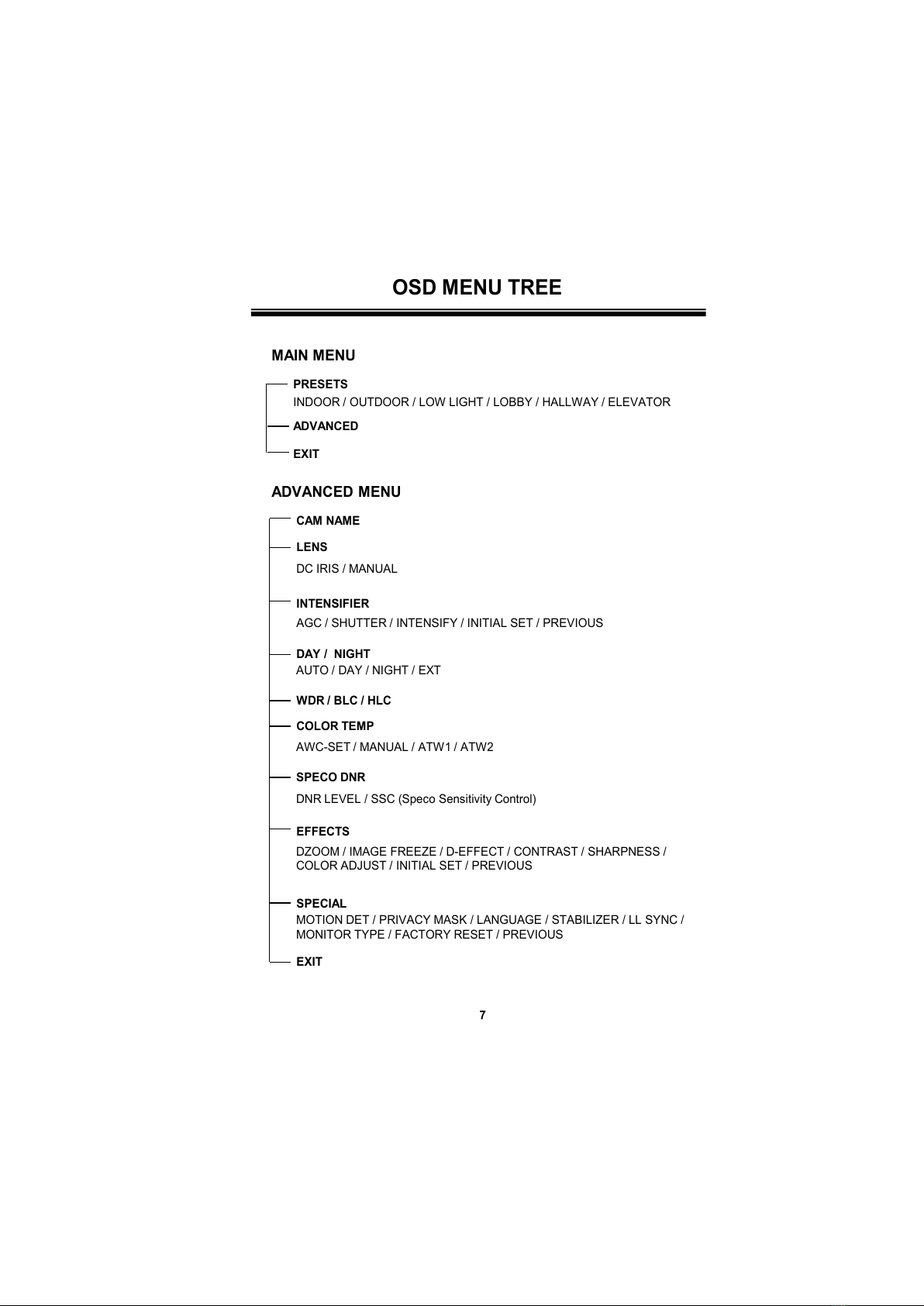

OSD MENU T EE

CAM NAME

LENS

DC IRIS / MANUAL

INTENSIFIE

AGC / SHUTTER / INTENSIFY / INITIAL SET / PREVIOUS

ADVANCED MENU

P ESETS

INDOOR / OUTDOOR / LOW LIGHT / LOBBY / HALLWAY / ELEVATOR

ADVANCED

EXIT

MAIN MENU

EXIT

DAY / NIGHT

WD / BLC / HLC

SPECO DN

COLO TEMP

EFFECTS

SPECIAL

AUTO / DAY / NIGHT / EXT

AWC-SET / MANUAL / ATW1 / ATW2

DZOOM / IMAGE FREEZE / D-EFFECT / CONTRAST / SHARPNESS /

COLOR ADJUST / INITIAL SET / PREVIOUS

MOTION DET / PRIVACY MASK / LANGUAGE / STABILIZER / LL SYNC /

MONITOR TYPE / FACTORY RESET / PREVIOUS

DNR LEVEL / SSC (Speco Sensitivity Control)

All manuals and user guides at all-guides.com

OSD MENU DETAILS

1. P ESET

[INDOOR / OUTDOOR / LOW LIGHT / LOBBY / HALLWAY / ELEVATOR]

Quick & Easy Way to install without complicated OSD menu setting!

** Attention : Select any preset mode and push the set button once,

Blinking status means it is correctly set up at that mode.

* * If you need more detailed setting, click ‘ADVANCED’ to see more

OSD menu at every preset mode.

2. INTENSIFIE

[AGC / SHUTTER / INTENSIFY / INITIAL SET / PREVIOUS]

- AGC (Off / Low / Middle / High)

: Adjusts value of AGC gain and increases the GAIN level to

brighten the picture. (noise / distortion may develop)

-SHUTTE

* FLK - Flicker-less mode (FLK) reduces on-screen flickering.

* ESC - Electronic Shutter Control (AUTO) adjusts brightness

level on screen.

- INTENSIFY : Automatically provides a clear image under low-

light conditions. You can control the ma imum low-light magnification

from 2 to 512 (increasing magnification may cause noise/distortion).

This function is deactivated when SHUTTER is set to FLK mode.

All manuals and user guides at all-guides.com

OSD MENU DETAILS

4. WD / BLC / HLC

-WD

: Provides light level control to overcome severe back light conditions.

- HLC (High Light Compensation)

: High Light Compensation removes the high light and makes it possible

to view the image clearly.

3. DAY/NIGHT

[AUTO / DAY / NIGHT]

-DAY : Full time color mode

-NIGHT : Full time black & white mode

- AUTO (D/N LEVEL / DWELL TIME / NIGHT BURST)

** Attention : AUTO is disabled when the AGC in INTENSIFIE is ‘Off’.

5. COLO TEMP

[AWC SET / MANUAL / ATW1 / ATW2]

- AWC SET

: Set while pointing the camera towards a sheet of white paper.

- MANUAL

: It allows you to increase or decrease the red or blue factor on screen.

Set the ATW1 firstly then turn the manual value.

- ATW 1

: Select Auto Tracking White Balance (ATW) when the color temperature

is 2400

K~10500

- ATW 2

: When reduce color rolling.

** Attention : White Balance may not work properly when in special

light condition such as clear sky, sunset, dim lighting, mixed

lights providing different temp. etc.

All manuals and user guides at all-guides.com

OSD MENU DETAILS

7. EFFECTS

[DZOOM / IMAGE FREEZE / D-EFFECT / CONTRAST / SHARPNESS /

COLOR ADJUST / INITIAL SET / PREVIOUS]

6. SPECO DN

- Reduces noise/distortion on the screen

to save a recording capacity.

Increasing the DNR level reduces noise

but may introduce video artifacts.

DNR is deactivated if AGC is turned off.

** SSC (Speco Sensitivity Control)

- adjusts the brightness level in low light

condition only. Tune right value to get a

Right image data in low light .

-DZOOM : Digital Zoom. Select this and set a desired zoom level to obtain

an e tended focal length.

-IMAGE F EEZE : To hold the image to analyze precisely.

-D-EFFECT : Change the video direction. Vertical Flip, Mirror, and Rotate

-CONT AST : Adjust contrast Level that you desired.

-SHA PNESS : Adjust Sharpness Level. Increasing this value, the picture

outline becomes stronger and clear.

-COLO ADJUST : Adjust various color options for the camera (Color

toggle, Color Level, Color Hue, Red Gain, Blue Gain)

-INITIAL SET : Return to the default setting defined in the "EFFECT"

menu.

All manuals and user guides at all-guides.com
