Speco CLPR66B4B Manual de usuario

CLPR66B4B

Installation Precautions

1. Avoid installing camera where there are frequent vibrations or shocks.

2. Please keep the glass in front of the camera clean. Do not touch it directly.

Use a soft cloth with alcohol to wipe glass if necessary.

3. The available IR range of this camera is shown in the specification.

Please be sure to place the camera within the specified range.

3. In order to prevent damage to the camera, please do not loosen any screws or

covers unless modifying settings.

4. Please do not operate camera beyond conditions listed in the specification.

Use 12V DC regulated power supply to avoid damaging camera.

Included Accessories

User Manual

Mounting Template

Screws

Hex shape Wrench

Anchors

DC Connector

Specifications:

ITEM CLPR66B4B

IP Rating

IP66

Type

Monochrome

Signal System

NTSC/PAL

Pick Up Device

1/3" Sony Color High Resolution CCD

Picture Elements

NTSC: 811H×508V; PAL: 795H×596V

Resolution

550 TV Lines

Number of LEDs

80 IR LED

Min Illumination

0 Lux

Vertical Frequency

NTSC: 60Hz; PAL: 50Hz

Horizontal Frequency

NTSC: 15.734KHz; PAL:15.625KHz

Clock Frequency

NTSC: 28.636MHz; PAL:28.375MHz

Scanning System

2:1 Interlace

S/N Ratio

≥50dB

Electronic Shutter

NTSC: 1/60-1/100,000s; PAL: 1/50-1/100,000s

Lens

9-22mm Varifocal Auto Iris IR Lens

White Balance

AUTO Tracking

Back Light

Auto Gain Control

GAMMA

0.45

Video Out-put

p-p

,75Ω

Power Supply

DC12V ± 10%

Current Consumption

200mA (Max)

IR Range

6.56 ft – 49.18ft (2m – 15m) (Outdoor)

Dimension

12.80” × 7.72” × 4.88” (325×196×124mm)

Weight

67.72oz (1920g)

Storage Temperature

-22

～

140°F (-30

～

60°C)

Operating Temperature

-22

～

104°F (-30

～

40°C)

We reserve the right to modify product design and specification without notice and without incurring any obligation

License Plate Camera

Changing IR Settings

If you want to change the IR settings, please remove the circular external

controls cover located on the bottom of the camera.

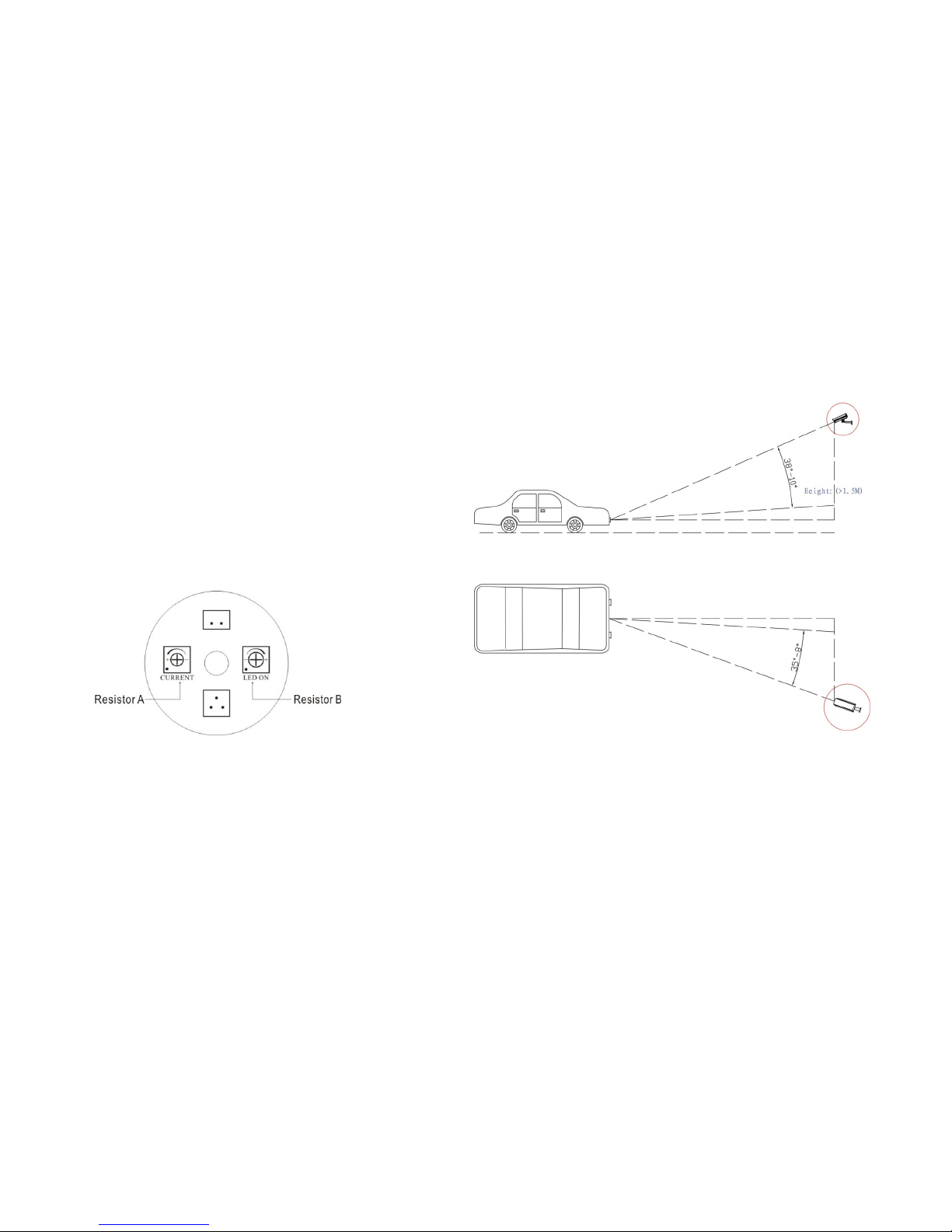

There are two Resistors with phillips head knobs, refer to the image below.

Resistor A: Controls the intensity of the IR LEDs

Turning 



(Clockwise) will decrease intensity

Turning 



(Counter-Clockwise) will increase intensity

Resistor B: Controls the lux threshold needed for triggering the IR LEDs

Turning 



(Clockwise) will increase lux threshold

Turning 



(Counter-Clockwise) will decrease lux threshold

Refer to the diagram below for optimum viewing angle.
