SOYO SY-6IEB Manual de usuario

SY-6IEB

Motherboard

Quick Start Guide

CTested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

POST CONSUMER

RECYCLED PAPER

100%

Hardware

Installation

Quick BIOS

Setup

Introduction

Onboard Sound

Driver Installation

The SOYO CD

SOYO™

SY-6IEB Motherboard

Pentium

II processor & Celeron

processor

82440 EX/LX AGP/PCI Motherboard

66MHz Front Side Bus supported

AT Form Factor

Trademarks:

Soyo is a registered trademark of Soyo Computer Inc. All trademarks are the property of their

owners.

Product Rights:

Product and corporate names mentioned in this publication are used for identification purposes

only and may be registered trademarks or copyrights of their respective companies.

transmit, transcribe, store in a retrieval system, or translate into any language, in any form or by

any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, any part of

this publication without express written permission of Soyo Computer Inc.

Disclaimer:

Soyo Computer Inc. makes no representations or warranties regarding the contents of this

manual. We reserve the right to revise the manual or make changes in the specifications of the

product described within it at any time without notice and without obligation to notify any

person of such revision or change. The information contained in this manual is provided for

general use by our customers. Our customers should be aware that the personal computer field is

the subject of many patents. Our customers should ensure that their use of our products does not

infringe upon any patents. It is the policy of Soyo Computer Inc. to respect the valid patent rights

of third parties and not to infringe upon or assist others to infringe upon such rights.

Restricted Rights Legend:

Use, duplication, or disclosure by the Government is subject to restrictions set forth in

subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at

252.277-7013.

About This Guide:

This Quick Start Guide is for assisting system manufacturers and end users in setting up and

installing the Motherboard. Information in this guide has been carefully checked for reliability;

however, no guarantee is given as to the correctness of the contents. The information in this

document is subject to change without notice.

If you need any further information, please visit our Web Site on the Internet. The address is

"http://www.soyo.com.tw".

6IEB Serial - Version 2.0 - Edition: March 1999

*Thesespecificationsaresubjecttochangewithoutnotice

SY-6IEB

Quick Start Guide

Introduction

Congratulationsonyourpurchaseofthe

SY-6IEB

Motherboard.ThisQuickStartGuide

describesthestepsforinstallingandsettingupyournewMotherboard.

ThisguideisdesignedforalluserstoprovidethebasicstepsofMotherboardsettingand

operation.Forfurtherinformation, pleasereferto SY-6IEBMotherboardUser'sGuide and

TechnicalReferenceonlinemanualincludedontheCD-ROMpackedwithyour

Motherboard.

Unpacking

*Ifyourboardcomeswithadriverdiscandapapermanual,theQuickStartGuideandtheCD-ROMarenotincludedinthepackage.

WhenunpackingtheMotherboard,checkforthefollowingitems:

TheSY-6IEB82440EX/LXAGP/PCIMotherboard

ThisQuickStartGuide

TheInstallation CD-ROM

TheCPURetentionSet

OneIDEDeviceFlat Cable

OneFloppyDiskDriveFlatCable

One9-pinserialconnectorwith9-pinflatcableand6-pin

PS/2mouseconnectorwith6-pincable

One25-pinparallelconnectorwith25-pinflatcableand9-

pinserialconnectorwith9-pinflatcable

Flash BIOS

W83781D

SY-6IEB

Quick Start Guide

Introduction

SY-6IEB Motherboard Layout

Key Features

SupportsIntelPentium

processors(233-333MHz)&

Celeron™processors (266-433MHz)

Auto-detectCPUvoltage

PC98,APM,ACPI,UltraDMA/33

Power-onbymodemoralarm

SOYOCOMBOSetup

SupportsWake-On-LAN(WOL)

Power-onbyKeyboard

SupportsCreativeSB-LINK™(PC-PCI)

forPCIaudiocard

1x32-bitAGPslot

3x32-bitbusmasteringPCIslots

2xUSBports

1xIrDAport

Supportsmultiple-bootfunction

Y2KComplaint

AT&ATXpowerconnectors

IDE 1

IDE 2

ISA Slot #2

Lithium

Battery

PCI Slot #3

JP44

Intel

82371 EB

Intel

82443 EX

SB-LINK

(PC-PCI)

CPUFAN

CHAFAN

JP5

CMOS Clear

Jumper

AGP Slot

ITE8671

I/O Chipset

Flash BIOS

SPEAKER

Reset

Power

LED

Key

Lock

PWRBT

Turbo

LED

HDD

LED

Slot 1 for

PentiumII

Processor

AT Power

Flash BIOS

FDC

ATX

Power

JP10

Connector

PS/2 Mouse

Connector

COM 2

COM 1

LPT

USB

DIMM 1

DIMM 2

PCI Slot #2

PCI Slot #1

ISA Slot #1

SY-6IEB

Quick Start Guide

Hardware

Installation

ToavoiddamagetoyourMotherboard,followthesesimpleruleswhile

handlingthisequipment:

BeforehandlingtheMotherboard,groundyourselfbygraspinganunpaintedportion

ofthesystem'smetalchassis.

RemovetheMotherboardfromitsanti-staticpackaging.Holditbytheedgesand

avoidtouchingitscomponents.

ChecktheMotherboardfordamage.Ifanychipappearsloose,presscarefullytoseat

itfirmlyinitssocket.

Followthedirectionsinthissectiondesignedtoguideyouthroughaquickandcorrect

installationofyournew

SY-6IEB

Motherboard.Fordetailedinformation,pleasereferto SY-

6IEBMotherboardUser'sGuideandTechnical Reference onlinemanualincludedonthe

CD-ROMpackedwithyourMotherboard.

PREPARATIONS

Gatherandprepareallthenecessaryhardwareequipmenttocompletetheinstallation

successfully:

Slot1processorwithbuilt-inCPUcoolingfan(boxedtype)

SDRAMmodule

Computercaseandchassiswithadequatepowersupplyunit

Monitor

PS/2Keyboard

PointingDevice(PS/2Mouse)

VGACard

Speaker(s)(optional)

DiskDrives:HDD,CD-ROM,Floppydrive…

ExternalPeripherals:Printer,Plotter,andModem(optional)

InternalPeripherals:ModemandLANcards(optional)

SY-6IEB

Quick Start Guide

Hardware

Installation

Install the Motherboard

Followthestepsbelowinordertoperformtheinstallationofyournew

SY-6IEB

Motherboard.

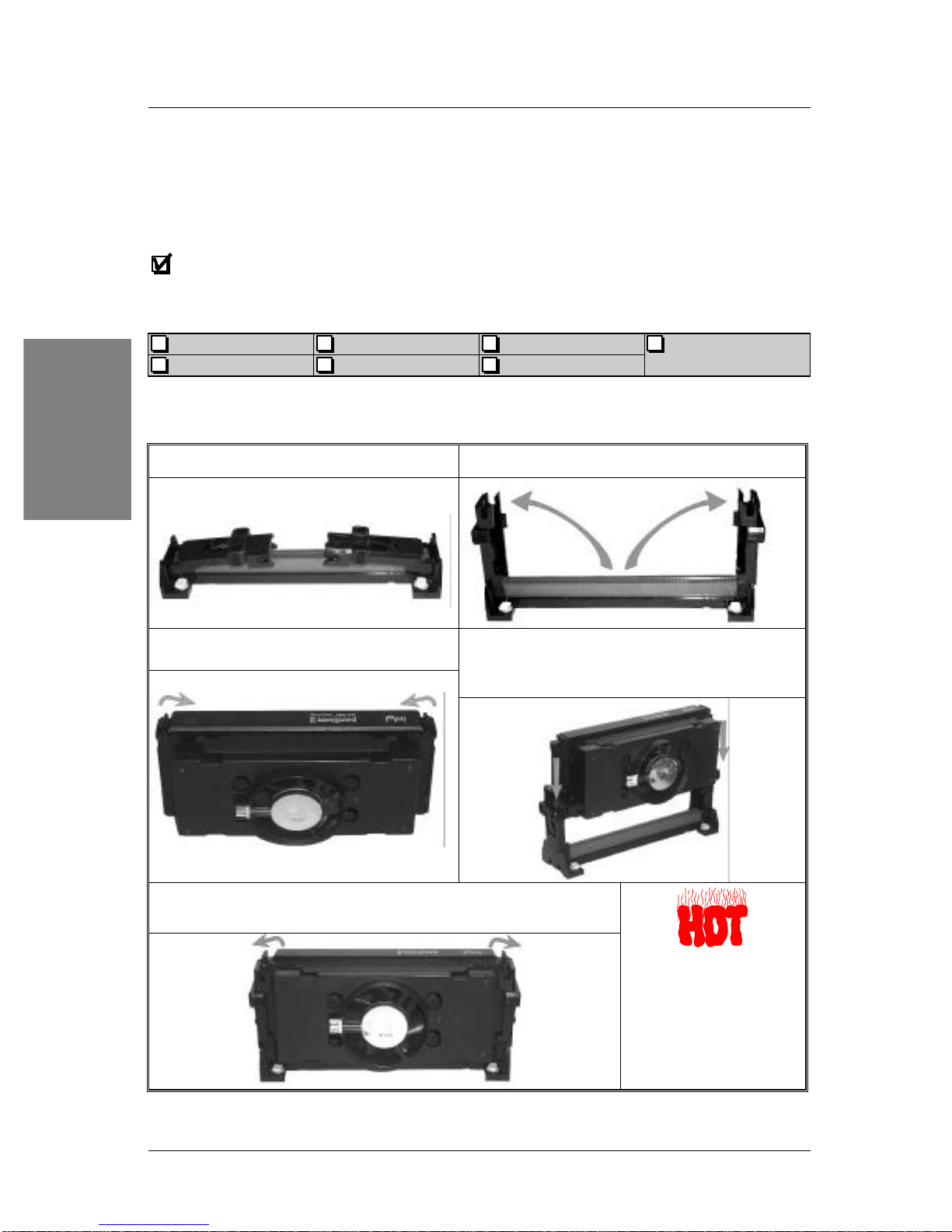

Step 1. Install the CPU

Mark your CPU Frequency:

RecordtheworkingfrequencyofyourCPU

thatshouldbeclearlymarkedontheCPUcover.

FSB66MHz

266MHz(66 x4.0) 333MHz (66 x 5.0) 400MHz(66 x6.0)

300MHz(66 x4.5) 366MHz (66 x 5.5) 433MHz(66 x6.5)

CPU Mount Procedure:

Tomounttheprocessorthatyouhavepurchased

separately,followtheseinstructions.

Retention Module Step 1. Open the two sides by folding them up.

Step 2.

Push the locks on top of the CPU

inward. Step 3. Insert the CPU into the retention

module. The CPU fits in the CPU slot in

only ONE way, do not try to force it in.

Step 4. After completely inserting the CPU, push the two locks on

top of the CPU outward. Now your CPU is ready for use.

To remove the CPU, press

the two notches on top of

the CPU inward. Now

press the two slides on the

retention module down and

remove the CPU.

Note:InstallingaheatsinkandcoolingfanontopofyourCPUisnecessaryforproperheatdissipation.

Failingtoinstalltheseitemsmayresultinoverheatingandpossibleburn-outofyourCPU.

SY-6IEB

Quick Start Guide

Hardware

Installation

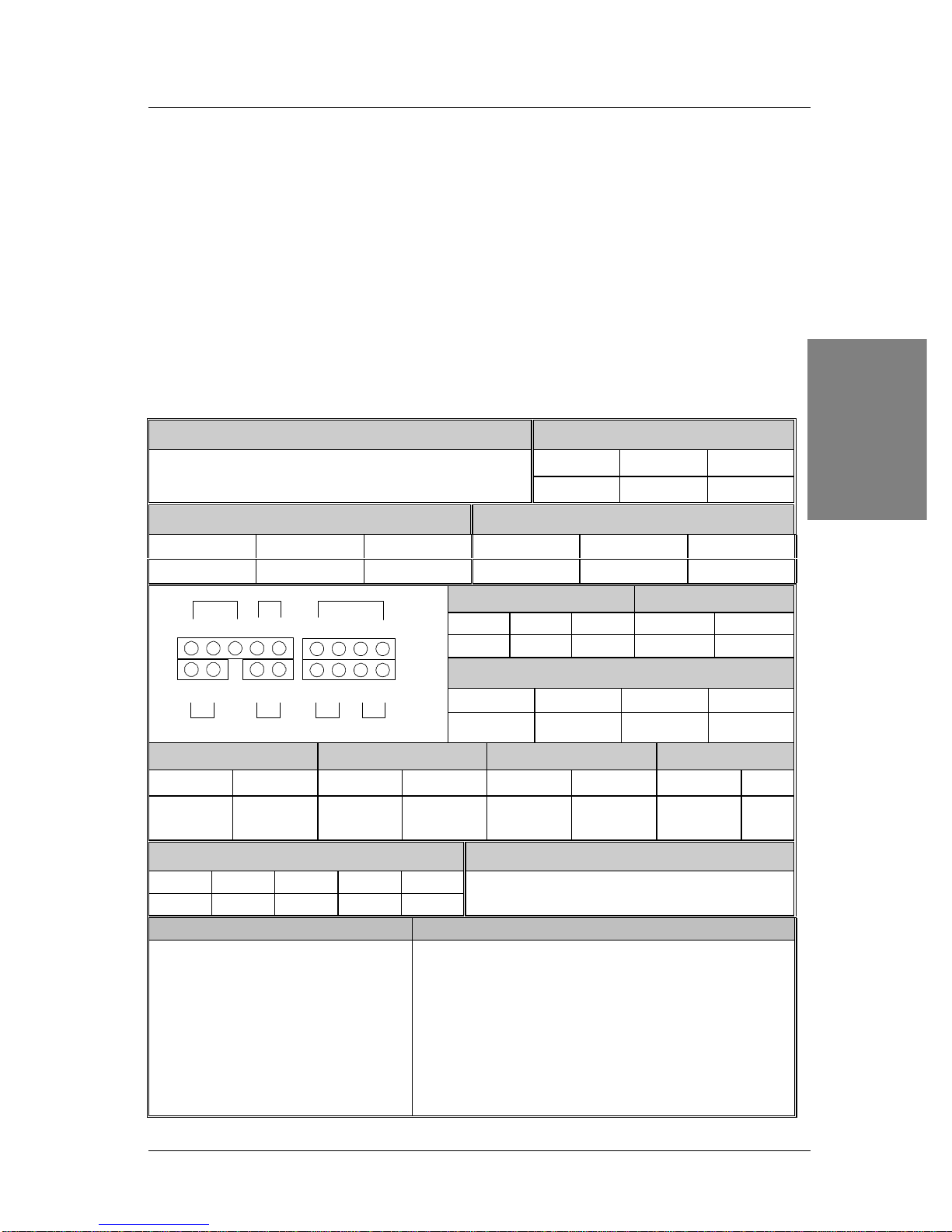

Step 2. Make Connections to the Motherboard

ThissectiontellshowtoconnectinternalperipheralsandpowersupplytotheMotherboard.

InternalperipheralsincludeIDEdevices(HDD,CD-ROM),FloppyDiskDrive,ChassisFan,

FrontPanelDevices(TurboLED,InternalSpeaker,ResetButton,IDELED,and KeyLock

Switch.),Wake-On-LANcard,VGAcard,SoundCard,andotherdevices.

FormoredetailsonhowtoconnectinternalandexternalperipheralstoyournewSY-6IEB

Motherboard, pleaserefer to SY-6IEBMotherboardUser's GuideandTechnicalReference

onlinemanualonCD-ROM.

Connectors and Plug-ins

PCI Audio Card Header: SB-Link™(PC-PCI) Wake-On-LAN Header: JP44

Pin1 Pin2 Pin3Connect the SB-Link™(PC-PCI) cable from your

PCI audio card to this header. 5VSB GND MP-Wakeup

CPU Cooling Fan: CPUFAN Chassis Fan: CHAFAN

Pin1 Pin2 Pin3 Pin1 Pin2 Pin3

GND 12V SENSOR GND 12V SENSOR

Power LED Keylock

Pin1 Pin2 Pin3

Pin1 Pin2

5V NC GND

ControlPin GND

Speaker

Pin1 Pin2 Pin3 Pin4

5V NC NC Speakerout

HDD LED Turbo LED PWRBT RESET

Pin1 Pin2 Pin1 Pin2 Pin1 Pin2 Pin1 Pin2

LEDAnode LED

Cathode LED

Cathode GND Power

On/Off GND PowerGood GND

IrDA (Infrared Device Header): IR1

AT Power Cable

Pin1 Pin2 Pin3 Pin4 Pin5

VCC None IRRX GND IRTX Connect the AT Power cable to this

connector. If you use AT power supply.

ATX Power On/Off: PWRBT ATX Power Supply: ATX PW

Connect your power switch to this

header (momentary switch type).

To turn off the system,

please press this switch and

hold down for longer than

4 seconds.

Attach the ATX Power cable to this connector. If

you use ATX power supply.

When using the Keyboard Wake-Up

function, please make sure the ATX

power supply can take at least 720mA

load on the 5V Standby lead (5VSB) to

meet the standard ATX specifications.

Power LED

Key Lock

Speaker

Reset

PWRBT

Turbo LED

HDD LED

SY-6IEB

Quick Start Guide

Hardware

Installation

Step 3. Configure Memory

YourboardcomeswithtwoDIMMsockets,providingsupportforupto256MBofmain

memoryusingDIMMmodulesfrom8MBto128MBwithnorestrictiononmemory

configuration.Therefore,youcaninstallmemorymodulesinanycombination.

Memory Configuration

DIMM Banks

MEMORY

CONFIGURATION DIMM 1 DIMM 2

RAM Type EDO/SDRAM EDO/SDRAM

RAM Module Size (MB) 8/16/32/64/128 8/16/32/64/128

Note : There are two types of DIMM modules with different operating voltages:

3.3V and 5.0V. Please note that only 3.3V EDO DIMM modules can be used

on this Motherboard.

Step 4. Set the CPU Frequency

YoudonotneedtosetanyjumperfortheCPUfrequency.Instead,CPUsettingsare

changedthroughtheBIOS

[SOYOCOMBO SETUP].

PleaserefertoChapter3-Quick

BIOSSetupfordetailsonhowtosetthePentium

IIprocessorfrequency.

Step 5. Enable/Disable the Keyboard Wake-Up (JP10)

YoucanchoosetoenabletheWake-UpbyKeyboardorMousefunctionbyshortingpin1-2

onjumperJP1,otherwise,shortpin2-3todisablethisfunction.

Support Wake-Up

by Keyboard Enable Disable

JP10 Setting EnableWake-up

by Keyboard

function

(short pin 1-2)

DisableWake-up

by Keyboard

function

(short pin 2-3)

Important: When using the Keyboard Wake-Up function, please make sure the ATX

power supply can take at least 720mA load on the 5V Standby lead (5VSB) to meet the

standard ATX specifications.

SY-6IEB

Quick Start Guide

Hardware

Installation

Step 6. Clear CMOS Data (JP5)

CleartheCMOSmemorybymomentarilyshortingpin2-3onjumperJP5foratleast5

seconds,andthenbyshortingpin1-2toretainnewsettings. Thisjumpercanbeeasily

identifiedbyitswhitecoloredcap.

CMOS Clearing Retain CMOS Data Clear CMOS Data

JP5 Setting Short pin 1-2 to retain

the new settings. Short pin 2-3 for

at least 5 seconds

to clear the CMOS.

Note: You must unplug the AT/ATX power cable from the AT/ATX power connector

when performing the CMOS Clear operation.

Note on Over-clocking Capability

TheSY-6IEBprovidesover-clockingcapability.Duetotheover-clockingsettingyoursystem

mayfailtobootuporhangduringruntime.Pleaseperformthefollowingstepstorecover

yoursystemfromtheabnormal situation:

Turnoffsystempower.

Pressandholddownthe<Insert>keywhileturningonthesystempower.Keepholding

downthe<Insert>keyuntilyouseethemessageoftheCPUtypeandfrequencyshown

onthescreen.

Pressthe<Del>keyduringthesystemdiagnosticcheckstoentertheAwardBIOSSetup

program.

Select[SOYOCOMBOSETUP]andmovethecursortothe[CPUFrequency]fieldtoset

theproperworkingfrequency.

Select[Save&ExitSETUP]andpress<Enter>tosavethenewconfigurationtothe

CMOSmemory,andcontinuethebootsequence.

Note: SOYOdoesnotguaranteesystemstabilityifthe user over clocks the system.

Anymalfunctionsduetoover-clocking are notcoveredbythewarranty.

SY-6IEB

Quick Start Guide

Quick BIOS

Setup

Quick BIOS Setup

ThisMotherboarddoesnotuseanyhardwarejumperstosettheCPUfrequency.Instead,

CPUsettingsaresoftwareconfigurablewiththeBIOS

[SOYO COMBO SETUP].

The

[SOYOCOMBOSETUP]menucombinesthemainCPUparametersthatyouneedto

configure,allinonemenu,foraquicksetupinBIOS.

Afterthehardwareinstallationiscomplete,turnthepowerswitchon, thenpress the

<DEL>

key

duringthesystemdiagnostic checksto entertheAwardBIOSSetupprogram.The CMOS

SETUPUTILITYwilldisplayonscreen.Then,followthesestepsto configurethe CPUsettings.

Step 1. Select [LOAD SETUP DEFAULT]

Selectthe“LOADSETUPDEFAULT”menuandtype “Y”attheprompttoloadtheBIOS

optimalsetup.

Step 2. Select [STANDARD CMOS SETUP]

Set[Date/Time]and[Floppydrivetype],thenset[Hard DiskType]to “Auto”.

Step 3. Select [SOYO COMBO SETUP]

Movethecursortothe

[CPUSpeed]

fieldtosettheCPUworkingspeed.

Available[CPUSpeed]settingsonyourSY-6IEBMotherboardaredetailedinthefollowing

table.Ifyousetthisfieldto[Manual],youarethenrequiredtofillinthenexttwoconsecutive

fields:(1)theCPURatio,and(2)theCPUFrequency.

CPU Speed

233MHz(66x3.5) 366MHz (66x5.5)

266MHz(66x4.0) 400MHz (66x6.0)

300MHz(66x4.5) 433MHz (66x6.5)

333MHz(66x5.0)

Select the working frequency of your

Pentium®

II, or Celeronprocessor

among these preset values.

Note: Mark the checkbox that

corresponds to the working frequency of

your Pentium®

II, or Celeronprocessor

in case the CMOS configuration should

be lost.

Step 4. Select [SAVE & EXIT SETUP]

Press

<Enter>

tosavethenewconfigurationtotheCMOSmemory,andcontinuetheboot

sequence.

Otros manuales para SY-6IEB

Tabla de contenidos

Otros manuales de Placa madre de SOYO

SOYO

SOYO SY-7ISA+ Manual de usuario

SOYO

SOYO SY-K7VMP2 Manual de usuario

SOYO

SOYO SY-D6IBA2 Manual de usuario

SOYO

SOYO SY-7VCA Manual de usuario

SOYO

SOYO SY-6BE Manual de usuario

SOYO

SOYO SY-P4RS300 Manual de usuario

SOYO

SOYO SY-7VMA-B Manual de usuario

SOYO

SOYO SY-5EH5 Manual de uso y cuidado

SOYO

SOYO SY-P4S DRAGON Ultra Manual de usuario

SOYO

SOYO DRAGON Lite SY-KT333 Manual de usuario

SOYO

SOYO SY-6ICA Manual de usuario

SOYO

SOYO SY-P4I845PEISA Manual de usuario

SOYO

SOYO SY-7IWM-X Manual de usuario

SOYO

SOYO SY-6ILA Manual de usuario

SOYO

SOYO Motherboard SY-6BA+ IV Manual de usuario

SOYO

SOYO SY-K7VEM+ Manual de usuario

SOYO

SOYO SY-KT333 DRAGON Plus Manual de usuario

SOYO

SOYO SY-P4I845PE Manual de usuario

SOYO

SOYO SY-K7VTA PRO Manual de usuario

SOYO

SOYO 82430 VX PCI Manual de usuario

SOYO

SOYO SY-7IWB V1.0 Manual de usuario

SOYO

SOYO Super 7 SY-5EMA+ Manual de uso y cuidado

SOYO

SOYO SY-P4VSA Manual de usuario

SOYO

SOYO SY-6BA+ Manual de uso y cuidado

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
