Soyal AR-721U Manual de usuario
AR-721U/721K/661U
User’s Guide
Feb. 6, 2004
1
Table of Contents
Page
1. Main Feature --------------------------------- 3
2. AR-721U Installation --------------------------------- 4
2.1 Steps --------------------------------- 4
2.2 Installation Notice --------------------------------- 5
2.3 Wiring --------------------------------- 6
2.4 PCB board ----------------------------------8
2.4.1 No waterproof --------------------------------- 8
2.4.2 Waterproof --------------------------------- 8
2.5 Installation diagram ----------------------------------9
2.5.1 AR-721U & AR-721H ------------------- 9
2.5.2 AR-721U & AR-727H ------------------- 10
2.5.3 AR-721U & AR-821EF ------------------- 11
2.5.4 AR-721U & AR-829E ------------------- 12
3. AR-721K Installation -------------------------------- 13
3.1 Steps -------------------------------- 13
3.2 Installation Notice -------------------------------- 14
3.3 Wiring -------------------------------- 15
3.4 PCB board -------------------------------- 16
3.5 Installation diagram -------------------------------- 17
3.5.1 AR-721K & AR-721H ------------------- 17
3.5.2 AR-721K & AR-727H ------------------- 18
3.5.3 AR-721K & AR-821EF ------------------- 19
3.5.4 AR-721K & AR-829E ------------------- 20
2
4. AR-661U Installation -------------------------------- 21
4.1 Installation Notice -------------------------------- 21
4.2 Wiring -------------------------------- 22
4.3 Installation diagram -------------------------------- 23
4.3.1 AR-661U & AR-721H ------------------- 23
4.3.2AR-661U & AR-727H ------------------- 24
4.3.3AR-661U & AR-821EF ------------------- 25
4.3.4AR-661U & AR-829E ------------------- 26
4.4 The standalone controller do anti-pass-back with
2 pcs of AR-661U -------------------------------- 27
4.5 Testing table of AR-661U Reading Range depends
on tags -------------------------------- 29
5 Troubleshooting -------------------------------- 30
6 Return of Products -------------------------------- 30
7 Warranty -------------------------------- 31
3
1.MainFeatures
Easily integrated with soyal or other access control systems.
Programmable various outputs formats Wiegand, magstripe or
serial.
Built-in watchdog to prevent the system from halting
A bi-color LED indicator and a beep sound.
Item AR-721U AR-721K AR-661U
Reading Range
(Depends on tags)
About 8 cm About 15 cm 33-60 cm
Output Formats WG 26 / 34, ABA II, ASYNC 9600, N, 8, 1
Voltage 9-18VDC
Current < 1W < 2.5W < 4W
RF Frequency 125KHz
Environment -10℃to +50℃
LED Indicators ●●●
Beep Sound ●●●
Keypad X 12 Keys X
Material ABS ABS ABS
Waterproof Option X ●
Dimensions (mm) 80(L)×43(W)×15(H) 112(L)*76(W)*25(H) 230(L)*230(W)*35(H)
4
2. AR-721U Installation

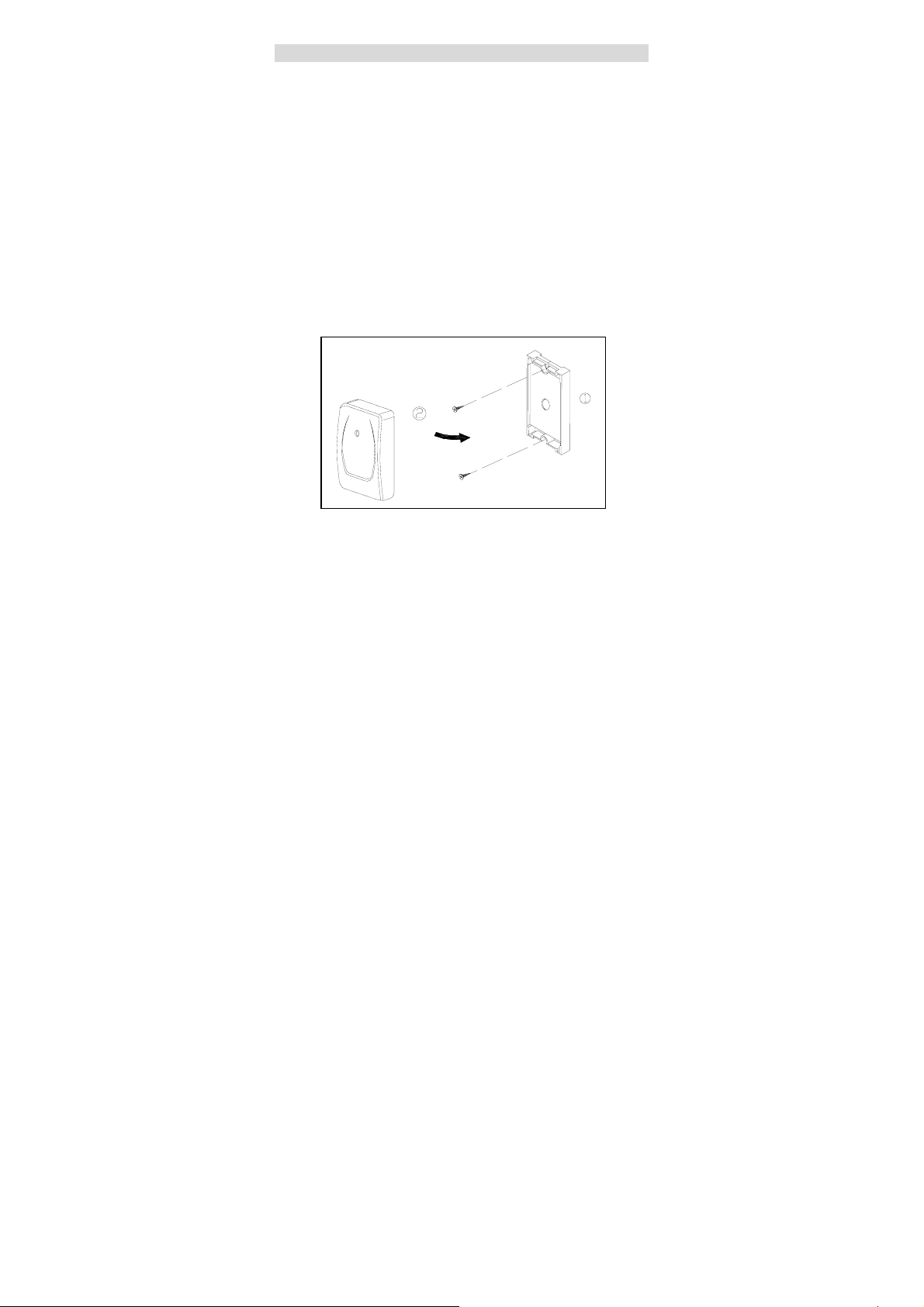

2.1 Steps
1. Use the screwdriver to screw the mounting plate on the wall.
2. Pull cable ends through the access hole in the mounting plate.
AR-721U must be connected before power is applied to the
single door controller.
3. Attach the AR-721U to the mounting plate.
4. Apply power. The red LED will flash once and the beeper will
sound.
5
2.2 Installation Notice
1. AR-721U is narrow enough to mount to most mullions and door
frames.
2. Single door controller locate inside the secure area for use as an
exit controller, the auxiliary reader locate exterior wall for use as
an entrance reader, but not directly behind single door controller.
For best reading distance, offset the single door controller and
auxiliary reader by about 50 cm above and 12 m below
(suggestion value).
3. Normally, AR-721U will read a Card / Key Tag at up to 8 cm.
However, when AR-721U reader is mounted directly on a metal
surface, the reading distance decreases slightly. To reduce this
effect, install wood or plastic between the mounting surface and
mounting plate, this will restore most of the reading distance.
6
2.3 Wiring
Table 1 - Color Coding
Wire Application Wire Color Description
1 Red DC Power 12V
Power
2 Black DC Power 0V
3 Yellow LED Red Input ( Low Bright)
LED
4 Brown LED Green Input ( Low Bright)
5 Blue Wiegand DAT:1
Wiegand
6 Green Wiegand DAT:0
Beeper 7 Purple Beeper Input ( Low Sound )
8 White Card Present
Beeper 9 Gray Beeper Output
Output Selection
Output WG26 WG34 RS-232 Magnetic ( ABA )
34/26 Open Close Open Close
ABA Open Open Close Close
7
AR-721U RS-232 Format: ( 9600,N, 8, 1 SOYAL Format )
DAT:0: TTL Inverted Serial Output.
( Can connect to PC comm port )
DAT:1: TTL Serial Output.
( connect to PC comm. port through RS-232 invert driver )
2.4 PCB board
2.4.1 No waterproof
ABA 34126
Buzzer
721U PCB
Output Format
WG 26
WG 34
ABAII
RS-232
ABA 34126
34126ABA
34126ABA
34126ABA
(Default)
2.4.2 Waterproof
Output Format
AR-721U
Buzzer
Cut for WG26 bit
Connect for WG34 bit (Default)
8
2.5 Installation diagram
2.5.1 AR-721U & AR-721H
BA
CN4
CN2
P2
7AC2
Red
CN2
1
DAT:11Blue Blue
AR-721U
Color
Pin
AFunction
Pin
B
Green
Pink
Brown
Yellow
5
3
2
4
DAT:0
Beeper input
Red LED
Green LED
Purple
Green
Brown
Yellow
-GND
+12VDC
SOYAL
12VDC 500mA
Power Supply
RELAY
CN1
P1
CN1
Black
Red
721H5DS
The installation of 721H and auxiliary reader 721U
CN3
Black
9
