Soundstream REF300.2 Manual de usuario

REFERENCE

AMPLIFIER SERIES

REF300.2 / REF600.2 / REF800.2 / REF1600.2

REF480.4 / REF800.4 / REF880.5

OWNER’S MANUAL

BEDIENUNGSANLEITUNG

[ 2 ]

TABLE OF CONTENTS

Features / Specifications

Power Ratings / Dimensions

Wiring

Panel Layout

Key to Callouts

2Ch System Design #1, 2

2Ch System Design #3

4Ch System Design #1

4Ch System Design #2

4Ch System Design #3

5Ch System Design #1, 2

5Ch System Design #3

5Ch System Design #4

Trouble Shooting

BEDIENUNGSANLEITUNG DEUTSCH

6 / 7

PAGE

[ 3 ]

FEATURES

• RUBI™ (Rapid-Use Branched Impulse) – proprietary power supply topology

• STACT™ (Stabilized Apex Current Topology) – reduces power supply stress by 50%

• Trident™ amplifier protection topology

• Ultra-Low ESR Capacitance Bank – ensures rapid power delivery for dynamic peaks

• Hawkins Bass Control™– proprietary bass equalization topology

• IDI™ (Intelligent Distress Indicator) – visual indication of amplifier protection status

• Harmonic Bass Alignment™ – produces tighter, more accurate bass

• Fully regulated MOSFET power supply

• Triple Darlington Output Circuitry

• BIP™ (Bias Input Protection)

• Rail Stabilization Protection Circuitry

• Bi-Linear selectable two-way crossovers for amplifier and line output

• Continuously Variable High and Low Pass Crossovers

• Vortex Induction Fan Thermor Management

• Gold RCA Inputs and Outputs

• Gold 4-gauge Power Connectors

• Tri-mode operation

SPECIFICATIONS

10 Hz - 70 kHz

< 0.02 %

115dB

0.15~12.0 Volts

10k Ohms

2 - 8 Ohms

4 - 8 Ohms

11 - 15 Volts

>500

>50 V/µS

Up to +18dB Boost @ 18Hz~80Hz

18dB/Octave

30Hz-4kHz

Power Bandwidth

Total Harmonic Distortion

S/N Ratio

Input Sensitivity

Input Impedance

Load Impedance (stereo)

Load Impedance (bridged)

Supply Voltage

Damping Factor

Slew Rate

Hawkins Bass

Crossovers

Crossover Frequency

[ 4 ]

POWER RATINGS & FUSES

MODEL

REF620.2

REF800.2

REF1600.2

REF480.4

REF800.4

REF880.5

4 ohm STEREO

175w x 2ch

240w x 2ch

480w x 2ch

70w x 4ch

125w x 4ch

70w x 4ch

200w x 1ch(sub)

2 ohm STEREO

310w x 2ch

400w x 2ch

800w x 1ch

140w x 4ch

200w x 4ch

120w x 4ch

400w x 1ch(sub)

4 ohm BRIDGED

620w x 1ch

800w x 1ch

1600w x 1ch

280w x 2ch

400w x 2ch

240w x 2ch

400w x 1ch

FUSE

80 Amp

133 Amp

240 Amp

90 Amp

150 Amp

125 Amp

MODEL

REF300.2

REF620.2

REF800.2

REF1600.2

REF480.4

REF800.4

REF880.5

Height

54 mm

Length

280 mm

345 mm

415 mm

505 mm

390 mm

415 mm

525 mm

Width

250 mm

DIMENSIONS

REF300.2 100w x 2ch 150w x 2ch 300w x 1ch 40 Amp

[ 5 ]

Positive

Battery

Terminal

Fuse must be

installed within

18" of battery

Drill a hole in the

firewall and use

a rubber grommet

to keep wire

from shortings

Run the cables under

the carpet near the

side of the vehicle.

Be careful not to drill

or screw into the

wires when you

replace the trim.

Ground wire to solid

metal of rear chassis

Avoid sharp edges that

could chafe through the

insulation

Run signal cables

(RCAs) and

remote turn-on

lead

down the

opposite side of

the vehicle of the

power

wire to avoid

radiated noise

Factory Ground wire may

need to be replaced if it is

small, frayed, or broken

Before beginning, disconnect the negative (-) terminal of the battery prior to

working on the positive (+) terminal to prevent a short to ground. This is impor-

tant to avoid serious damage to your car audio system and your car electrics.

Reconnect the negative terminal only after all connections have been made.

WIRING

[ 6 ]

PANEL LAYOUT

REF300.2 / REF620.2 / REF800.2 / REF1600.2

PANEL LAYOUT

REF300.2 / REF620.2 / REF800.2 / REF1600.2

[ 7 ]

[ 8 ]

KEY TO CALLOUTS

GND - Main ground connection. Bolt to a clean chassis point in the vehicle.

+12V - Connected to a fuse or circuit breaker, then to the battery’s positive terminal.

REM - Remote Turn-ON is connected to Radio's power antenna lead or a switchable

+12V - FUSES- Satellite channels power supply fuses.

Warning: Replace only with the same value fuses

Speaker Connection Terminal - Connect Speakers here - ensure correct polarity.

Subsonic Filter - Frequency adjustment control for Subsonic Filter.

Selectable X-Over LP/HP/FULL

LP - Frequency adjustment control for Low Pass Filter

HP - Frequency adjustment control for High Pass Filter

Full - Full Range Signal Output

Hawkins Bass-EQ Control Adjustment

Frequency adjustment control for Hawkins Bass Control filter.

Hawkins Bass-Boost Control Adjustment

Varies from 0 to + 18 dB of boost when the Hawkins Bass Control circuit is engaged.

Input Attention: ATT. Switch ‘ON’ for high voltage input (4V to 12V) capability. This

switch ‘ON’ must be used for speaker level input on common ground headunits

or high voltage line drivers.

Input Gain - Input gain control variable from 150mV to 4V or 4V to 12V

RCA Inputs - Connect the RCA cables from source unit, or line driver to these

RCA connectors.

RCA Line Outputs - Left and right RCA Line outputs provides Full Range Signal.

Status LED - Indicates amplifier power. (Power: Green / Protection : Red)

[ 9 ]

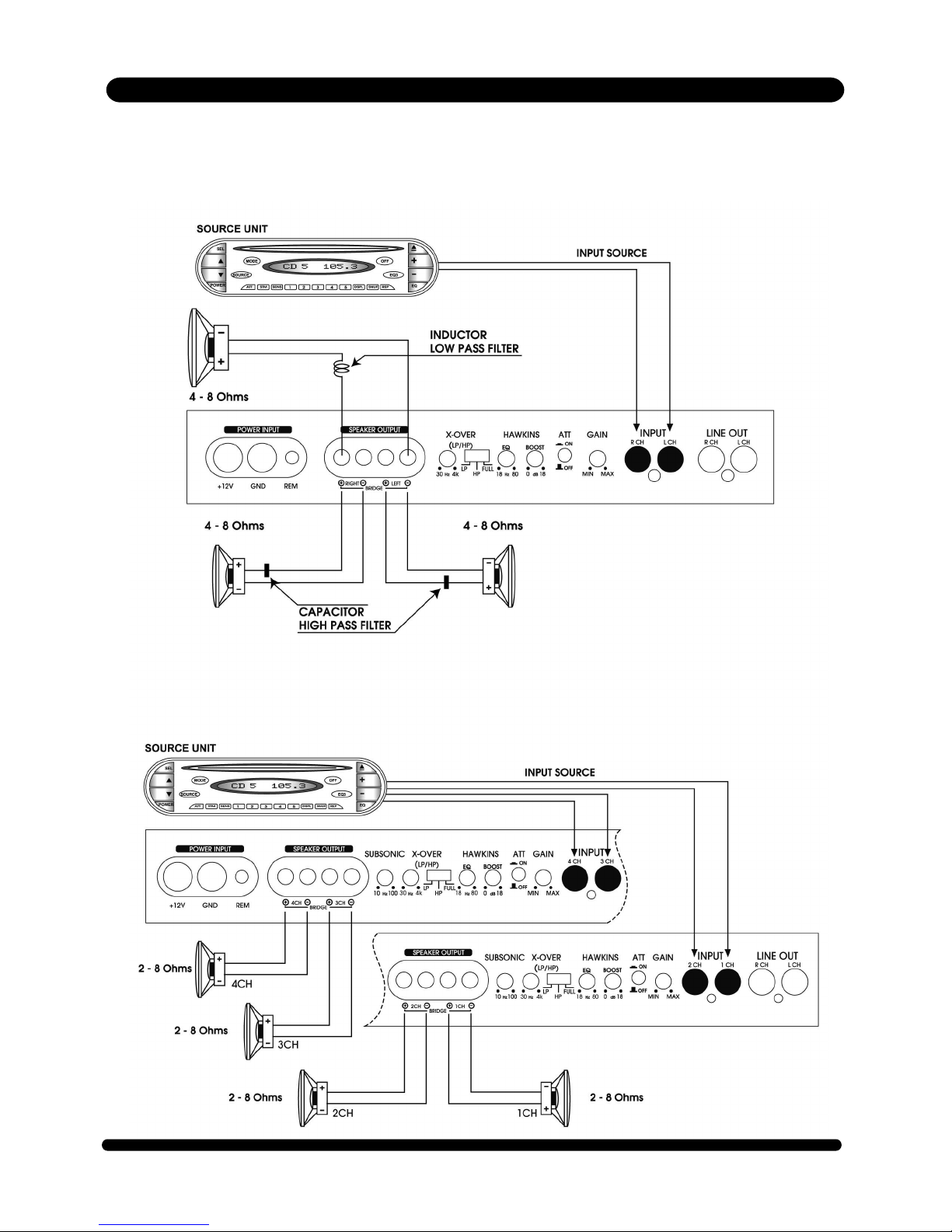

2 CHANNEL SYSTEM DESIGN #1

REF300.2/620.2/800.2/REF1600.2

2 CHANNEL SYSTEM DESIGN #2

REF300.2/620.2/800.2/REF1600.2

[ 10 ]

2 CHANNEL SYSTEM DESIGN #3

REF300.2/620.2/800.2/REF1600.2

4 CHANNEL SYSTEM DESIGN #1

REF480.4/800.4
