Soundoff Signal ETSSLFVBK11 Manual de usuario

1.800.338.7337 / www.soundo󰀨signal.com

ETSSLFVBK11 0221

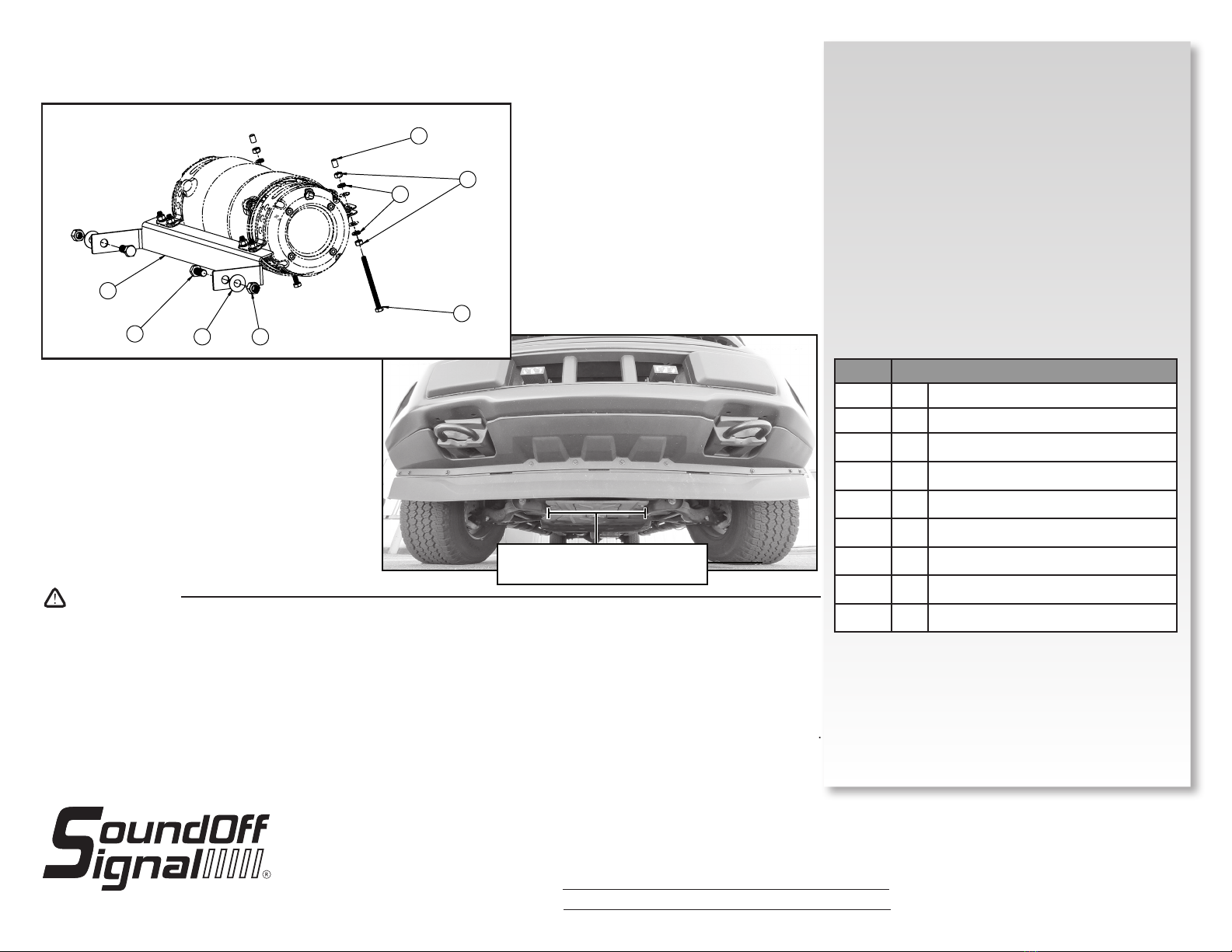

FRAME MOUNT BRACKET (NO DRILL) FOR THE AFTERSHOCK LOW FREQUENCY SPEAKER

2018 - 2021 FORD F150, MOUNTS SPEAKERS

ETSSLFVBK11

NOTICE:

Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.

Improper use or installation may void warranty coverage.

To review our Limited Warranty Statement & Return Policy for this or any SoundO Signal product, visit our website at www.soundosignal.com/tech-services/returns/.

If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).

Questions or comments that do not require immediate attention may be emailed to techservices@soundosignal.com.

ENHANCING SAFETY THROUGH INNOVATION

•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat build-up and re. Follow crimp connector

manufacturer instructions.

•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle Owner’s Manual for deployment zones.

•Do NOT use system to disconnect headlights, brake lights or other safety equipment.

•Unit may become hot to touch during normal operation.

•Failure to properly install connectors, fuses or wiring may cause vehicle failure or re.

•Installation must only be performed by trained technician. Installer must determine vehicle wiring conguration and proper integration of system.

•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal or local chassis ground (-) must be sized to

supply at least 125% of max. current and properly fused at power source.

•Install protective grommets when routing wire through rewall or metal.

WARNING

INSTALLATION:

1. Attach the speakers to the low frequency bracket using

the Universal Mount Brackets and hardware provided

with the aftershock speaker kits, as shown in Fig. 1 on

Page 2. The grills of the speakers should face downward

as shown.

Do not install the single bolt on the opposite side of the

speaker. The speaker bracket should be sandwiched

between the Universal Mount Brackets. Tighten to 15

ft-lbs.

CONTENTS

ITEM# QTY COMPONENT

1 1 LOW FREQUENCY BRACKET

2 2 1/2-20 HEX HEAD BOLT

32 1/2-20 NYLON LOCK NUT

42 1/2” FLAT WASHER

5 2 5/16-18 x 4” HEX HEAD BOLT

645/16-18 HEX NUT

7 4 5/16 LOCK WASHER

8 2 RUBBER BOLT CAP

*Speaker and Speaker Hardware Sold Separately

NOTE: ONLY INSTALL THE BOLTS NECESSARY TO

FASTEN THE UNIVERSAL MOUNT BRACKETS TO THE

SPEAKER BRACKET.

Bracket installs between the frame rails on

the front of the vehicle in the location shown.

234

1.800.338.7337 / www.soundo󰀨signal.com

ETSSLFVBK11 0221

FRAME MOUNT BRACKET (NO DRILL) FOR THE AFTERSHOCK LOW FREQUENCY SPEAKER

2018 - 2021 FORD F150, MOUNTS SPEAKERS

ETSSLFVBK11

NOTICE:

Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.

Improper use or installation may void warranty coverage.

To review our Limited Warranty Statement & Return Policy for this or any SoundO Signal product, visit our website at www.soundosignal.com/tech-services/returns/.

If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).

Questions or comments that do not require immediate attention may be emailed to techservices@soundosignal.com.

ENHANCING SAFETY THROUGH INNOVATION

INSTALLATION:

2. Use the provided 5/16 - 4” hex bolts in place

of the remaining bolts that were provided with

the aftershock speaker kits. The 5/16 hex nuts,

washers, and end caps should be installed, as

shown in Fig. 2.

3. Install the bracket and speaker assembly to the

underside of the front of the vehicle using the

existing frame holes, as shown in Fig. 3.

4. Ensure that the bracket and speaker assembly

is orientated, as shown in Fig. 4. Fasten the

assembly to the frame of the vehicle using the

provided 1/2-20 bolts, lock nuts, and washers.

Tighten to 20 ft-lbs.

5. Tighten the 2 X 5/16 - 4” hex bolts until the end

caps contact the cross member on the bottom

of the vehicle. Once contact is made, further

tighten in order to apply tension to the bracket

and speaker assembly. The nal assembly should

appear, as shown in Fig. 4.

6. Plug in wire harnesses on both speakers. Test to

ensure proper functionality.

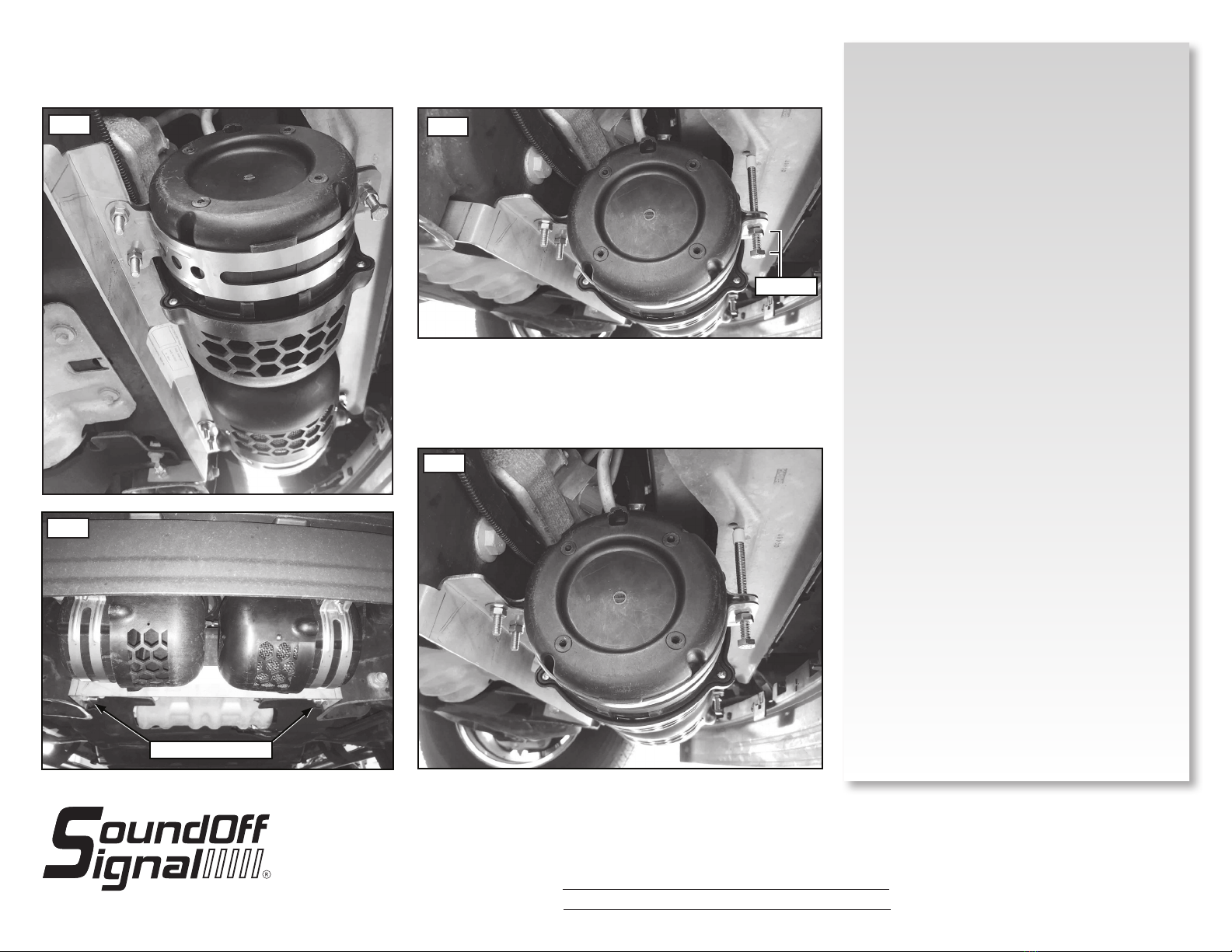

Fig. 3

Fig. 4

Fig. 1 Fig. 2

NOTE: BEGIN BY INSTALLING THE HEAD OF THE

4” HEX BOLT APPROXIMATELY 1” FROM THE

LOWER NUT.

MOUNTING LOCATION

1” SPACING
