Soundigital 2000.4 EVO5 Manual de usuario

USER'S MANUAL

2000.4

TABLE OF CONTENTS

Introduction.....................................................................................................................

Package Contents......................................................................................................

Safety instructions.......................................................................................................

Assembling and disassembling the plastic cover...................................

Description of the panels

Audio inputs and controls.............................................................

Power and audio outputs...............................................................

Electrical sizing..............................................................................................................

Audio input.......................................................................................................................

Installation sequence.................................................................................................

Connection diagram

Four-channel setup...........................................................................

Three-channel setup........................................................................

Two-channel configuration...........................................................

Gain Adjustment Procedure..................................................................................

Crossover Adjustment..............................................................................................

Technical Specification

Parameters............................................................................................

Dimensional Data...............................................................................

INTRODUCTION

Dear Costumers,

Congratulations for purchasing a product of the highest quality and technology!

SounDigital's products are developed to ensure maximum efficiency and reliability

in your audio system.

Class D Amplifiers:

Class D amplifiers have audio quality, efficiency, application versatility, and

compact design as their main features. Here are the advantages of these

characteristics:

Audio Quality – In the past, Class D products had limited response and for higher

frequencies, Class AB products performed better, but their efficiency was very low.

The new technologies introduced by SounDigital resulted in a Class D amplifier

with high efficiency and performance superior to Class AB.

Efficiency – SounDigital Class D amplifiers have a total efficiency (Output +

Source) higher than 70%, which ensures lower battery consumption and less

heating.

Versatility of Application – The flat response in all frequencies of the SounDigital

amplifiers allows them to be used in all automotive sound systems. They meet the

demands with extreme quality.

Compact Design – The high efficiency and high technology applied allows

SounDigital amplifiers to be very compact, facilitating installation in vehicles where

space is limited.

IMPORTANT INFORMATION

Read this manual carefully and follow precisely all the information contained herein,

which are very important and allow your amplifier to work optimally. If you think it

necessary, do not hesitate to contact our technical support by e-mail

sac@soundigital.com or by SAC +55 (51) 3042-9001.

PACKAGE CONTENT

- 1 EVO5 Amplifier

- 1 Quick installation guide with warranty certificate

- 1 Promotional sticker

SAFETY INSTRUCTIONS

To prevent injury to the user or damage to the amplifier, read all the safety

instructions contained in this manual;

If you feel insecure about installing the equipment, contact SounDigital technical

support or a qualified professional in automotive sound installation;

Before proceeding with the installation of any electrical equipment in the vehicle,

disconnect the negative (-) terminal of the battery to avoid fire, injury or damage to

the amplifier;

Use your sound system safely, continuous exposure to sound pressures above 85

decibels may cause irreversible hearing damage;

This equipment is for use with automotive batteries of DC voltage between 12.6 and

14.4 volts. Before installing the equipment, check the voltage of the batteries;

Do not install the amplifier in the engine compartment or in places exposed to

water, humidity, dust or dirt;

Install the amplifier in a ventilated place and prevent the side ventilation windows

from being obstructed;

Fix the amplifier in a proper and firm manner. Avoid the fixation on metallic parts, as

this procedure may cause ground "Looping" (noise);

Use rubber "O-rings" when passing the wires in metallic walls in order to prevent

them from being cut and causing short-circuit;

Make sure that the place chosen for installation of the amplifier does not hinder the

operation of the vehicle;

During the use of this product, the aluminum housing/dissipator may reach

temperatures higher than 60°C. Before touching the amplifier, be sure that it is cold;

To maintain the efficient thermal dissipation, periodically clean the dissipator,

removing dust and impurities with the help of a brush and/or dry cloth;

Be very careful when drilling holes in the vehicle, make sure not to pierce the fuel

tank, brake lines, electrical cables, etc;

Make sure that all cables are properly secured throughout the entire installation;

Wear gloves, safety goggles, and all necessary safety equipment during the

installation of the SounDigital amplifiers.

This symbol alerts the user to the presence of important instructions.

Failure to comply with these instructions may result in damage to the

amplifier or the user.

Cuidado!

ASSEMBLING AND DISASSEMBLING THE PLASTIC COVER

The plastic covers have the function of giving finishing and hiding the amplifier's

fixation screws. To remove and replace them, follow the instructions below.

1 2

1. Carefully pull the top flap outward, releasing the upper latches, as illustrated in the image.

2. With one continuous movement, slide the plastic cover upward, removing it.

1. Fit the plastic cover flush against the side of the amplifier, matching the attachment points A and B, and push it down.

2. Lightly press the sides of the upper part of the plastic cover against the amplifier until you hear the "click" of the latches.

DISASSEMBLING THE COVER

COVER ASSEMBLY

DESCRIPTION OF THE PANELS

Crossover Selector Switch

High Pass - Full - Low Pass

Variable gain control

Power On" Indicator LED (Blue)

RCA audio input

CH1/CH2

CH1

CH3

CH3/CH4

CH2

CH4

7 5

Negative power connector (GND)

Remote power connector (REM)

Positive power connector (+12VDC)

Positive audio output connector (+)

Conector de saída de áudio positivo (+)

Negative (-) audio output connector

Positive (+) audio output connector

Negative (-) audio output connector

Positive audio output connector (+)

Positive (+) audio output connector

Negative (-) audio output connector

Minimum impedance for BRIDGE connection

CH2

CH1

CH4

CH3

CH1

CH4

CH3

CH2

DESCRIPTION OF THE PANELS

12 11 10

20 17 16 13

19 18 15 14

ELECTRICAL SIZING AND AUDIO INPUTS

ELECTRICAL SIZING

For a correct operation of your SounDigital amplifier, it is necessary to properly size

the electrical system and the cables used.

In the table below you can determine the minimum proper section of the

grounding, positive + 12VDC, and audio output cables according to the amplifier

power.

For the connections from the battery to the amplifier and to ground, use good

quality copper cables.

CCA cables should not be used.

AUDIO INPUT

RCA Entry

All RCA inputs must be connected

for all 4 channels to work.

POSITIVE CABLE (+12VDC)

NEGATIVE CABLE (GND)

AUDIO OUTPUT CABLE

2000

WRMS

21mm² - 4 AWG

2 x 2mm² - 12 AWG

INSTALLATION SEQUENCE

BEFORE INSTALLING ANY ELECTRICAL EQUIPMENT IN THE VEHICLE,

DISCONNECT THE NEGATIVE (-) TERMINAL OF THE BATTERY TO AVOID FIRE,

DAMAGE TO THE AMPLIFIER AND TO THE USER HIMSELF.

CUIDADO!

ØFix the amplifier so that there is access to the connectors.

ØInstall the power cables in the vehicle in a proper way, starting from the battery up to the fuse

holder or circuit breaker, use the cable with the proper section. Make all connections, install

fuse holders or circuit breakers, but without placing the fuses or with the circuit breakers in the

"off" position.

ØConnect the power supply to the amplifier with the correct polarity. Connect all positive

terminals (+) coming from the fuse holders or circuit breakers to the amplifier positive

connectors, and all negative cables (GND) coming from the grounding point to the amplifier

negative.

ØThe grounding should be as short as possible and should be connected to the vehicle chassis

and the battery negative;

ØInstall the input signal cables properly, the input signal cables should be installed away from

the power cables.

ØConnect the RCA cables to the main unit and the amplifiers.

ØInstall the audio output cables, with the appropriate cross-section, in a proper manner and

away from the power and audio input cables.

ØConnect the audio output cables to the amplifier and speakers respecting the positive (+) and

negative (-) polarities;

ØInstall next to the power cables the remote power cable with section of 1.5mm² or larger.

ØConnect the remote power cable to the "REM" terminal of the amplifier to the remote power

output of the main unit (when not using the high-level signal inputs);

ØAfter the cable connections, before powering up the system, check that all connections are

correct and that there are no shorts between cables and ground cables;

ØReconnect the battery ground;

ØMake sure the main unit is off and then set the fuses or turn on the circuit breakers;

ØPower up the main unit and the amplifier will turn on the "On" indicator LED indicating that it is

operating.

THE FUSE/PROTECTIVE CIRCUIT BREAKER MUST BE INSTALLED NO MORE

THAN 30CM FROM THE BATTERY.

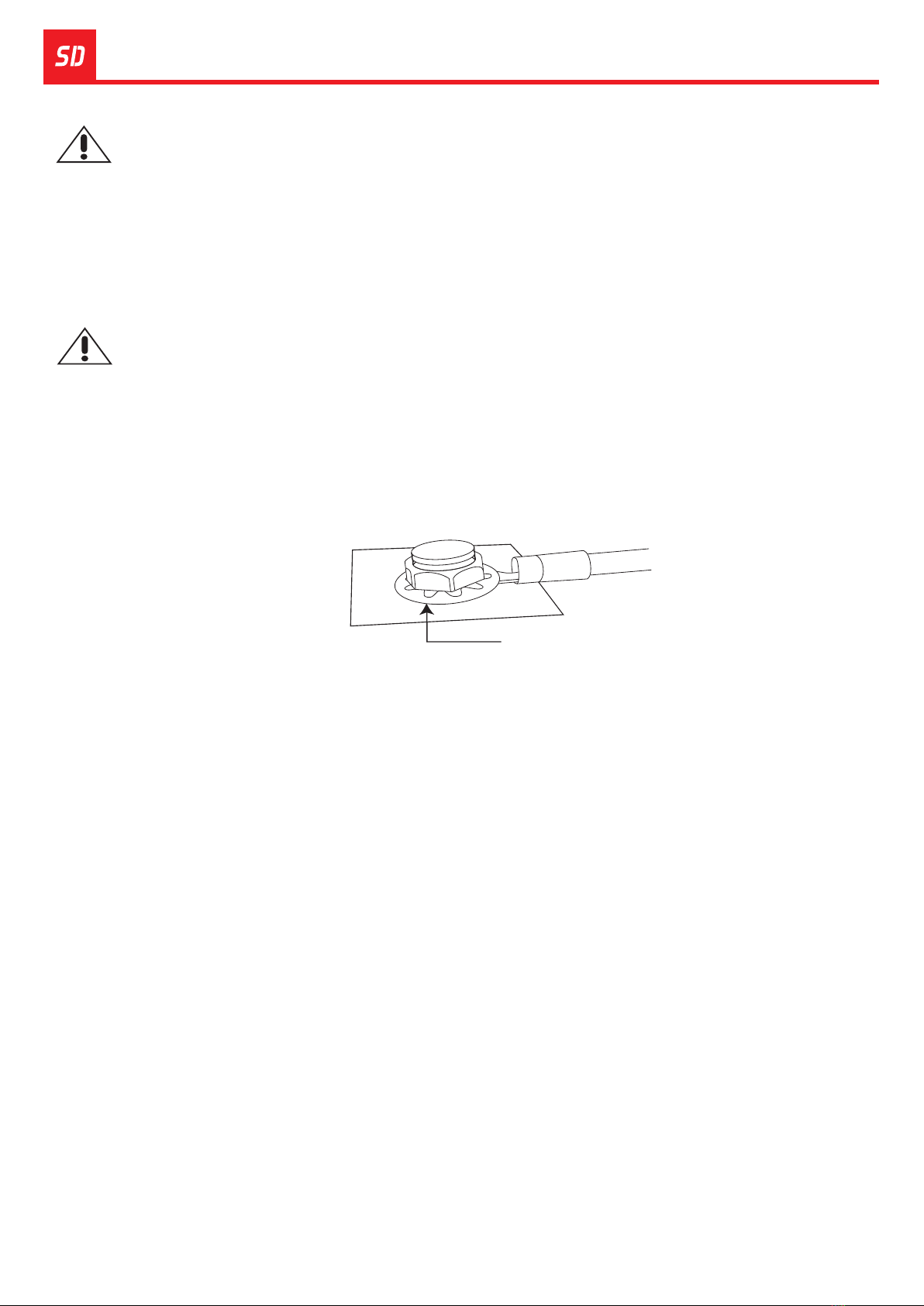

Remove the paint between

the terminal and the body.

CUIDADO!

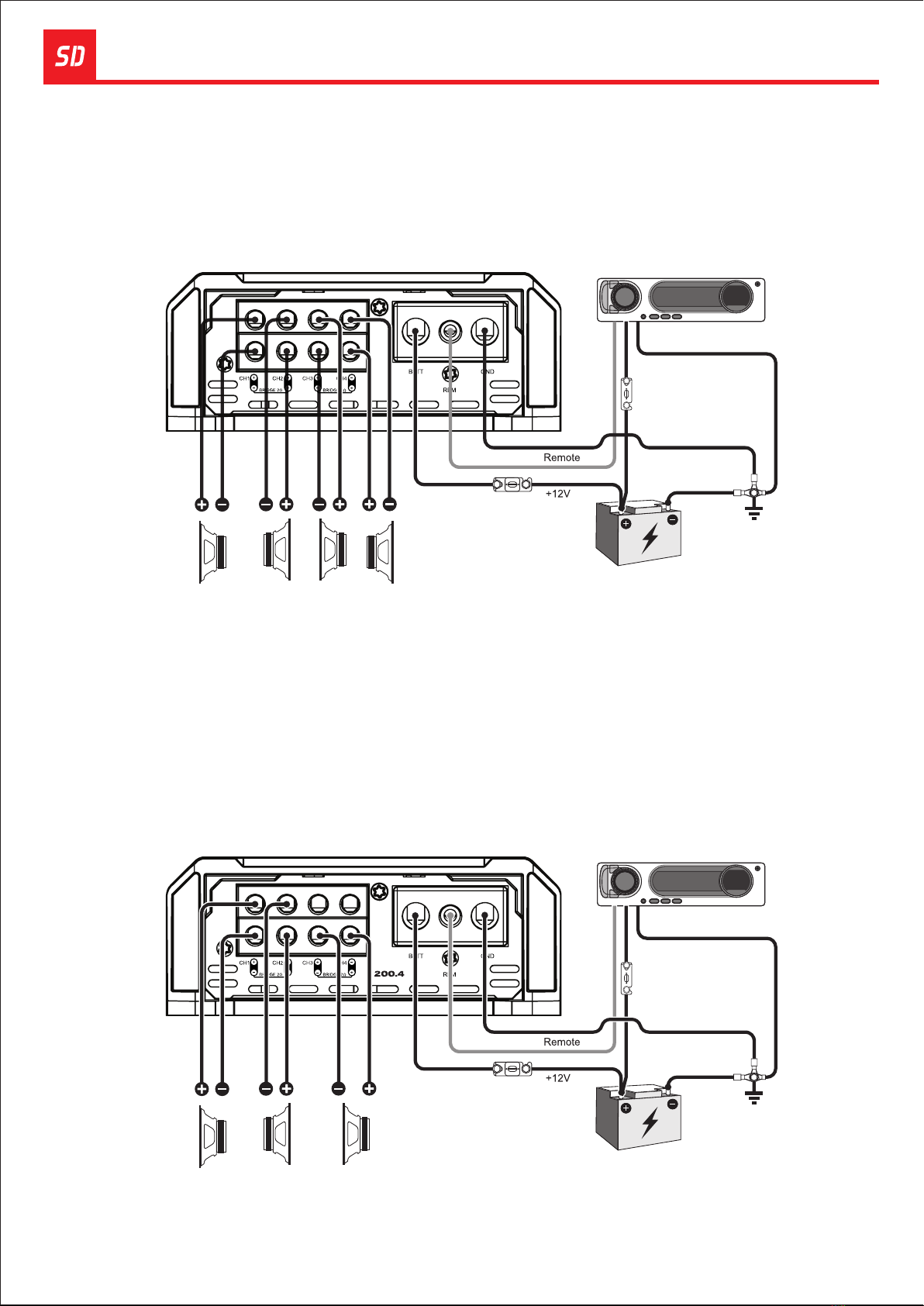

CONNECTION DIAGRAM

4-CHANNEL CONFIGURATION

3-CHANNEL CONFIGURATION

GND

See "Audio Input" on page 8

See "Audio Input" on

page 8

GND
