Operating Instructions

• Before operating the unit, please read this manual thoroughly and retain

it for future reference.

Инструкция по эксплуатации

•Перед работой с устройством внимательно прочтайте инструкцию

и сохраните её для дальнейшего использования.

Trinitron Color TV

KV-HW212

2-177-672-12 (1)

M95

M91

01GB01COV-Rus.p65 20/9/04, 3:21 PM1

Black

Sony KV-HW212M95 Group H4 (GB, RU)_2-177-672-12 (1)

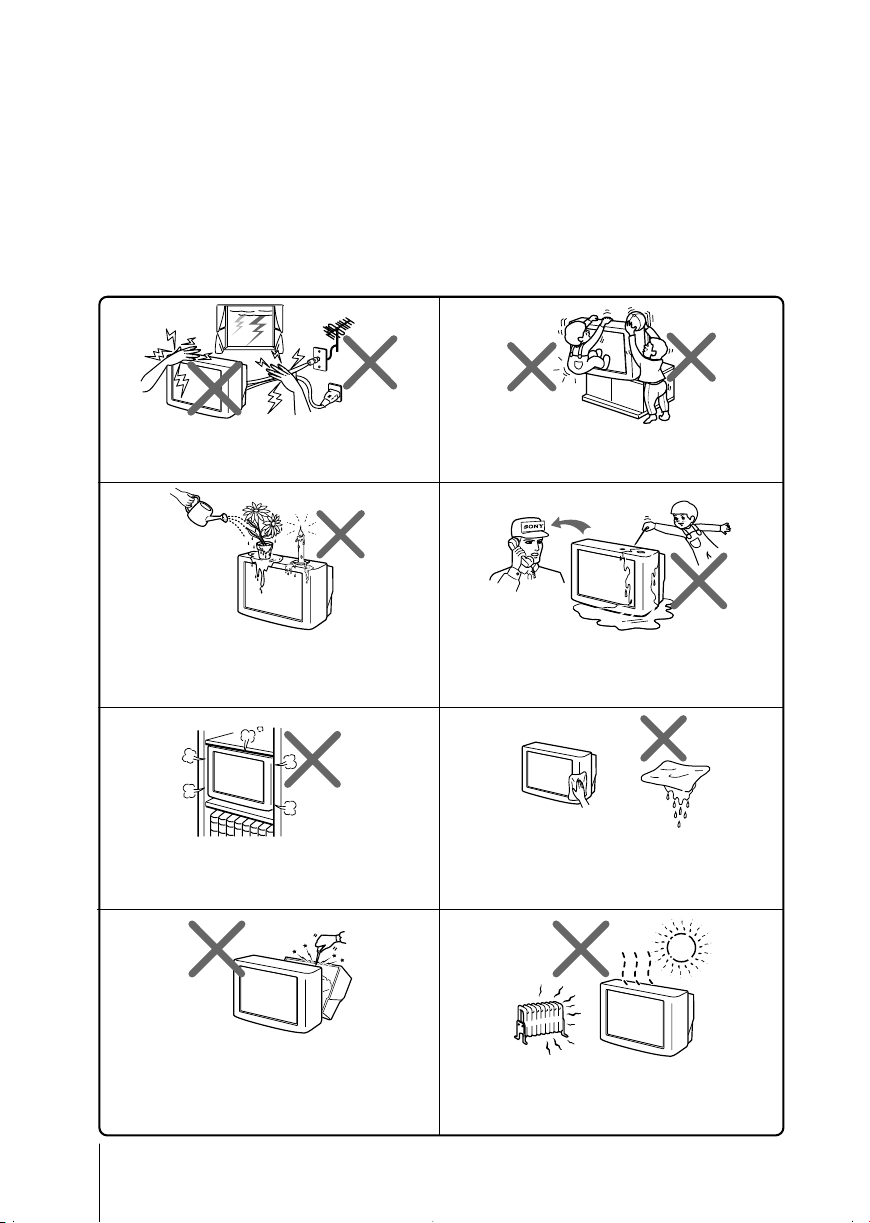

Do not place any objects on the TV. The apparatus

shall not be exposed to dripping or splashing and

that no objects filled with liquids, such as vases,

shall be placed on the apparatus.

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110 – 240 V AC.

• Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

• To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Do not open the cabinet and the rear cover of the

TV as high voltages and other hazards are present

inside the TV. Refer servicing and disposal of the

TV to qualified personnel.

Your TV is recommended for home use only.

Do not use the TV in any vehicle or where it may be

subject to excessive dust, heat, moisture or

vibrations.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not block the ventilation openings of the TV.

Do not install the TV in a confined space, such as a

bookcase or built-in cabinet.

For children’s safety, do not leave children alone

with the TV. Do not allow children to climb onto it.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals to

clean the TV. Do not attach anything (e.g., adhesive

tape, cellophane tape, glue) on the painted cabinet of

the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

01GB02WAR-Rus.p65 20/9/04, 3:22 PM2

Black

Sony KV-HW212M95 Group H4 (GB, RU)_2-177-672-12 (1)

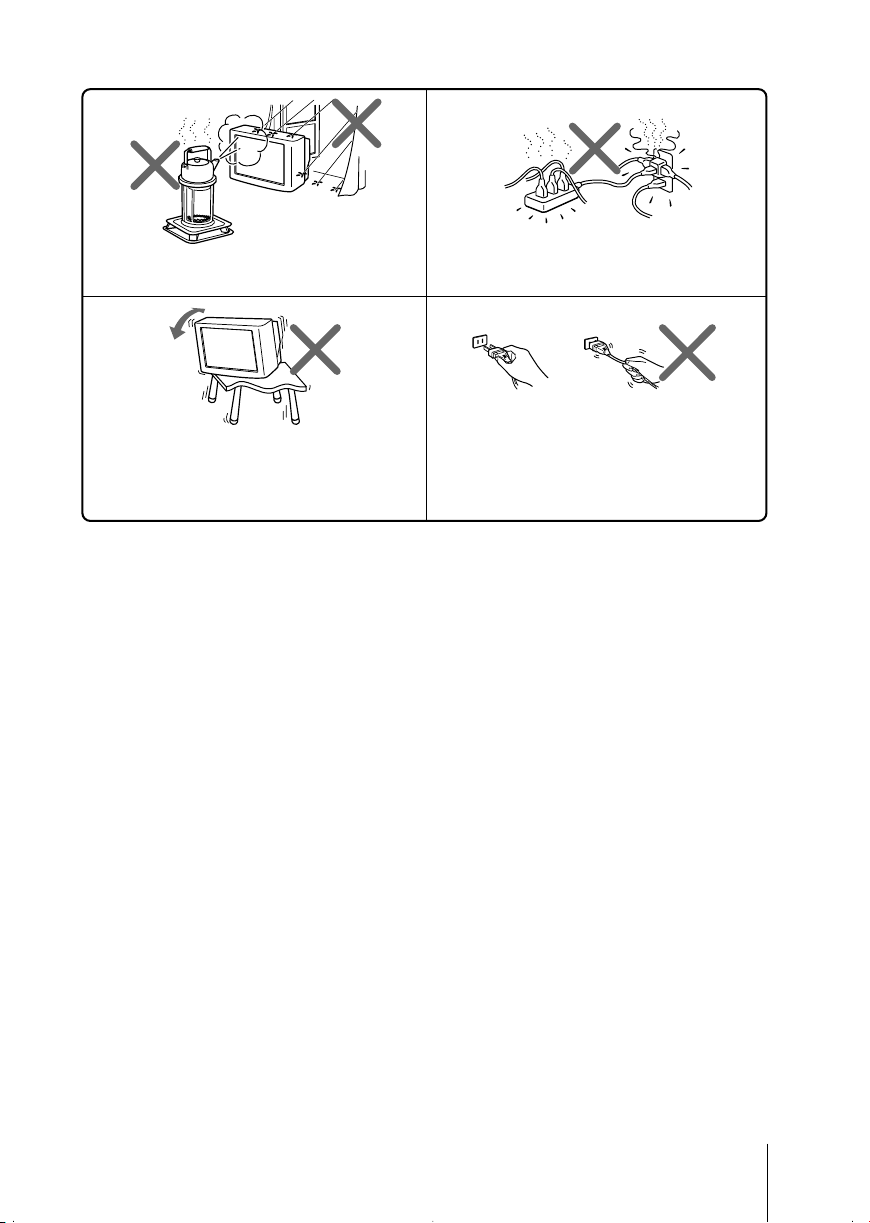

Install the TV on a stable TV stand and floor which

can support the TV set weight. Ensure that the TV

stand surface is flat and its area is larger than the

bottom area of the TV.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Pull the power cord out by the plug. Do not pull

the power cord itself. Even if your TV is turned off,

it is still connected to the AC power source (mains)

as long as the power cord is plugged in. Unplug

the TV before moving it or if you are not going to

use it for several days.

To prevent fire or shock hazard, do not expose the

TV to rain or moisture.

Made in Malaysia.

Sony Corporation

6-7-35 Kitashinagawa,

Shinagawa-ku, Tokyo, 141-0001 Japan.

01GB02WAR-Rus.p65 20/9/04, 3:22 PM3

Black

Sony KV-HW212M95 Group H4 (GB, RU)_2-177-672-12 (1)

xSecuring the TV

To prevent the TV from falling, use the supplied screws, clamps and band to

secure the TV.

20 mm

3.8 mm

screws clamps band

Screw the band to the TV stand and to the

provided hole at the rear of your TV.

(1) Put a cord or chain through the clamps.

(2) Screw one clamp to a wall or pillar and

the other clamp to the provided hole at

the rear of your TV.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

01GB02WAR-Rus.p65 20/9/04, 3:22 PM4

Black

Sony KV-HW212M95 Group H4 (GB, RU)_2-177-672-12 (1)

Additional Information

Connecting the 3D WOOFER

(KV-HW212M95 only)....................... 25

Connecting optional components ... 25

Troubleshooting ................................. 27

Specifications ...................................... 31

Table of Contents

Installation

Getting Started ..................................... 6

Setting up your TV

(“Initial Setup”) .................................... 7

Overview of Controls

TV top control, front and

rear panels............................................. 9

Using the remote control and

basic functions .................................... 10

Advanced Operations

Selecting the picture and sound

modes .................................................. 12

Enjoying stereo or bilingual

programs ............................................. 13

Viewing Teletext................................. 14

Menu Adjustment

Introducing the menu system .......... 15

Changing the “Picture” setting........ 18

Changing the “Sound” setting......... 19

Changing the “Timer” setting .......... 21

Changing the “Channel Setup”

setting .................................................. 22

Changing the “Setup” setting .......... 24

01GB03TOC-Rus.p65 20/9/04, 3:22 PM5

Black

6Installation

Sony KV-HW212M95 Group H4 (GB, RU)_2-177-672-12 (1)

Installation

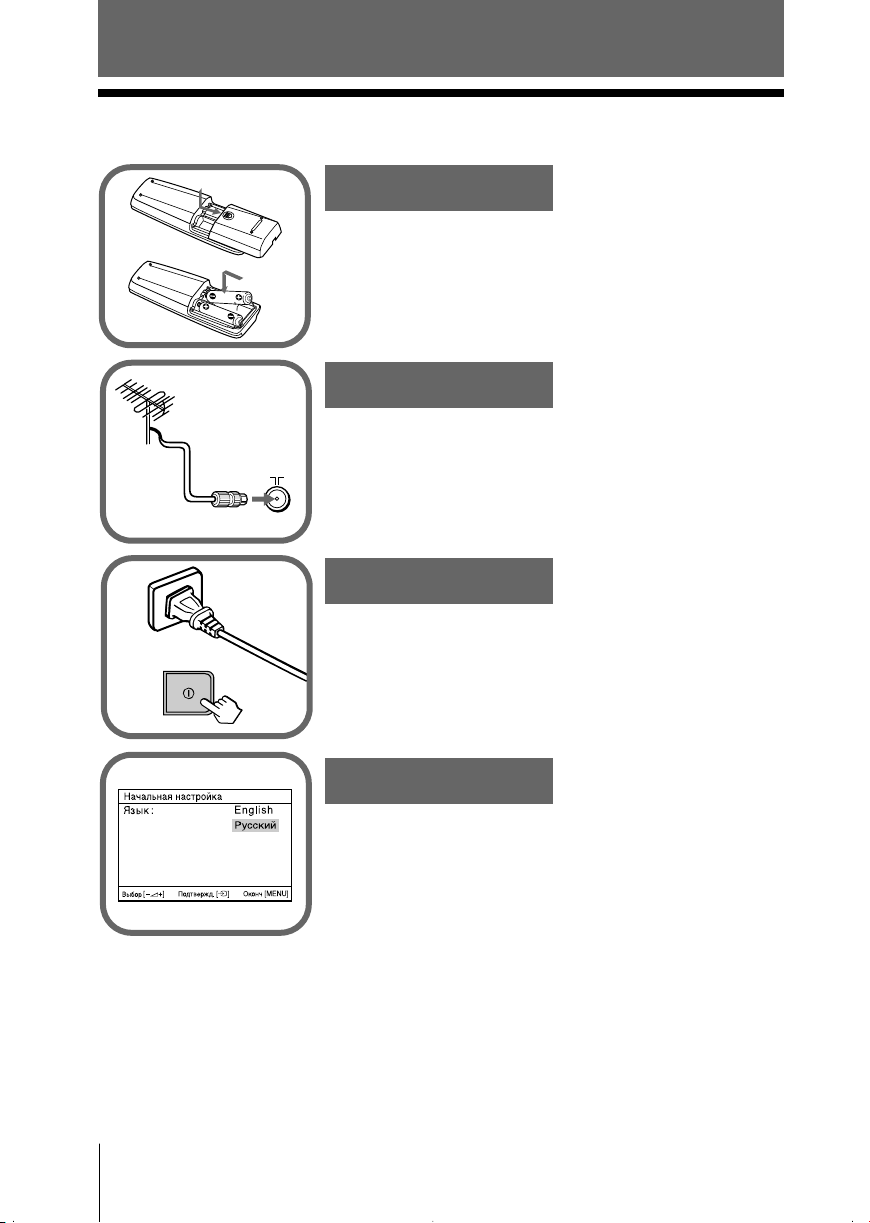

xGetting Started

Step 1

Insert the batteries (supplied) into the remote.

Note

• Do not use old or different types of batteries together.

Step 2

Step 3

Step 4

Set up the TV by following the instructions of the

“Начальная настройкa” (“Initial Setup”) menu

(see page 7).

Plug in the power cord, then press !on the TV to

turn it on.

Note

• The 1(standby) indicator flashes green for a few seconds

when turning on the TV. This does not indicate a

malfunction.

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

Tip

• You can also connect your TV to other optional components

(see page 25).

01GB04INS-Rus.p65 20/9/04, 3:24 PM6

Black

Installation

Sony KV-HW212M95 Group H4 (GB, RU)_2-177-672-12 (1)

Setting up your TV

(“Initial Setup”)

When you turn on your TV for the first time, the “Начальная настройкa” (“Initial

Setup”) menu will appear. You may change the menu language, preset the TV

channels automatically, change the order of TV channels that appear on the screen

and adjust the picture position using the buttons on the top control panel.

Tip

• The MENU, and V/v/B/b buttons on the remote control can also be used for the

operations below.

1Press 2+/– to select the desired menu

language, then press t.

The selected menu language appears.

2Press 2+/– to select “Yes”, then press t

to preset the channels automatically.

The screen will indicate automatic

presetting is in progress.

After all available channels have been tuned

and stored, the “Program Sorting” menu

appears automatically on the screen.

To skip automatic channel presetting, select

“No”, then press t.

If the message “No channel found. Please

connect cable/antenna” appears, check your

TV connections, then press t.

3The “Program Sorting” menu enables you

to change the order in which the channels

appear on the screen.

a) If you wish to keep the channels in the

tuned order, press MENU.

b) If you wish to store the channels in a

different order:

1) Press 2 +/– to select the program

number with the channel you wish to

rearrange, then press t.

Program Sorting

Program:

Select channel

continue

Program:

TV System: Auto

VHF Low

01GB04INS-Rus.p65 20/9/04, 3:24 PM7

Black

8Installation

Sony KV-HW212M95 Group H4 (GB, RU)_2-177-672-12 (1)

The selected channel will appear on

the screen.

2) Press 2 +/– to select the new

program number position for your

selected channel, then press t.

3) Repeat steps b) 1) and 2) if you wish

to change the order of the other

channels.

c) Press MENU to go to the next menu.

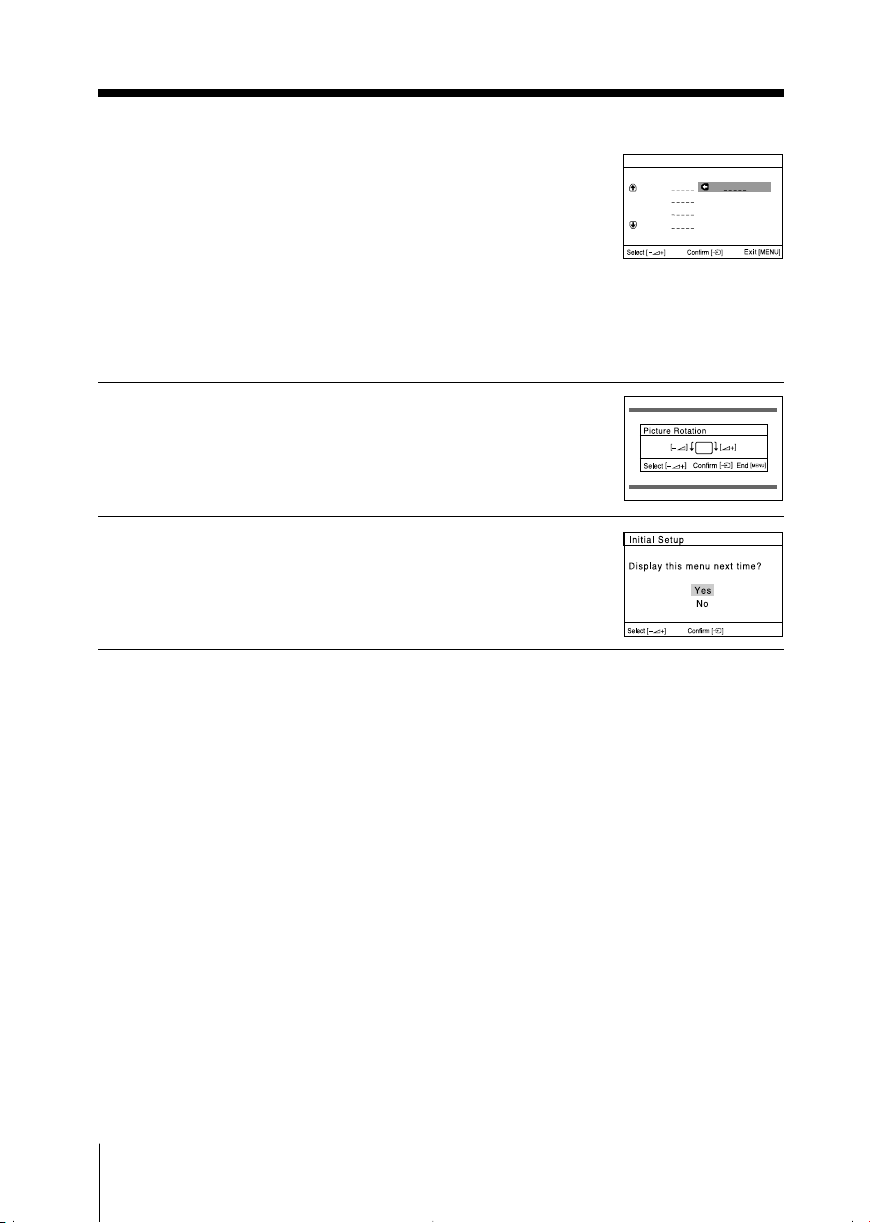

4Press 2+/– to adjust the bars on the

top and bottom of the menu if they are

slanted, then press t.

If no adjustment is necessary, then press t.

5Press 2+/– to select “No”, then press t.

This menu will not appear again the next

time you turn on the TV by pressing !.

To allow this menu to appear again, select

“Yes”, then press t.

Tips

• You can immediately go to the end of the ”Initial Setup” menu by pressing MENU.

• You can also set up your TV by using the menu system (see page 5) or by pressing the MENU

button on the top control panel for about five seconds to reset your TV to the factory setting.

Program Sorting

Program:

Select new position

continued

01GB04INS-Rus.p65 20/9/04, 3:24 PM8

Black

Overview of Controls

Sony KV-HW212M95 Group H4 (GB, RU)_2-177-672-12 (1)

Overview of Controls

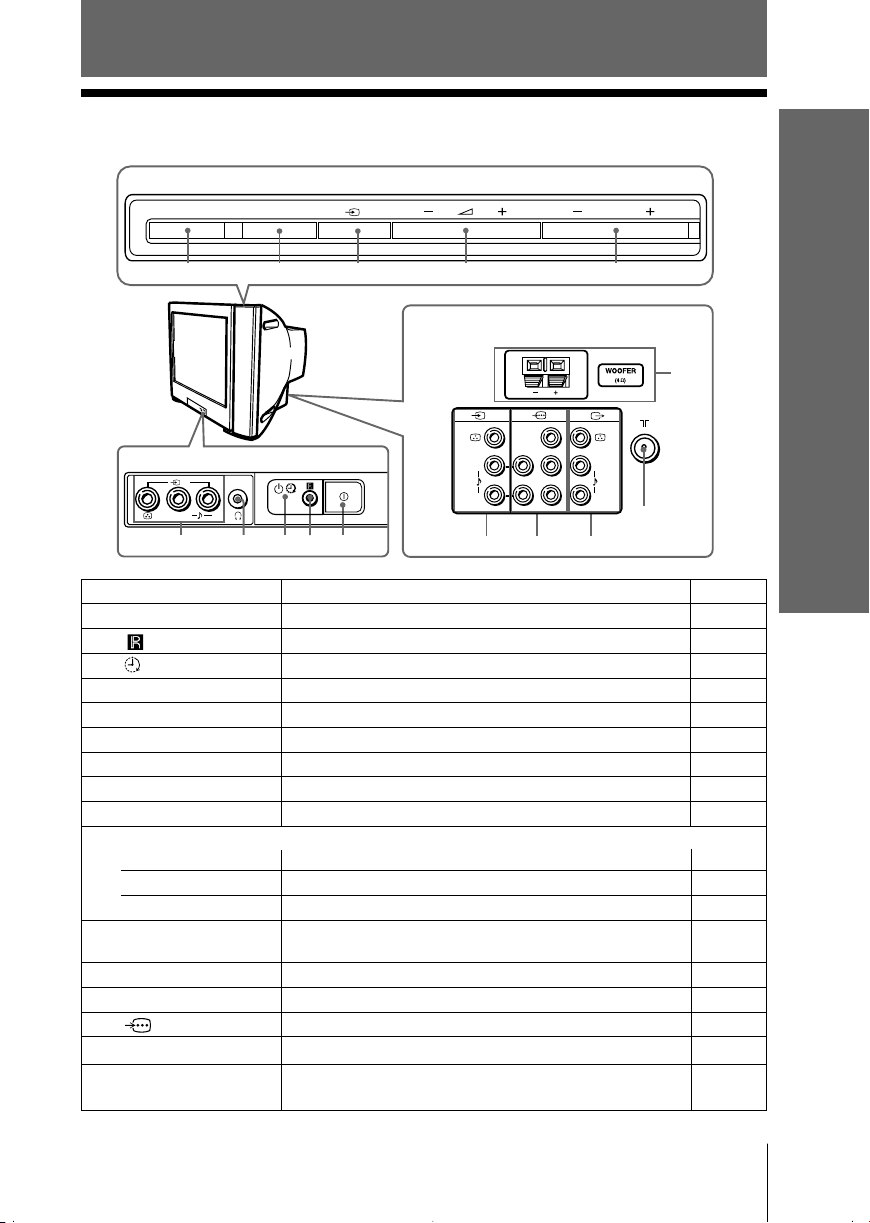

xTV top control, front and rear panels

Button/Terminal Function Page

1!Turn off or turn on the TV. 6

2Remote control sensor. –

3Wake Up indicator. 21

31Standby indicator. 6

4iHeadphone jack. –

5t2 Video input terminal 2. 25

6PROG +/– Select program number. –

72+/– Adjust volume. –

8tSelect TV or video input. 25

Menu operations

7 2 +/– Select and adjust items. –

8 t Confirm selected items. –

9MENU Display or cancel the menu. –

0SOUND MODE Select sound mode options with a 5-Band Graphic 12

Equalizer display.

qa 8Antenna input terminal. 25

qs TMonitor output terminal. 26

qd Component video input terminal. 26

qf t1 Video input terminal 1. 25

qg WOOFER Enjoy high quality sound. 25

(KV-HW212M95 only)

PROG

MENUSOUND MODE

098 7 6

(MONO)

(MONO) (MONO)

qf qd qs

TV front panel

TV rear panel

TV top control panel

01GB04INS-Rus.p65 20/9/04, 3:24 PM9

Black

10 Overview of Controls

Sony KV-HW212M95 Group H4 (GB, RU)_2-177-672-12 (1)

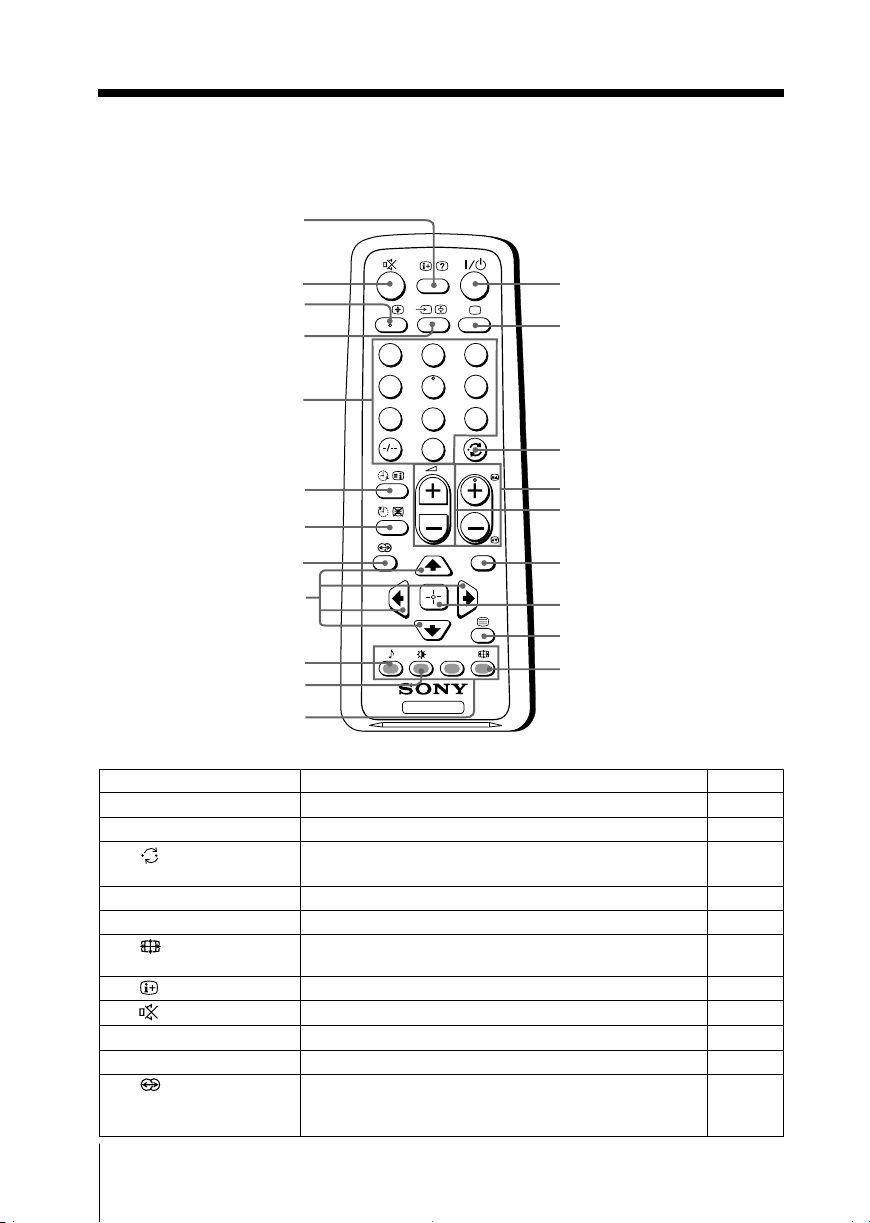

xUsing the remote control and basic

functions

123

789

PROG

A/B

Button Description Page

1?/1 Turn off temporarily or turn on the TV. –

2aDisplay the TV program. –

3Jump to last program number that has been –

watched for at least five seconds.

4PROG +/– Select program number. –

52+/– Adjust volume. –

9Change the picture size: –

“On” (16:9 wide-mode), “Off”.

Display on-screen information. –

qa Mute the sound. –

qd tSelect TV or video input. 25

qf 0 – 9, ÷Input numbers. –

qj Select surround mode options:

“On” (surround), “Simulated” (stereo-like monaural –

sound), “Off”.

01GB04INS-Rus.p65 20/9/04, 3:24 PM10

Black

Otros manuales para Trinitron KV-HW212

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de TELEVISOR de Sony

Sony

Sony KD-55X7000D Manual de usuario

Sony

Sony BRAVIA KD-75X9400E Manual de usuario

Sony

Sony BRAVIA KD-75X9000E Manual de usuario

Sony

Sony Bravia KDL-32EX727 Manual de usuario

Sony

Sony Bravia i-XBR-79X900B Manual de usuario

Sony

Sony Trinitron WEGA KV-DA322 Manual de usuario

Sony

Sony KLV-46EX430 Manual de usuario

Sony

Sony KV-EF34M31 Manual de usuario

Sony

Sony KV-BZ212 Manual de usuario

Sony

Sony TRINITRON KV-EF29M31 Manual de usuario

Sony

Sony BRAVIA XBR-65X950G Manual de usuario

Sony

Sony TRINITRON KV-25X5A Manual de usuario

Sony

Sony KV-27S26 - 27" Trinitron Color Television Manual de usuario

Sony

Sony KV-25DXR Manual de usuario

Sony

Sony Trinitron KV-AR29 Manual de usuario

Sony

Sony Bravia KDL-65W955B Manual de usuario

Sony

Sony BRAVIA KDL-40NX725 Manual de usuario

Sony

Sony Trinitron KV-32XL90B Manual de usuario

Sony

Sony BRAVIA XR-85Z9K Manual de usuario

Sony

Sony Trinitron KV-XA34M66 Manual de usuario

Sony

Sony KV-27S25 - 27" Trinitron Color Tv Manual de usuario

Sony

Sony KDL-40WL140 - Bravia Lcd Television Manual de usuario

Sony

Sony BRAVIA XF70 Series Manual de usuario

Sony

Sony XR-75X90L Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
