NOTICE

A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience.

Should the fuse in the plug supplied need to be replaced, a 5 AMP fuse approved by ASTA or BSI to BS

1362 (i.e. marked with or ) must be used. When an alternative type of plug is used it should be fitted

with a 5 AMP fuse, otherwise the circuit should be protected by a 5 AMP fuse at the distribution board. If

the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you

change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact

your nearest Sony service centre.

How to replace the Fuse

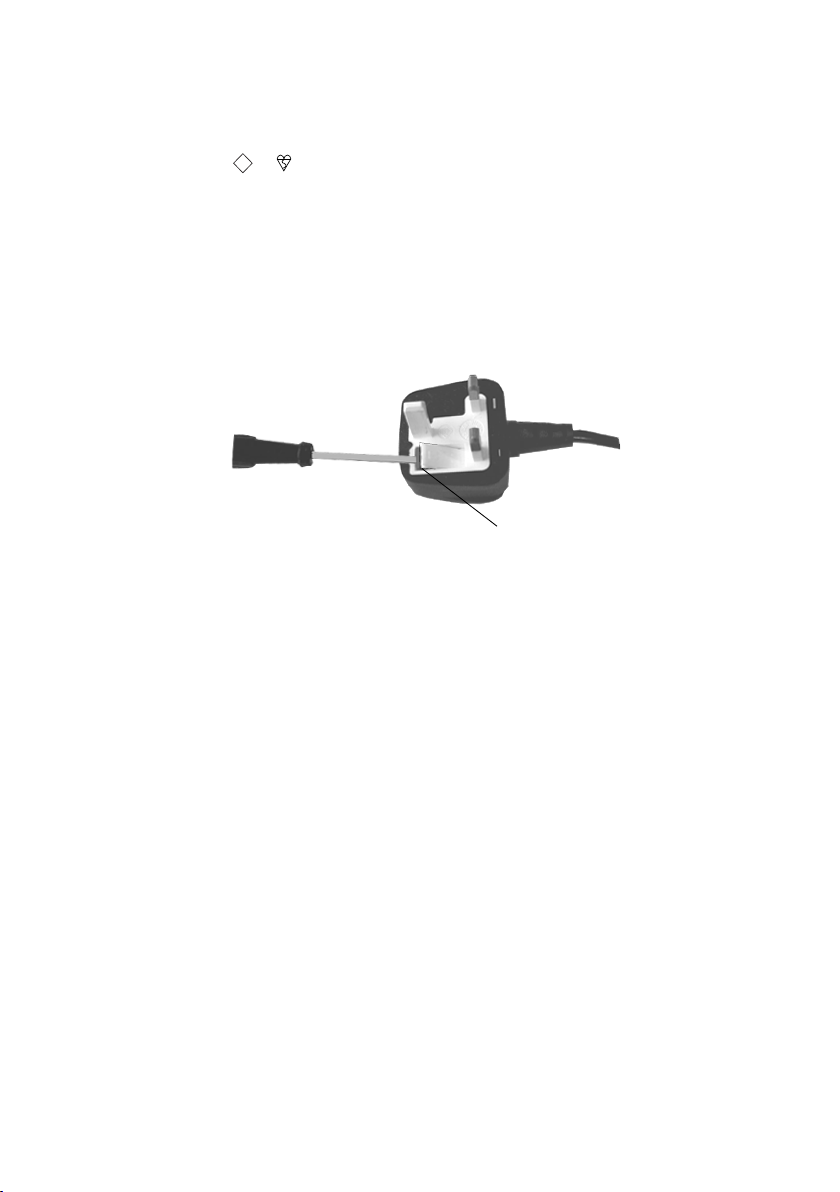

Open the fuse compartment with a flat blade screwdriver, and replace the fuse.

IMPORTANT

If the plug supplied is not suitable for the socket outlet in your home, it should be cut off and an appropriate

plug fitted in accordance with the following instructions:

The wires in this mains lead are coloured in accordance with the following code:

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured

markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or

coloured black. The wire which is coloured brown must be connected to the terminal which is marked with

the letter L or coloured red. Do not connect either wire to the earth terminal in the plug which is marked

by the letter E or by the safety earth symbol Ior coloured green or green and yellow.

WARNING

• To prevent shock hazard, do not insert the plug cut off from the mains lead into a socket outlet. This

plug cannot be used and should be destroyed.

• To prevent fire or shock hazard, do not expose the unit to rain or moisture.

• Dangerously high voltages are present inside the set. Do not open the cabinet. Refer servicing to

qualified personnel only.

ASA

FUSE

B03Cover.fm Page 2 Friday, January 23, 2004 5:00 PM

Introduction

Thank you for choosing this Sony FD Trinitron Colour Television.

Before operating the TV, please read this manual thoroughly and retain it for future reference.

Table of Contents

Safety Information

Safety Information............................................................. 4

Overview

Overview of the remote control......................................... 5

Overview of the TV buttons ............................................. 6

Installation

Connecting the aerial and VCR.........................................7

Inserting batteries into the remote control.........................7

First Time Operation

Switching On the TV and Automatically Tuning ............. 8

Menu system

Introducing and Using the Menu System.......................... 10

Picture Adjustment ............................................................ 10

Sound Adjustment ............................................................. 11

Sleep Timer .......................................................................12

Language/Country ............................................................. 12

Auto Tuning ...................................................................... 12

Programme Sorting............................................................ 12

Programme Labels............................................................. 13

AV Preset ..........................................................................13

Manual Programme Preset ................................................ 14

Auto Format ...................................................................... 15

Noise Reduction ................................................................ 15

AV2 Output .......................................................................16

RGB Centring....................................................................16

Picture Rotation................................................................. 16

Teletext ...................................................... 17

Additional Information

Connecting Optional Equipment .......................................18

Using Optional Equipment ................................................ 19

Specifications ....................................................................20

Troubleshooting................................................................. 21

Table of Contents

2829cl11b03gb.fm Page 3 Friday, January 23, 2004 4:52 PM

Safety Information

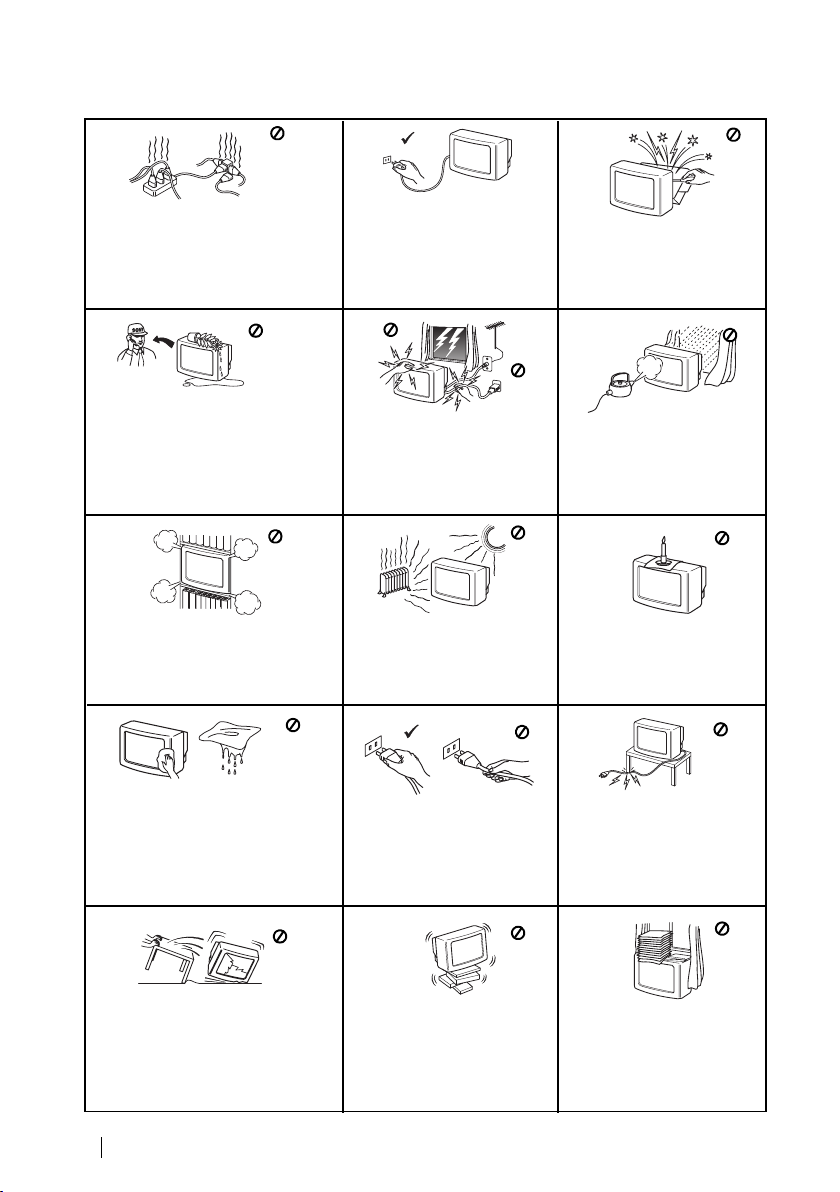

Do not open the cabinet and the

rear cover of the TV. Refer to

qualified service personnel only.

To prevent fire or shock

hazard, do not expose the TV

to rain or moisture.

For your own safety, do not

touch any part of the TV, power

lead or aerial lead during

lightning storms.

Do not cover the ventilation

openings of the TV. For ventilation,

leave a space of at least 10cm all

around the set.

Never place the TV in hot, humid

or excessively dusty places. Do

not install the TV where it may be

exposed to mechanical vibrations.

To prevent fire, keep

inflammable objects or

naked lights (eg candles)

away from the TV.

Pull out the power lead by the

plug. Do not pull on the

power lead itself.

Take care not to place heavy

objects on the power lead as this

could result in damage.

We recommend you wind any

excess lead around the holders

provided on the rear of the TV.

Place the TV on a secure stable

stand. Do not allow children to

climb on to it. Do not place the

TV on its side or face up.

Do not cover the ventilation

openings of the TV with

items such as curtains or

newspapers etc.

Never push objects of any kind into the set as

this could result in a fire or electric shock.

Never spill liquid of any kind on the set. If

any liquid or solid object does fall through,

do not operate the TV. Have it checked

immediately by qualified personnel.

For environmental and safety

reasons, it is recommended that

the TV set is not left in standby

mode when not in use.

Disconnect from the mains.

This set is to operate on a 220-240V AC

supply only. Take care not to connect too

many appliances to the same power

socket as this could result in fire or

electric shock.

Unplug the power lead before moving the

TV. Avoid uneven surfaces, quick steps or

excessive force. If the set has been dropped

or damaged, have it checked immediately

by qualified service personnel.

Clean the screen and cabinet with a soft,

lightly dampened cloth. Do not use any type

of abrasive pad, alkaline cleaner, scouring

powder or solvent, such as alcohol or

benzine, or antistatic spray. As a safety

precaution, unplug the TV before cleaning it.

2829cl11b03gb.fm Page 4 Friday, January 23, 2004 4:52 PM

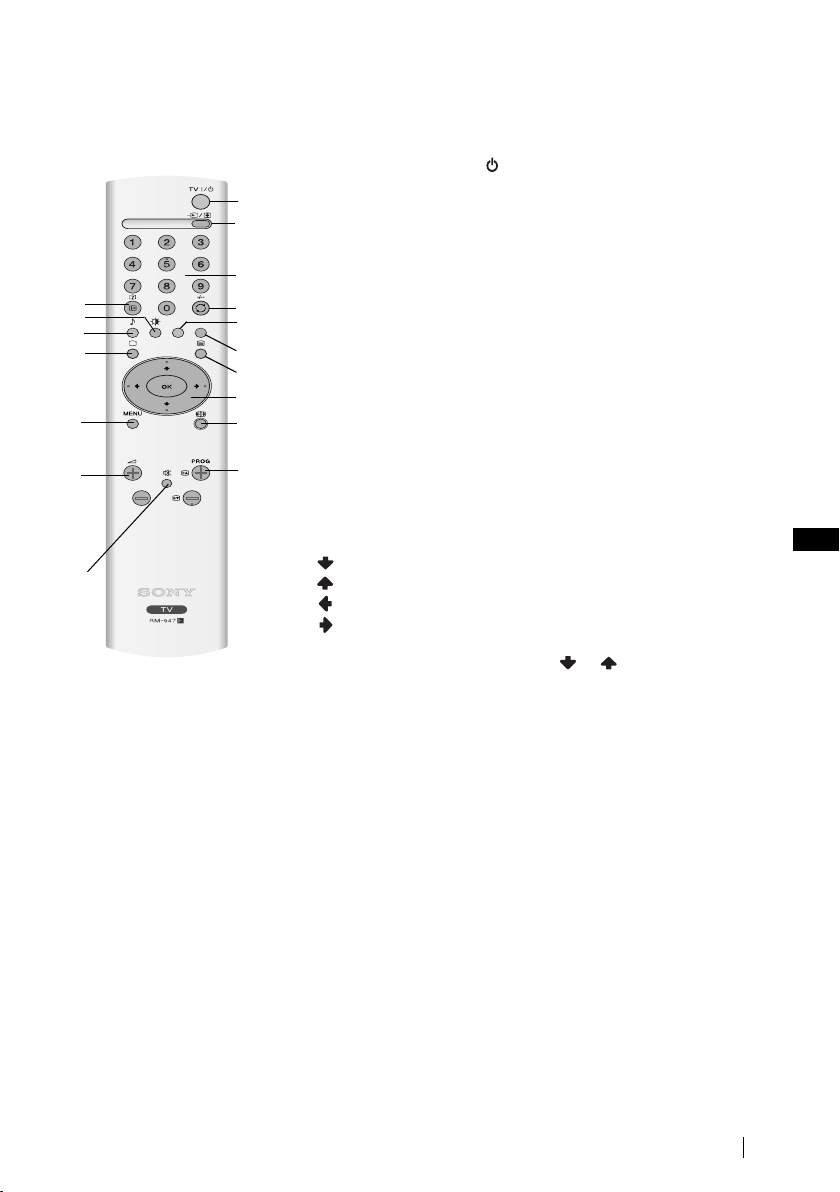

Overview of the remote control

Overview

1To temporarily switch off the TV: Press to temporarily switch off the

TV (the standby indicator on the TV lights up). Press again to switch

on the TV from standby mode. To save energy we recommend

switching off completely when the TV is not in use.

Note:

After 15 minutes without a signal and without any button being

pressed, the TV switches automatically into standby mode.

2Selecting input source: Press repeatedly until the desired input symbol

of the source appears on the TV screen.

3Selecting channels: Press to select channels. For double-digit

programme numbers, enter the second digit within 2.5 seconds, or press

-/-- and then the first and second digit. If you enter an incorrect first

digit, this should be corrected by entering another digit (0-9) and then

selecting the -/-- button again to enter the programme number of your

choice.

4Back to the channel last watched: Press to watch the last channel

selected (watched for at least 5 seconds).

5This button only works in Teletext mode.

6This button only works in Teletext mode.

7Selecting Teletext: Press to switch on teletext.

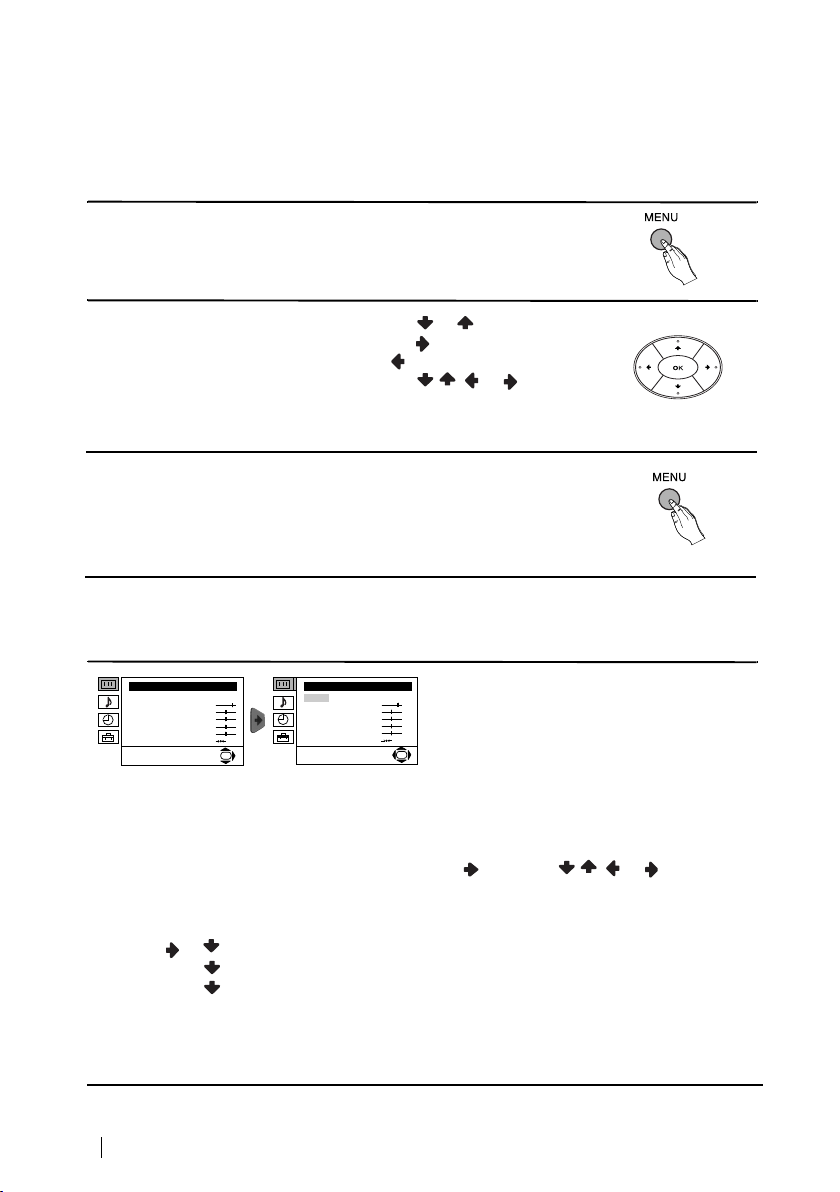

8Menu selection

•When MENU is switched on:

Scroll Down.

Scroll Up.

Previous menu or selection.

Next menu or OK confirms your selection.

•When MENU is switched off:

OK shows a channel overview. Press or to select the channel,

then press the OK button to watch the selected channel.

9Selecting Screen format: Press repeatedly to change the format of the

screen. For more details, refer to the chapter “Auto Format” on page 15.

For KV-29CL11B model : Press to view programmes in 16:9 mode.

Press again to return to 4:3 mode.

0Selecting channels: Press to select the next or previous channel.

qa Muting the Sound: Press to mute the TV sound. Press again to restore

the sound.

qs Adjusting TV volume: Press to adjust the volume of the TV.

qd Displaying the menu system: Press to display the menu on the TV

screen. Press again to remove the menu display from the TV screen.

qf Selecting TV mode: Press to switch off teletext or video input.

qg Selecting sound mode: Press repeatedly to change the sound mode.

qh Selecting picture mode: Press repeatedly to change the picture mode.

qj Displaying on Screen information: Press to display all the on-screen

indications. Press again to cancel.

2829cl11b03gb.fm Page 5 Friday, January 23, 2004 4:52 PM

Overview of the TV buttons

Overview

On/Off switch

Standby

indicator

Programme Up

or Down Buttons

(selects TV

channels)

Volume control

buttons

Video

Input jack

Audio Input

jacks

Headphones

jack

Auto Start

Up Button

Selecting

Input source

Push up the flap on the front

of the TV to reveal the front

control panel.

2829cl11b03gb.fm Page 6 Friday, January 23, 2004 4:52 PM

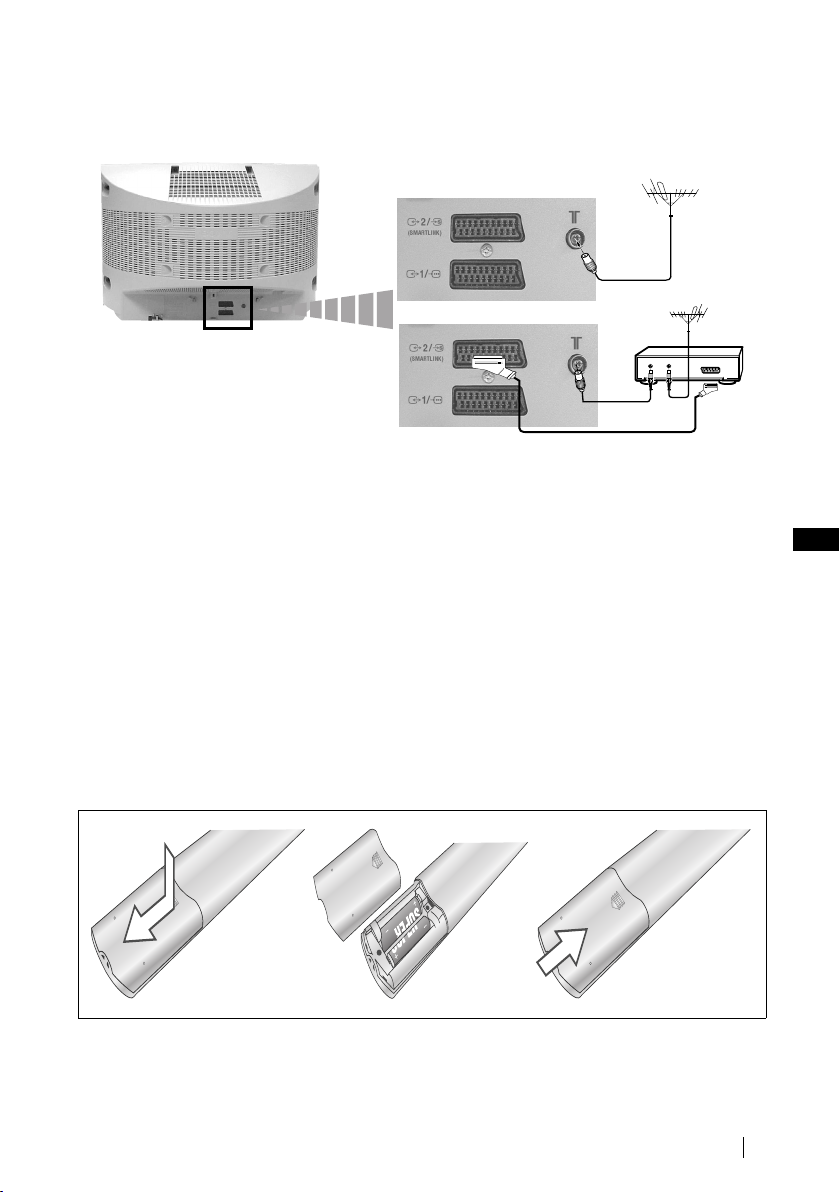

Connecting the aerial and VCR

Inserting batteries into the remote control

Please ensure you insert the supplied batteries using the correct polarities.

Always remember to dispose of used batteries in an environmentally friendly way.

Installation

For more details on VCR connection, please refer to the

section “Connecting Optional Equipment”of this

instruction manual on page 18.

Note: Connecting cables are not supplied.

OUT IN

VCR

Scart lead is optional.

SONYCORPORATIONJAPAN/4

2829cl11b03gb.fm Page 7 Friday, January 23, 2004 4:52 PM

Switching On the TV and Automatically Tuning

The first time you switch on your TV, a sequence of menu screens appear on the TV enabling you to:

1) choose the language of the menu screen, 2) choose the country in which you wish to operate the TV,

3) adjust the picture slant, 4) search and store all available channels (TV broadcasts) and 5) change the

order in which the channels (TV broadcasts) appear on the screen. However, if you need to change any of

these settings at a later date, you can do that by selecting the appropriate option in the (Set Up menu)

or by pressing the Auto Start Up Button on the TV set.

If picture slants, please

adjust picture rotation

Not necessary

Adjust now

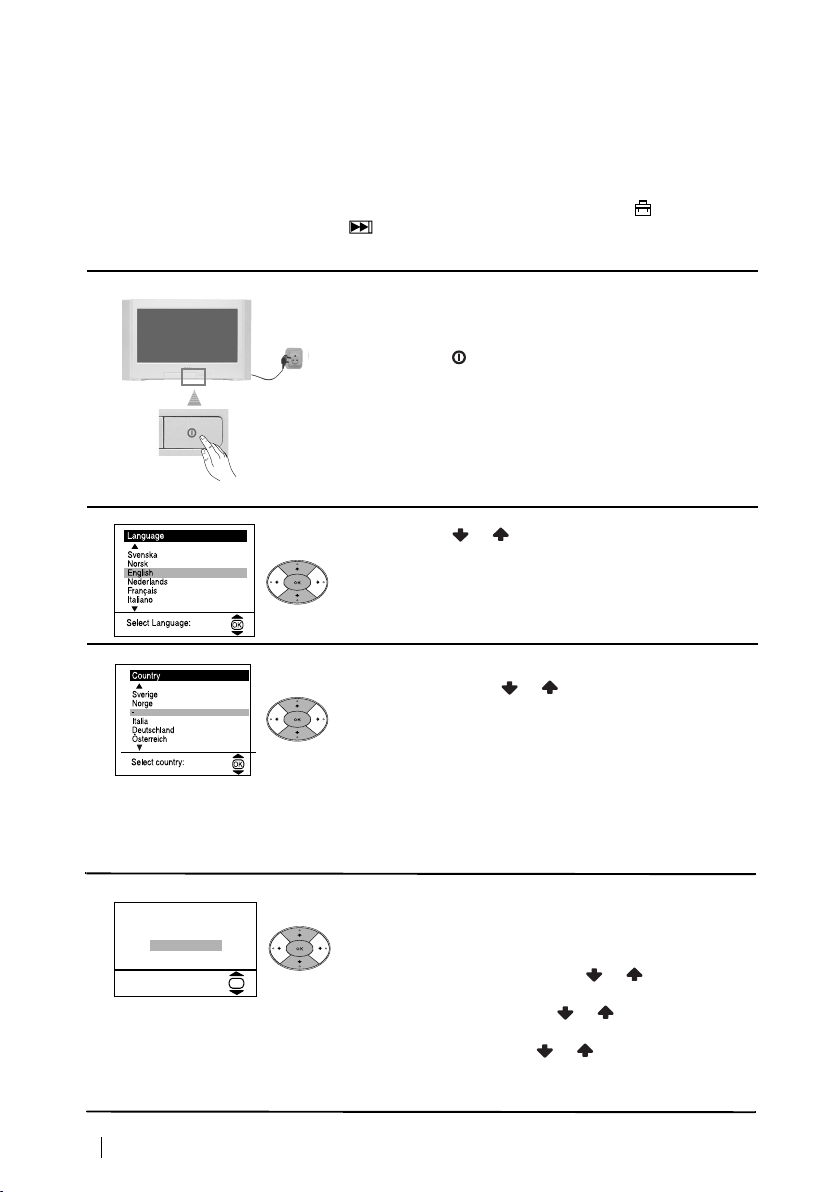

1Connect the TV plug to the mains socket (220-240V AC,

50Hz).

Press the on/off button on the TV set to turn on the TV.

The first time you press this button, a Language menu

displays automatically on the TV screen.

2Press the or button on the remote control to select

the language, then press the OK button to confirm your

selection. From now on all the menus appear in the selected

language.

3The Country menu appears automatically on the TV

screen. Press the or button to select the country in

which you will operate the TV set, then press the OK

button to confirm your selection.

•If the country in which you want to use the TV set

does not appear in the list, select “-”instead of a country.

•To avoid wrong teletext characters for cyrillic languages

we recommend selecting ‘Russia’if your own

country does not appear in the list.

4Because of the earth’s magnetism, the picture might slant.

The Picture Rotation menu allows you to correct the

picture slants if it is necessary.

a) If it is not necessary, press or to select Not

necessary and press OK.

b) If it is necessary, press or to select Adjust now,

then press OK and correct any slant of the picture between

–5 and +5 by pressing or . Finally press OK to

store.

First Time Operation

2829cl11b03gb.fm Page 8 Friday, January 23, 2004 4:52 PM

5The Auto Tuning menu appears on the screen. Press the

OK button to select Yes.

6The TV starts to automatically search and store all

available broadcast channels for you. This procedure could

take some minutes. Please be patient and do not press any

buttons, otherwise the automatic tuning will not be

completed.

If no channels were found during the auto tuning process

then a new menu appears automatically on the screen

asking you to connect the aerial. Please connect the aerial

(see page 7) and press OK. The auto tuning process will

start again.

7After all available channels are captioned and stored,

the Programme Sorting menu appears automatically

on the screen enabling you to change the order in

which the channels appear on the screen.

a) If you wish to keep the broadcast channels in the tuned

order, go to step 8.

b) If you wish to store the channels in a different order:

i) Press the or button to select the programme

number with the channel (TV Broadcast) you wish to

rearrange, then press the button.

ii) Press the or button to select the new programme

number position for your selected channel (TV Broadcast),

then press .

iii) Repeat steps b)1 and b)2 if you wish to change the order

of the other channels.

8Press the MENU button to remove the menu display from

the TV screen.

No channel found

Please connect aerial

Confirm

Programme: 01

System: B/G

Channel: C21

Auto Tuning

Searching...

Programme Sorting

Select channel:

Exit: MENU

Programme:

01 TVE

02 TVE2

03 TV3

04 C33

05 C27

06 C58

Programme Sorting

Select new position:

Exit: MENU

Programme:

01 TVE

02 TVE2

03 TV3

04 C33

05 C27

06 C58 05 C27

Do you want to start

automatic tuning?

Ye s

First Time Operation

Your TV is now ready for use.

2829cl11b03gb.fm Page 9 Friday, January 23, 2004 4:52 PM

Introducing and Using the Menu System

Your TV uses an on-screen menu system to guide you through the operations. Use the following buttons

on the remote control to operate the menu system:

1Press the MENU button to switch the first level menu on.

2•To highlight the desired menu or option, press or .

•To enter to the selected menu or option, press .

•To return to the last menu or option, press .

•To alter settings of your selected option, press // or .

•To confirm and store your selection, press OK.

3Press the MENU button to remove the menu from the screen.

Menu Guide

PICTURE ADJUSTMENT

The “Picture Adjustment”menu allows you to alter the picture settings.

To do this: after selecting the item you want to alter press , then press / / or repeatedly to

adjust it and finally press OK to store the new adjustment.

•This menu also allows you to customise the picture mode based on the programme you are watching:

Mode Personal (for individual settings).

Live (for live broadcast programmes, DVD and Digital Set Top Box receivers).

Movie (for films).

•Brightness, Colour and Sharpness can only be altered if “Personal”mode is selected.

•Hue is only available for NTSC colour signal (e.g: USA video tapes).

•Select Reset and press OK to reset the picture to the factory preset levels.

Menu System

Picture Adjustment

Mode: Personal

Contrast

Brightness

Colour

Sharpness

Hue

Reset

Picture Adjustment

Mode: Personal

Contrast

Brightness

Colour

Sharpness

Hue

Reset

2829cl11b03gb.fm Page 10 Friday, January 23, 2004 4:52 PM

Otros manuales para FD Trinitron KV-28CL11B

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de TELEVISOR de Sony

Sony

Sony FD Trinitron WEGA KV-DR29 Manual de usuario

Sony

Sony KDF-E60A20PKG - 60" Lcd Projection Hd-tv Grand... Manual de usuario

Sony

Sony XBR-52HX905 Manual de usuario

Sony

Sony Trinitron Wega KV-SW21 Series Manual de usuario

Sony

Sony Trinintron KV-XF21M31 Manual de usuario

Sony

Sony KV-27FS210 Manual de usuario

Sony

Sony KV-1460R Manual de usuario

Sony

Sony Trinitron KD-28DX51U Manual de usuario

Sony

Sony Bravia KDL-19M4000 Manual de usuario

Sony

Sony KV-ES29N90 Manual de usuario

Sony

Sony BRAVIA XR-75X9xJ Manual de usuario

Sony

Sony KD-34XBR960 - 34" Fd Trinitron Wega Manual de usuario

Sony

Sony KDP-51WS550 - 51" High Definition Projection... Guía de instalación

Sony

Sony Bravia KDL-55W807B Manual de usuario

Sony

Sony KLV-32D300A Manual de usuario

Sony

Sony KV-27FV310 - 27" Fd Trinitron Wega Manual de usuario

Sony

Sony KV-27FS210 Manual de usuario

Sony

Sony TRINITRON KV-29FX11A Manual de usuario

Sony

Sony BRAVIA XR-48A9 K Series Manual de usuario

Sony

Sony CTV-25R1 Manual de usuario

Sony

Sony BRAVIA KD-65A1 Manual de usuario

Sony

Sony Trinitron KV-27TW77 Manual de usuario

Sony

Sony BRAVIA KD-65X9500H Manual de usuario

Sony

Sony TRINITRON KV-10FMR20 Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
