Sony HTC-V5550 Manual de usuario

HTC-V5550

E Model

Chinese Model

SERVICE MANUAL

COMPACT DISC DECK

MICROFILM

This stereo system is equipped with the Dolby B-

type noise reduction system.

* Manufactured under license from Dolby

Laboratories Licensing Corporation.

DOLBY, the double-D symbol aand “PRO LOGIC”

are trademarks of Dolby Laboratories Licensing

Corporation.

Model Name Using Similar Mechanism HCD-V717

CD CD Mechanism Type CDM38-5BD24

Section Base Unit Type BU-5BD24

Optical Pick-up Name KSS-213BA/F-NP

Tape deck Model Name Using Similar Mechanism HTC-W555

Section Tape Transport Mechanism Type TCM-230AWR2

TCM-230PWR2

• This set is the deck and Video CD

section in MHC-V5550/V7770.

SPECIFICATIONS

Video section

Inputs AV INPUT VIDEO (phono jack):

1Vp-p, 75 Ω

VIDEO IN (phono jack)

1Vp-p, 75 Ω

Outputs MONITOR OUT (phono jack):

1Vp-p, 75 Ω

VIDEO OUT (phono jack)

1Vp-p, 75 Ω

S-VIDEO (4-pin/mini-DIN jack):

Y: 1Vp-p, unbalanced, sync negative

C: 0.286Vp-p, load impedance 75 Ω

VIDEO CD/CD player section

System Compact disc, digital audio video system

Laser Semiconductor laser (λ=780nm)

Emission duradon: continuous

Laser output Max. 44.6µW*

*This output is the value measured at a

diatance of 200 mm from the objective

lens surface on the Optical Pick-up Block

with 7 mm aperture.

Frequency response 20 Hz – 20 kHz (±1 dB)

Wavelength 780 – 790 nm

Signal to noise ratio More than 90 dB

Dynamic range More than 90 dB

Video Color System format

NTSC, PAL

CD OPTICAL DIGITAL OUT

(Square optical connector jack, rear panel)

Wavelength 600 nm

Output Level –18 dBm

Tape player section

Recording system 4-track 2-channel stereo

Frequency response 40 – 13,000 Hz (±3 dB),

(DOLBY NR OFF) using Sony TYPE

cassette

40 – 14,000 Hz (±3 dB),

using Sony TYPE

cassette

Design and specifications are subject to change without notice.

HTC-V5550

6-4. SCHEMATIC DIAGRAM — CD SECTION — • Refer to page 55 for Waveforms.

• Refer to page 58, 59 for IC Block Diagrams.

— 27 — — 28 —

(Page 51)

The components identified by

mark!or dotted line with mark

!are critical for safety.

Replace only with part number

specified.

HTC-V5550

6-5. SCHEMATIC DIAGRAM — DECK SECTION — • Refer to page 59 for IC Block Diagrams.

— 29 — — 30 —

MAIN BOARD

CNS101

(Page 36)

The components identified by

mark!or dotted line with mark

!are critical for safety.

Replace only with part number

specified.

HTC-V5550

6-8. SCHEMATIC DIAGRAM — MAIN (1/2) SECTION —

— 35 — — 36 —

(Page 46) (Page 46) (Page 51)

(Page 40)

(Page 30)

2.6

6.9

3.3

6.9

3.3

3.4

4.9

3.1

(Page 52)

• Refer to page 59 for IC Block Diagrams.

HTC-V5550

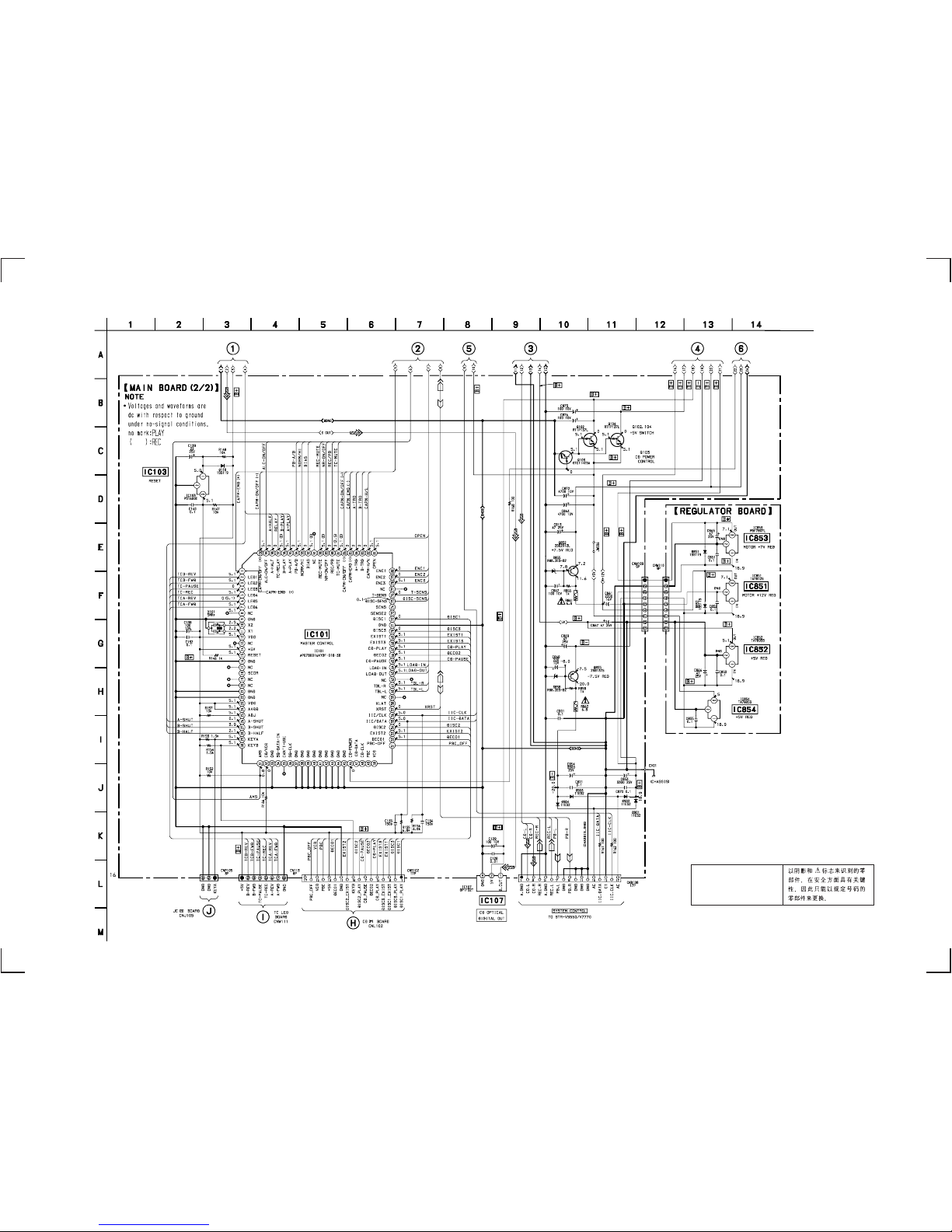

6-9. SCHEMATIC DIAGRAM — MAIN (2/2) SECTION — • Refer to page 33 for Printed Wiring Board.

• Refer to page 60 for IC Pin Function Description.

— 37 — — 38 —

(Page 43) (Page 43) (Page 43)

The components identified by

mark!or dotted line with mark

!are critical for safety.

Replace only with part number

specified.

HTC-V5550

6-11. SCHEMATIC DIAGRAM — LEAF SW SECTION —

• Refer to page 16 for Circuit Boards Location.

6-10. PRINTED WIRING BOARD — LEAF SW SECTION —

— 39 —

MAIN BOARD

CNS104

(Page 36)

MAIN BOARD

CNS104

(Page 33)

— 40 —

HTC-V5550

6-13. SCHEMATIC DIAGRAM — PANEL SECTION —

— 43 — — 44 —

(Page 37)

HTC-V5550

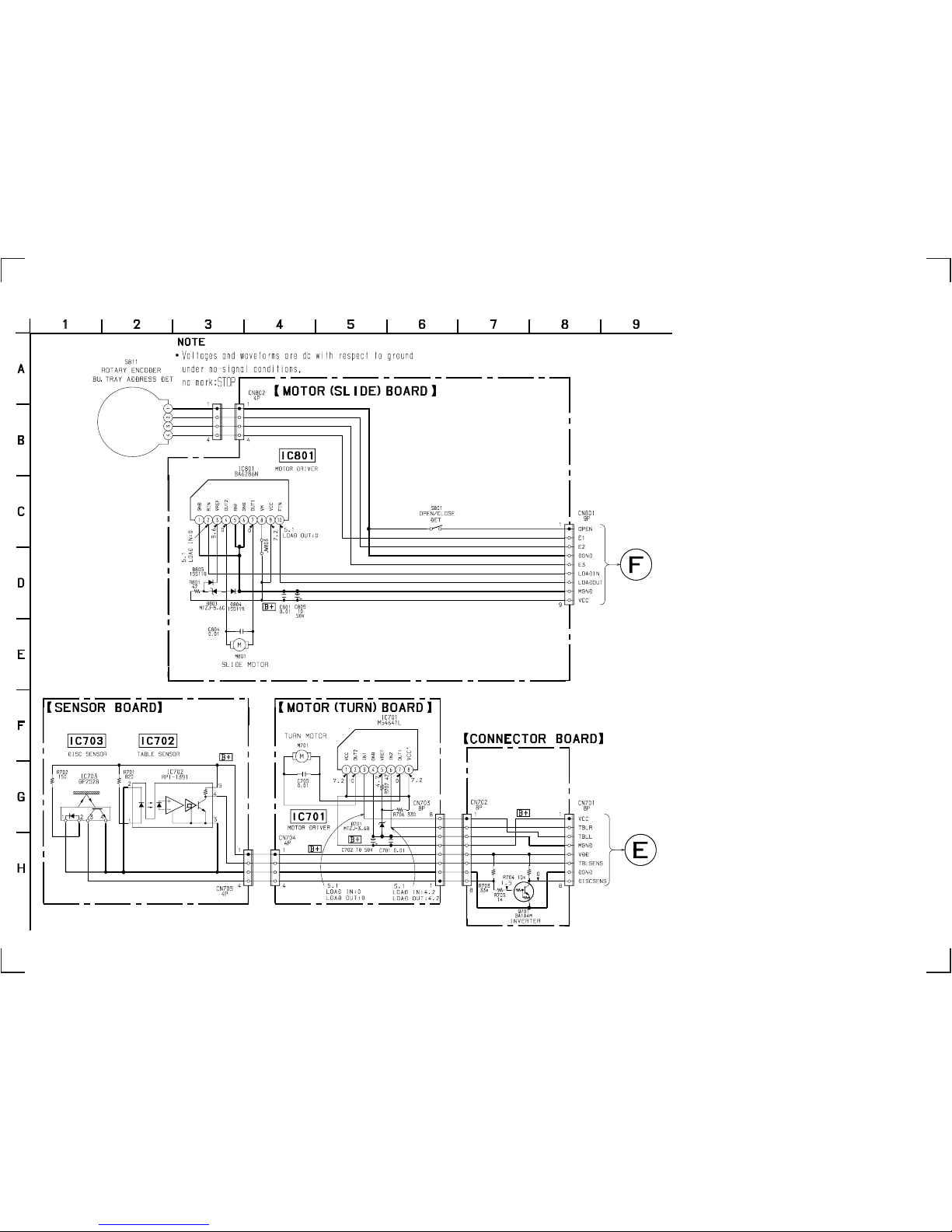

6-14. SCHEMATIC DIAGRAM — CD MOTOR SECTION —

— 45 — — 46 —

MAIN BOARD

CN112

(Page 35)

MAIN BOARD

CN111

(Page 35)

• Refer to page 59 for IC Block Diagrams.

HTC-V5550

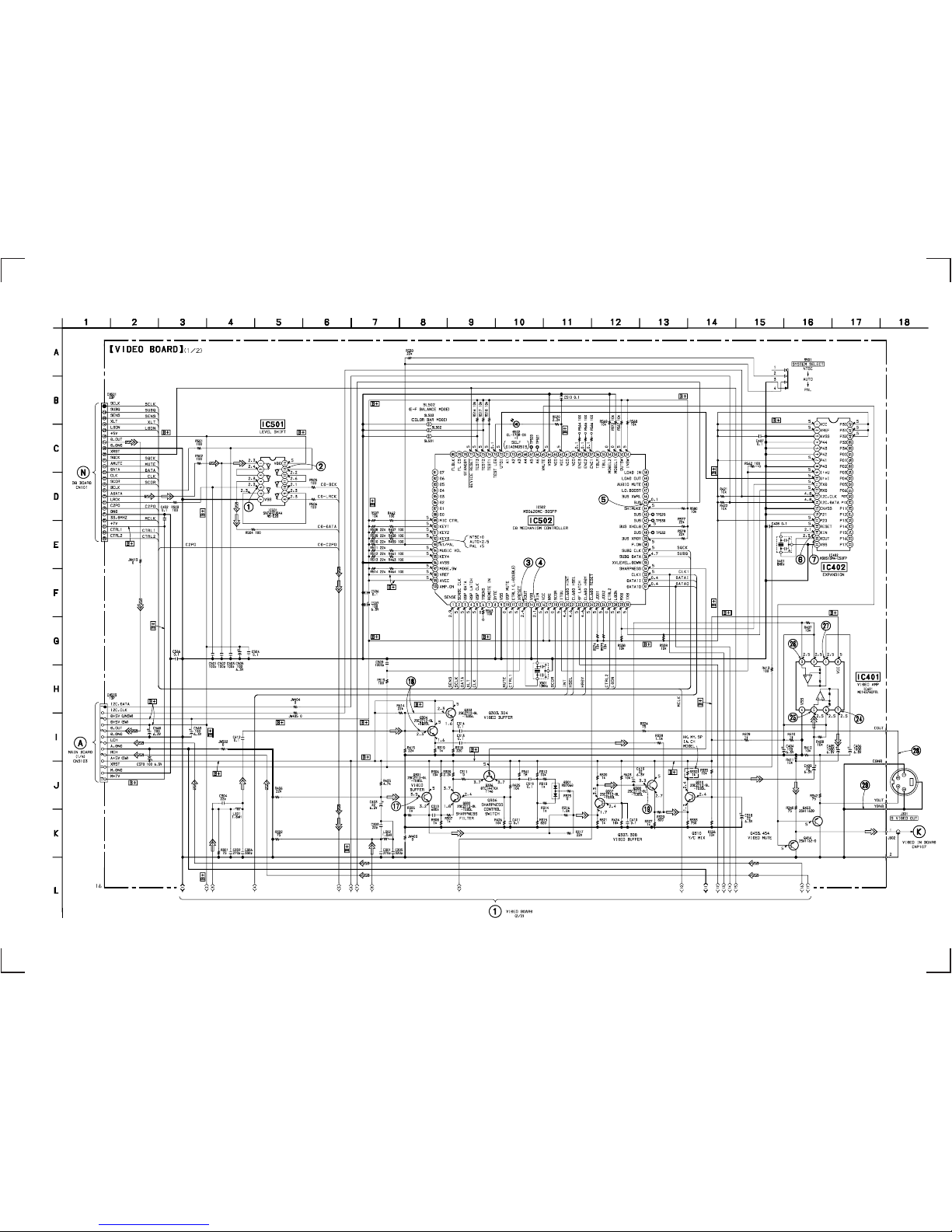

6-17. SCHEMATIC DIAGRAM — VIDEO (1/2) SECTION —

— 51 — — 52 —

(Page 27)

(Page 35)

(Page 36)

• Refer to page 61 for IC Pin Function Description.

• Refer to page 55 to 57 for Waveforms.

HTC-V5550

6-18. SCHEMATIC DIAGRAM — VIDEO (2/2) SECTION —

— 53 — — 54 —

2.6

• Refer to page 49 for Printed Wiring Board. • Refer to page 55 to 57 for Waveforms.

• Refer to page 59 for IC Block Diagrams. • Refer to page 64 for IC Pin Function Description.
