Sony CAS-1 Manual de usuario

Compact Audio System

Operating Instructions

CAS-1

Table of contents

Refer to the supplied “Precautions /

Troubleshooting” for the information such as

specifications or notes on use of the unit.

What’s in the box 4

Set up 6

Connection 8

Playback 12

Unique playback of Walkman and smartphone 25

Part Names 26

4

What’s in the box

Main unit (1) AC adapter (1) AC cord (mains lead) (1)* Remote control (button battery included) (1)

Speaker (2) Speaker cord (2) Speaker base (2) Spike (Large) (4) USB cable (1)

Operating Instructions (this document) (1) Precautions / Troubleshooting (1) Warranty (1)

* The shape of the AC cord varies depending on the country or region.

5

Prepare the remote control

Pull out the insulating sheet of the battery in

the remote control.

Insulating sheet

Using the speaker base

Turn the side with the grips down.

(Bottom)

Speaker base

(supplied)

Right speaker (R)Left speaker (L)

6

Set up

Basic installation

•Separate the right and left speakers (either speaker can be

used as left or right).

•Place a supplied speaker base under each speaker.

•Peel the seals off from the bottom of the speakers.

70 cm ~ 75 cm

Changing the spikes

Peel the seal off

Right speaker (R)

Left speaker (L)

7

To enjoy better quality sound on a desk

•Tilt the speakers by changing to the supplied spikes (large).

•Place the speakers 70 cm - 75 cm apart.

•Position the speakers facing inwards.





Right speaker (R)

Marked with a black line

8

Connection

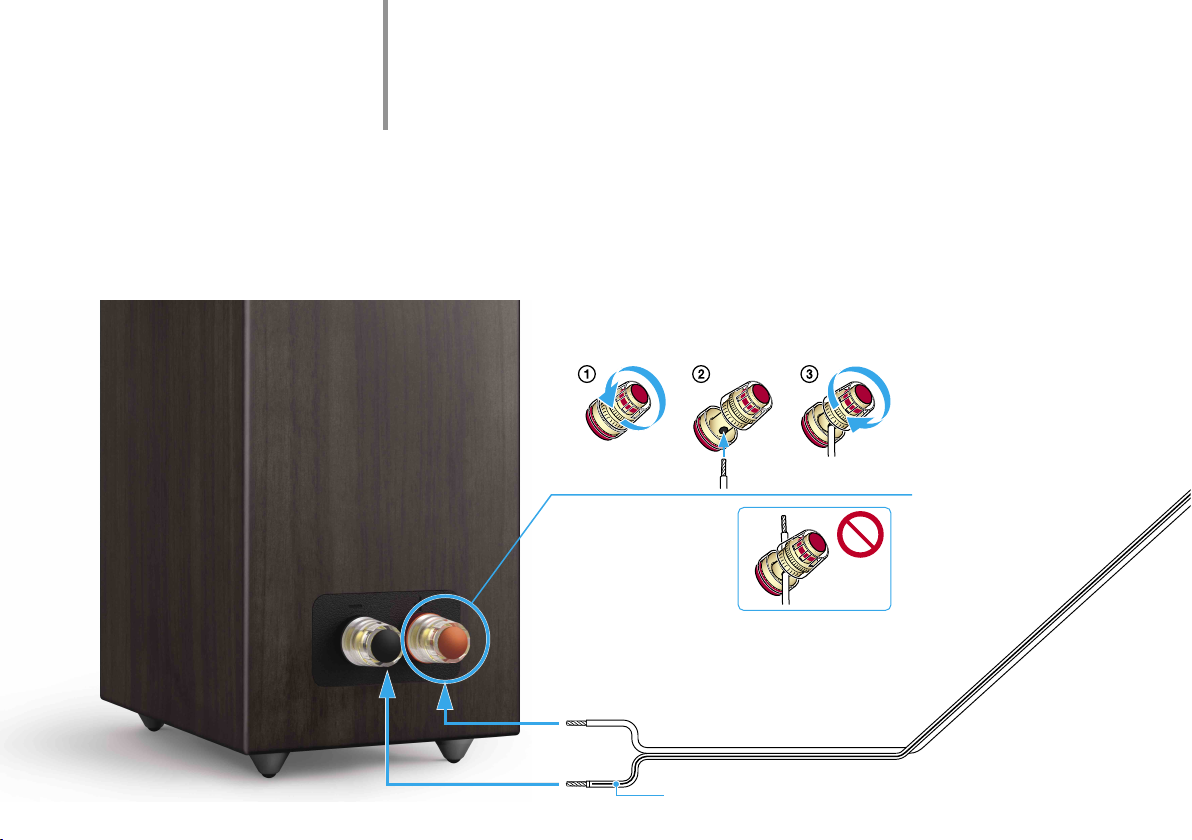

Connect the speaker cords to the speaker terminals, matching the polarities (/).

Speaker cord (supplied)

Speaker cord (supplied)













Left speaker (L)

9

AC cord (mains lead)

(supplied)

AC adapter (supplied)

Point the remote at the  (on/standby)

button on the front of the unit when you

operate it.

10

Connection Turning on the unit
