Sony STR-LV500 Manual de usuario

model name1[STR-LV500]

[4-248-914-12(1)]

filename[\\Nas-data-server\SONY Current jobs\SONY STR-

LV500\_DTP\4248914121\424891412STRLV500CEL\GB01COV_STR-LV500-CEL.fm] masterpage:Right

4-248-914-12(1)

FM Stereo

FM/AM Receiver

Operating Instructions

STR-LV500

masterpage:Left

filename[\\Nas-data-server\SONY Current jobs\SONY STR-

LV500\_DTP\4248914121\424891412STRLV500CEL\GB02REG_STR-LV500-CEL.fm]

2GB

model name1[STR-LV500]

[4-248-914-12(1)]

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To prevent fire, do not cover the ventilation of the

apparatus with news papers, table-cloths, curtains, etc.

And don’t place lighted candles on the apparatus.

To prevent fire or shock hazard, do not place objects

filled with liquids, such as vases, on the apparatus.

Don’t throw away batteries with

general house waste; dispose of

them correctly as chemical waste.

About this manual

The instructions in this manual describe the controls on

the remote. You can also use the controls on the

receiverifthey havethesame orsimilarnamesasthose

on the remote.

This receiver incorporates Dolby* Digital and Pro

Logic Surround and the DTS** Digital Surround

System.

* Manufactured under license from Dolby

Laboratories.

“Dolby”, “Pro Logic” and the double-D symbol are

trademarks of Dolby Laboratories.

**“DTS” and “DTS Digital Surround” are trademarks

of Digital Theater Systems, Inc.

WARNING

Do not install the appliance in a confined space,

such as a bookcase or built-in cabinet.

masterpage:Right

filename[\\Nas-data-server\SONY Current jobs\SONY STR-

LV500\_DTP\4248914121\424891412STRLV500CEL\GB01COV_STR-LV500-CELTOC.fm]

model name1[STR-LV500]

[4-248-914-12(1)]

3GB

Hooking up the components

Required cords ........................................4

Connecting analog components..............5

Connecting digital components...............6

Connecting the antennas .........................7

Placing speakers......................................8

Connecting speakers ...............................9

Connecting the AC power cord.............10

Adjusting the speaker levels and

balance............................................11

— TEST TONE

Checking the connections .....................11

Basic Operations

Selecting the component.......................12

Receiving broadcasts ............................12

Using the Radio Data System (RDS)....14

About the indications in the display......16

Enjoying Surround Sound

Using only the front speakers ...............17

Enjoying higher fidelity sound..............17

— AUTO FORMAT DIRECT

Selecting a sound field..........................18

Other Operations/Settings

Switching the audio input mode for digital

components.....................................20

— INPUT MODE

Selecting the digital audio input decoding

priority ............................................20

Using the Sleep Timer ..........................21

Using the supplied remote to controlling

the other component .......................21

Changing the factory setting of a input

button on the remote.......................23

Setting up the speakers..........................24

Customizing sound fields......................26

Additional Information

Precautions............................................28

Troubleshooting....................................29

Specifications........................................30

List of button locations and reference

pages............................................... 32

Index..................................................... 34

Table of Contents

masterpage:Left

filename[\\Nas-data-server\SONY Current jobs\SONY STR-

LV500\_DTP\4248914121\424891412STRLV500CEL\GB03CON_STR-LV500-CEL.fm]

4GB

model name1[STR-LV500]

[4-248-914-12(1)]

Before you get started

The hookup diagrams on the subsequent pages assume the use of the following optional connection

cords (Ato E) (not supplied).

AAudio/video cord

Yellow (video)

White (L/audio)

Red (R/audio)

BAudio cord

White (L)

Red (R)

CVideo cord

Yellow

DOptical digital cord

ECoaxial digital cord

Notes

• Turn off the power to all components before making any connections.

• Be sure to make connections firmly to avoid hum and noise.

• When connecting an audio/video cord, be sure to match the color-coded pins to the appropriate jacks on the

components: yellow (video) to yellow; white (left, audio) to white; and red (right, audio) to red.

• When connecting optical digital cords, insert the cord plugs straight in until they click into place.

• Do not bend or tie optical digital cords.

Inserting batteries into the remote

Insert two R6 (size AA) batteries with the + and – properly oriented in the battery compartment.

Tip

Under normal conditions, the batteries should last for about 6 months. When the remote no longer operates the

control center, replace both batteries with new ones.

Notes

• Do not leave the remote in an extremely hot or humid place.

• Do not use a new battery with an old one.

• Do not expose the remote sensor of the control center to direct sunlight or lighting apparatuses. Doing so may cause

a malfunction.

• If you don’t use the remote for an extended period of time, remove the batteries to avoid possible damage from

battery leakage and corrosion.

• Turn off the power to all components before making any connections.

• Be sure to make connections firmly to avoid hum and noise.

Hooking up the components

Required cords

Hooking up the components

masterpage:Right

filename[\\Nas-data-server\SONY Current jobs\SONY STR-

LV500\_DTP\4248914121\424891412STRLV500CEL\GB03CON_STR-LV500-CEL.fm]

5GB

model name1[STR-LV500]

[4-248-914-12(1)]

If you connect your TV to the MONITOR jack, you can watch the video from the selected input

(page 12).

For details on the required cords (A–E), see page 4.

Connecting analog components

HDD/MD VIDEODVD DVD

OPT OUT

MONITOR

TV/SAT TV/SAT

OPT IN OPT IN OPT INININININOUT COAX IN

OUT

VIDEO

IN VIDEO

HDD/MD

ANTENNA

INPUT

MONITOR IN

AAB

AUDIO OUT

VIDEO OUT

OUTPUT

AUDIO OUT

VIDEO OUT

OUTPUT

AUDIO OUT

VIDEO OUT

OUTPUT

LINE

INPUT OUTPUT

INOUT

TV monitor

DVD player

Satellite tuner VCR

MD deck, Hard disc

masterpage:Left

filename[\\Nas-data-server\SONY Current jobs\SONY STR-

LV500\_DTP\4248914121\424891412STRLV500CEL\GB03CON_STR-LV500-CEL.fm]

6GB

model name1[STR-LV500]

[4-248-914-12(1)]

Connect the digital output jacks of your DVD player (etc.) to this system’s digital input jacks to bring

the multi channel surround sound of a movie theater into your home. To fully enjoy multi channel

surround sound, five speakers (two front speakers, two surround speakers, and a center speaker) and a

sub woofer are required.

For details on the required cords (A–E), see page 4.

* Connect to either the COAX IN or the OPT IN jack. We recommend making connections to the COAX IN jack.

Notes

• All the digital audio jacks are compatible with 32 kHz, 44.1 kHz, 48 kHz and 96 kHz sampling frequencies.

• To playback the multi channel surround sound through this receiver, you may have to change the digital output

setting on the connected component. For details, refer to the operating instructions supplied with the component.

Connecting digital components

HDD/MD VIDEODVD DVD

OPT OUT

HDD/MD

MONITOR

OPT IN OPT IN OPT IN COAX IN

OUT

VIDEO

TV/SAT TV/SAT

ANTENNA

VIDEO

IN VIDEO

INOUT

DIGITAL

OPTICAL

IN OUT

DIGITAL

OPTICAL

OUT

DIGITAL

OPTICAL

OUT

DIGITAL

COAXIAL

OUT

ININININOUT

Satellite tuner

DVD player

MD deck, Hard disc

Hooking up the components

masterpage:Right

filename[\\Nas-data-server\SONY Current jobs\SONY STR-

LV500\_DTP\4248914121\424891412STRLV500CEL\GB03CON_STR-LV500-CEL.fm]

7GB

model name1[STR-LV500]

[4-248-914-12(1)]

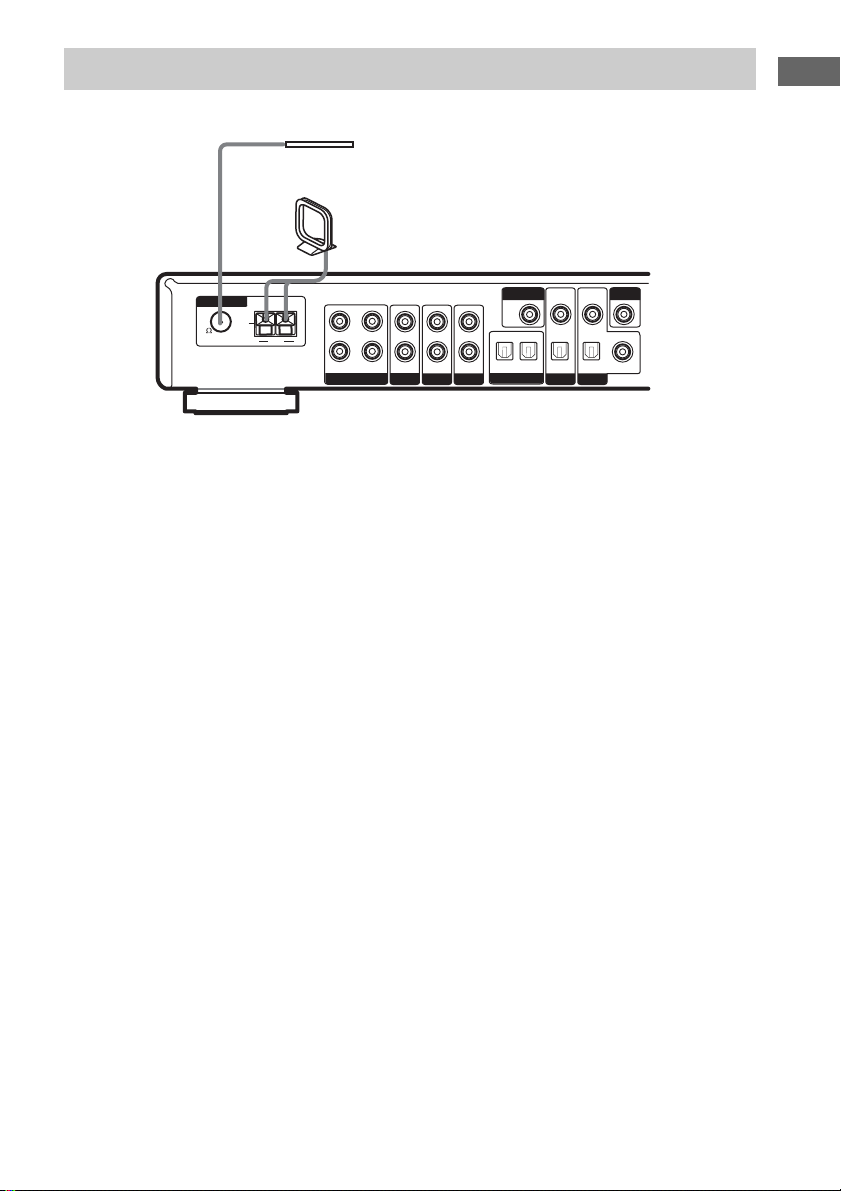

Connect the supplied AM loop antenna and FM wire antenna.

Notes

• To prevent noise pickup, keep the AM loop antenna away from the receiver and other components.

• Be sure to fully extend the FM wire antenna.

• After connecting the FM wire antenna, keep it as horizontal as possible.

Connecting the antennas

HDD/MD VIDEODVD DVD

OPT OUT

HDD/MD

MONITOR

OPT IN OPT IN OPT IN COAX IN

OUT

VIDEO

TV/SAT TV/SAT

ANTENNA

VIDEO

IN VIDEO

ININININOUT

AM loop antenna

(supplied)

FM wire antenna

(supplied)

masterpage:Left

filename[\\Nas-data-server\SONY Current jobs\SONY STR-

LV500\_DTP\4248914121\424891412STRLV500CEL\GB03CON_STR-LV500-CEL.fm]

8GB

model name1[STR-LV500]

[4-248-914-12(1)]

To fully enjoy surround sound, configure your speakers as below.

• Place the front speaker in a location 1 to 7 meters from the listening position (A).

• You can enjoy a higher quality sound effect if you place the center speaker from a distance equal to

the front speaker distance (A) to a distance 1.5 meters closer to your listening position (B).

• You can enjoy a higher quality sound effect ifyou place the surround speakers froma distance equal

to the front speaker distance (A) to a distance 4.5 meters closer to your listening position (C).

• You can place the surround speakers either behind you or to the side, depending on the shape of your

room (etc.).

• Place the sub woofer at the same distance from the listening position as the front speaker (left or

right).

When placing surround speakers to your side

sub woofer

When placing surround speakers behind you

sub woofer

Note

Do not place the center speaker and surround speakers farther away from the listening position than the front

speakers.

Placing speakers

30˚30˚

100˚-120˚100˚-120˚

A A

30˚30˚

100˚-120˚100˚-120˚

A A

Listening position

Hooking up the components

masterpage:Right

filename[\\Nas-data-server\SONY Current jobs\SONY STR-

LV500\_DTP\4248914121\424891412STRLV500CEL\GB03CON_STR-LV500-CEL.fm]

9GB

model name1[STR-LV500]

[4-248-914-12(1)]

When connecting speaker cords, make sure to attach the supplied speaker plugs to the speaker cords.

For details on how to attach the speaker plugs, see the supplied flysheet.

Required cords

ASpeaker cords (not supplied)

(+)

BMonaural audio cord (not supplied)

Black

(–)

Connecting speakers

SUB

WOOFER

(IMPEDANCE USE 4-16 )

SPEAKERS

SURR R

FRONT R

AUDIO

OUT

CENTER

SURR L

FRONT L

INPUT

AUDIO

Surround speaker

(R) Surround speaker

(L)

Sub woofer

Center speaker Front speaker (L)

Front speaker (R)

To a wall outlet

(Switch the power

(POWER)tooffbefore

connecting the power

cord).

continued

masterpage:Left

filename[\\Nas-data-server\SONY Current jobs\SONY STR-

LV500\_DTP\4248914121\424891412STRLV500CEL\GB03CON_STR-LV500-CEL.fm]

10GB

model name1[STR-LV500]

[4-248-914-12(1)]

Note

If you use speakers with low maximum input rating,

adjust the volume carefully to avoid excessive output

on the speakers.

To avoid short-circuiting the

speakers

Short-circuiting may damage the speakers and

cause a malfunction.

Make sure the stripped ends of each

speaker cord does not touch the stripped

end of another speaker cord.

Examples of poor conditions of the speaker

cord

Before connecting the AC power cord of this

receiver to a wall outlet, connect the speaker

system to the receiver.

Connect the AC power cord(s) of your audio/

video components to a wall outlet.

Performing initial setup

operations

Before using the receiver for the first time,

initialize the receiver by performing the

following procedure.

This procedure can also be used to return

settings you have made to their factory defaults.

1Press ?/1 to turn off the receiver.

2Hold down ?/1 for 5 seconds.

All of the following items are reset or

cleared:

• All sound field parameters are reset to

their factory settings.

• All SET UP parameters are reset to their

factory settings.

• The sound fields memorized for each

program source and preset stations are

cleared.

• The master volume is set to “MIN”.

Connecting the AC power

cord

To a wall outlet

AC power

cord

Otros manuales para STR-LV500

Tabla de contenidos

Otros manuales de Receptor estéreo de Sony

Sony

Sony STR-DE445 - Fm Stereo/fm-am Receiver Manual de usuario

Sony

Sony STR-DA5200ES - Fm Stereo/fm-am Receiver Manual de usuario

Sony

Sony STR-DA1500ES Manual de usuario

Sony

Sony ST-JX661 Manual de usuario

Sony

Sony STR-SE501 - Fm Stereo Fm/am Receiver Manual de usuario

Sony

Sony STR-6065 Manual de funcionamiento

Sony

Sony CF-SW07 Manual de usuario

Sony

Sony TC-WE471 Manual de usuario

Sony

Sony STR-KM22 Manual de usuario

Sony

Sony STR-DE235 Manual de usuario

Sony

Sony STR-DE335 - Fm Stereo/fm-am Receiver Manual de usuario

Sony

Sony STR-GX10ES Manual de usuario

Sony

Sony ST-RDE597 Manual de usuario

Sony

Sony AVD-K800P - 5 Dvd Changer/receiver Manual de usuario

Sony

Sony STR-DE997 - Fm Stereo/fm-am Receiver Manual de usuario

Sony

Sony STR-K700 - Fm Stereo/fm-am Receiver Manual de usuario

Sony

Sony XAV-9000ES Manual de usuario

Sony

Sony STR-DB925 Manual de usuario

Sony

Sony STR-DE805G - Fm/am Stereo Receiver Manual de usuario

Sony

Sony STR-DE697 Manual de usuario

Sony

Sony STR-W555 Manual de usuario

Sony

Sony STR-DE685 Manual de usuario

Sony

Sony STR-DE245 Manual de usuario

Sony

Sony STR-DE435 Manual de usuario

Manuales populares de Receptor estéreo de otras marcas

Marantz

Marantz CINEMA 70S Manual de usuario

Kenwood

Kenwood KMDX92 Manual de usuario

Yamaha

Yamaha RX-830 Manual de usuario

Pioneer

Pioneer AVH-Z7250BT Manual de usuario

Yamaha

Yamaha RX-750 Manual de usuario

Denon

Denon AVR-1311 Manual de usuario

Denon

Denon AVR-S760H Manual de usuario

Denon

Denon AVR-X7200W Manual de usuario

Pioneer

Pioneer SC-LX904 Manual

Radio Shack

Radio Shack DX-399 Manual de usuario

Pioneer

Pioneer SX-1000TA Manual de usuario

Yamaha

Yamaha MusicCast TSR-5B3D Manual de usuario

Panasonic

Panasonic AJSD955B - DVCPRO50 STUDIO DECK Manual de usuario

Pioneer

Pioneer SX-838 Manual de usuario

Sherwood

Sherwood S-2660CP Manual técnico

Pioneer

Pioneer XR-VS77 Manual de usuario

Pioneer

Pioneer AVH-2300NEX Manual de usuario

Denon

Denon DRA-697CI Manual de usuario
