KEY FEATURES

SSC-N24/N24A

Analog Color Mini-Dome Cameras

650 TV Line Security Camera

with High Sensitivity

Horizontal resolution 650 TV lines

High sensitivity

Color : 0.15 lx (F1.2, 50 IRE)

B/W : 0.01 lx (F1.2, 50 IRE)

x3.7 Variable focal lens

Compact design

•High resolution (650 horizontal TV lines) and high

sensitivity (Color : 0.15 lx / B/W : 0.01 lx, F1.2, 50IRE)

achieved by a 1/3-type “EXview HAD CCD II” sensor

and Sony’s new digital signal processor, “Efﬁo-E”.

•3.7x variable focal length lens with a focal length of

2.8 mm to 10.5 mm and a horizontal angle of view of

101.8 ˚ to 27.4 ˚.

•Easy and ﬂexible camera angle adjustment achieved

by a new three-hinge structure.

•Optical Day / Night function to switch to Day or Night

mode depending on the light level.

•Low power consumption: 1.7 W (Max.).

• ATR-Lite (Adaptive Tone Reproduction

Lite) to compensate for gradation of

subjects to an optimum level.

• iBLC to compensate for exposure levels in

dark scenes to improve subject visibility.

• ATW (Automatic Tracing White) balance

which automatically adjusts the camera’s

white balance to adapt to sudden

changes in lighting conditions.

• Internal lock, and line lock selectable.

• 2D noise reduction employed.

• AC 24 V/DC 12 V operation (±10%).

• Custom template supplied.

Pan adjuster

Panning

Tilting

Rotating

MK10809V1OHB11JAN

Reproduction in whole or in part without written permission is prohibited.

Features and speciﬁcations are subject to change without notice.

The values for weight and dimension are approximate.

“SONY” ,“make.believe”,“Efﬁo-E” and “EXview HAD CCD II”

are trademarks of Sony Corporation.

All other trademarks are the property of their respective owners.

SSC-N24 SSC-N24A

Camera

Image device 1/3-type“EXview HAD CCD II”

Number of effective pixels

(H x V)

570,000 pixels

(976 x 582)

480,000 pixels

(976 x 494)

Signal system PAL standard NTSC standard

Horizontal resolution 650 TV lines

S/N ratio More than 55 dB(AGC Off)

Minimum illumination Color: 0.15 lx,B/W:0.01 lx (F1.2, 50 IRE)

Color: 0.08 lx, B/W: 0.003 lx (F1.2, 30 IRE)

Video output VBS:1.0Vp-p

Synchronization Internal/AC line lock selectable

Gain control Auto (on/off)

White balance ATW (2000K to10000K),ATW-PRO (2500K to 6000K)

Lens type Built-in variable focal lens

Zoom ratio Optical 3.7X

Horizontal viewing angle 101.8 degree to 27.4 degree

Focal length f=2.8 to 10.5 mm

F Number F1.2(Wide end), F2.6(Tele end)

Minimum object distance 300 mm

Iris Auto

Panning range 355 degree

Tilting range ±77 degree

Swivel rotation 350 degree

Camera Features

Day/Night Yes

Noise reduction Yes (2D NR)

Back light compensation Yes (iBLC)

Automatic tone reproduction Yes (ATR-Lite)

General

Mass 320 g (11.3 oz)

Dimensions ø121.6 mm x 86.5 mm (ø 4 7/8 x 3 1/2 inches)

Power requirement AC24 V ±10%, DC12 V ±10%

Power consumption Max. 1.7 W

Operating temperature -10°C to +50°C (14F° to 122F°)

Storage temperature -40 °C to +60 °C (-40F° to +140F°)

Operating humidity 20 % to 80 %

Storage humidity 20 % to 95 %

Supplied accessories Template x 1, Operating instructions x 1

SPECIFICATIONS

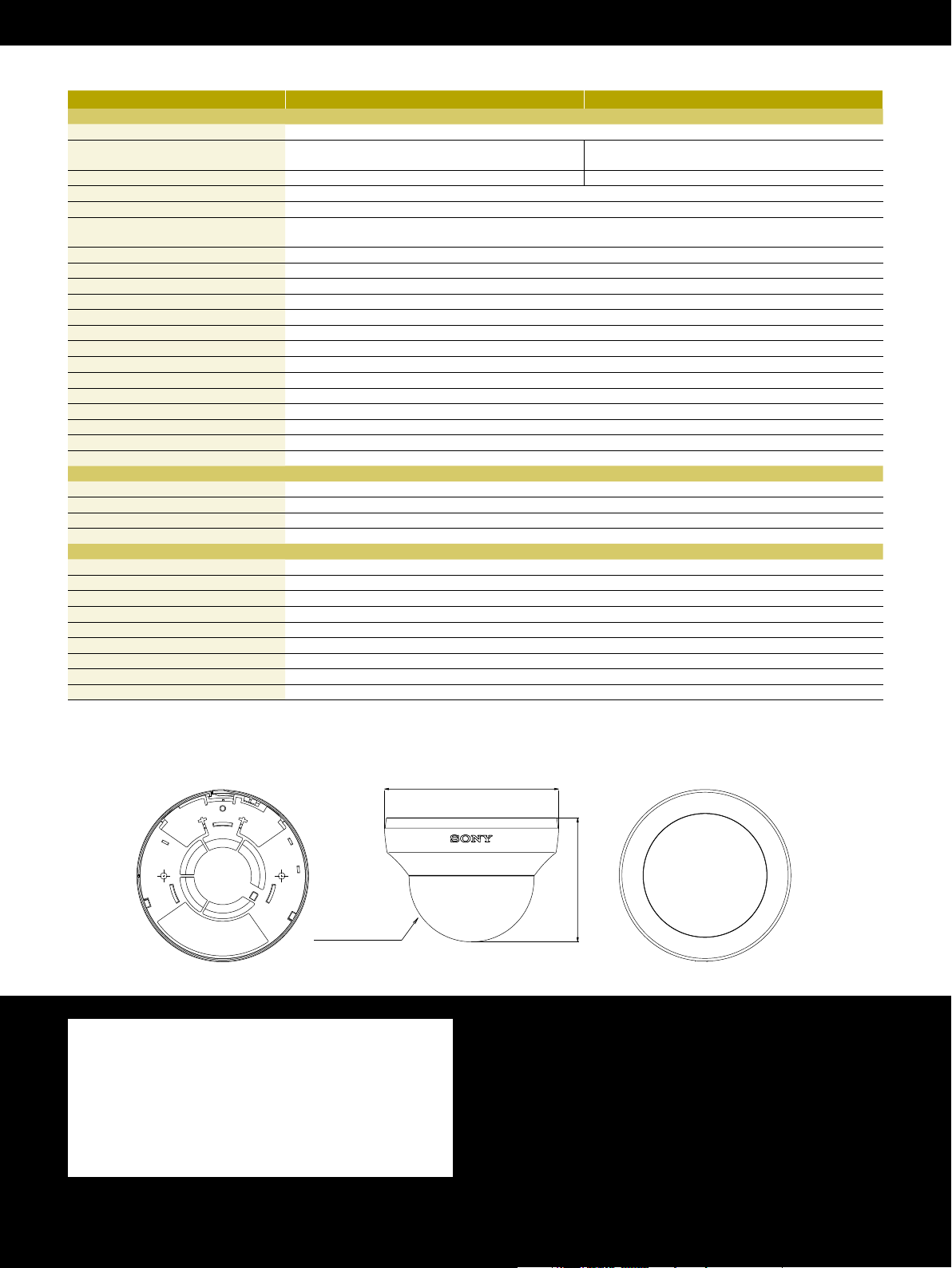

DIMENSIONS Unit: mm (inches)

ø121.6 (4 7/8)

R 43.5 (1 3/4)

86.5 (3 1/2)
