The Quick Start Guide briefly explains the connections and settings of the camera for viewing the

camera image via Internet when connecting to the network using a router.

For the installation and operations of the camera, please refer to the Installation Manual and the

User's Guide in the supplied CD-ROM.

Flowchart of preparations

System Configuration

You can monitor the image of the camera via LAN and Internet.

Notes

•For viewing the camera image via Internet, the global IP address provided by ISP is required.

•The SNC-M1/M1W/M3/M3W network cameras do not support PPPoE. Use a router compliant with PPPoE if you use ISP with PPPoE

connection.

Check the supplied accessories

and system reguirements.

Use the

camera.

Install the

camera.

Set up the

camera.

Connect the

camera.

Quick Start Guide (this document) Installation Manual User’s Guide

Internet

Microphone

Router

Network Camera

SNC-M1/M1W

SNC-M3/M3W

Wireless*

Computer

Speaker

Modem

Computer Computer

Web browser

LAN

* Wireless LAN connection is available only for the SNC-M1W and SNC-M3W.

3-863-913-11 (1)

Network Camera SNC-M1/M1W/M3/M3W

Quick Start Guide Network Configuration Using a Router

Check the Camera and Supplied Accessories / Check the Specifications of the Computer

1Check the Camera and Supplied

Accessories

Before using, check that the camera and all the supplied

accessories are included in the package.

SNC-M3/M3W only

2Check the Specifications of the

Computer

The following are the system requirements for the

computer to view the image of the camera and to run the

program of the supplied CD-ROM.

System requirements for using the camera

System requirements for using the CD-ROM

•Microsoft, Windows, Internet Explorer and MS-DOS are

registered trademarks of Microsoft Corporation in the United

States and/or other countries.

•Intel and Pentium are registered trademarks of Intel

Corporation or its subsidiaries in the United States and other

countries.

zNetwork camera (1)

SNC-M1/M1W SNC-M3/M3W

AC power adaptor (1)

zPower cord (1)

zStand (1) zDrop-prevention

strap (1)

zRubber foot (4) zTapping screws

(4 × 20) (4)

zCD-ROM (User’s Guide and programs) (1)

zInstallation Manual (1)

zWall-mounting holder

(1)

zWall-mounting

bracket (1)

z+PSW screws (3 × 8) (2)

Item Specifications

Processor Pentium III, 1 GHz or higher

(Pentium 4, 2 GHz or

higher recommended)

RAM 256 MB or more

OS Windows 2000/XP

Web browser Internet Explorer Ver. 5.5 or

Ver.6.0

Item Specifications

Computer PC with Intel Pentium CPU

Installed memory: 64 MB or

CD-ROM drive: × 8 or faster

Monitor Monitor supporting resolution

of 800 × 600 or higher

OS Microsoft Windows Millennium

Edition, Windows 2000 Service

Pack 2, Windows XP

Professional or Home Edition

Acrobat Reader (for

displaying the User's Guide)

Adobe Acrobat Reader Version

4.0 or later, or Adobe Reader

Version 6.0 or later

Connect the Camera to the Router / Turn on the Power of the Camera 3

•Adobe, Acrobat and Acrobat Reader are trademarks of Adobe

Systems Incorporated in the United States and/or other

countries.

•All other company and product names are trademarks or

registered trademarks of the respective companies or their

respective makers.

3Connect the Camera to the Router

To make the network setting on the camera, connect the

camera to the router using a commercially available

network cable. The setting of the camera should be

performed using the computer connected to the router.

Remove the cap of the camera.

Connect the network cable to the LAN

jack on the router.

Connect the network cable to the

(network) port on the camera.

4Turn on the Power of the Camera

Insert the DC plug of the supplied AC

power adaptor into the DC IN 5V jack

on the camera.

Connect the power cord to the AC

power adaptor.

Plug the power cord to a wall outlet.

Check that the POWER indicator

flashes, then stays lit.

The camera is now turned on.

After connection, place back the cap of the camera.

Notes

• Before setting, turn on the power of the router and

computer and connect them to the Internet.

• Use a commercially available category 5, straight network

cable.

• The illustrations used in this guide show the SNC-M1

network camera.

Network cable

(straight)

Camera

to LAN

(10BASE-T/

100BASE-TX)

Router

Camera

Power cord

(supplied)

AC power adaptor

(supplied)

1to DC IN 5V

2to a wall outlet

3to the adaptor

POWER indicator

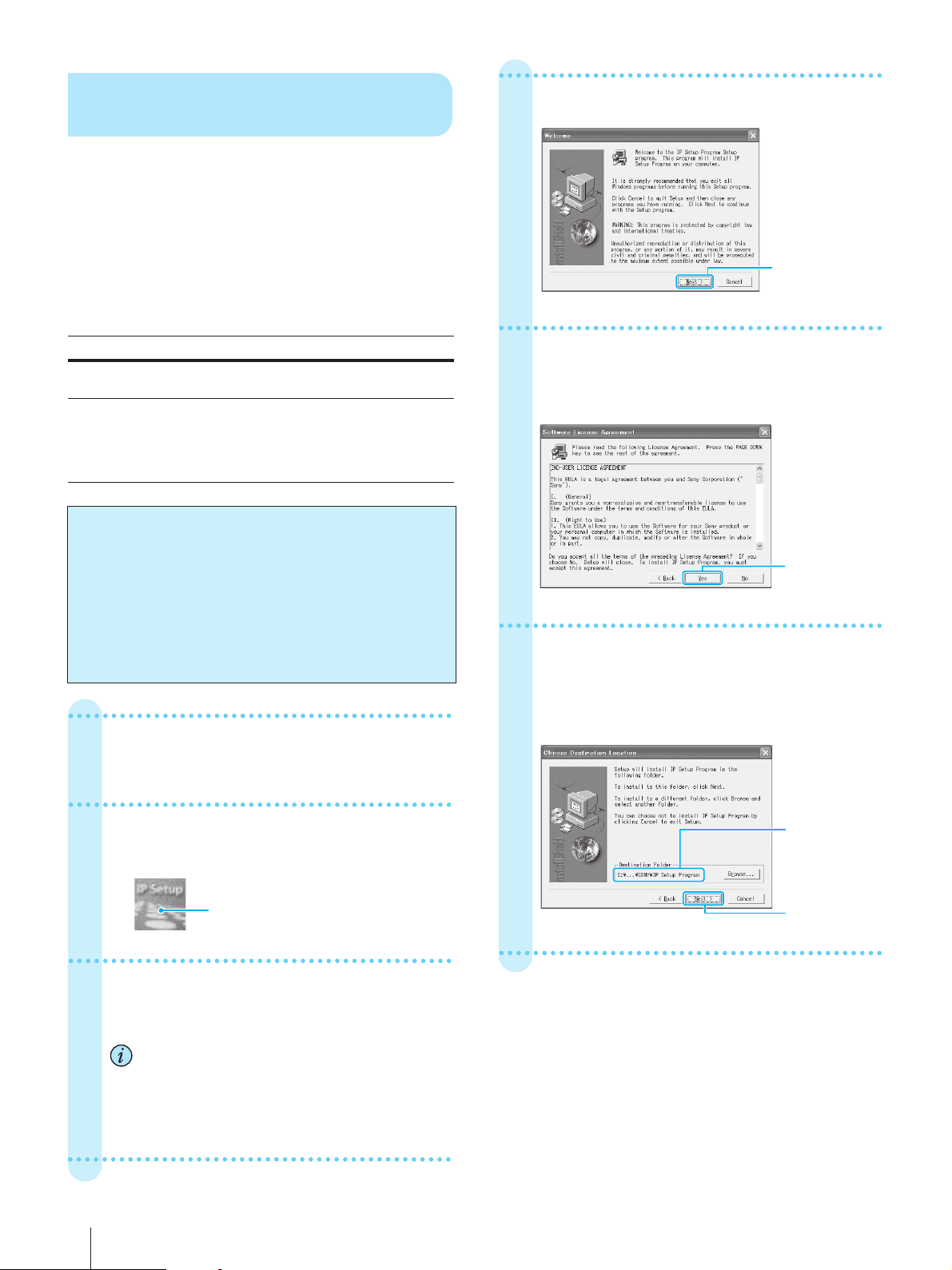

Install the IP Setup Program from the CD-ROM

5Install the IP Setup Program from

the CD-ROM

This section explains how to install the IP Setup Program

from the CD-ROM supplied with the camera. The IP Setup

Program is required for detecting the camera.

The other supplied programs can be installed in the same

procedures.

Utility programs stored in the CD-ROM

The following utility programs are stored in the supplied

CD-ROM.

Insert the CD-ROM disc into the CD-

ROM drive of your computer.

Click the “IP Setup” icon of IP Setup

Program.

Click “Open.”

The IP Setup Program starts and Welcome dialog

appears.

Note

If you click “Save this program to disk,” you cannot install

correctly.

In this case, delete the downloaded file, and click the “IP

Setup” icon again.

Click “Next.”

Read the Software License Agreement

carefully and click “Yes” to accept the

agreement.

Select the destination folder in which

to install the program and click “Next.”

The default setting is “C:\…\SONY\IP Setup

Program.”

Program Function

IP Setup Program Allows detection and set up of Sony

network cameras in the network.

SNC Audio upload tool Allows output of the sound picked up

by the microphone connected to the

computer from the speaker built in

the SNC-M1/M1W/M3/M3W network

camera.

Easy recording software

An easy-recording software program, “Network Camera

Recorder,” is available for the SNC-M1/M1W/M3/M3W

network cameras.

"Network Camera Recorder" allows manual or scheduled

recordings of camera images and the sound picked up by the

microphone built in the camera.

For more information on “Network Camera Recorder,” access

URL: (for customers in Europe)

http://www.sonybiz.net/software/m-series

Click.

1The

destination

folder is

displayed.

2Click.

Set up the Camera 5

Enter or select the name of the folder

in which to install the program, then

click “Next.”

The default setting is “IP Setup Program.”

The program is installed. After the installation,

“Setup Complete” dialog is displayed.

Click “Finish.”

The IP Setup Program installation is completed.

6Set up the Camera

To connect the camera to a network, you need to assign a

new IP address to the camera. This section explains how

to assign an IP address to the camera using the installed

IP Setup Program and how to configure other network

settings.

Start the IP Setup Program.

Select “Program” from the “Start” menu of

Windows, then select “IP Setup Program.”

The IP Setup Program runs and displays all the

cameras connected to the network in the camera

list.

Click on the camera in which you want

to assign an IP address.

When multiple cameras are connected to the

same network, check the model name and serial

number on the rear of the camera.

The network settings for the selected camera are

displayed.

Click on “Obtain an IP address

automatically.”

By selecting “Obtain an IP address automatically,”

the IP address is automatically assigned by the

DHCP server. The “Subnet mask” and “Default

gateway” are also assigned.

Notes

• For viewing the camera image via Internet, the global IP

address provided by ISP is required.

• This section explains the usual settings using “Obtain an IP

address automatically” or “Use the following IP address,”

“Obtain DNS server address automatically” and “HTTP port

No. 80.” If you need other settings, refer to the User’s Guide

stored in the supplied CD-ROM.

1Enter the

folder name.

2Click.

Click.

Click on the camera to assign an IP address.

IP address is displayed.

Select this.

Default gateway

is displayed.

Subnet mask is

displayed.

Set Port Forwarding on the Router

To assign a static IP address

Click on “Use the following IP address” and enter

the IP address, subnet mask and default gateway.

Click on “Obtain DNS server address

automatically.”

By selecting “Obtain DNS server address

automatically,” the DNS server addresses are

automatically assigned.

Click on “80” on “HTTP port No.”

Type “admin” in both the

“Administrator name” and

“Administrator password” boxes.

The default settings of both items are “admin.”

You can change the administrator name and

password later using the “User setting” menu.

Record the set IP address in the

following space.

You need to enter the IP address when you set

the router*.

* To view the camera image via Internet, you need to set

port forwarding on the router. See “Set Port Forwarding

on the Router”.

Click “OK.”

“Setting OK” is displayed.

The network setting of the camera is completed.

7Set Port Forwarding on the Router

To view the camera image via Internet, you need to set

port forwarding on the router. Skip this setting when you

do not use the router.

Perform the port forwarding setting on

the router.

For details, refer to the operation manual supplied

with the router.

Check the global IP address for WAN

on the router and record it in the

following space.

You need to enter the global IP address when you

access the camera via Internet.

IP address

Select this. DNS server addresses are displayed.

Select this.

Type “admin.”

Note

To exit the IP Setup Program, click on the upper right

corner.

Global IP address

Note

The name of the function “port forwarding” may be different

depending on the router.

Click.

Monitor the Image of the Camera 7

8Monitor the Image of the Camera

You can monitor the image of the camera using Internet

Explorer as the Web browser.

Accessing from Internet Explorer

Start Internet Explorer.

Type the IP address in the URL box of

Internet Explorer.

To view the image via LAN:

Enter the IP address recorded in step 7 on page

To view the image via Internet:

Enter the global IP address of the router recorded

in step 2 of “Set Port Forwarding on the Router”

on page 6.

The welcome page of the camera is displayed.

Click “Enter.”

The image shot by the camera is displayed in the

main viewer.

Note

This section uses illustrations of the Welcome page of

Network Camera SNC-M1W.

Note

For checking your network configuration, see “System

Configuration” on page 1.

Type the IP address.

When you access the main viewer of the camera for

the first time

When you click “Enter” on the welcome page, “Security

warning” is displayed.

When you click "Yes" to install the ActiveX control and the

main viewer is displayed.

Note

If the welcome page is not displayed correctly, check the

security level setting of the Internet Explorer. For details, refer

to the User’s Guide stored in the supplied CD-ROM.

Click.

Setting for Wireless Network

(SNC-M1W/M3W only)

To use the camera in a wireless network via an access

point, set as follows.

Use the network cable for connection when you assign a

new IP address to the SNC-M1W/M3W wireless network

camera.

Display the welcome page of the

camera following the procedure of

“Monitor the Image of the Camera” on

page 7.

Click “Setting.”

Type the user name and password for

the administrator, then click “OK.”

The default settings of both items are “admin.”

The “Administrator” menu is displayed.

Click “Network.”

The “Network setting” menu appears.

Click the “Wireless network” tab.

Set the items for the wireless network.

aSelect “Infrastructure” on “Type.”

bEnter the “SSID” to match the setting on the

access point.

cEnter the “WEP key data” to match the

settings on the access point.

dClick “OK.”

Turn off the power of the camera.

Remove the network cable from the

camera.

Turn on the power of the camera

without connecting the network cable.

The Wireless setting is now enabled.

Click.

Type the user name.

Type the password.

Click.

1Infrastructure

3WEP key

data

2SSID

4OK

Sony Corporation

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de Sony

Sony

Sony SNC-M1W Manual de usuario

Sony

Sony Ipela SNC-WR630 Manual de usuario

Sony

Sony Ipela SNC-ER585 Manual de usuario

Sony

Sony UNIONEP520C2 Manual de usuario

Sony

Sony DFW-SX900 Manual de usuario

Sony

Sony XYSD723IR Manual de usuario

Sony

Sony XC-ST51 Manual de usuario

Sony

Sony IPELA SNC-RZ50N Manual de usuario

Sony

Sony IPELA EXWAREPRO SNC-DM160 Manual de usuario

Sony

Sony SNC-CS11 - IPELA Network Camera Manual de usuario

Sony

Sony Ipela SNC-EP520 Manual de usuario

Sony

Sony SSC-CD79 Manual de usuario

Sony

Sony SNCA-HRX550/EXT Manual de usuario

Sony

Sony DXC-390 Manual de usuario

Sony

Sony Ipela SNC-DH240T Manual de usuario

Sony

Sony IPELA SNC-DM110 Manual de usuario

Sony

Sony ExwaveHAD DXC-990 Manual de usuario

Sony

Sony IPELA SNC-DH120 Manual de usuario

Sony

Sony SSC-CB564R Manual de usuario

Sony

Sony SSC-FM560 Manual de usuario

Sony

Sony SNC-xx Guía de inicio rápido

Sony

Sony HD 3CCD COLOR BRC-H700 Manual de instalación

Sony

Sony BRC-Z330 Manual de usuario

Sony

Sony Ipela SNC-CS50N Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
