Getting Started

WARNING

To prevent fire or shock

hazard, do not expose

the unit to rain or

moisture.

To avoid electrical shock, do not open

the cabinet. Refer servicing to qualified

personnel only.

Do not install the appliance in a

confined space, such as a bookcase or

built-in cabinet.

Precautions

On safety

• Should any solid object or liquid fall

into the cabinet, unplug the receiver

and have it checked by qualified

personnel before operating it any

further.

On power sources

• Before operating the receiver, check

that the operating voltage is identical

with your local power supply. The

operating voltage is indicated on the

nameplate at the rear of the receiver.

• The receiver is not disconnected from

the AC power source (MAINS) as

long as it is connected to the wall

outlet, even if the receiver itself has

been turned off.

• If you are not going to use the

receiver for a long time, be sure to

disconnect the receiver from the wall

outlet. To disconnect the AC power

cord, grasp the plug itself; never pull

the cord.

• Should the AC power cord need to be

changed, have it done at a qualified

service shop only.

On placement

• Place the receiver in a location with

adequate ventilation to prevent heat

build-up and prolong the life of the

receiver.

• Do not place the receiver near heat

sources, or in a place subject to direct

sunlight, excessive dust or

mechanical shock.

• Do not place anything on top of the

cabinet that might block the

ventilation holes and cause

malfunctions.

On operation

• Before connecting other components,

be sure to turn off and unplug the

receiver.

On cleaning

• Clean the cabinet, panel and controls

with a soft cloth slightly moistened

with a mild detergent solution. Do

not use any type of abrasive pad,

scouring powder or solvent such as

alcohol or benzine.

If you have any question or problem

concerning your receiver, please

consult your nearest Sony dealer.

3GB

Getting Started

TABLE OF CONTENTS

Getting Started

Unpacking 4

Hookup Overview 4

Aerial Hookups 5

Audio Component Hookups 6

Video Component Hookups 6

Speaker System Hookups 7

AC Hookups 9

Before You Use Your Receiver 9

Receiver Operations

Selecting a Component 10

Receiving Broadcasts 12

Presetting Radio Stations 13

Recording 14

Using the Sleep Timer 14

Using Surround Sound

Choosing a Sound Field 15

Getting the Most Out of Dolby Pro Logic Surround Sound 16

Additional Information

Troubleshooting 19

Specifications 20

Glossary 21

Index 22

Rear Panel Descriptions 23

Remote Button Descriptions 24

Quick Reference Guide 25

About This Manual

The instructions in this manual is for

model STR-V323. Check your model

number by looking at the upper right

corner of the front panel.

Conventions

The instructions in this manual describe

the controls on the receiver. You can

also use the controls on the remote if

they have the same or similar names as

those on the receiver.

• A “Quick Reference Guide” is

supplied on page 25.

• The “Remote Button Descriptions”

section on page 24 provides an

overview of the remote buttons.

• The following icons are used in this

manual:

Indicates that you can use only

the remote to do the task.

Indicates hints and tips for

making the task easier.

This receiver has the Dolby Surround

system.

Manufactured under license from Dolby

Laboratories Licensing Corporation.

“Dolby , “Pro Logic” and the double-D

asymbol are trademarks of Dolby

Laboratories Licensing Corporation.

4GB

Getting Started

Unpacking

Check that you received the following items with the

receiver:

• FM wire aerial (1)

• AM loop aerial (1)

• Remote commander (remote) (1)

• Size AA (R6) batteries (2)

Inserting batteries into the remote

Insert two size AA (R6) batteries in accordance with

the + and – markings on the battery compartment.

When using the remote, point it at the remote sensor g

on the receiver.

When to replace batteries

Under normal use, the batteries should last for about 6

months. When the remote no longer operates the

receiver, replace both batteries with new ones.

Notes

• Do not leave the remote in an extremely hot or humid

place.

• Do not use a new battery with an old one.

• Do not expose the remote sensor to direct sunlight or

lighting apparatuses. Doing so may cause a malfunction.

• If you don’t use the remote for an extended period of time,

remove the batteries to avoid possible damage from

battery leakage and corrosion.

Hookup Overview

The receiver allows you to connect and control the

following audio/video components. Follow the

hookup procedures for the components that you want

to connect to the receiver on the pages specified. To

learn the locations and names of each jack, see “Rear

Panel Descriptions” on page 23.

Before you get started

• Turn off the power to all components before making

any connections.

• Do not connect the AC power cords until all of the

connections are completed.

• Be sure to make connections firmly to avoid hum

and noise.

• When connecting an audio/video cable, be sure to

match the color-coded pins to the appropriate jacks

on the components: Yellow (video) to Yellow; White

(left, audio) to White; and Red (right, audio) to Red.

CD player

MD/Tape deck Rear

speaker

(R)

AM/FM aerial

Rear

speaker

(L)

Video Component

Hookups (6)

Front

speaker

(L)

Speaker

System

Hookups (7)

Front

speaker

(R)

Center

speaker Active

woofer

Aerial Hookups (5)

TV monitor

TV tuner

LD player

VCR

Audio Component

Hookups (6)

DVD player/AC-3

decoder

]

}}

5GB

Getting Started

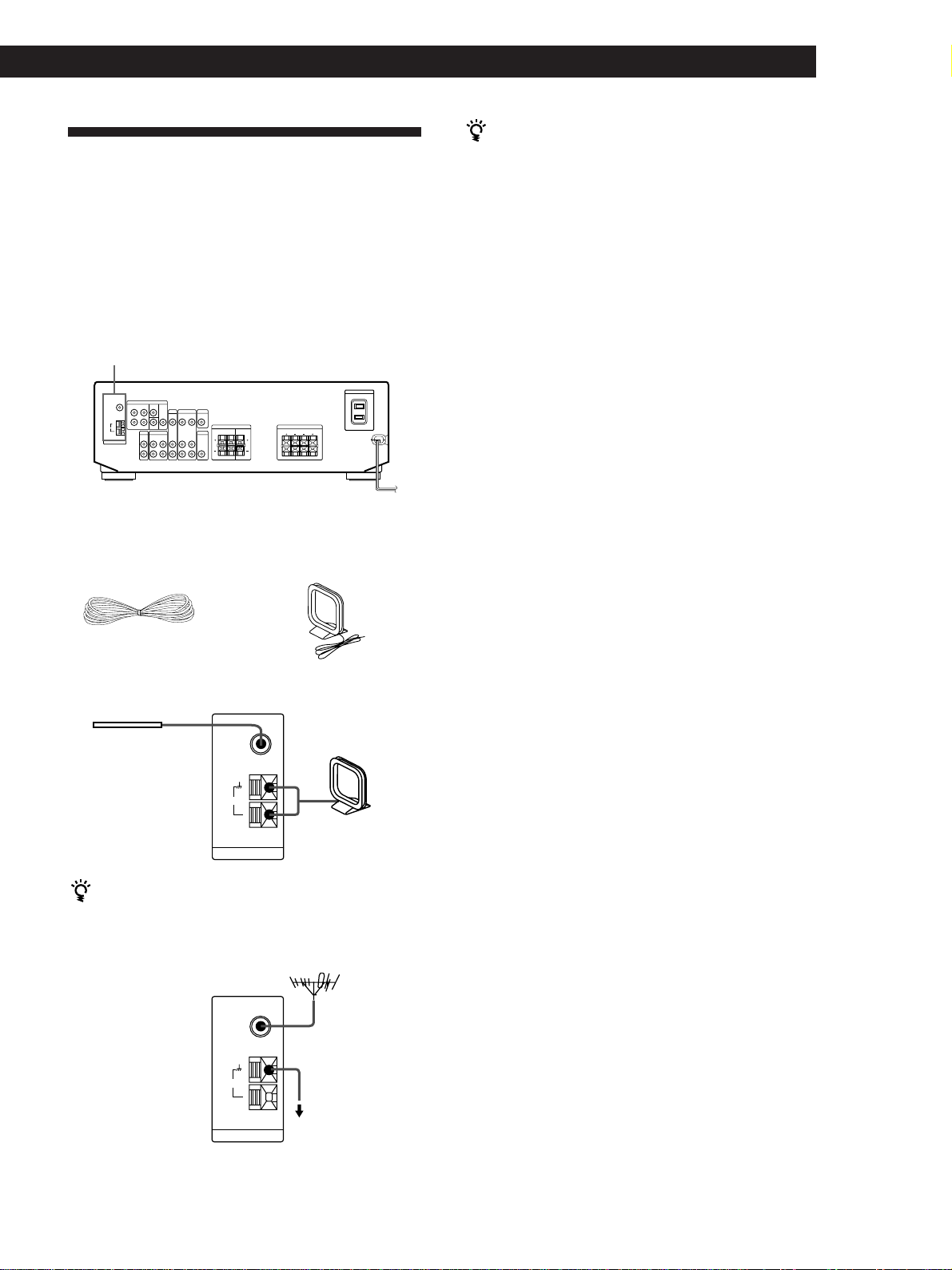

Aerial Hookups

Overview

This section describes how to connect AM and FM

aerials to the receiver. If you want to receive radio

broadcasts with the receiver, complete these

connections first, then go to the following pages.

For specific locations of the terminals, see the

illustration below.

What aerials will I need?

If you have poor AM reception

Connect a 6 to 15-meter (20 to 50 ft.) insulated wire (not

supplied) to the AM aerial terminal in addition to the

AM loop aerial. Try to extend the wire outdoors and

keep it horizontal.

Connecting a ground wire

If you connect the receiver to an outdoor aerial, ground

it against lightning as shown in the illustration in the

left column. To prevent a gas explosion, do not connect

the ground wire to a gas pipe.

Where do I go next?

If you want to connect other components, go on to the next

section. If you’re only planning to use the receiver to listen

to the radio, go to “Speaker System Hookups” on page 7.

• AM loop aerial

(supplied) (1)

• FM wire aerial

(supplied) (1)

FM wire aerial

Hookups

If you have poor FM reception

Use a 75-ohm coaxial cable (not supplied) to connect the

receiver to an outdoor FM aerial as shown below.

AERIAL

After connecting

the wire aerial,

keep it as

horizontal as

possible.

AM loop aerial

Receiver

ANTENNA

75Ω

COAXIAL

ANTENNA

75Ω

COAXIAL

Receiver

Ground wire

(not supplied)

to ground

FM outdoor aerial

6GB

Getting Started

MONITOR

VIDEO OUT

INPUT

VIDEO

Audio Component Hookups

Overview

This section describes how to connect your audio

components to the receiver. If you want to use the

receiver as an amplifier, complete these connections.

For specific locations of the jacks, see the illustration

below.

What cords will I need?

Audio cords (not supplied) (1 for CD player; 2 for each MD

recorder or tape deck)

Hookups

The arrow çindicates signal flow.

CD player

MD deck or Tape deck

Where do I go next?

Go on to the next section to connect video components to

enjoy surround sound when watching/listening to TV

programmes or video tapes.

OUTPUT

LINE

Receiver CD player

Receiver MD deck or Tape deck

MD/TAPE

Red (R)

White (L)

IN OUTPUT

LINE INPUT

LINE

MD/TAPE

REC OUT

Yellow Yellow

MONITOR

TV/LD

VIDEO

White (L)

Yellow

Red (R) White (L)

Yellow

Red (R)

Video Component Hookups

Overview

This section describes how to connect video

components to the receiver. For specific locations of the

jacks, see the illustration below.

What cables will I need?

• Audio/video cable (not supplied) (1 for each TV tuner or

LD player; 2 for the VCR)

• Video cable (not supplied) (1 for a TV monitor)

Hookups

The arrow çindicates signal flow.

You can listen to the sound from VCR or TV/LD by

connecting the audio signal from VCR or TV/LD to the

receiver.

TV/LD

MONITOR

5.1 CH/DVD

TV tuner or LD player

AUDIO IN

TV/LD

VIDEO IN

AUDIO

OUTPUT

VIDEO

Receiver

Receiver TV monitor

7GB

Getting Started

VCR

Use the function buttons (TV/LD, CD, MD/TAPE etc)

to select the VIDEO AUDIO OUT signal. You can record

this audio signal by connecting a recording component

such as a cassette deck (to the VIDEO AUDIO OUT

jack).

DVD player/AC-3 decoder

What cables will I need?

• Audio cable (not supplied) (1 for each 5.1 CH/DVD

FRONT and REAR jacks)

• Monaural audio cable (not supplied) (1 for each 5.1

CH/DVD CENTER and WOOFER jacks)

• Video cable (not supplied) (1 for the 5.1 CH/DVD

VIDEO IN jack)

You can play decoded Dolby Digital AC-3 soundtracks

through the speakers connected to the amplifier.

If you have a Dolby Digital AC-3 decoder you can

amplify a decoded Dolby Digital AC-3 soundtrack with

the following connections.

Where do I go next?

Go on to the next section to connect the speakers.

White (L)

Red (R) White (L)

Red (R)

Black Black

Yellow Yellow

Receiver VCR

AUDIO IN

VIDEO

VIDEO IN

AUDIO

OUTPUT

VIDEO

AUDIO

INPUT

VIDEO

AUDIO OUT

VIDEO OUT

FRONTREARCENTER

WOOFER

VIDEO

PRE OUT

5.1 CH/DVD

FRONT REAR CENTER

WOOFER

VIDEO

Receiver Dolby Digital AC-3

decoder, etc.

Speaker System Hookups

Overview

This section describes how to connect your speakers to

the receiver. Although front (left and right) speakers

are required, centre and rear speakers are optional.

Adding centre and rear speakers will enhance the

surround effects. Connecting an active woofer will

increase bass response. For specific locations of the

terminals, see the illustration below.

For optimum surround sound effect, place your

speakers as shown below.

What cords will I need?

Speaker cord (not supplied) (1 for each speaker)

Twist the stripped ends of the cord about 15 mm (2/3 inch).

Be sure to match the speaker cord to the appropriate

terminal on the components: + to + and – to –. If the cords

are reversed, the sound will be distorted and will lack bass.

45°

WOOFER

SPEAKERS

FRONT A

SPEAKERS

CENTER

SPEAKERS REAR

60 - 90 cm

Rear speaker

(+)(+)

(–)

SPEAKERS

FRONT B

(continued)

8GB

Getting Started

SPEAKERS

FRONT

Hookups

Front speakers

Rear and centre speakers

To avoid short-circuiting the speakers

Short-circuiting of the speakers may damage the

receiver. To prevent this, make sure to take the

following precautions when connecting the speakers.

Make sure the stripped ends of each speaker cord does

not touch another speaker terminal or the stripped end

of another speaker cord.

Examples of poor conditions of the speaker cord:

Stripped speaker cord is touching another speaker

terminal.

Stripped cords are touching each other due to excessive

removal of insulation

Center speaker

Rear speaker

(R) Rear speaker

(L)

Receiver

Front speaker

(R) Front speaker

(L)

Receiver

FRONT

SPEAKERS

+–

FRONT

SPEAKERS

+–

After connecting all the components, speakers and AC

power cord, output a test tone to check that all the

speakers are connected correctly. For details on

outputting a test tone, refer to ”Adjusting the speaker

volume”, on page 17.

If you have connected rear speakers, be sure to press

the 5.1 CH/DVD button and turn off sound filed on

the receiver before outputting a test tone so that the

tone is output individually from the left and right rear

speakers.

If no sound is heard from a speaker while outputting a

test tone or a test tone is output from a speaker other

than the one whose name is currently displayed on the

receiver, the speaker may be short-circuited. If this

happens, check the speaker connection again.

Active woofer

Note

Do not connect any other componet.

If you have an additional front speaker system

Connect them to the SPEAKERS FRONT B terminals.

If your TV monitor uses separate speakers

You can connect one of them to the SPEAKERS

CENTER terminals for use with Dolby Pro Logic

Surround sound (see page 16).

Selecting the speaker system

To drive the speakers, select the speaker system as

follows:

WOOFER

AUDIO OUT

INPUT

Receiver Active Woofer

SPEAKERS

REAR

CENTER

To drive

Speaker system A (connected

to the SPEAKERS FRONT A

terminals)

Speaker system B (connected

to the SPEAKERS FRONT B

terminals)

Both speaker systems A and

B (series connection)

Depress SPEAKERS button

A+B

9GB

Getting Started

Notes

• If you want to enjoy the surround sound, be sure to

connect the front speakers to the SPEAKERS FRONT A

terminal.

• No sound is heard when you press SPEAKERS A+B

without connecting speaker system B.

Where do I go next?

To complete your system, go to “AC Hookups” on this page.

AC Hookups

Connecting the mains lead

Connect the mains lead from this receiver and from

your audio/video components to a wall outlet. If you

connect other audio components to the SWITCHED

AC OUTLET on the receiver, the receiver can supply

power to the connected components so you can turn

on/off the whole system when you turn on/off the

receiver.

Caution

Make sure that the power consumption of the component

connected to the receiver’s AC outlet does not exceed 100

watts. Do not connect high-wattage electrical home

appliances such as electric irons, fans, or TVs to this outlet.

Where do I go next?

Before you use the receiver, go to the next section to make

sure that all the controls are set to the appropriate positions.

to a wall outlet

SWITCHED AC OUTLET

Before You Use Your Receiver

Before turning on the receiver, make sure that you

have:

• Turned MASTER VOLUME to the leftmost

position (0).

• Selected the appropriate speaker system. (See

“Selecting the speaker system” on previous page.)

• Set BALANCE to the center position.

Before you use your receiver for the first time or when

you want to clear the receiver's memory, do the

procedure below:

1Turn off the receiver.

2Press 1/u(power) for more than 4 seconds.

“INITIAL” appears in the display and the items

including the following are reset or cleared:

• All preset stations are reset to their factory

settings.

• All sound field parameters are reset to their

factory settings.

• All index names (of preset stations and

programme sources) are cleared.

• All adjustments made with the SET UP button are

reset to their factory settings.

• The sound field memorized for each programme

source and preset station is cleared.

Turn on the receiver and check the following indicator.

• Press MUTING or MUTING on the remote if the

MUTING indicator turns on.

1/u(power)

MUTING

Receiver Operations

10GB

Mute the sound

Reinforce the bass

Adjust the balance

Adjust the tone quality

When you listen with headphones

Connect the headphones to the PHONES jack and set

the SPEAKERS buttons to OFF.

Watching/listening to video programmes

When you watch/listen to TV or video programmes,

we recommend you play audio portion through the

receiver instead of your TV’s speaker. This lets you

take advantage of the receiver’s surround sound

effects, like Dolby Pro Logic Surround and lets you use

the receiver’s remote to control the audio.

Turn off the speakers on your TV before you start so

you can enjoy the surround sound from your receiver.

To watch/listen to TV programmes, turn on the TV, TV

tuner and the receiver and press TV/LD on the receiver.

To watch videos, do the following:

1Press VIDEO to select the VCR.

2Turn on the TV and set the TV’s video input to

match your video component.

3Turn on the VCR, and start playback.

Using the remote

The remote lets you operate the receiver and the Sony

components that are connected to it.

Selecting a Component

To listen to or watch a connected component, first

select the function on the receiver or with the remote.

Before you begin, make sure you have:

• Connected all components securely and correctly as

indicated on pages 5 to 9.

• Turned MASTER VOLUME to the leftmost position

(0) to avoid damaging your speakers.

1Press 1/u (power) to turn on the receiver.

2Press a function button to select the component

you want to use:

3Turn on the component, for example, a CD player,

and then start playing.

To tune in radio stations on this receiver, see

“Receiving Broadcasts” on page 12.

4Turn MASTER VOLUME to adjust the volume.

To adjust the volume of the TV’s speakers, use the

volume control on the TV.

To listen to or watch

Radio programmes

Compact discs (CD)

MiniDiscs (MD) or

audio tapes

TV programmes or Laserdisc

Video tapes

DVD player/AC-3 decoder

MUTING

MASTER VOLUME

BALANCE

TREBLE

5.1 CH/DVD

BASS

BOOST

Function buttons

1/u(power) BASS

Function

buttons

SYSTEM

STANDBY

Press

TUNER

MD/TAPE

TV/LD

VIDEO

5.1 CH/DVD

Do this

Press MUTING or MUTING

on the remote. Press again to

restore the sound.

Press BASS BOOST or BASS

BOOST on the remote to turn

on the BASS BOOST

indicator.

Turn the BALANCE control

left or right.

Adjust the BASS and TREBLE

controls.

Tabla de contenidos

Otros manuales de Receptor de Sony

Sony

Sony DMX-NV1 (For DMX-NV1 model sold separately) Manual de usuario

Sony

Sony STR-DG720 Manual de usuario

Sony

Sony STR-DA2800ES Manual de usuario

Sony

Sony FreFlow FFS-R Series Manual de usuario

Sony

Sony STR-DE475 - Fm Stereo/fm-am Receiver Manual de usuario

Sony

Sony XT-XM1 - Xm Satellite Radio Tuner Manual de usuario

Sony

Sony STR-DH590 Manual de usuario

Sony

Sony HCD-M80 Manual de usuario

Sony

Sony STR-DG700 Manual de usuario

Sony

Sony HKC-WL50 Manual de usuario

Sony

Sony VGC-RA304 Manual de usuario

Sony

Sony HCD-GPX5G Manual de usuario

Sony

Sony STR-SL50 Manual de usuario

Sony

Sony DIRECTV RECEIVER SAT-W60 Manual de usuario

Sony

Sony ICF-M350V Manual de usuario

Sony

Sony STR-DH800 Manual de usuario

Sony

Sony STR-DH510 - 10str Hifi Manual de usuario

Sony

Sony DWZ-B50I Manual de usuario

Sony

Sony STR-DA3200ES - Es Receiver Manual de usuario

Sony

Sony STR-DG800 Manual de usuario

Sony

Sony STR-ZA1000ES Manual de usuario

Sony

Sony STR-DG2100 - Multi Channel A/v Receiver Manual de usuario

Sony

Sony STR-K890 Manual de usuario

Sony

Sony STR-DE345 - Fm Stereo/fm-am Receiver Guía del usuario

Manuales populares de Receptor de otras marcas

Garmin

Garmin GA 23 Manual de usuario

Aiphone

Aiphone PS-12F Manual de usuario

IMES

IMES TCS-01CA-PMI Manual de usuario

BWI Eagle

BWI Eagle AIR-EAGLE SR Manual

AMIMON

AMIMON AMN12310 WHDI Manual de usuario

Dual

Dual DMCPA79BT Instrucciones de funcionamiento

Sound Associates

Sound Associates SA652P Manual de usuario

Sherwood

Sherwood NewCastle R-772 Manual de usuario

Audio

Audio A10-RX Series Manual de usuario

AllSee

AllSee PushShare PSRV1.1 Manual de usuario

DEMAG

DEMAG DRC-DR D2 Manual de usuario

Teleco

Teleco TVRCL868A02 Manual de usuario

Bosch

Bosch RF3222E Manual de usuario

Kramer

Kramer 631R Manual de usuario

Xpress

Xpress xmc10 Manual de usuario

JVC

JVC KD-MR1BTS Manual de usuario

Omega Engineering

Omega Engineering UWTC-REC3 Manual de usuario

e-survey

e-survey E300 Pro Manual de usuario
