Sony STR-DB895D Guía de inicio rápido

STR-DB895D 2-630-430-01(1) GB

2-630-430-01(1)

This Easy Setup Guide explains how to connect the DVD player, TV, speakers, and sub

woofer so you can enjoy multi channel surround sound from the DVD player. For details,

refer to the operating instructions supplied with the receiver.

Setting when using DVD player or “Play Station 2”

When you connect DVD player or “Play Station 2”, perform the following settings on each

component.

DVD player*

1Select “AUDIO SETUP” in the setup display.

2Set “AUDIO DRC” to “WIDE RANGE”.

3Set “DIGITAL OUT” to “ON”.

4Set “DOLBY DIGITAL” to “DOLBY DIGITAL”.

5Set “DTS” to “ON”.

* The above setting is an example of Sony DVD player.

“Play Station 2”

1Select “AUDIO SETTING” in the setup display.

2Select “AUDIO DIGITAL OUTPUT”.

3Set “OPTICAL DIGITAL OUTPUT” to “ON”.

4Set “DOLBY DIGITAL” to “DOLBY DIGITAL”.

5Set “DTS” to “ON”.

“Play Station 2” is a trademark of Sony Computer Entertainment.

Note

When connecting a DVD player, be sure to connect to analog (AUDIO L/R) jacks,

not only digital (COAXIAL or OPTICAL) jacks.

If no sound comes out

Press INPUT MODE repeatedly to select “AUTO IN”.

DAB/FM/AM Receiver

STR-DB895D

Easy Setup Guide

DIGITAL

DVD

MD/

TAPE

TV/

SAT

MD/

TAPE

OUT

DVD

COAXIAL

SA-CD/

COMPONENT VIDEO

PB/CB

/B−Y

PR/CR

/R−Y

TV/SAT IN DVD IN MONITOR

OUT

ANTENNA AUDIO VIDEO SUB WOOFER

PHONO

SURR

FRONT

MONITOR OUT

OUT

IN VIDEO

OUT

VIDEO S-VIDEOAUDIO

VIDEO

TV/

SAT

SUB WOOFER CENTER

SA-CD/

OUT

MD/

TAPE

MULTI CH IN

RL L

FRONT

BCENTER

~ AC IN

OPTICAL

AUDIO OUT

DAB

COAXIAL

ASSIGNABLE

SIGNAL

GROUND

COAXIAL

OUTPUT

R L VIDEOAUDIO

DIGITAL OUT

COAXIAL

INPUT

AUDIO

INPUT

VIDEO

SURR

FRONT

SURR

BACK

SPEAKERS

IN DVD

DVD player

Speaker cord

Video cord

Audio/video cord

Coaxial cord

Monaural audio cord

Speaker cord

BFront speaker

(right) AFront speaker

(left) DSub woofer

FSurround

speaker (right) ESurround

speaker (left)

Surround back

speaker (right)

HSurround back

speaker (left)

GCCenter

speaker

2630430011_DB895DGB.p65 1/11/32, 12:45 AM1

STR-DB895D 2-630-430-01(1) GB

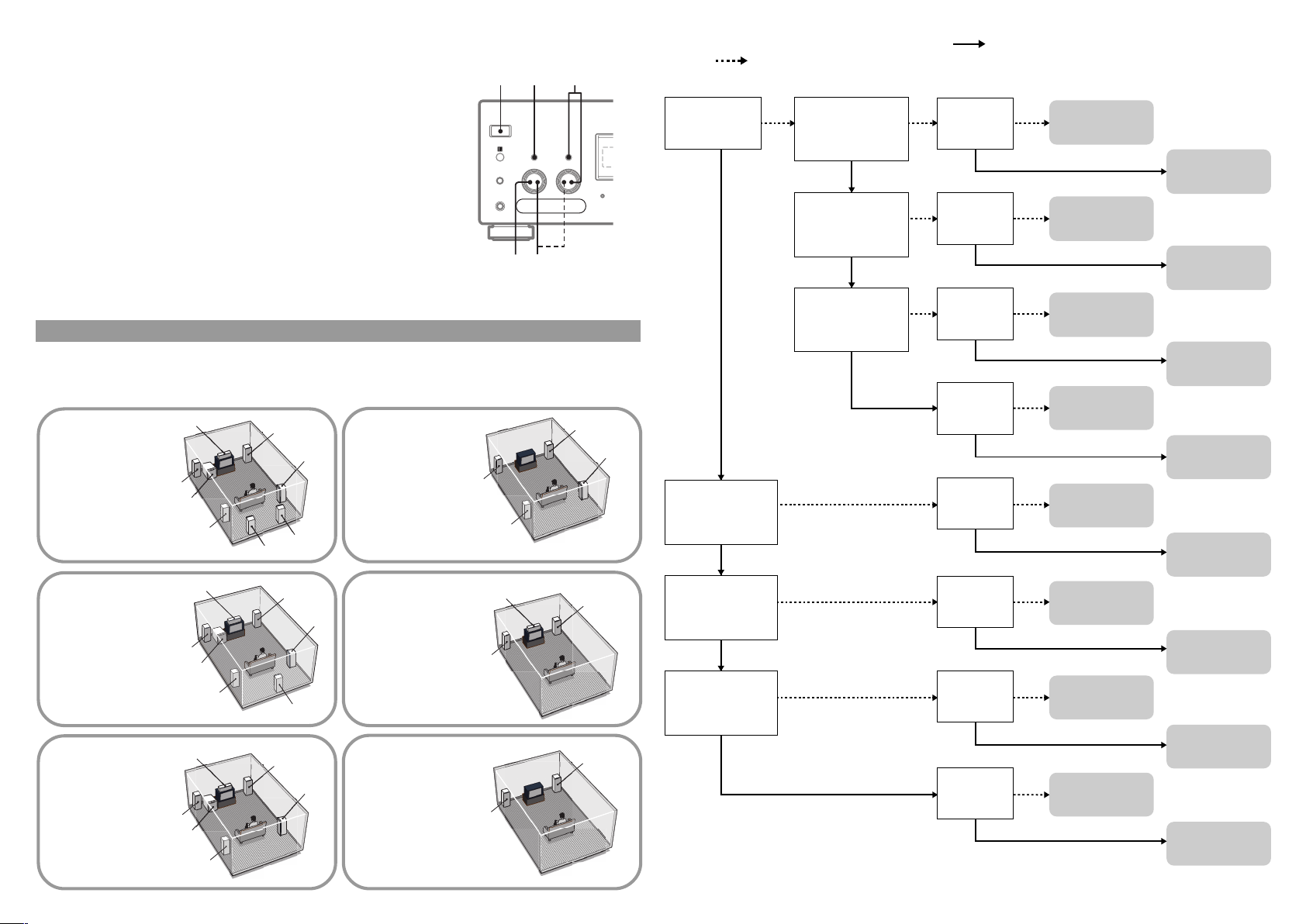

Easy setup guide for speaker system

Refer to the front page for speaker connections (A–H).

You can setup the speakers easily by selecting the

speaker pattern.

1Find your speaker pattern refering to the illustration below.

You can use the flow chart on the right.

2Press ?/1 to turn on the system.

3Press MAIN MENU repeatedly to select “SP SETUP ”.

4Turn MENU to select “EASY SET”. If it does not appear, select

“NORM. SET”and turn –/+ to select “EASY SET”.

5Turn MENU to select “SP PAT. X –X”.

6Turn –/+ to select your speaker pattern, then press MEMORY/ENTER.

What is your speaker pattern ?

The speaker pattern depends on the number of speakers you have.

Refer to the illustration at left, follow (Yes) if you have the speakers and

follow (No) if you do not.

7 speakers and

a sub woofer

6 speakers and

a sub woofer

6-1

5 speakers and

a sub woofer

5-1

4 speakers

4-0

Set to

3 speakers

3-0

Set to

2 speakers

2-0

AFront speaker (L)

BFront speaker (R)

Set to

7-1

Set to

Center speaker

Yes

Surround speakers

Eand FNo No

Yes

Set to 2-0

Set to 4-0

Set to 5C0

Set to 6C0

Set to 3-0

Set to 5-0

Set to 6-0

Set to 7-0

Set to 2-1

Set to 4-1

Set to 5C1

Set to 6C1

Set to 3-1

Set to 5-1

Set to 6-1

Set to 7-1

Sub woofer

Surround back

speaker

Gor H

Surround back

speakers (L) (R)

Gand HD

Sub woofer

Yes

Surround speakers

Eand F

Surround back

speaker

Gor H

Surround back

speakers (L) (R)

Gand H

Sub woofer

ESurround speaker (L)

FSurround speaker (R)

CCenter speaker

DSub woofer

GSurround back speaker (L)

HSurround back speaker (R)

2630430011_DB895DGB.p65 1/11/32, 12:45 AM2
