Sony DWT-B30/H Manual de usuario

SONY DWX Slot-In Bundle

QUICK SETUP GUIDE

Contact Karno Sound for 24hr support:

07747515123 |07715103222 |07952129649

Email : [email protected]

Receivers (Rx):

• DWR-S03D/HU1 - Slot-in Receiver,

566.025 MHz to 714.000 MHz, plus

DWA-SLAU1 Universal adapter (TV 33-51)

• DWR-S03D/LU1 - Slot-in Receiver,

470.025 MHz to 614.000 MHz, plus

DWA-SLAU1 Universal adapter (TV 21-38)

Transmitters (Tx):

• DWT-B03R/H - Micro Gen3 bodypack,

566.025 MHz to 714.000 MHz (TV 33-51)

• DWT-B03R/L - Micro Gen3 bodypack,

470.025 MHz to 614.000 MHz (TV 21-38)

• DWT-B30/H - Gen3 bodypack, 566.025

MHz to 714.000 MHz (TV 33-51)

• DWT-B30/L - Gen3 bodypack, 470.025

MHz to 614.000 MHz (TV 21-38)

SONY DWX Slot-In Bundle

QUICK SETUP GUIDE

Contact Karno Sound for 24hr support:

07747515123 |07715103222 |07952129649

Email : [email protected]

Contents

Setup

Initial Setup of Slot-In ...........................................................3

Pairing of Tx to Rx ...............................................................4

Superslot™ Functions

Superslot™ Display ...............................................................5

Superslot™ Tx Options Menu ..............................................5

Other Functions

Channel Scan Functions ........................................................6

Manual Tx Control ..........................................................7

SONY DWX Slot-In Bundle

QUICK SETUP GUIDE

Contact Karno Sound for 24hr support:

07747515123 |07715103222 |07952129649

Email : [email protected]

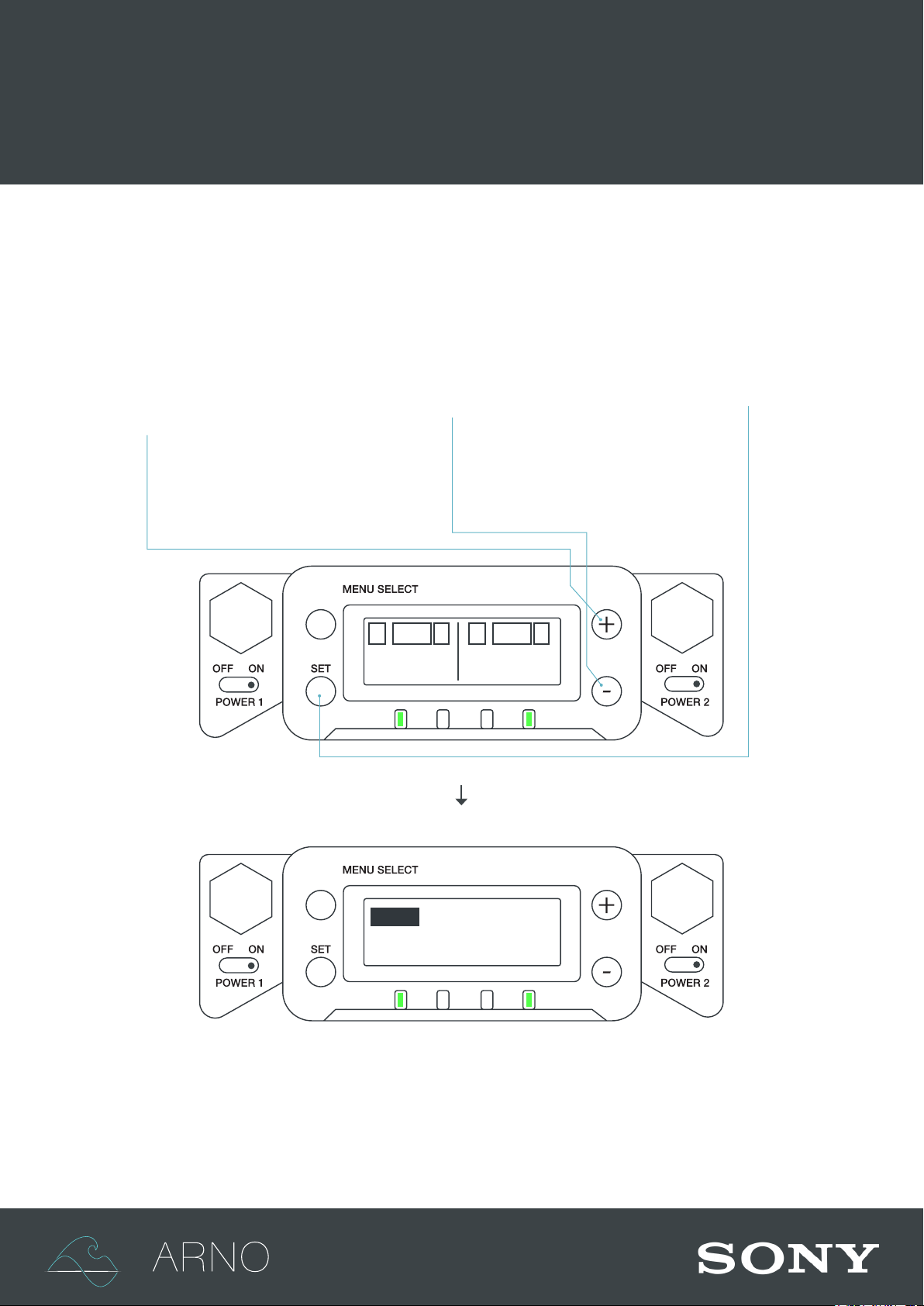

Initial Setup of Slot-In

When powered on for the rst time, or after a factory reset, the DWR-S03D will be set to output in analog mode.

When using the DWR-S03D with an SL-2, this has to be switched to digital. When on the ‘Main’ display, as per

below diagram (ndable using ‘Menu Select’), press Minus (-) until Audio Output is displayed. Hold ‘Set’ to edit, use

Plus (+) to nd Digital and press ‘Set’ to conrm.

UTILITY

POWER 2

AUDIO OUTPUT

DIGITAL

POWER 1

AUTO

SCAN/SYNC

RF 1 RF 2

A B

POWER 2

TX---

POWER 1

AUTO

SCAN/SYNC

RF 1 RF 2

A B

1TY

TX---

SONY DWX Slot-In Bundle

QUICK SETUP GUIDE

Contact Karno Sound for 24hr support:

07747515123 |07715103222 |07952129649

Email : [email protected]

Power on whilst holding

the Minus (-) button

POWER

Pairing Txs to Rx

Using Crossremote, you can control many of the parameters within a Tx from the Rx top panel or within a Sound

Devices 8-series mixer. This link is across a separate 2.4gHz network generated by the Rx and a data pairing has

to be established.

Power on channel 1 or 2 whilst holding the

Minus (-) button

The Receiver will scan for the name of the Tx. Once found, press ‘Set’ and the data link will be established. You

should see the following screens:

TX1

RF REMOTE

SCANNING...

---

Power on side

TX1 TX1 TX1

Tx 1

SCANNING...

SONY DWX Slot-In Bundle

QUICK SETUP GUIDE

Key Features:

Superslot™ Tx Options Menu

1. Power Save – Allows Tx to go in and out of Sleep mode

2. +48V Phantom – Only applicable to DWT-P01N Plug-On

Transmitter

3. Button Lock – Disable Settings and/or Power switch on Tx

4. Attenuation – Real-time control of Tx attenuation in 3dB steps

from 0dB to 48dB. Attenuation is a negative gure, the higher the

number, the quieter the signal will be

5. Low Cut Filter – Real-time control of LCF up to 220Hz

6. RF Power – Switchable 2/10/25mW power. (25mW has to be

enabled on Tx as an option)

7. Sync Band/GP/CH – If a change in frequency is made to the Rx,

this control sends the ‘Change Frequency’ signal to the Tx

8. Sync Codec Mode – If a change in Codec mode is made to the

Rx, this control sends a ‘Change Codec’ signal to the Tx

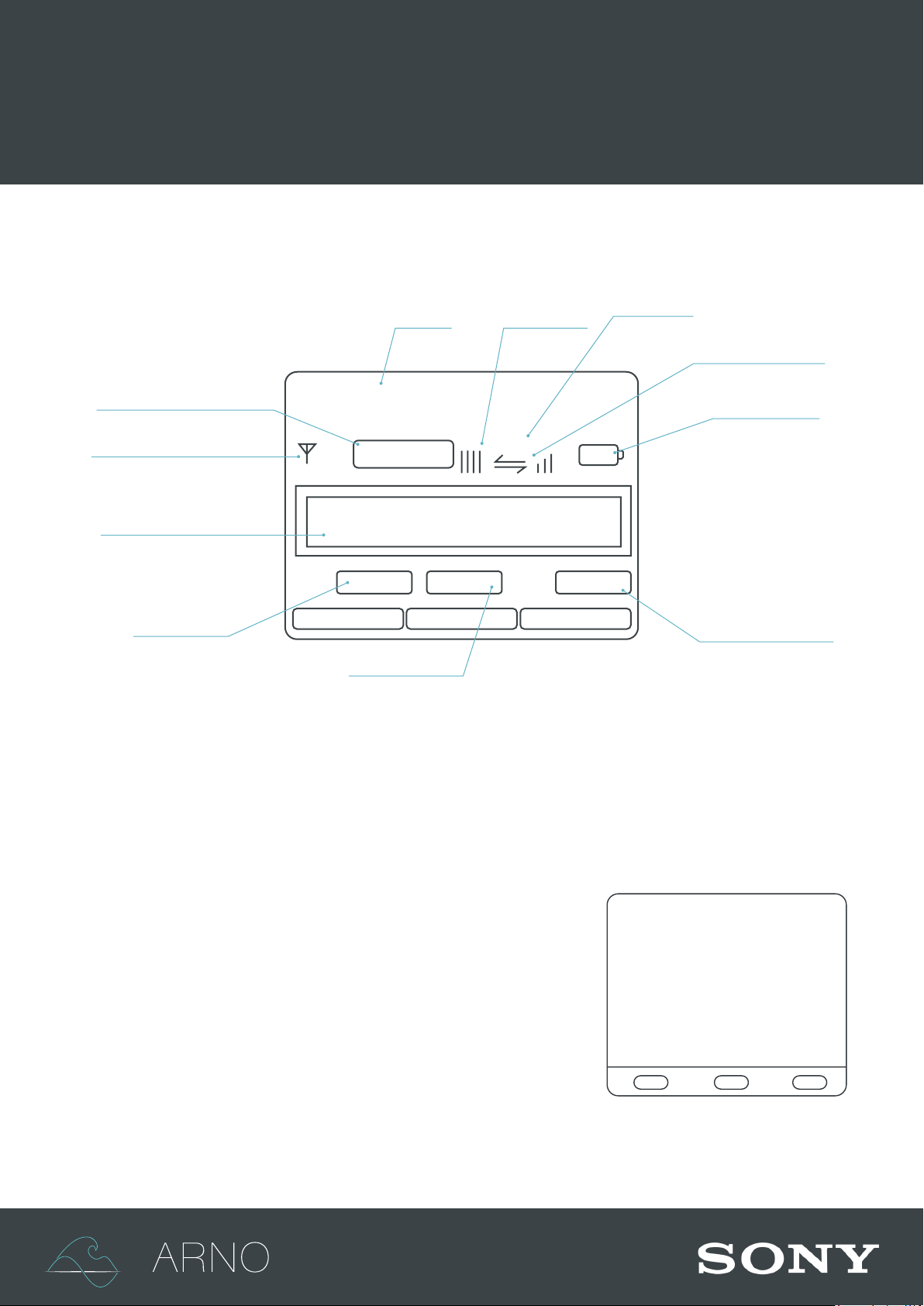

Sound Devices Superslot™ Display

RF History

Freq. Groups

Antenna in use

TV Channel Block

Individual frequency

channel within Group

Tx Battery Level

Quality Level

Tx Name Tx RF Power

CrossRemote Level

Frequency (selectable)

Contact Karno Sound for 24hr support:

07747515123 |07715103222 |07952129649

Email : [email protected]

A1: Sony DWR-S03D [TX 1]

B610.125

GR: D4 TV38 3833

RF Clear Scan Tx Options Rx Options

CH:

2mW

-50 -35 -20 -12 0

A1: Sony DWR-S03D - Tx Options

1. Power Save Active

2. +48V Phantom Unlock

3. Button Lock 0 dB

4. Attenuation  O

5. Low Cut Filter 2mW

6. RF Power

7. Sync Band/GP/CH

8. Sync Codec Mode

*Crossremote™ connection needs to be established for below control see page 4.

SONY DWX Slot-In Bundle

QUICK SETUP GUIDE

Contact Karno Sound for 24hr support:

07747515123 |07715103222 |07952129649

Email : [email protected]

If your Tx is out of range of Crossremote, you can change parameters manually.

Power on the Tx whilst holding down the ‘Set’ button. This puts the unit into a ‘soft start’ mode where it does not

transmit, this can be seen by the lack of antenna logo on the display.

Controlling Tx manually

Once the parameter has been set, power cycle the Tx and the antenna logo should

reappear, meaning it is now transmitting.

POWER

SET

NAME

TX 2

NAME

TX 2

SONY DWX Slot-In Bundle

QUICK SETUP GUIDE

Contact Karno Sound for 24hr support:

07747515123 |07715103222 |07952129649

Email : [email protected]

Key Features:

Holding ‘Menu Select’ and ‘Set’ at any time brings up the ‘Auto Scan/Sync’ function. This performs a scan of the

entire frequency spectrum of the receiver and nds the best 1 or 2 frequencies available (depending on how many

Crossremote paired Txs are available). Once found, the Rx can deploy both frequencies for any paired transmitters

(up to 2).

Channel Scan Options

When performing any frequency scans, the audio transmission is interrupted. Powering on the receiver and holding

Plus (+) shortcuts the Rx to complete a clear channel scan of the frequency block it was last in. It will then display

optimum frequencies, with the lowest detected RF noise. Once chosen, press ‘Set’ to change the frequency of the

Rx (and of the Tx if a CrossRemote is set up).

Clear Channel Scan

RX1

3818 CLR

608.250MHz

QL RX1

3810 0dB uV

607.250MHzSET

QL RX1

GPCH Send TX?

YES

UTILITY

AUTO SCAN/SYNC

START? YES

UTILITY

TX STATUS

SLEEP...

UTILITY

2133 SCAN...

474.625MHz

UTILITY

1: 470.625MHz

2: 471.125MHz

UTILITY

SET FREQUENCY?

RX1-TX1/RX2-TX2

UTILITY

WAIT...

UTILITY

1: COMPLETE

2: COMPLETE

Auto Scan/Sync
