Sony SU-W110 Manual de usuario

Wall-Mount Bracket SU-W110

SU-W110

4-095-513-12 (1)

Operating Instructions

Bedienungsanleitung

Gebruiksaanwijzing

Manual de instruções

Bruksanvisning

Mode d’emploi

Istruzioni per l’uso

Manual de instrucciones

Käyttöohje

Bruksanvisning

Betjeningsvejledning

Οδηγίες Χρήσης

Инcтpyкция по эксплуатации

Instrukcja obsługi

Wall-Mount Bracket

2(GB)

Thank you for purchasing this product.

To Customers

Sufficient expertise is required for

installing this product. Be sure to

subcontract the installation to Sony

dealers or licensed contractors and

pay special attention to safety

during the installation. Sony is not

liable for any damages or injury

caused by mishandling or improper

installation. Your Statutory Rights (if

any) are not affected.

This Wall-Mount Bracket is only for

Sony LCD Color TVs. Do not use the

bracket with a TV whose operating

instructions do not specify the use of

this bracket.

WARNING

If the safety precautions are not observed

or the product is used incorrectly, it may

result in serious injury or fire.

This instruction manual shows the

correct handling of the product and

important precautions necessary to

prevent accidents. Be sure to read this

manual thoroughly and use the product

correctly. Keep this manual available for

future reference.

To Sony Dealers

Sufficient expertise is required for

installing this product. Be sure to read

this instruction manual thoroughly to do

the installation work safely. Sony is not

liable for any damages or injury caused

by mishandling or improper installation.

Please give this manual to the customer

after installation.

On Safety

Products by Sony are designed with

safety in mind.

If the products are used incorrectly,

however, it may result in a serious injury

through fire, electric shock, the product

toppling over, or the product dropping.

Be sure to observe the precautions for

safety to prevent such accidents.

3(GB)

English

To Customers

WARNING

If the following precautions are

not observed, serious injury or

death through fire, electric shock,

the product toppling over, or the

product dropping can result.

Be sure to subcontract the

installation to licensed

contractors and keep small

children away during the

installation.

If the Wall-Mount Bracket or the TV is

not installed correctly, the following

accidents may occur. Be sure licensed

contractors carry out installation.

•The TV may fall and cause a serious

injury such as a bruise or a fracture.

•If the wall on which the Wall-Mount

Bracket is installed is unstable, uneven,

or not perpendicular to the floor, the

TV may fall and cause injury or

property damage. The wall should be

capable of supporting a weight of at

least four times the TV weight.

•If the installation of the Wall-Mount

Bracket on the wall

is not sufficiently

sturdy, the TV may

fall and cause

injury or property

damage.

Be sure to subcontract moving

or dismounting of the TV to

licensed contractors.

If persons other than licensed contractors

transport or dismount the TV, it may fall

and cause injury or property damage. Be

sure that two or more persons carry or

dismount the TV.

Do not spill liquid of any kind

on the TV.

If you allow the TV to get wet, this may

result in a fire or an electric shock.

Do not remove screws, etc.,

after mounting the TV.

If you do so, the TV may fall and cause

injury or property damage.

Do not disassemble or make

alterations to the parts of the

Wall-Mount Bracket.

If you do so, the Wall-

Mount Bracket may fall

and cause injury or

property damage.

4(GB)

Do not mount any equipment

other than the specified

product.

This Wall-Mount Bracket is designed for

use with the specified product only. If

you mount equipment other than

specified, it may fall or break, and cause

injury or property damage.

Do not cover the ventilation

hole of the TV.

If you cover the

ventilation hole (with a

cloth, etc.), heat may

build up inside and

cause fire.

Do not apply any load other

than the TV on the Wall-Mount

Bracket.

If you do so, the TV

may fall and cause

injury or property

damage.

Do not lean on or hang from

the TV.

Do not lean on or hang

from the TV as it may

fall on you and cause

serious injury.

Do not expose the TV to rain or

moisture.

It may cause a fire or an electric

shock.

Never place the TV in hot,

humid or excessively dusty

places, or in the place where

the TV is subjected to

mechanical vibrations.

If you do so, it may cause a fire or an

electric shock.

Keep flammable objects or

open flames (e.g. candles)

away from the TV.

To prevent a fire, keep flammable objects

or open flames (e.g. candles) away from

the TV.

5(GB)

CAUTION

If the following precautions are

not observed, injury or property

damage may occur.

Do not install the Wall-Mount

Bracket on wall surfaces where

the corners or the sides of the

TV protrude away from the

wall surface.

Do not install the Wall-Mount Bracket on

wall surfaces such as a pillar, where the

corners or the sides of the TV protrude

away from the wall surface. If a person

or object happens to

hit the protruded

corner or side of the

TV, it may cause

injury or property

damage.

Do not handle the product

with excessive force during

cleaning or maintenance.

Do not apply excessive force on the

topside of the TV. If you do so, the TV

may fall and cause injury or property

damage.

Do not install the TV over or

under an air-conditioner.

If the TV is exposed to water leaks or air

current from an air-conditioner for a

long time, it may cause a fire, an electric

shock or a malfunction of the TV.

Precautions

•If you use the TV installed on the Wall-

Mount Bracket for a long time, the

wall behind or above the TV may

become discolored or the wallpaper

may come unstuck, depending on the

material of the wall.

•If the Wall-Mount Bracket is removed

after installing it on the wall, the screw

holes are left.

•If you have routed 300-ohm feeder

cables behind the wall, we recommend

that you change them to 75-ohm

coaxial cables.

If it is necessary to continue to use 300-

ohm feeder cables, be sure there is

sufficient space available between the

TV and the feeder cables behind the

wall before installing. Consult your

licensed contractor regarding an

appropriate location (free from radio

noise, etc.) before installing.

6(GB)

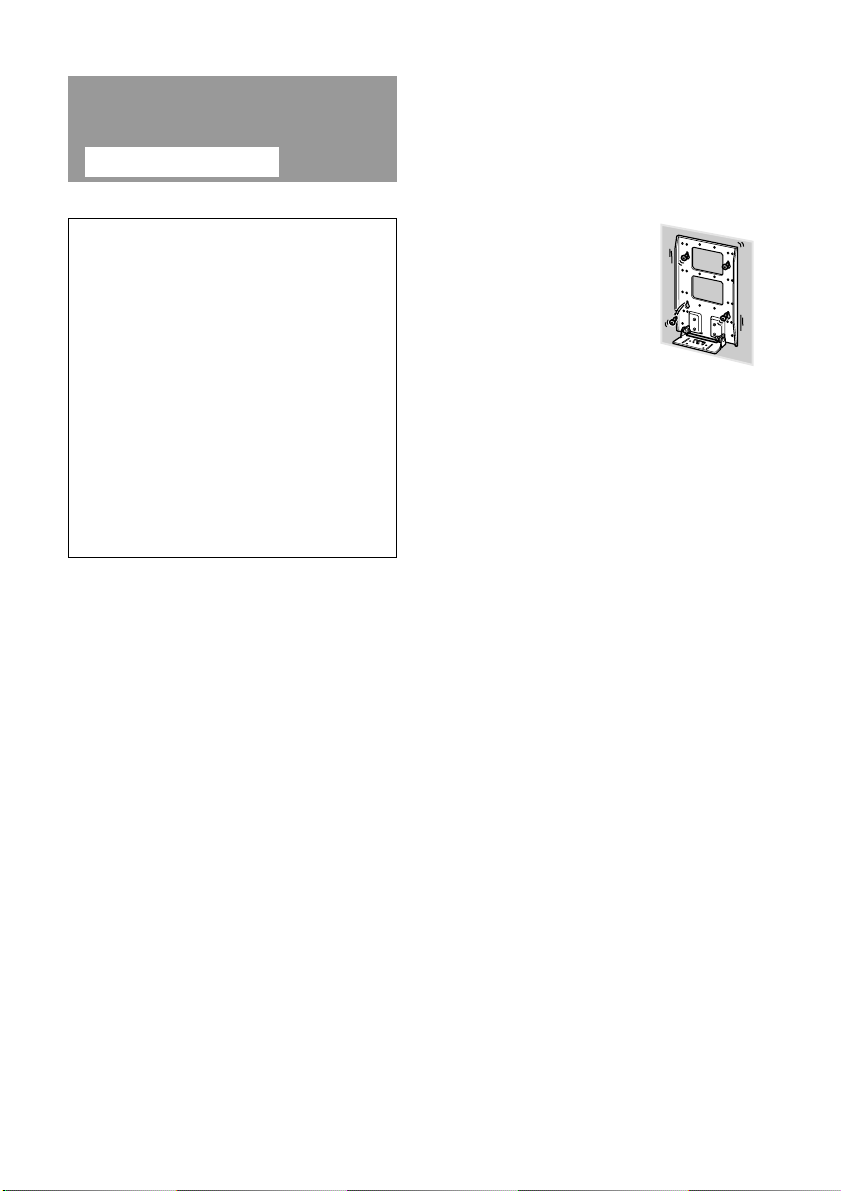

Installing the Wall-

Mount Bracket

To Sony Dealers

WARNING to Customers

Sufficient expertise is required for

installing this product. Be sure to

subcontract the installation to Sony

dealers or licensed contractors and

pay special attention to safety

during the installation.

To Sony Dealers

The following instructions are for

Sony Dealers only. Be sure to read

safety precautions described above

and pay special attention to safety

during the installation, maintenance

and checking of this product.

Be sure to install the Wall-

Mount Bracket securely to the

wall following the instructions

in this instruction manual.

If any of the screws are loose or fall out,

the Wall-Mount Bracket may fall and

cause injury or property

damage. Be sure to use the

appropriate screws for the

material of the wall and

install the unit securely,

using six M4 ×20 mm

(13/16 inches) or

equivalent screws.

Be sure to use the supplied

screws and attachment parts

properly following the

instructions given in this

instruction manual. If you use

substitute items, the TV may

fall, and cause bodily injury to

someone or damage to the TV.

Be sure to tighten the screws

securely in the designated

position.

If you fail to do so, the TV may fall, and

cause bodily injury to someone or

damage to the TV.

7(GB)

Be careful not to subject the TV

to shock during installation.

If the TV is exposed to shock, it may fall

or break apart. This may cause injury.

Be sure to install the TV on a

wall that is both perpendicular

and flat.

If you fail to do so, the TV may fall and

cause injury.

After proper installation of the

TV, secure the cables properly.

If people or objects get tangled in the

cables, this may result in injury or

damage to the TV.

Do not allow the mains lead or

the connecting cable to be

pinched.

If the mains lead or the connecting cable

is pinched between the unit and the wall

or is bent or twisted by force, the internal

conductors may become exposed and

cause a short circuit or an electrical

break. This may cause a fire or an electric

shock.

Be careful not to hurt your

hands or fingers during the

installation.

Be careful not to hurt your hands or

fingers when installing the Wall-Mount

Bracket or the TV.

8(GB)

Step 2: Deciding on

the installation

location

Decide the location on the wall to install

the TV.

Then, place bracket Aon the installation

location and mark the four screw holes

on the wall using a pencil.

Before marking, make sure that the

distance between the upper edge of

bracket Aand the ceiling and that

between the side edge of bracket Aand

the side wall are 20 cm (7 7/8inches) or

more.

Note

•Attach bracket Alevel with the floor.

•The wall should be capable of supporting a

weight of at least four times the TV weight.

Before installing, confirm that the wall has

sufficient strength to support the TV and

the Wall-Mount Bracket. If the wall does

not have sufficient strength, reinforce it

adequately before installing.

Before installation

Before installation, be sure to refer to

the Leaflet (“Installing the Wall-

Mount Bracket”) supplied with the

TV.

Step 1: Checking the

parts required for the

installation

Check all the parts are included in the

package.

Bracket A(1)

Bracket B(1) Screws (2)

Bracket A

Ceiling

20 cm (7 7/8inches) or

Wall

Mark this

portion using

a pencil.

20 cm

(7 7/8

inches) or

9(GB)

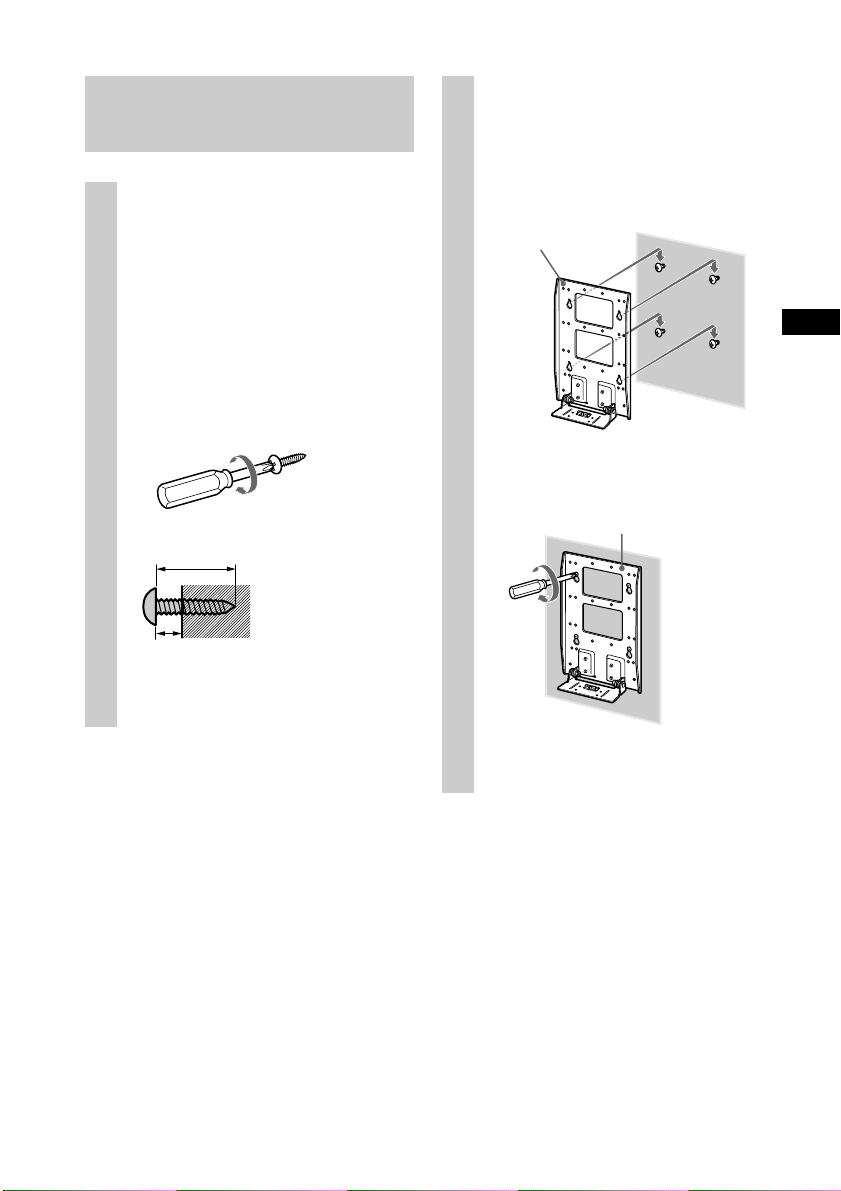

Step 3: Attach

bracket Ato the wall

1Insert four M4 ×20 mm (13/16

inch) screws (or equivalent)

that are adequate for the wall

in the positions marked in Step

2 (page 8). Never use any

supplied screws to fix the

bracket to the wall.

Do not tighten the screws

completely for the moment. Keep

a space of 2 to 3 mm (3/32 to 1/8

inch) from the wall.

2Press bracket Ato the wall and

slide it down. Then fully

tighten the four screws on the

wall.

Wall

2–3 mm

(3/32–1/8inch)

20 mm

(13/16 inch)

Wall

Bracket A

Wall

Screws (not supplied)

Bracket A

Bottom

Top

10 (GB)

Step 4: Attach

bracket Bto the TV

Before attaching bracket B, remove the

rear cover and disconnect the AC power

adapter and all the cables from the TV.

For how to remove the rear cover of the

TV, refer to the Operating Instructions

supplied with the TV.

1Remove the four screws as

illustrated below, and detach

the TV stand from the TV.

To prevent damaging the surface

of the LCD display, place the TV

on a soft mat.

Notes

•Lay the display face down on a

stable and level surface, with the

base of the stand facing out. Putting

the display face and the base of the

stand on the same level surface will

cause the TV to incline and

therefore be unstable.

•When removing the TV stand, hold

it firmly.

3Insert two M4 ×20 mm (13/16

inch) screws (or equivalent)

that are adequate for the wall

in the screw holes, and tighten

them securely in the order 1

then 2as shown below. Never

use any supplied screws to fix

the bracket to the wall.

Bracket A

Screws (not

supplied)

Soft mat

Rear of the TV

TV stand

Table

Remove these screws.

Tabla de contenidos

Idiomas:

Otros manuales de Rack y soporte de Sony

Sony

Sony UNI-MDB3 Manual de usuario

Sony

Sony WSFV11 Manual de uso y mantenimiento

Sony

Sony SU-SX10 Manual de usuario

Sony

Sony VCT-AM1 Manual de usuario

Sony

Sony DCZ-50P Manual de usuario

Sony

Sony SU-PT3M Manual de usuario

Sony

Sony SU-32FW Manual de usuario

Sony

Sony SU-46WT11 Instruction Flyer Manual de usuario

Sony

Sony SU-RS12X - Stand For Rear Projection TV Manual de usuario

Sony

Sony SU-PF1L Manual de usuario

Sony

Sony Bravia XBR-55HX950 Manual de usuario

Sony

Sony SUFL71M - SU - Stand Manual de usuario

Sony

Sony SU-MD1 Instrucciones de funcionamiento y mantenimiento

Sony

Sony KV-36FS100 Instructions: TV stand (primary... Manual de usuario

Sony

Sony RHT-G1550 Manual de usuario

Sony

Sony SFM1 Manual de usuario

Sony

Sony PROFORMA PROFORMAWM46 Manual de usuario

Sony

Sony PROFORMA WM60 Manual de usuario

Sony

Sony PVMK-RX24 Manual de usuario

Sony

Sony SU-46NX1 Manual de usuario

Sony

Sony PEG-NX80V - Clie Handheld Manual de usuario

Sony

Sony ACY-RK2 Manual de usuario

Sony

Sony SU-41PZ1 Manual de usuario

Sony

Sony SU-RG12L - Stand For Rear Projection TV Manual de usuario

Manuales populares de Rack y soporte de otras marcas

Salamander

Salamander Acadia AC/W/L400/WH Manual de usuario

Fohhn

Fohhn VAT-09 Guía del usuario

ricoo

ricoo FS0522 Manual de usuario

AMSOIL

AMSOIL BMK-22 Guía rápida

Kargo Master

Kargo Master 48220 Manual de usuario

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manual de usuario

ricoo

ricoo S1222 Manual de usuario

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manual de usuario

VidaBox

VidaBox VB MNT FFS2 Manual de usuario

Welch Allyn

Welch Allyn 48960 Manual de usuario

Arkon

Arkon CM035-ST-2 Manual de usuario

PROEL

PROEL PLWIN60C Manual de usuario

Agilent Technologies

Agilent Technologies E2609B Manual de usuario

Mustang

Mustang MV-ARM4 Manual de usuario

Mounting Solutions

Mounting Solutions WRM-320 Manual de usuario

Pyle

Pyle PMKSPAD1 Manual de usuario

ShelterIt

ShelterIt 21208 Manual de usuario

SPL

SPL RackPack?4 1040 Manual de usuario
