Operating Instructions Page 2 GB

UP-DP10

Digital Photo Printer

WARNING

THIS APPARATUS MUST BE EARTHED.

WARNING

To prevent fire or shock hazard,

do not expose the unit to rain or

moisture.

To avoid electrical shock, do not

open the cabinet. Refer servicing

to qualified personnel only.

Table of Contents 3

English

Introduction ............................................................................. 4

What the Digital Photo Printer Can Do ..................................4

Checking the Packing List......................................................4

Requirements .......................................................................... 5

Names of Parts ........................................................................ 6

Setup and Connection ............................................................ 7

Attaching the Stands to the Printer .........................................7

Connecting the Printer to a Computer .................................... 7

Connecting the Power Supply ................................................ 8

Turning the Power On/Off......................................................8

Installing the Printer Driver .................................................... 9

With Windows 98...................................................................9

With Windows 95.................................................................12

With the Macintosh OS ........................................................13

Preparing to Print.................................................................. 14

Preparing a Print Pack .......................................................... 14

Loading the Ink Ribbon Cartridge and Printing Paper .........16

Removing the Ink Ribbon Cartridge and the Printing Paper 19

Making Printer Setting from your Computer ...................... 20

With Windows......................................................................20

With the Macintosh .............................................................. 25

Miscellaneous........................................................................ 31

Maintaining the Performance of the Printer .........................31

Troubleshooting....................................................................31

If the Paper Jams ..................................................................33

Main Specifications .............................................................. 35

Table of Contents

Introduction

What the Digital Photo Printer

Can Do

High-quality Photo Printing

The sublimation printing process used by this

printer makes it possible to print images with fine

photographic quality.

Prints with no white border

The paper that is used for printing has

perforations near both edges that allow you to

tear off the blank strips of paper on each edge.

Laminate Patterns

Because laminate processing is performed while

photos are printed, the photos will not become

discolored over time. You can select from

among the following laminate options:

• Glossy: Produces a glossy print.

• Texture: Produces a textured print.

• Matte: Produces a matte print.

Compact, Thin, and Light Design

The printer itself is thin and the size of an A4

sheet. The printer can operate either in a vertical

position or in a horizontal position. The printer

weighs only 2.7kg, making it light and easy to

handle.

Paper Jams Can Be Cleared Easily

If the paper jams, it can be easily cleared simply

by removing the cover.

Checking the Packing List

Check the contents of the box against the packing

list.

Paper supply/eject tray (1)

Stands (2)

Power cord (1)

Tray case (1)

Ink ribbon cartridge (sufficient for printing 10 sheets) (1)

Print paper (5 sheets each of UPC-10P23 and UPC-

10P34) (1)

CD-ROM (driver, application) (1)

Operating Manual (this manual) (1)

Software license agreement (1)

Notes

• We recommend saving the box and the packing

materials in case it is necessary to transport or

ship the printer.

• When shipping the printer, remove the ink

cartridge and the paper supply/eject tray from

the printer.

Requirements

Printing processing is performed faster when

there is more memory and hard disk space

available. Therefore, we recommend allocating

as much memory and hard disk space as possible.

The following environment is required in order to

use the UP-DP10.

When using a Windows computer

❑Requirements in order to connect to a

USB port:

• A personal computer on which Microsoft

Windows 98 runs normally

• At least 32MB of RAM

• At least 30MB of hard disk space

• A USB port*

*Connection requires a USB cable with a

male type A connector and a male type B

connector. (Refer to the illustration

elsewhere on this page.)

❑Requirements in order to connect to a

printer port:

• A personal computer on which Microsoft

Windows 98 or Windows 95 runs normally

• At least 32MB of RAM

• At least 30MB of hard disk space

• A printer port*

*Please see the user's manual provided with

your computer for the appropriate type of

printer cable.

Note

When using device driver

(Windows\system\lpt.vxd) version 4.00.953

in Windows 95, normal printing might be

impossible. In this event, obtain the most

recent driver from your Windows 95

distributor.

When using a Macintosh

• A Power Macintosh computer running Mac OS

8.6 or later, and which is equipped with a USB

port as a standard feature

• ColorSync2.5 or later

• At least 64MB of RAM

• At least 30MB of hard disk space

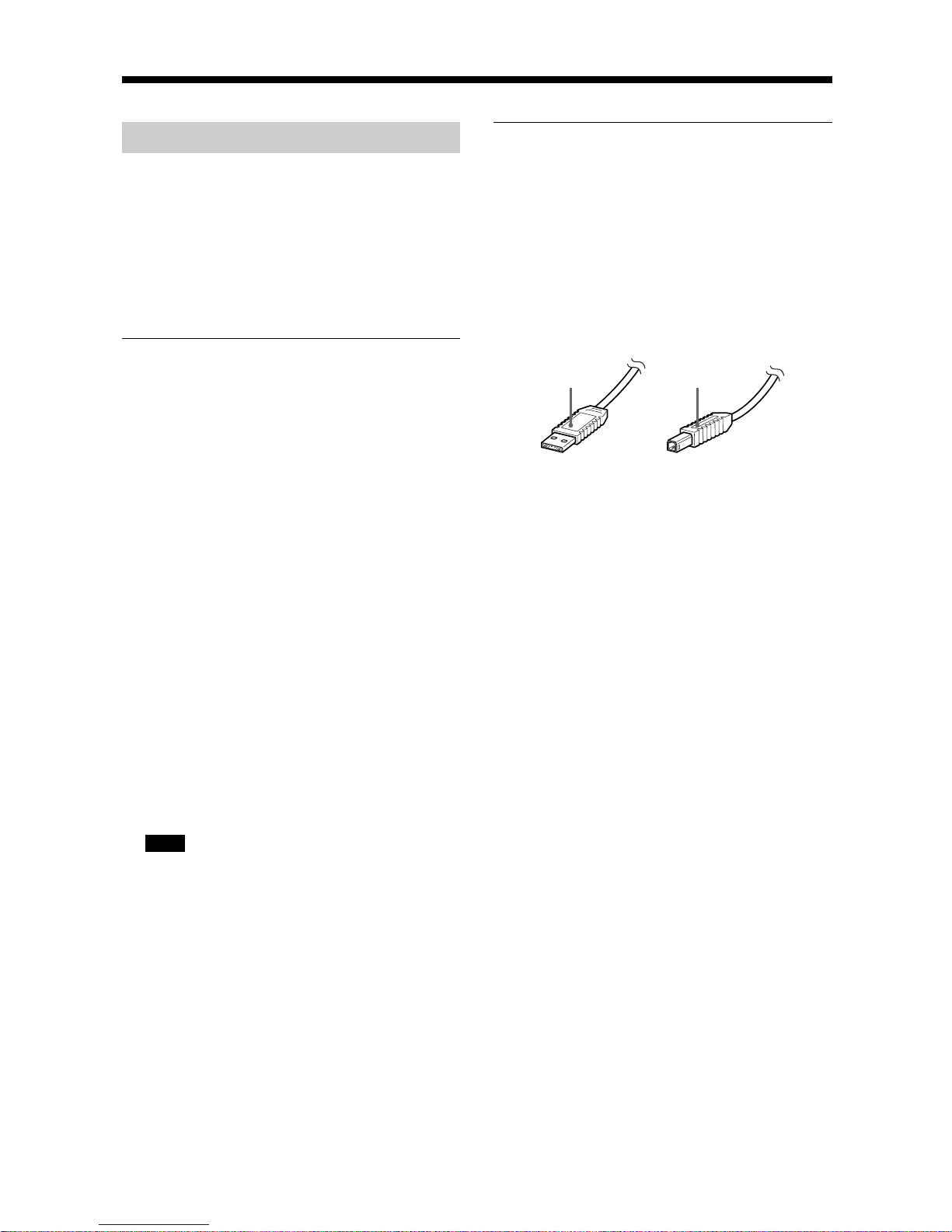

*Connection requires a USB cable with a male

type A connector and a male type B connector.

(Refer to the illustration below.)

Male type A

connector Male type B

connector

Names of Parts

(1) (2) (3) (4)

(7)(5) (6) (8)(9)

(1) Operation switch

(2) Ribbon cartridge cover

(3) Lamps

POWER lamp

PRINT lamp

PAPER lamp

RIBBON lamp

ALARM lamp

The lamps indicate the printer status by

lighting or flashing. For details, refer to

page 32.

(4) Paper supply/eject tray cover

(5) Bottom cover

(6) USB port

(7) Parallel port

(8) AC power inlet

(9) Ventilation holes

Setup and Connection

Attaching the Stands to the

Printer

The stands can be attached by screws. The

mounting of the stands depends on whether the

printer is going to be used in the vertical position

or the horizontal position. (Refer to the

illustration.)

Connecting the Printer to a

Computer

Notes

• Before connecting the printer to a computer, be

certain to first turn off the power for the printer,

the computer, the monitor, etc.

• Read the operating manual for the personal

computer carefully.

• When connecting to a printer port, we

recommend using a shielded printer cable not

more than 2m long and with a double-ended

ferrite core.

• Make sure that you insert the cable connectors

all of the way when making the connections.

• The driver provided with this printer does not

support usage through a network.

• Proper operation can not be assured when USB

connection is made through a hub.

• The printer cannot be connected using both a

USB cable and a parallel cable. Connect it using

one type of cable or the other.

When connecting to a USB port

Note

Only the USB port can be used for connection to

a Macintosh computer. (This printer cannot be

used with a Macintosh that does not have a USB

port as a standard feature.)

To USB port (B connector end)

To USB port

(Aconnector

end)

USB cable

(purchased separately)

Windows 98 computer

Macintosh

Setup and Connection

When connecting to a printer port

Note

When using the printer in fast transfer mode

(ECP mode), use an IEEE1284-compliant cable.

Note that in order to use fast transfer mode, the

parallel port must be set up on the personal

computer side. For details, refer to the operating

manual for the personal computer.

Connecting the Power Supply

Plug the female end of the power cord into the

AC power inlet on the printer, and then plug the

other end into an AC power outlet.

Turning the Power On/Off

Press the Operation switch so that the POWER

lamp is on. To turn the printer off, press the

Operation switch again.

Printer cable

(purchased separately)

Windows95/98

computer

To parallel port

(Amphenol36-pinconnector)

To printer port

Plug

Tooutlet

Installing the Printer Driver

WithWindows 98

Install the printer driver that is contained in the

CD-ROM that is provided with the printer. The

“printer driver” is the software that allows you to

print on the UP-DP10, using the Print function of

typical application software.

Before installing the printer driver, turn the

computer and the printer off, and then connect

the printer to the computer.

When the Printer Is Connected by a

USB Cable

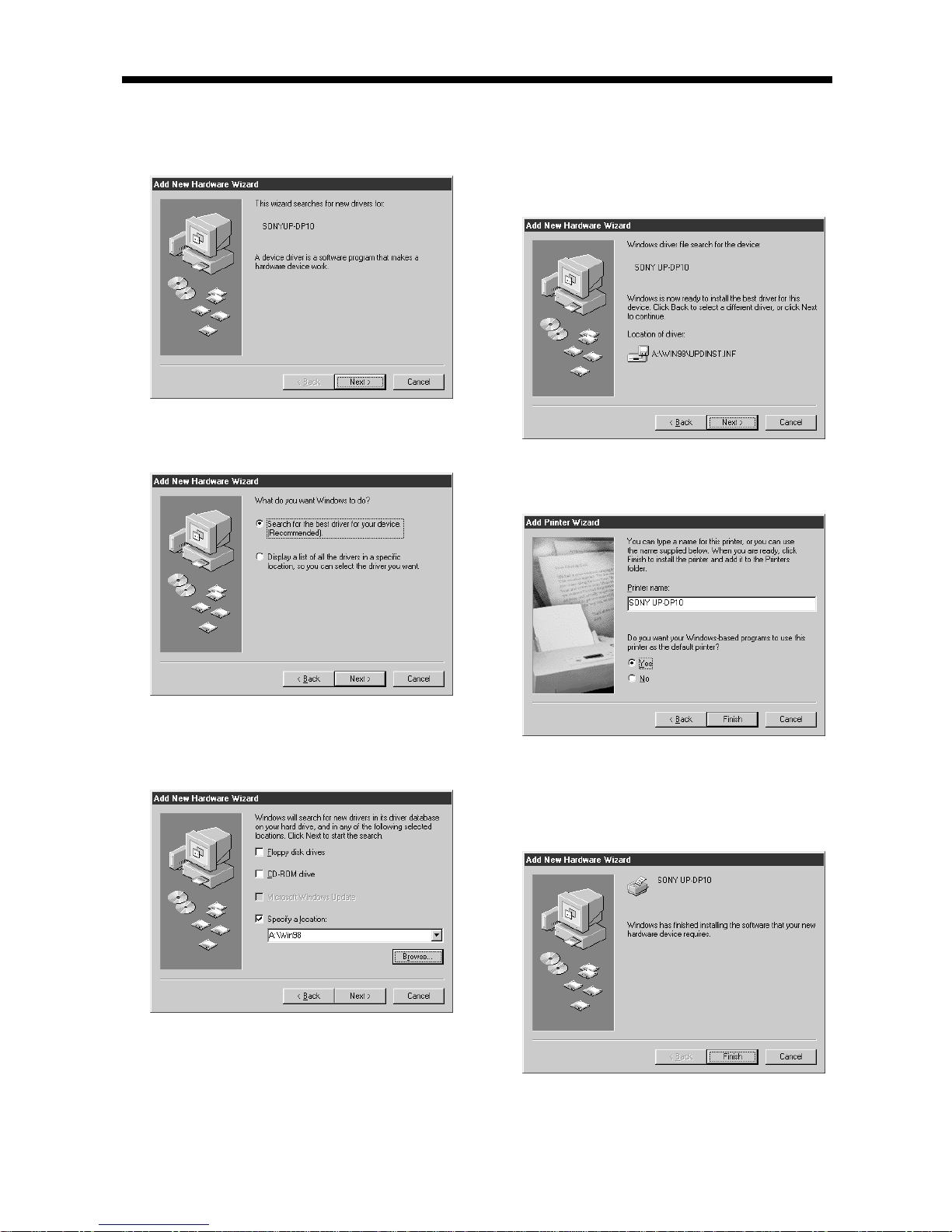

1Turn the printer on first, and then turn the

computer on. Once Windows 98 starts up,

the “Add New Hardware Wizard” window

appears.

If the “Add New Hardware Wizard” dialog

box does not appear when Windows 98 starts

up, install the printer by selecting [Start] →

[Settings] →[Printers] →[Add Printer].

2Click [Next].

The window changes as shown below.

3Select [Search for the best driver for your

device], and then click [Next].

The window changes as shown below.

4Place the “Printer Software UP-DP10” CD-

ROM in the CD-ROM drive.

5Select the [Specify a location] option, click

[Browse], specify the [Win98\English] folder

in the CD-ROM, and then click [Next].

The window changes as shown below.

6Click [Next].

After the file is copied, the window changes

as shown below.

Installing the Printer Driver

7Click [Finish].

The window changes as shown below.

8Click [Next].

The window changes as shown below.

9Select [Search for the best driver for your

device], and then click [Next].

The window changes as shown below.

10Select the [Specify a location] option, click

[Browse], specify the [Win98\English] folder

in the CD-ROM, and then click [Next].

The window changes as shown below.

11Click [Next].

The window changes as shown below.

12If necessary, you can type a name for the

printer in the [Printer name] field. Then,

click [Finish].

The window changes as shown below.

13Click [Finish].

The wizard ends. Installation is now

complete.

Otros manuales para UP-DP10

Tabla de contenidos

Otros manuales de Impresora de Sony

Sony

Sony UP-D895 Guía

Sony

Sony UP-DR80MD Manual de usuario

Sony

Sony DPP-FP60 Manual de usuario

Sony

Sony UP895 - UP 895 B/W Dye Sublimation Printer Manual de usuario

Sony

Sony DPP-FPHD1 Instruction Manual (Photo Printer) Manual de usuario

Sony

Sony DPP-FP95 Manual de usuario

Sony

Sony FilmStation UP-DF750 Manual de usuario

Sony

Sony PICTURE STATION DPP-FP90 Manual de usuario

Sony

Sony DPP-SV55 Manual de usuario

Sony

Sony DPP-MS300 Marketing Manual de usuario

Sony

Sony UP-D55 Manual de usuario

Sony

Sony UP-D890 Manual de usuario

Sony

Sony UP-D2500 Manual de usuario

Sony

Sony UP-D895MD Manual de usuario

Sony

Sony DPP-MP1 Manual de usuario

Sony

Sony UPD-X100 Manual de usuario

Sony

Sony DPP-FP95 Manual de usuario

Sony

Sony DPP-FP85 Manual de usuario

Sony

Sony DPP-FP55 Manual de usuario

Sony

Sony UP-D21MD Manual de usuario

Sony

Sony CCP-13B Manual de usuario

Sony

Sony UP-DR200 Manual de usuario

Sony

Sony UP-D70A Series Manual de usuario

Sony

Sony UP-D23MD Manual de usuario

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series Manual de usuario

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Canon

Canon LASER SHOT LBP-1210 Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Canon

Canon PIXMA PRO-1 Series Manual de usuario

Canon

Canon PIXMA G3560 Guía de configuración

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Canon

Canon CLBR 460ps Manual de usuario

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

Canon

Canon imagePASS-A2 Manual de usuario

Canon

Canon S820D Manual de usuario
