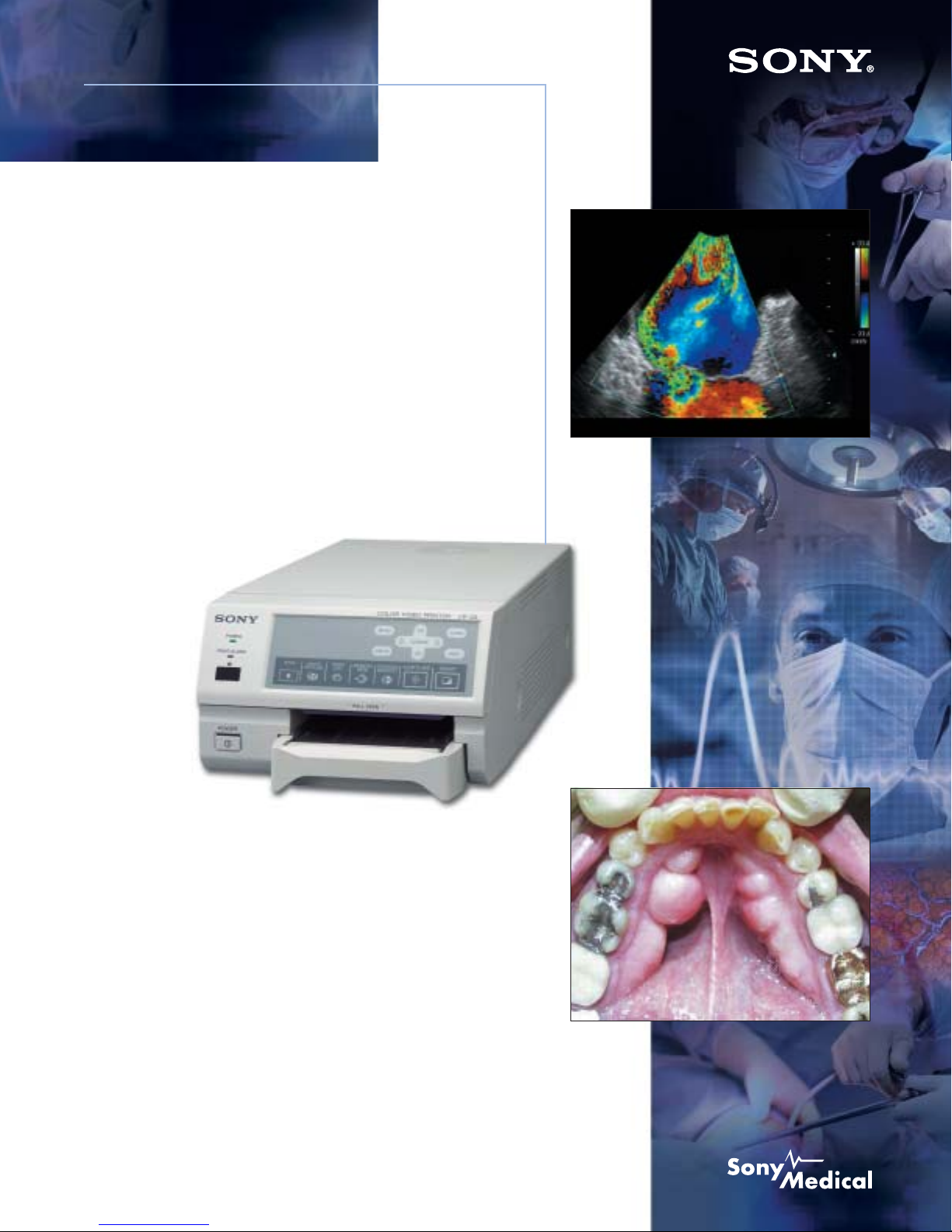

Sony UP-20 Manual

The UP-20 color printer successfully combines high quality with

affordable pricing. The UP-20 prints near A6 color images in

approximately 16 seconds, (using UPC-21S media). The printer’s

new compact design allows for easy integration with other video

equipment. The UP-20 is an ideal choice for the dental market, as

well as, office or scientific lab applications.

■Superb Print Quality and Color

Reproduction at approximately

400 DPI Resolution

■Compact size

■High-Speed Printing, near A6 Size

■Four Frame Memory

■Versatile Analog Video Inputs

and Outputs

■Convenient Remote

Control Capability

■RS-232C Interface

■2 or 4-Split Image Print Mode

■Monitor Loop-Through for

System Power Saving

■World Wide Power and

Video Capability

UP-20

Analog Color A6 Printer

UP-20

Printing Method

Thermal Head

Dye Sublimation

NTSC:

S Size: Full 3 3/4” x 2 7/8”

L Size: Full 5” x 3 5/8”

S Size tray: Max. 80 sheets

L Size tray: Max 50 sheets

13.3lbs. (6.5 KG)

Remote 1 for optional RM5500, RM91

Remote 2 for optional FS-36, FS-20

RS-232C Interface port for external computer

UL 1950 and UL 2601-1, Listed, CSA C22.2 No. 601.1, No. 950,

EN60950, EN60601-1

403 DPI

Gradations 256 Gradations, over 16.7M colors per dot

Resolution 403 DPI

100-120 Volts 1.8 A, 220-240 Volts 1.0A

Printed Picture Size

NTSC: (High Speed Mode)

UPC-21S approximately. 16 sec.

UPC-21L approximately. 25 sec.

Print Speed

Paper Capacity

Power Consumption

8 3/8 x 5 x 15 5/8 (inches)

Dimensions

UPC-21L (L size standard color print pack) (4 x 50 packs)

UPC-21S (S size standard color print pack) (3 x 80 packs)

Media

AC Power Cable

Instruction Manual

Warranty Card

Paper Tray (L Size)

Printing Media (UPC-21L, 10 prints of paper and ribbon)

Supplied Accessories

Printing Media: UPC-21L, UPC-21S

Remote Controls: RM91, RM5500

Foot Switch: FS-36, FS-20

Slide Adapter: UPA-21SA

Optional Accessories

Weight

Control Terminal

Safety Standards

UP-20

Specifications

UPC-21L Media

Sony Electronics Inc.

1 Sony Drive, Park Ridge, NJ 07656

www.sony.com/medical

All non-metric weights and measures are approximate. Sony is a trademark of Sony.

Caution: Federal (USA) law restricts this device to sale by or on the order of a physician or other appropriately licensed medical professional.

Caution: See product labeling for indications, contraindications, warnings, cautions and directions for use.

ME-UP20

UP-20 Back Panel

UPC-21S Media

Composite Video/S-Video

Video Inputs
