Sony ECM-W2BT Guía de referencia
Help Guide
Wireless Microphone
ECM-W2BT
Use this Help Guide when you have issues or questions on how to use your wireless microphone.
Compatible cameras
The Wireless Microphone ECM-W2BT (referred to below as “this unit”) is compatible with a camera
that has a Multi Interface Shoe such as a Sony Interchangeable Lens Digital Camera (referred to
below as “camera”).
- Even if your camera has a Multi Interface Shoe, you may be unable to use it with this unit or some
functions may not work.
- The receiver and the microphone are factory-set to communicate with each other. Therefore,
operations usually needed for Bluetooth devices such as pairing and passkey input are not
necessary. Communication is not possible with a receiver and microphone not sold as a pair,
multiple microphones, or any other Bluetooth device such as a smartphone, computer, etc.
For camera models compatible with this unit, view here. (Another window will open.)
Locating parts and controls
Preparations
Unpacking
Charging the receiver
Charging the microphone
Attaching the receiver to a camera
Attaching the microphone to clothing
Attaching the wind screen
Storing the receiver and the microphone all together
Recording
About the mode switch
Recording
Recording with an external microphone
Lamp indications
About this unit
Notes on use
1
Help Guide
Wireless Microphone
ECM-W2BT
Locating parts and controls
Receiver
Slide switch (MIC OUT ANALOG/Power OFF/DIGITAL)
Select “MIC OUT ANALOG” (analog audio output), “OFF” (power off), or “DIGITAL” (digital audio output).
If your camera is compatible with the digital audio interface of the Multi Interface Shoe, set the switch to “DIGITAL.”
This allows the receiver to pass the received audio to the camera with digital signals and provides audio recording
with minimum noise insertion.
When you do not intend to use the receiver, select “OFF” with this switch to conserve the battery power.
1.
Mode switch (RCVR/MIX/MIC)
Before you start recording with the camera, select a receiver mode with this switch to specify the microphone to use
for recording.
2.
Multi Interface foot3.
Power lamp (Green: Powered, Orange: Charging the battery)
Indicates the power state of the receiver or the battery charge state.
While the receiver is turned off, connecting the receiver to a computer with the supplied micro USB cable starts
charging the receiver's built-in battery and turns on the power lamp in orange.
The orange blinking power lamp indicates that battery charging is needed.
4.
LINK lamp
Indicates the connection state between the receiver and the microphone.
5.
Internal microphone6.
Micro USB terminal
Connect the supplied micro USB cable to supply power to the receiver or charge the battery.
7.
Microphone out jack
You can record audio by connecting the receiver to a camera with the supplied recording cable.
To use this jack, be sure to select “MIC OUT ANALOG” with the slide switch.
8.
3
Microphone
Connector protect holder9.
LINK lamp
Indicates the connection state between the receiver and the microphone.
1.
Power lamp (Green: Powered, Orange: Charging the battery)
Indicates the power state of the microphone or the battery charge state.
While the microphone is turned off, connecting the microphone to a computer with the supplied micro USB cable
starts charging the microphone's built-in battery and turns on the power lamp in orange.
The orange blinking power lamp indicates that battery charging is needed.
2.
Internal microphone3.
External microphone input jack
Connecting an external microphone (not supplied) to this jack automatically switches the audio input source to the
connected external microphone.
4.
Power switch
When you do not intend to use the microphone, select “OFF” with this switch to conserve the battery power.
5.
ATT switch
Select the option suitable for the audio recording volume. To record loud sounds while minimizing distortion, select
“20dB.” To record quiet sounds while amplifying the sounds, select “0dB.” “10dB” is the recommended volume level
for recording human voices. It is advised that you determine and specify the level while monitoring the volume level
meter on the camera.
6.
Micro USB terminal
Connect the supplied micro USB cable to supply power to the microphone or charge the battery.
7.
Clip
Use this clip for attaching the microphone to your clothing.
8.
Wind screen9.
4
Related Topic
Charging the receiver
Charging the microphone
Attaching the wind screen
Storing the receiver and the microphone all together
About the mode switch
Recording
Lamp indications
5-026-023-11(1) Copyright 2021 Sony Corporation
Attach the wind screen to the microphone to reduce pop noise caused by breath or strong wind.
5
Help Guide
Wireless Microphone
ECM-W2BT
Unpacking
If you find anything missing, please contact your dealer.
The number in the parentheses indicates the quantity.
Receiver (ECM-W2BT(R)) (1)
Microphone (transmitter) (ECM-W2BT(T)) (1)
Wind screen (1)
Pouch (1)
Recording cable (1)
Micro USB cable (1)
Connector protect holder (1)
Set of printed documentation
5-026-023-11(1) Copyright 2021 Sony Corporation
6
Help Guide
Wireless Microphone
ECM-W2BT
Charging the receiver
Connect the receiver to a computer to charge the receiver's built-in battery.
Note
While charging the battery, keep the receiver turned off. Turning on the receiver while charging makes the receiver ready for
power supply and stops charging.
Do not apply force to the receiver when you connect the receiver to a computer. This may cause damage to the receiver or the
computer.
When you connect the receiver to a notebook computer that is not connected to an AC power source, the battery of the notebook
computer may be depleted rapidly. Do not leave the receiver connected to the computer for a long time.
Charging the battery or the connection with customized or hand-built computers is not guaranteed. Depending on the type of
USB device used, charging may not function properly.
Operation with all computers is not assured.
Related Topic
Lamp indications

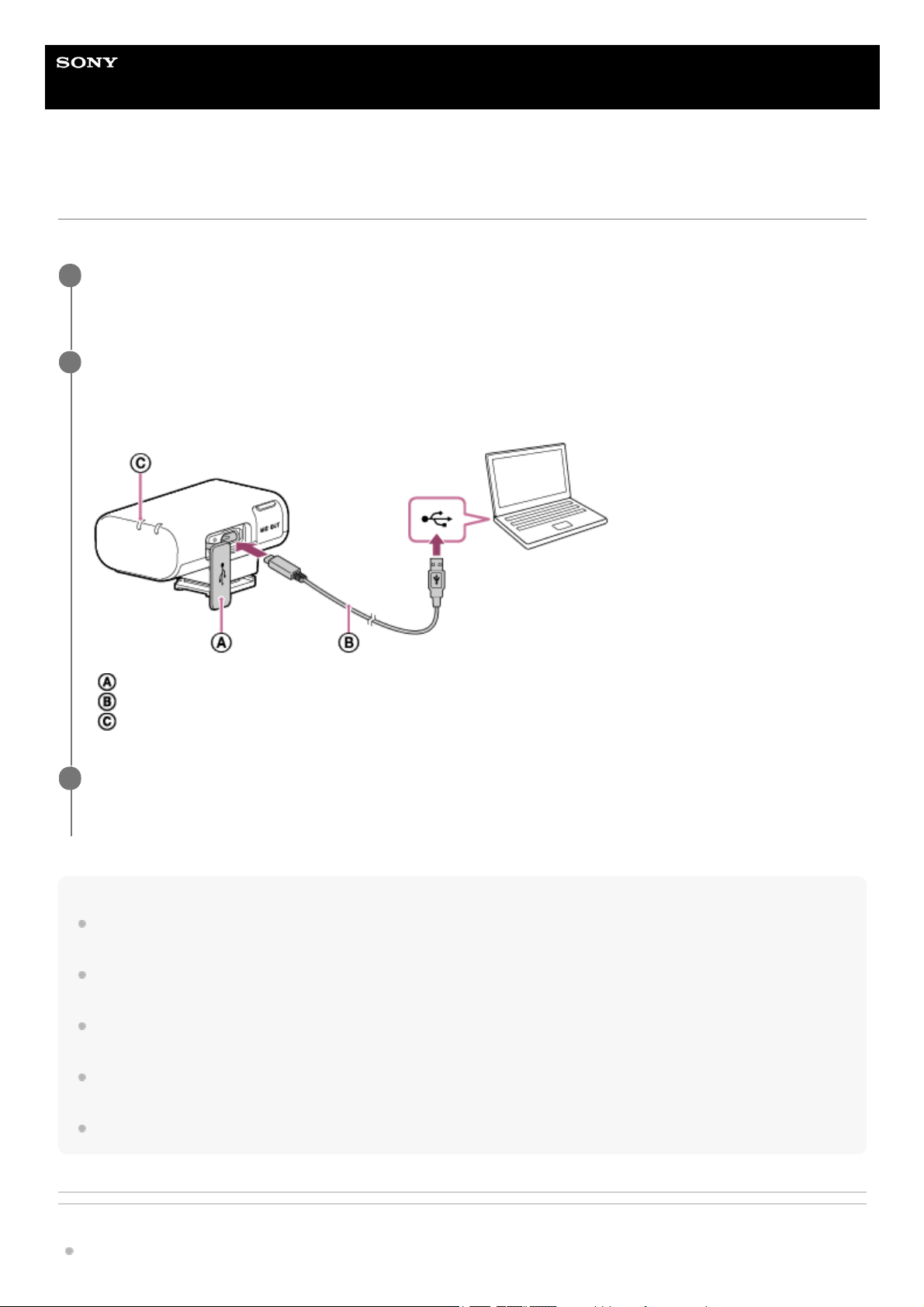

Turn off the receiver.
Charging is not possible when the receiver is turned on.
1
Open the connector cover, connect the receiver to an activated computer with the supplied micro USB
cable.
The power lamp lights in orange.
Connector cover
Micro USB cable
Power lamp
2
When charging is finished, disconnect the micro USB cable between the receiver and the computer.
Wait until the power lamp goes out to indicate that charging is finished (the battery is fully charged).
3
7
5-026-023-11(1) Copyright 2021 Sony Corporation
8
Help Guide
Wireless Microphone
ECM-W2BT
Charging the microphone
Connect the microphone to a computer to charge the microphone's built-in battery.
Note
While charging the battery, keep the microphone turned off. Turning on the microphone while charging makes the microphone
ready for power supply and stops charging.
Do not apply force to the microphone when you connect the microphone to a computer. This may cause damage to the
microphone or the computer.
When you connect the microphone to a notebook computer that is not connected to an AC power source, the battery of the
notebook computer may be depleted rapidly. Do not leave the microphone connected to the computer for a long time.
Charging the battery or the connection with customized or hand-built computers is not guaranteed. Depending on the type of
USB device used, charging may not function properly.
Operation with all computers is not assured.
Turn off the microphone.
Charging is not possible when the microphone is turned on.
1
Open the connector cover, connect the microphone to an activated computer with the supplied micro USB
cable.
The power lamp lights in orange.
Connector cover
Micro USB cable
Power lamp
2
When charging is finished, disconnect the micro USB cable between the microphone and the computer.
Wait until the power lamp goes out to indicate that charging is finished (the battery is fully charged).
3
9
