PCG-GRT Series Hard Disk Drive

Replacement Instructions

P/N T99860135 Rev. B 1/2

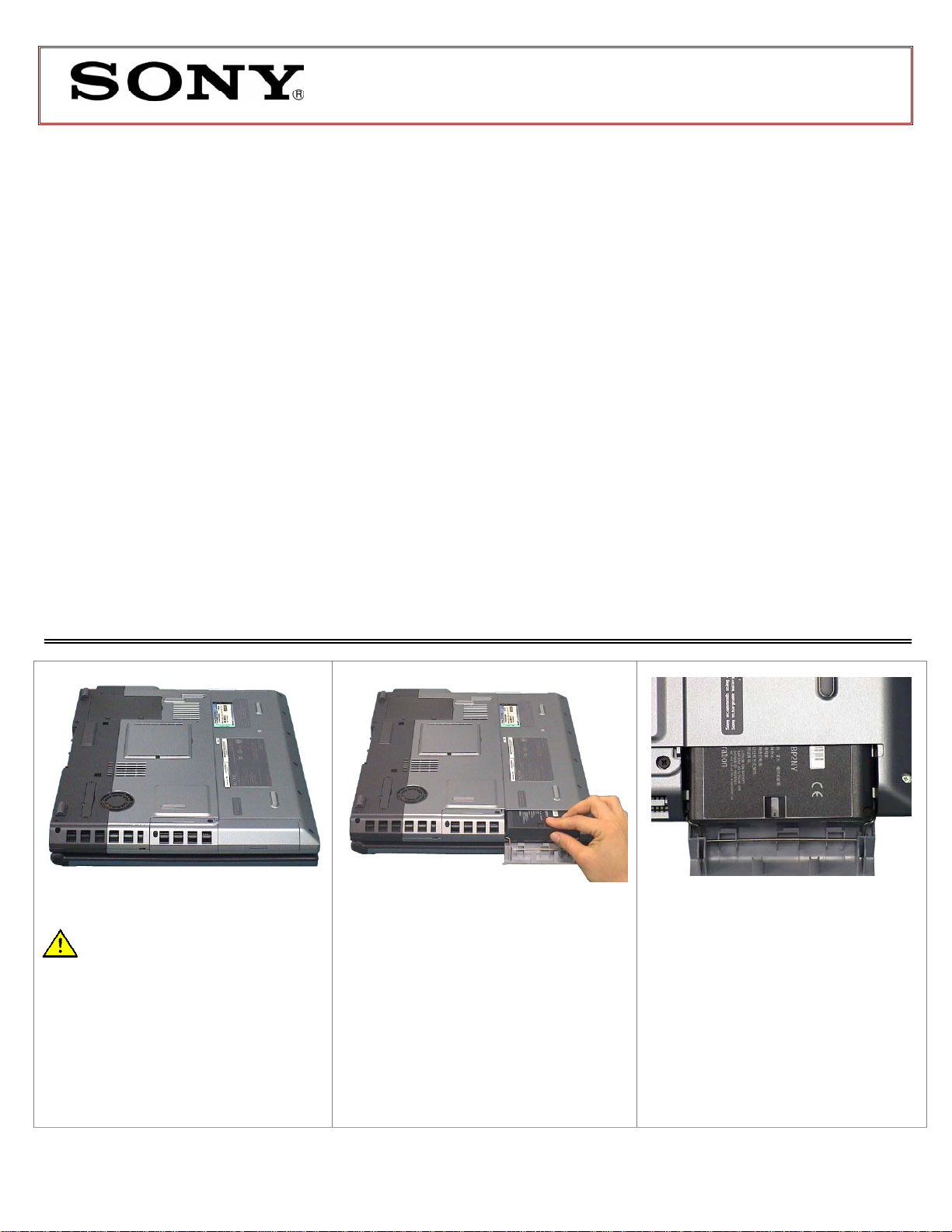

Step 1. Prepare the Computer.

CAUTION: Make sure the

computer is turned off, the lid is

closed, and the AC Adapter is

disconnected. Failure to do so can

result in damage to the computer.

Place the computer upside down on

a protected surface with the HDD

bay facing you.

Step 2. Remove the Battery Pack.

Locate the battery door and unlock it.

With your thumbs, pull the battery in

the release direction as shown in the

picture.

Step 3. Remove completely the

battery pack from the computer and

set aside.

These easy instructions are intended to guide you through the replacement process.

9To avoid electric shock please make sure product is turned off and AC Adaptor is disconnected

from the power source. Remove jewelry before you begin work to avoid scratching the surface of

your notebook computer.*

9Place your notebook computer on a clean, stable and covered surface to avoid damage to the

computer's case.*

9Follow the ESD (Electrostatic Discharge) damage prevention instructions:

oHold parts by the edges, away from exposed circuitry when possible.

oDo not walk around excessively as this promotes static build-up.

9The appearance of the electronic components shown in the illustrations may be different from the

components shipped. This slight difference does not affect the accuracy of these instructions.

* Sony is not responsible for any loss of data associated with your computer or any damage caused by

incorrect handling of the computer under these procedures. The terms of your Sony Limited Warranty

continue to apply.

IMPORTANT!

PLEASE READ BEFORE YOU START

PCG-GRT Series Hard Disk Drive

Replacement Instructions

P/N T99860135 Rev. B 2/2

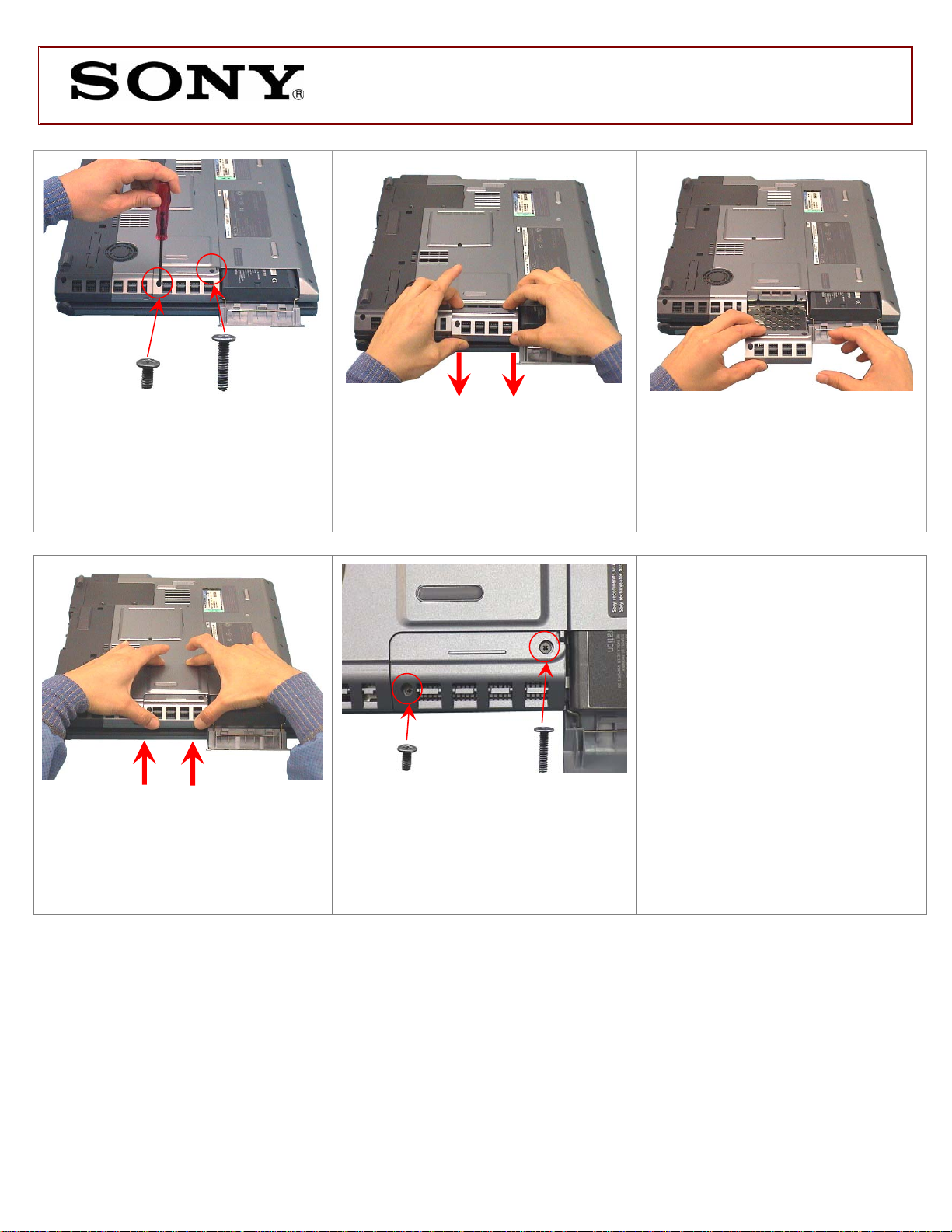

Step 4. Remove the HDD Bay.

Using the enclosed magnetic

screwdriver, remove the two (2)

screws securing the hard disk drive

bay.

Step 5. Release the HDD Bay.

Slide out the HDD Bay as shown.

Some force may be required to

unlock the HDD Bay.

Step 6. Gently pull the original HDD

Bay away from the computer as

shown.

Step 7. Install New HDD Bay.

Hold the new HDD Bay by the edges

and align it with the opening. With an

even force slide in the new HDD

Bay.

Step 8. Reinstall the two (2) screws

previously removed.

Reinstall the Battery Pack and

reconnect the AC Adapter.

Step 9. Power on your computer

and continue with the recovery

process by following the

instructions described on the back

of the recovery disk’s case.

Return the old HDD Bay to Sony

following the included shipping

instructions.
