Sony NV-U73T Firmware version 3.02 Manual de usuario

Quick Start Guide

QUICK START GUIDE

NV–U73T

Printed in Thailand

Quick Start Guide

Guide de Démarrage Rapide

Guía Rápida para Comenzar

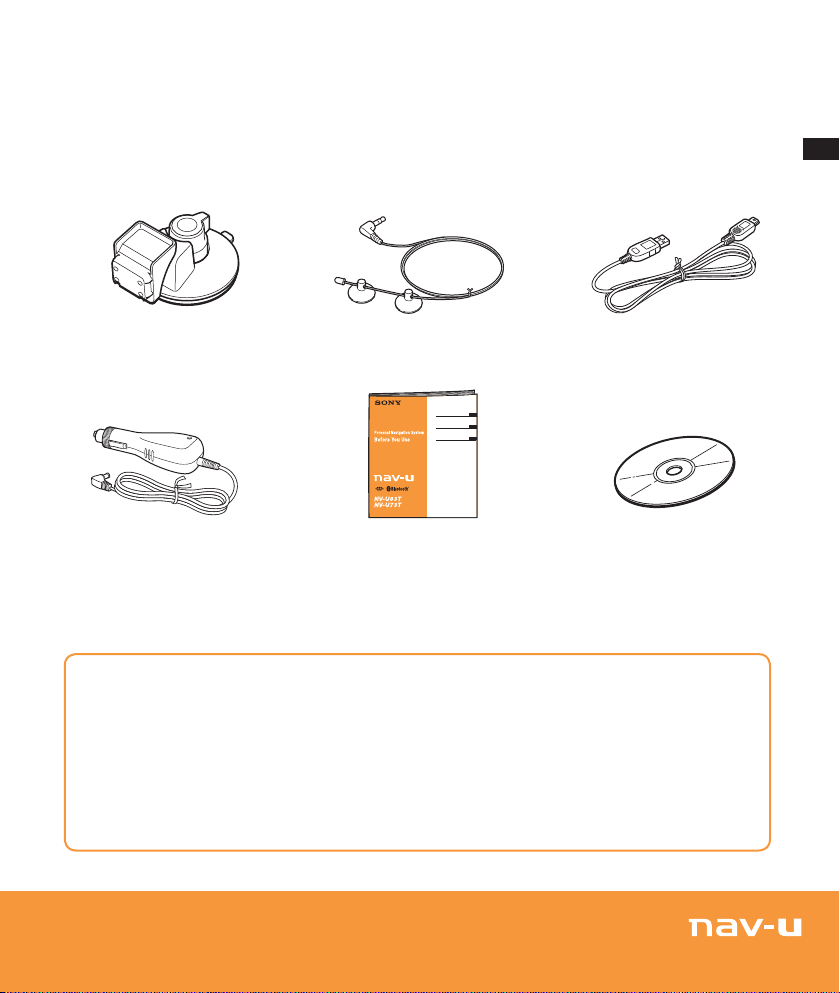

Box Contents

Check to make sure you have received all items:

Main Unit

WARNING:

PLEASE READ THIS MANUAL AND THE SUPPLIED “BEFORE YOU USE” COMPLETELY BEFORE

INSTALLING OR OPERATING YOUR PERSONAL NAVIGATION SYSTEM. IMPROPER INSTALLATION

OR USE OF THIS DEVICE MAY CAUSE ACCIDENT, INJURY, OR DEATH.

Quick Start Guide

Cradle USB Cable

DC Power Supply

Trafﬁc Antenna

CD-ROMBefore You Use Guide

IMPORTANT:

Your nav-u device is ready to use out of the box. The CD-ROM included

in this box contains the owner’s manual and other extras which DO NOT

need to be installed on your nav-u device or computer prior to use.

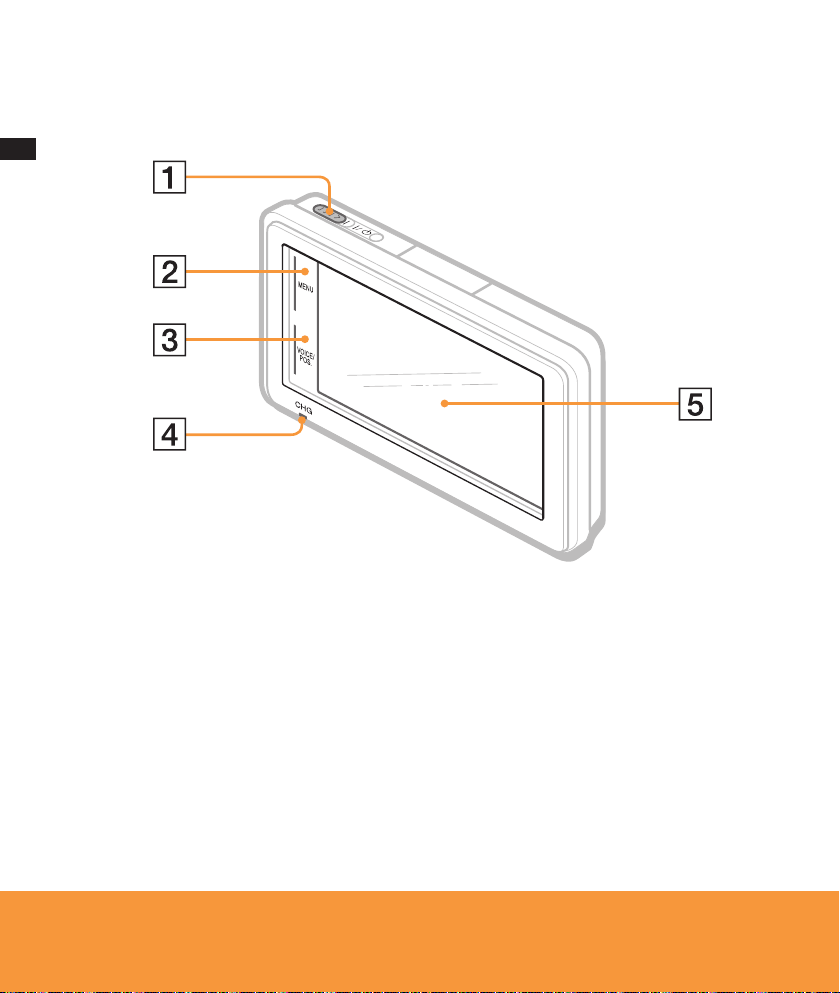

nav-u Unit Controls

On/Standby button

MENU button

VOICE/POS. button

Shows current position and repeats

last voice guidance instruction

Battery charge indicator

Red: charging

Green: fully charged

Off: adapter disconnected

Display window/touch screen

Quick Start Guide

RELEASE button

Memory Stick®access indicator

Memory Stick PRO Duo™slot

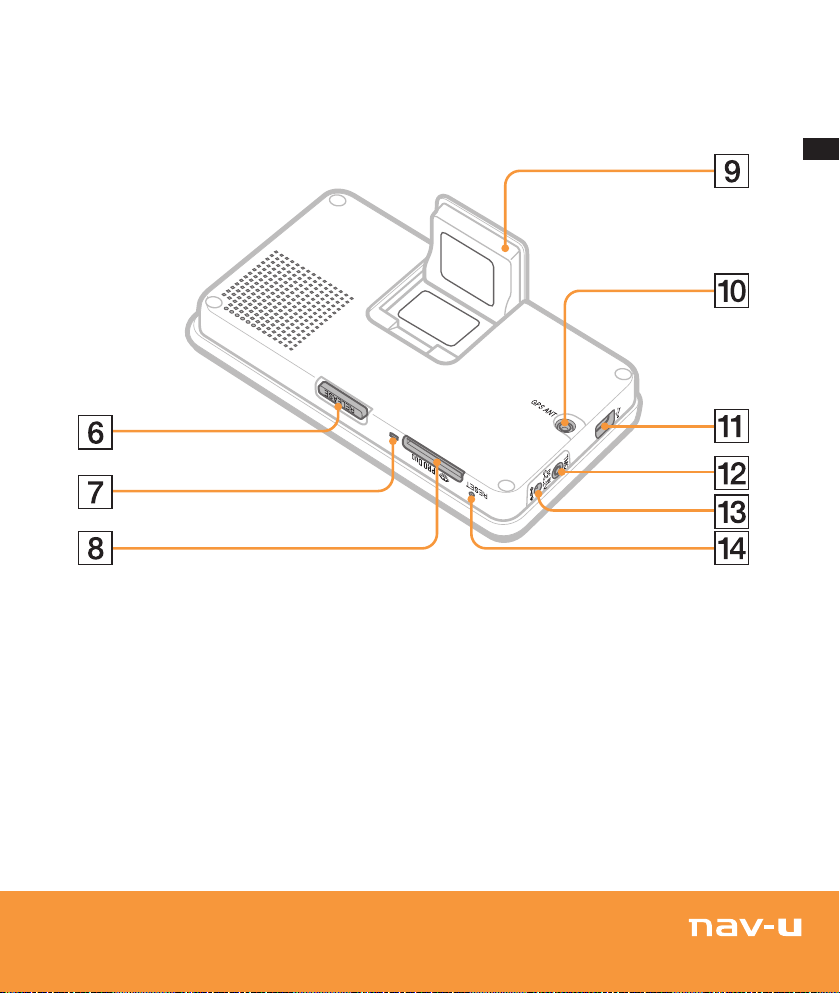

External GPS antenna (optional)

GPS antenna

USB jack

Trafc antenna jack

DC IN 5V jack

RESET button

Battery charge indicator

Red: charging

Green: fully charged

Off: adapter disconnected

Display window/touch screen

10.

11.

12.

13.

14.

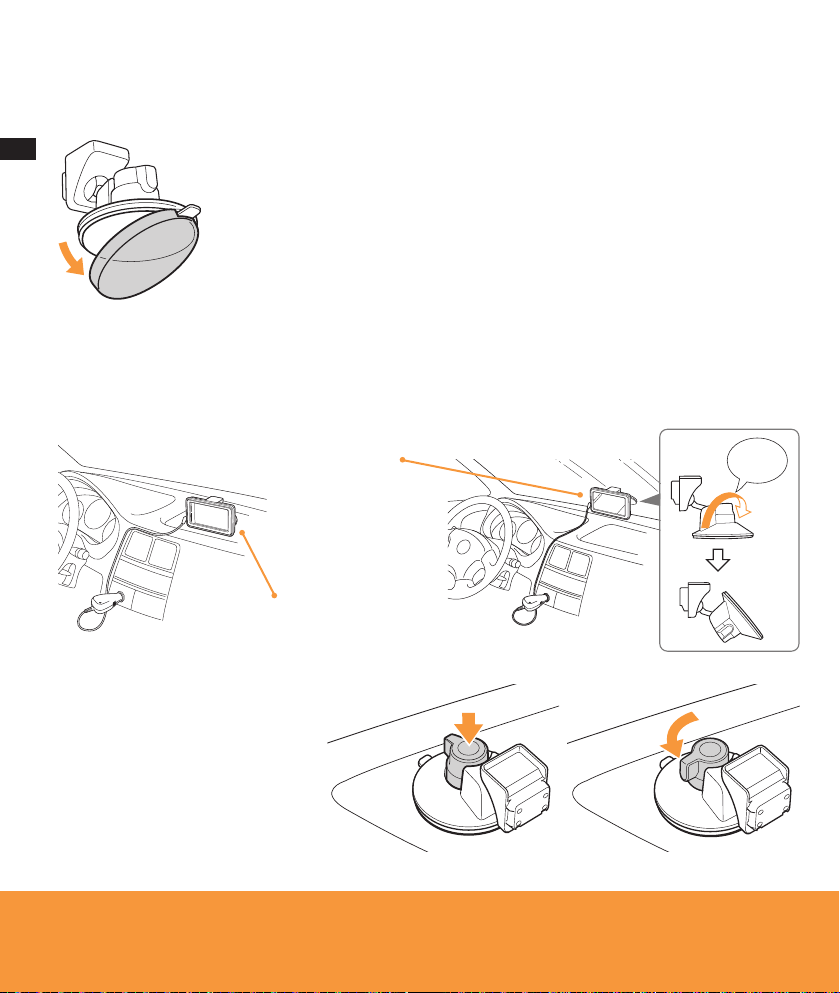

Attaching the Cradle

ROTATE

Note: Placement limitations may apply. Always check your local laws for any limitations.

3. IMPORTANT:

Press knob rmly and

turn counterclockwise

to lock into position

Dashboard

Mount

Windshield

Mount

2. Select mounting location

Choose a clean, non-porous surface with an unobstructed view of the sky

1. Remove protective cover

Note: Use cover to keep suction cup clean and tacky

when not in use.

Quick Start Guide

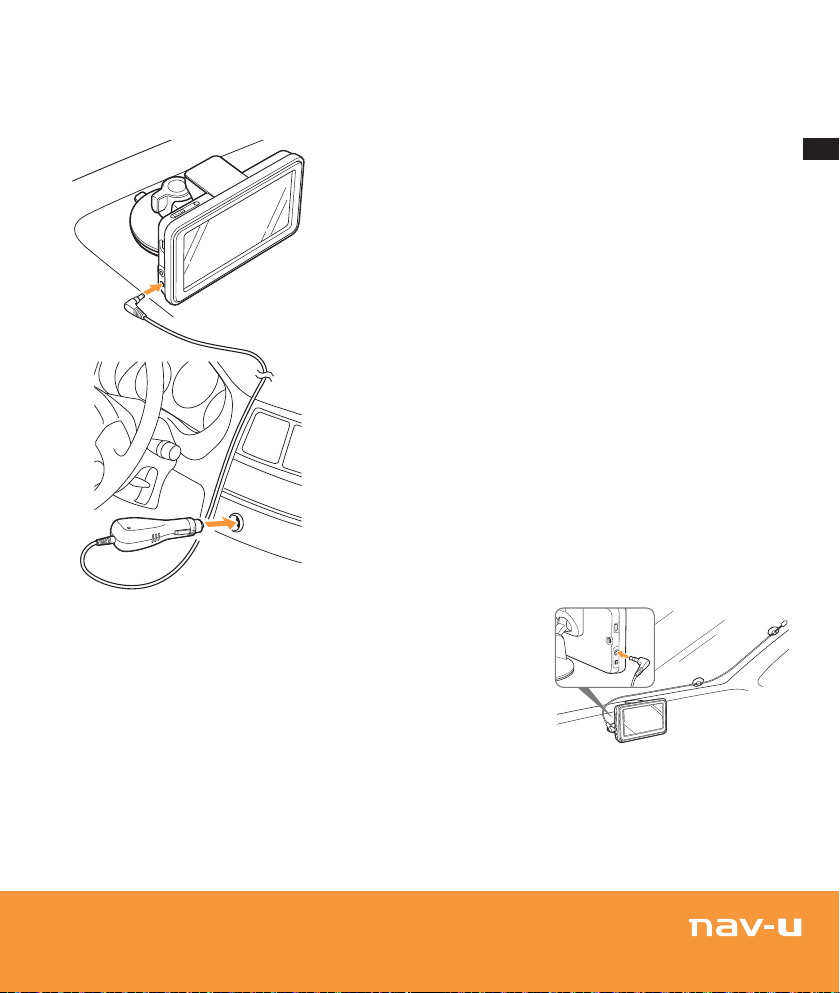

Connecting the Power

1. Connect the DC power

supply to nav-u device

2. Plug into vehicle’s lighter

socket/DC outlet

To activate your FREE 90-day NAVTEQ trial*

featuring real-time trafc info:

1. Connect trafc antenna to nav-u device.

2. Attach antenna to inside of vehicle windshield.

Trial starts automatically when ﬁrst signal is received.

3. Refer to page 17 of the owner’s manual for further details.

*See enclosed NAVTEQ brochure for full offer and coverage details

Optional Trafﬁc Antenna Connection

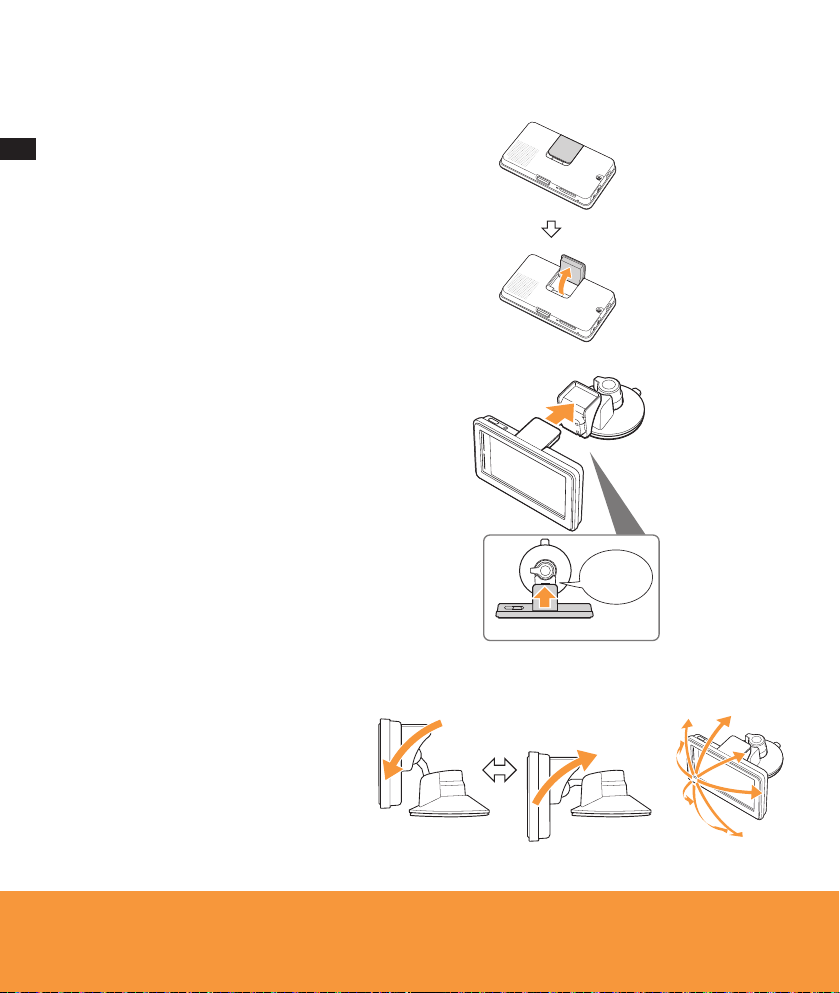

Mounting Your nav-u Unit

CLICK

2. Mount by sliding antenna into

slot on cradle

3. Push rmly until you hear “click”

4. Adjust monitor angle

for optimal viewing

1. Flip open GPS antenna

Quick Start Guide

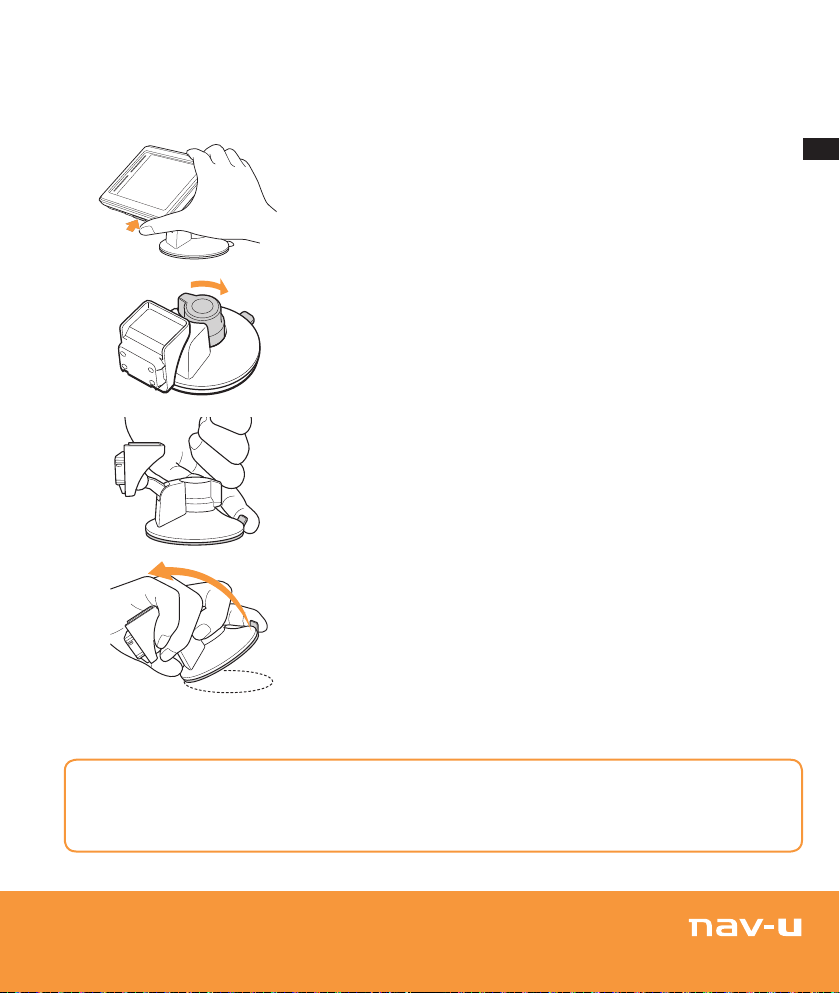

Detaching the nav-u Display

1. Press and hold “Release” button

to release nav-u device from cradle

2. Turn knob clockwise to relieve suction

3. Use tab to help lift cradle from surface

4. Peel rmly to release

Note: To maintain best adhesion, periodically

clean suction cup surface with a damp,

lint-free cloth.

IMPORTANT:

Follow these instructions to avoid damaging the cradle’s mounting surface.

Turning On the nav-u Unit

US 1. Ensure that you are in an open area and that the nav-u device has

a clear view of the sky.

2. Press on/standby button

3. Follow the on-screen instructions of the Startup Conguration Wizard

before rst use.

4. Wait while the nav-u device calculates current location using GPS

satellite signals.

Note: This could take as long as 10 minutes during the rst use of your nav-u.

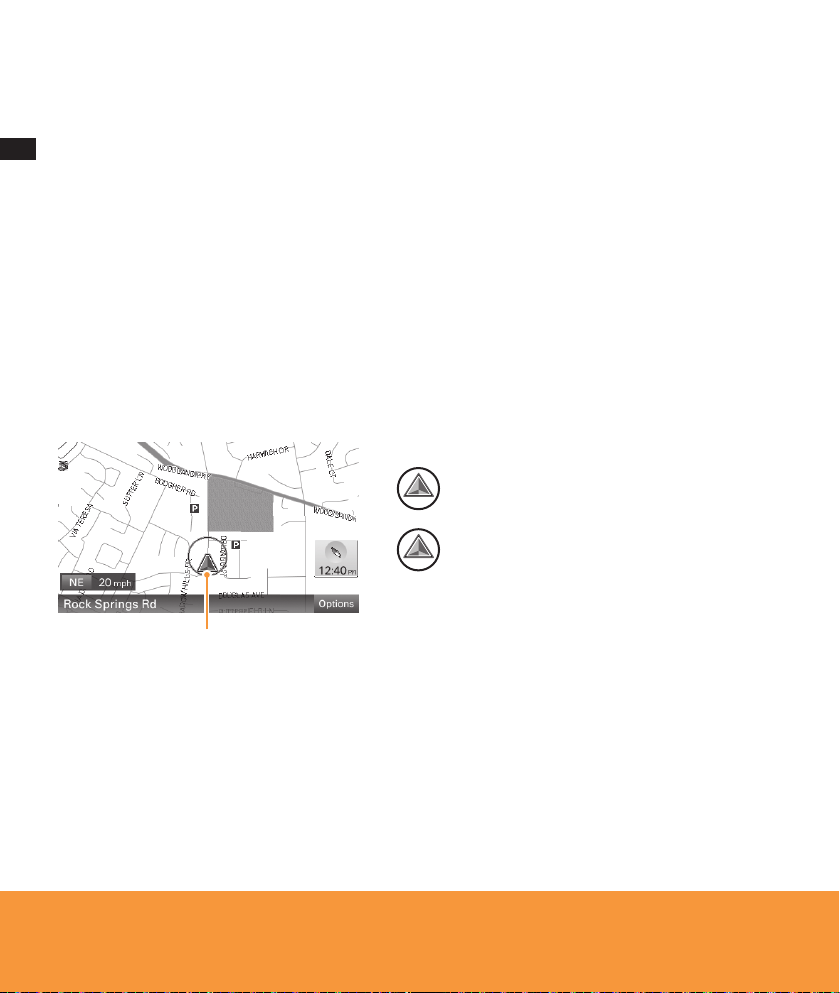

Current position icon will turn

red to indicate sufﬁcient GPS

signal strength.

Note: Before rst GPS Signal is found, default map position is home address entered in #2,

or Washington, DC if no home address has been entered.

RED:

Locked on GPS signal; position ﬁxed

GREY:

Inadequate GPS signal; position not ﬁxed
