Read this first

thi

What you can do

with the GPS unit kit

The GPS-CS3KA GPS unit kit enables

you to:

– Apply positioning information to

image data

– Display images on a map of the

shooting locations

– Display the route you traveled on a

map

– Send e-mails with images displayed

on a map of the shooting locations

Components of the GPS

unit kit

The GPS unit kit consists of a GPS unit,

and three sets of application software:

“PMB,” “GPS Image Tracker,” and

“PMB Launcher.”

GPS unit

The GPS unit records the travel route as

a “GPS log,” a log of serial positioning

information. The GPS unit records the

current positioning information every 15

seconds in the “GPS log.”

You can also apply positioning

information to image data using the GPS

unit.

PMB

This software enables you to view and

manage the images recorded by digital

still cameras and Sony digital video

camera recorders. Using the Map View

feature of PMB, you can display images

which have positioning information

recorded by the GPS unit and

incorporated in the image data by GPS

Image Tracker, on a map. Thanks to this

feature, you can easily determine where

you took the image, and check the route

you traveled while recording images.

GPS Image Tracker

This software enables you to import the

“GPS log” (serial positioning

information recorded) from the GPS unit

to a computer, incorporate the

positioning information in the image data

recorded by digital still cameras and

Sony digital video camera recorders, and

store them together.

PMB Launcher

If you select an operation on the PMB

Launcher, the software required for the

operation starts automatically.

Matching positioning

information to individual

images

The GPS unit and GPS Image Tracker

match date and time information

recorded with the image data and that of

the GPS log, and pair positioning

information from the GPS log with

image data that has the same date and

time information as that of the GPS log

(Matching).

•Since the GPS unit records positioning

information every 15 seconds, the

positioning information applied to the image

may not be exactly the same as that where

the image was actually taken.

•The GPS unit records Greenwich Mean Time

(GMT) as the time information.

Notes

Displaying images where they were taken

and the route you traveled on a map

Step 1

Recording the traveled route , See page 14.

1Insert an LR6/HR6 (size AA) battery (sold separately)

into the GPS unit, and turn it on.

Make sure that the triangulating symbol ( to )

appears on the LCD screen.

2When you use the GPS unit for the first time, the

[Time Zone] screen appears. Select the time

difference using V/vbased on GMT, then press

ENTER.

See page 17 on the GMT time difference for each

country/region.

3Set the correct time on your camera.

Refer to the operating instructions of the camera.

4Carry the GPS unit and the camera together.

Step 2

Applying the recording positioning

information to images

, See page 20.

1Insert the “Memory Stick Duo” media or the SD

memory card that contains the recorded images into

the GPS unit.

2Press MENU, then select [Matching] t[Start].

When the GPS unit has applied the positioning

information to the images, [Complete] appears.

3Install the supplied software (GPS Image Tracker,

PMB, and PMB Launcher) on your computer.

• You may apply positioning information to images using

the supplied GPS Image Tracker (p. 26).

• If you are using media other than “Memory Stick Duo”

media or SD memory cards, see page 26.

• When you want to adjust or change the location of the

images on a map, refer to the GPS Image Tracker Help.

Read this first

Step 3

Displaying the images on a map , See page 30.

1Insert the “Memory Stick Duo” media or the SD

memory card that contains the images with

positioning information into the camera, and connect

the camera to the computer.

PMB starts automatically.

2Import the images.

If GPS Image Tracker is opened, close GPS Image

Tracker after importing the images.

3Start PMB Launcher, and click “Display Images on

the Map with Map View.”

The images and the location where you shot them will

be displayed on the map.

• To use the world map, the computer needs to be

connected to the Internet. The online map and the aerial

photomap are powered by Google Maps.

• You can use network services and Google Earth using the supplied PMB. See the

PMB support page for more information.

• You can use the GPS unit as a GPS logger. Using GPS Image Tracker, import the

GPS log that was recorded by the GPS unit while you were carrying the GPS unit

that was turned on, and connected to a computer. Then, the route you traveled will be

displayed on a map, using PMB.

Note

Checking the

included items

Make sure you have following items

included with your GPS unit.

The number in parenthesis indicates the

number of that item supplied.

• GPS unit (GPS-CS3) (1)

• USB cable (1)

• CD-ROM “GPS Unit Application

Software” (1)

• Carrying case (1)

• Set of printed documentation

Neither LR6 (size AA) alkaline batteries nor

HR6 (size AA) Nickel-Metal Hydride batteries

are supplied with the GPS unit.

Note

Read this first

Identifying the parts

GPS unit

AAntenna

B1(power) button (p. 11, 16)

CV/ENTER/vbuttons (p. 11)

DMENU button (p. 11)

EHOLD switch (p. 13)

FLCD screen

GBattery cover (p. 14)

HBattery compartment (p. 14)

I“Memory Stick Duo” media/SD card

slot (p. 22)

J(USB) jack (p. 28)

KUSB jack cover (p. 28)

LPosition marker for SD memory card

(p. 22)

MPosition marker for “Memory Stick

Duo” media (p. 22)

NCard guide (p. 22)

OStrap attaching part

• No strap is supplied.

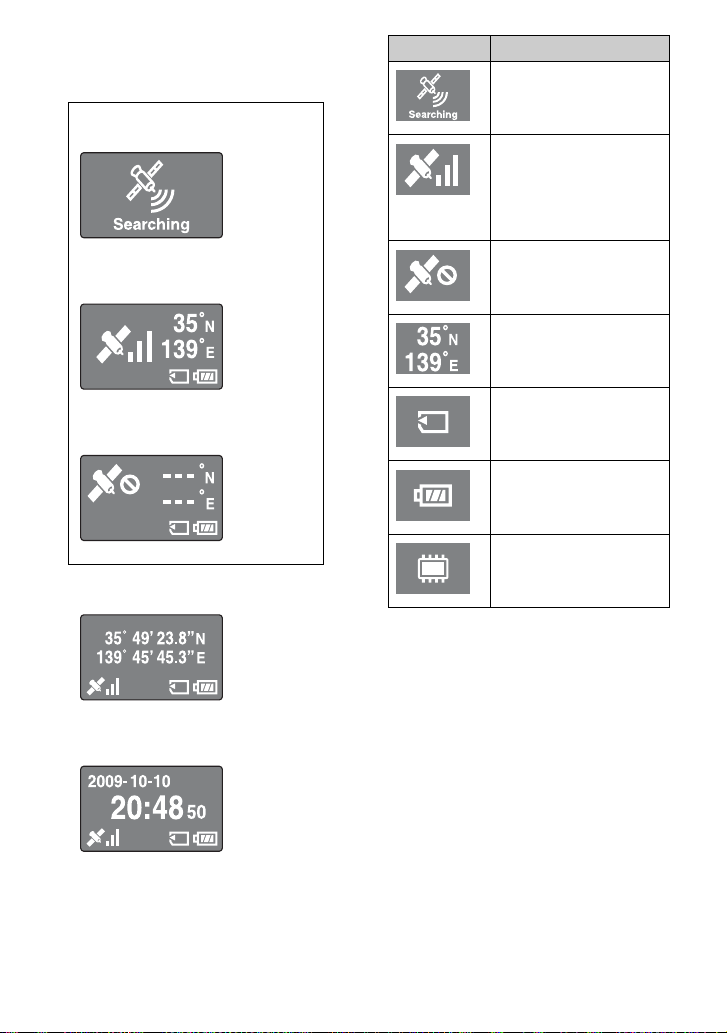

LCD screen

GPS status display

•If you do not operate the GPS unit for about

10 seconds, the backlight of the LCD screen

will go out. Press ENTER to turn it on again.

•The GPS unit does not show the date and

time until it receives a GPS radio signal.

There may be some discrepancies in the

displayed time, depending on the condition

under which you are using the GPS unit.

Searching for satellites

Triangulating

Unable to triangulate

Coordinates display

Clock display

Icons Meanings

Searching for GPS satellites.

• Looking for radio signals

from GPS satellites.

The GPS unit is acquiring

positioning information,

triangulating, and recording

GPS signals. Bars on the

right show the signal

strength.

Unable to receive GPS

signals. Unable to acquire

positioning information.

Latitude (N/S) and longitude

(E/W)

One of “Memory Stick Duo”

media or SD memory cards

is inserted.

Remaining battery power

Internal memory capacity is

low.

Tabla de contenidos

Idiomas:

Otros manuales de GPS de Sony

Sony

Sony NV-U44/R - 3.5" Portable Navigation System Manual de uso y mantenimiento

Sony

Sony HANDYCAM Instrucciones de funcionamiento

Sony

Sony NV-U51 Manual de usuario

Sony

Sony NV-U51 Manual de usuario

Sony

Sony NV-U82B Manual de usuario

Sony

Sony nav-u NV-U50 Hoja de instrucciones

Sony

Sony NVU84 - Widescreen Portable GPS Navigator Manual de usuario

Sony

Sony GPS-CS1 - Digital Camera GPS Unit Manual de usuario

Sony

Sony NV-U70 - NAV-U Portable GPS Navigator Hoja de instrucciones

Sony

Sony NV-U83T Firmware version 3.02 Manual de usuario

Sony

Sony NAV-U NV-U81T Manual de usuario

Sony

Sony NV-U52B Manual de usuario

Sony

Sony NAV-U NVD-U13E NAV-U NVD-U13R Manual de usuario

Sony

Sony NV-U70 - NAV-U Portable GPS Navigator Manual de usuario

Sony

Sony XA-NV100T Manual de usuario

Sony

Sony NV-U74T - 4.3" Portable Navigation System Manual de usuario

Sony

Sony NV-U74T - 4.3" Portable Navigation System Manual de uso y mantenimiento

Sony

Sony GXB5005 Manual de usuario

Sony

Sony NV-U94T - Automotive GPS Receiver Manual de usuario

Sony

Sony NV-U73T Firmware version 3.02 Manual de usuario

Sony

Sony ZS-BT1 - Boombox With Bluetooth Technology Manual de usuario

Sony

Sony NV-U74 Manual de funcionamiento

Sony

Sony nav-u NV-U50 Manual de usuario

Sony

Sony nav-u NV-U83 Manual de usuario

Manuales populares de GPS de otras marcas

Raven

Raven Cruizer II Manual

Hama

Hama 53118 Manual de usuario

Garmin

Garmin SOUNDER 125 Manual de usuario

Garmin

Garmin DEZL 580 Manual de usuario

Jigabot

Jigabot EX Manual de usuario

Pointer

Pointer Cellocator CelloTrack XT LTE Guía de instalación

Queclink

Queclink GV55LITE Manual de usuario

Voxson

Voxson Voxtrack GPS500 Manual de instrucciones

Garmin

Garmin ECHOMAP PLUS Manual de usuario

Starcom Systems

Starcom Systems Kylos Compact Manual de usuario

Garmin

Garmin 15 H Series Manual de usuario

Cobra

Cobra Marine MC 600Ci Manual de usuario

Cellocator

Cellocator CelloTrack T Manual de usuario

Enfora

Enfora Mini-MT GSM2228UG001 Manual de usuario

Magellan

Magellan eXplorist 100 Manual de usuario

LTE

LTE G50B Manual de usuario

Garmin

Garmin DEZL OTR500 Manual de usuario

SkyGolf

SkyGolf SkyCaddie SG1 Manual de usuario
