Sony PlayStation Playstation 3 Manual de usuario
Quick Reference
Aide-mémoire
Referencia rápida
2-894-629-12(1)
PS3-1001 2-894-629-12(1) US/FR/ES
PS3-1001 2-894-629-12(1) US/FR/ES
2
About the PS3™ system documentation
The PS3™ system documentation includes the following:
• Safety and Support
Before using the product, carefully read this document first. It contains safety information
related to use of the PS3™ system, troubleshooting, specifications and other information.
• Quick Reference (this document)
This document contains information on setting up the PS3™ system, preparing for use and
basic hardware operations.
• User’s Guide (http://manuals.playstation.net/document/)
This online document is accessed through the Internet and contains detailed information
related to the use of the PS3™ system software.
Friends
Chatting and exchanging messages
Network
Connecting to the Internet
Game
Playing games
Video
Playing video
Music
Playing music
Displaying images
Settings
Adjusting PS3™ system settings
Users
Selecting users to log in to the PS3™
system

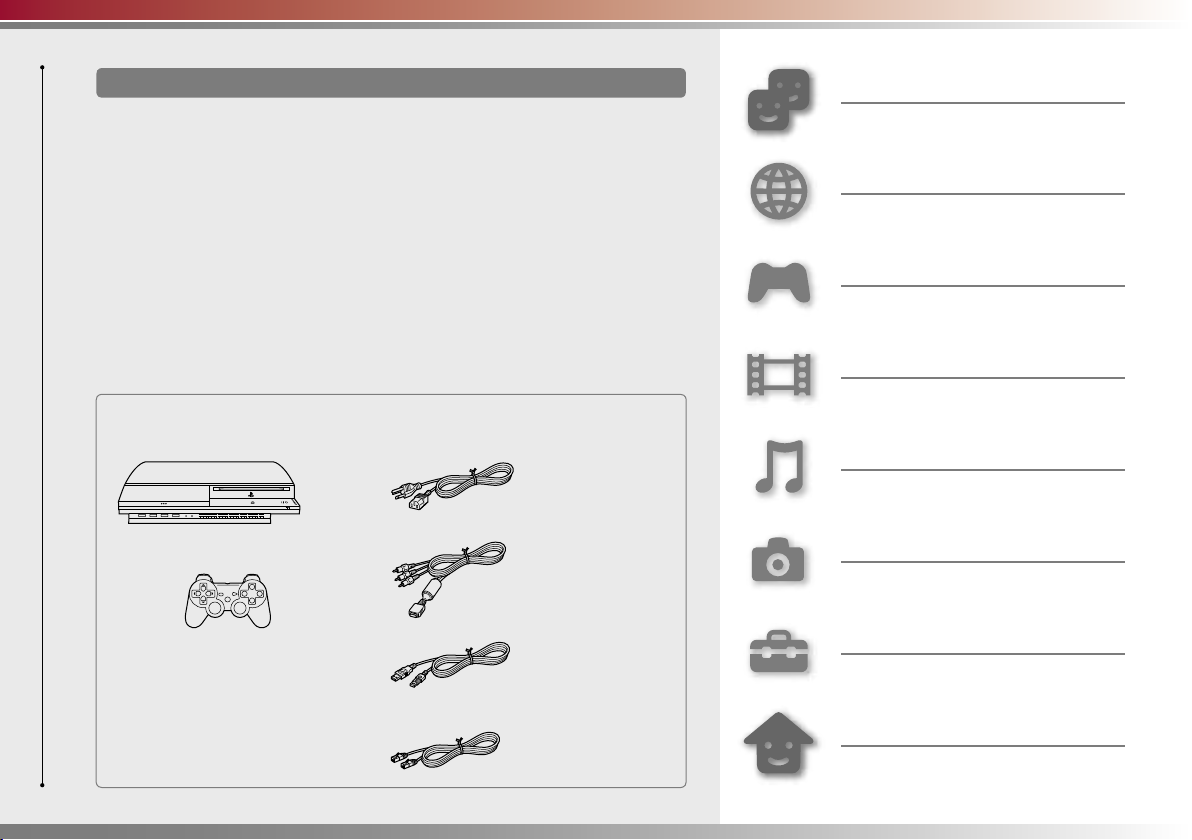

Check that you have all of the following items. If any items are missing, contact
SCEA Consumer Services at 1-800-345-7669.
s PLAYSTATION®3 system
s Wireless controller
s Printed materials
s AC power cord
s AV cable
s USB cable
s Ethernet cable
PS3-1001 2-894-629-12(1) US/FR/ES
3
US
FR
ES
Home menu
Category
Item

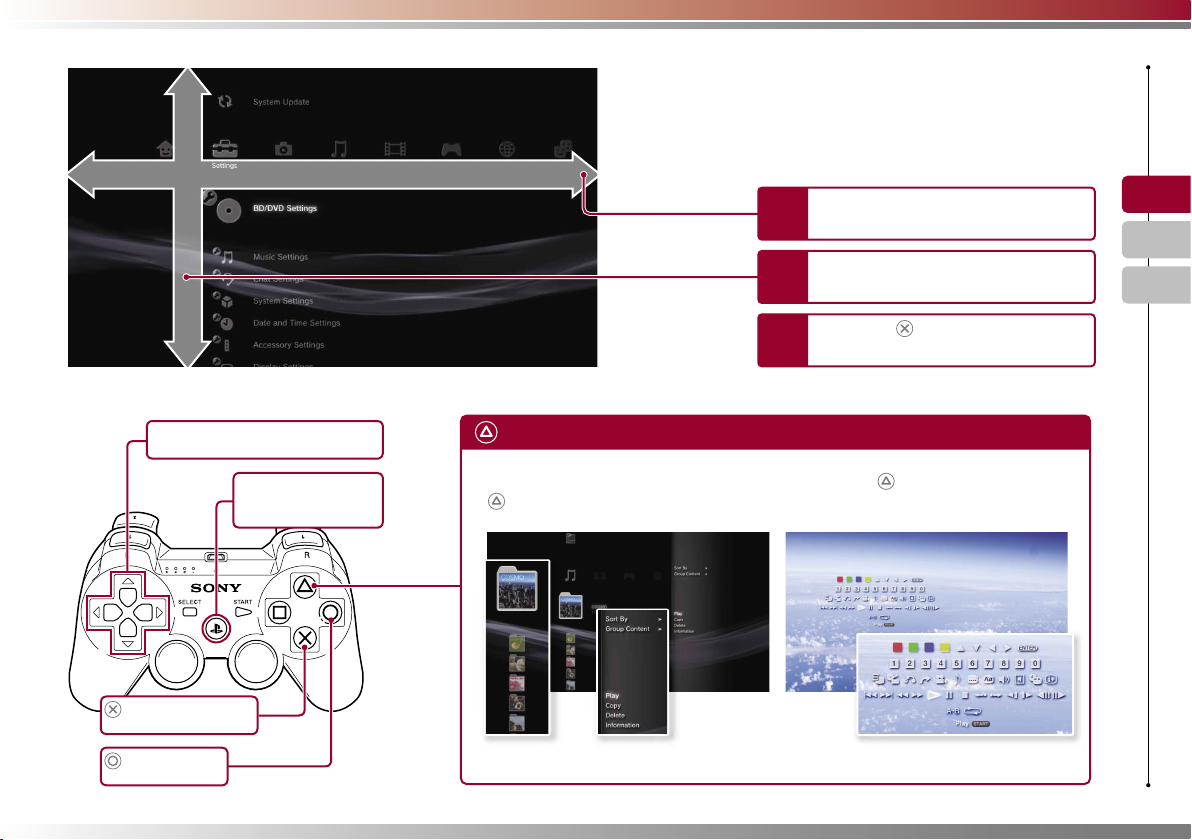

Using "XMB" (XrossMediaBar)
The PS3™ system includes a user interface called “XMB”
(XrossMediaBar). The main screen for “XMB” is called the
“home menu”.
1
2
3
Select a category using the left or
right button.
Select an item using the up or
down button.
Press the button to confirm the
selected item.
button: Displays the options menu/control panel
Selecting an icon and pressing the
button will display the options menu.
Icons Options menu
Pressing the button during content
playback will display the control panel.
Control panel
button:
Cancels an operation
Directional buttons:
Used to select on-screen categories/items
PS button:
Displays the home menu
Turns the system on/off
button:
Confirms the selected item
PS3-1001 2-894-629-12(1) US/FR/ES
4
Getting started

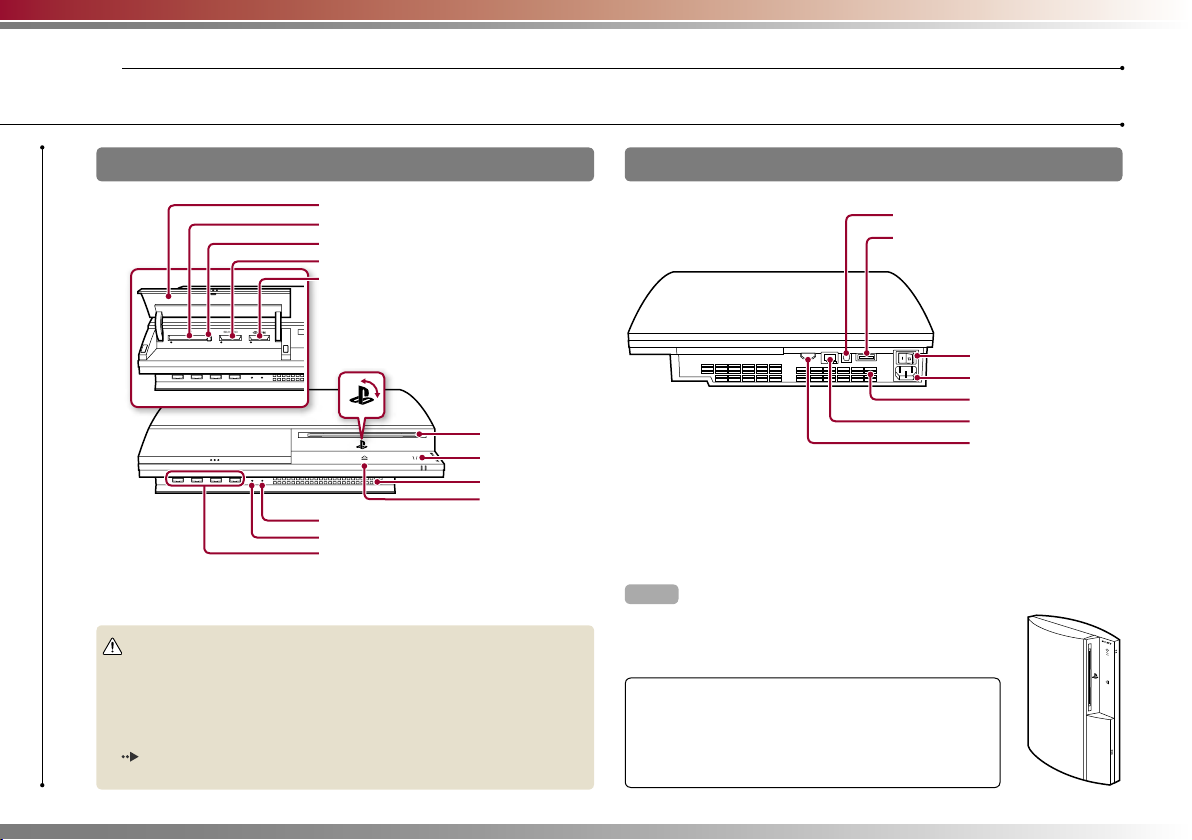

Part names
01
System front
CF SD/miniSD
Disc slot
CF*1 slot*3
SD*2 Memory Card slot*3
Memory Stick™ slot*3
Slot cover*3
Power button
Vent
USB connectors
HDD access indicator
WLAN access indicator*3
PS family logo
Can be rotated to match the
position of the system
Eject button
Eject button*3
*1 CompactFlash®
*2 Secure Digital
*3 On equipped models only
Caution
• Do not use the system in a closed cabinet or other locations where heat
may build up. Doing so may cause the system to overheat and may lead to
fire, injury or malfunction.
• If the system’s internal temperature becomes elevated, the power indicator
will flash alternately in red and green. In this case, turn off the system
( page 13) and leave it unused for a while. After the system cools down,
move it to a location with good ventilation, and then resume use.
System rear
AC IN connector
AV MULTI OUT connector
DIGITAL OUT (OPTICAL) connector
MAIN POWER switch
HDMI OUT connector
Vent
LAN connector
Notice
Do not place the system in an area subject to excessive
dust or cigarette smoke. Dust build-up or cigarette
smoke residue on the internal components (such as the
lens) may cause the system to malfunction.
Hint
The system can be set in a horizontal or vertical position.
Set as shown in the diagram at right when setting in the
vertical position.
PS3-1001 2-894-629-12(1) US/FR/ES
5
US
FR
ES
Wireless controller
SELECT button
USB connector
L2 button
L1 button
Directional
buttons
Left stick/
L3 button*
START button
R2 button
R1 button
button
button
button
button
Right stick/
R3 button*
PS button
Port indicators
* The L3 and R3 buttons function when the sticks are pressed.
Hint
For details on the wireless controller, see "Using the wireless controller"
( page 14).
Notice
Some PlayStation®/PlayStation®2 peripherals such as the analog controller
(DUALSHOCK®) and analog controller (DUALSHOCK®2) are not compatible
with the PS3™ system. For details, visit http://www.us.playstation.com.
Getting started
Part names
PS3-1001 2-894-629-12(1) US/FR/ES
6
Getting started
Setting up the PS3™ system
02
Step 1: Connect to a TV
Video output on the PS3™ system
The PS3™ system can output two types of resolution: HD and SD. Refer to the instruction manual
for the TV in use to check which video mode is supported.
*1 This number indicates the number of scan lines. Note that "i" stands for "interlace" and "p" stands for
"progressive". Using progressive results in high-quality video with minimal flickering.
*2 The video output setting on the system will display as "Standard (NTSC)".
HD (High Definition) SD (Standard Definition)
Video mode *11080p 1080i 720p 480p 480i *2
Aspect ratio 16:9 16:9 16:9 16:9
4:3 16:9
4:3
Screens showing the difference in resolution
HD screen SD screen
Procedure flow for setting up the
system
m
Step 3: Connect the Ethernet
cable. Page 10
Step 4: Connect the AC power
cord. Page 11
m
m
m
Step 2: Connect digital audio
devices. Page 9
Step 5: Perform initial setup of
the system software.
Page 11
Step 1: Connect to a TV.
Page 6
PS3-1001 2-894-629-12(1) US/FR/ES
7
US
FR
ES
Getting started
Setting up the PS3™ system

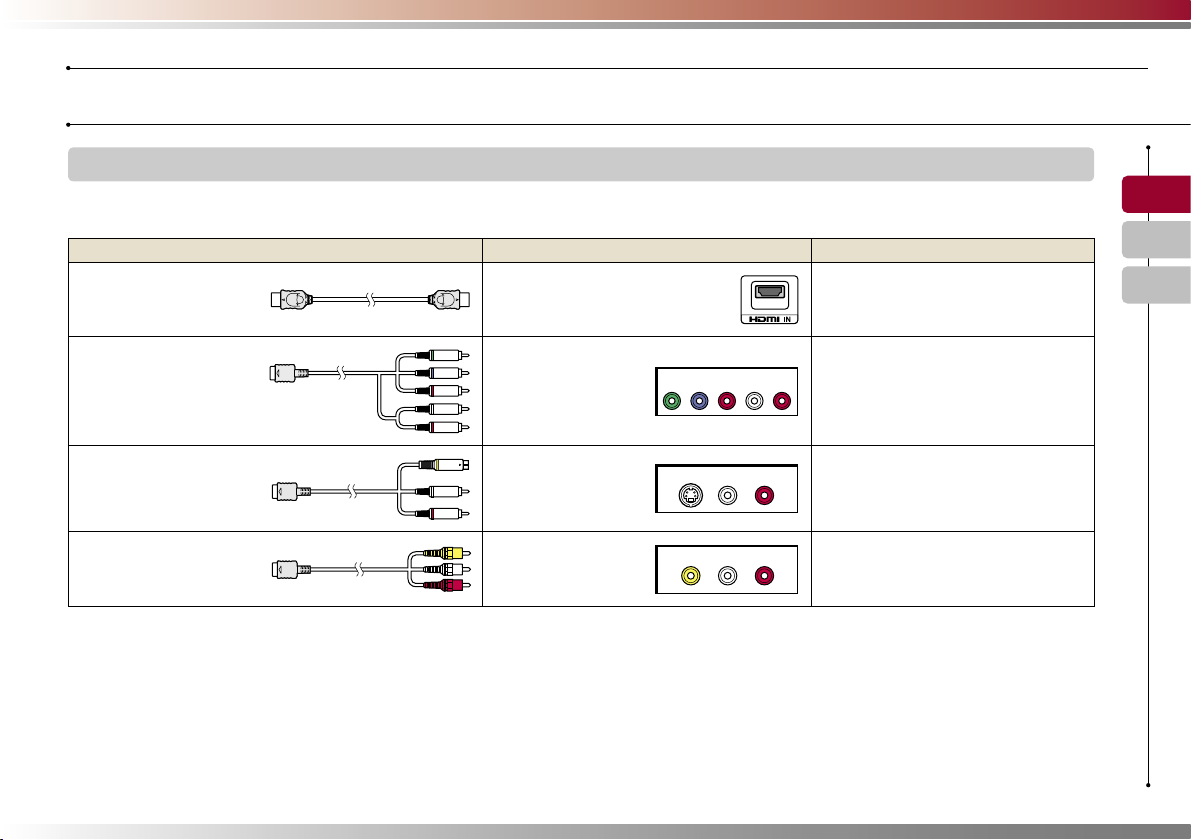

Video output cable types
The resolution displayed on the TV varies depending on the input connectors on the TV and the type of cable in use. Select a cable to match
the TV in use.
Cable type Input connector on the TV Supported video modes *1
HDMI cable
(sold separately) HDMI IN connector
1080p / 1080i / 720p / 480p
Component AV cable
(sold separately)
Component VIDEO IN
connector
Y L RPR/CRPB/CB
COMPONENT VIDEO IN AUDIO IN
1080p / 1080i / 720p / 480p / 480i*2
S VIDEO cable
(sold separately)
S VIDEO IN connector
S VIDEO L
-
AUDIO
-
R
480i*2
AV cable
(supplied)
VIDEO IN connector
(composite)
VIDEO L
-
AUDIO
-
R
480i*2
*1 Depending on the type of TV or content to be played, some video modes may not be supported.
If a device that is not compatible with the HDCP (High-bandwidth Digital Content Protection) standard is connected to the system using an HDMI cable, video
and/or audio cannot be output from the system.
Copyright-protected Blu-ray video discs can only be output at 1080p using an HDMI cable connected to a device that is compatible with the HDCP (High-
bandwidth Digital Content Protection) standard.
*2 The video output setting on the system will display as "Standard (NTSC)".
8
PS3-1001 2-894-629-12(1) US/FR/ES
Getting started
Setting up the PS3™ system

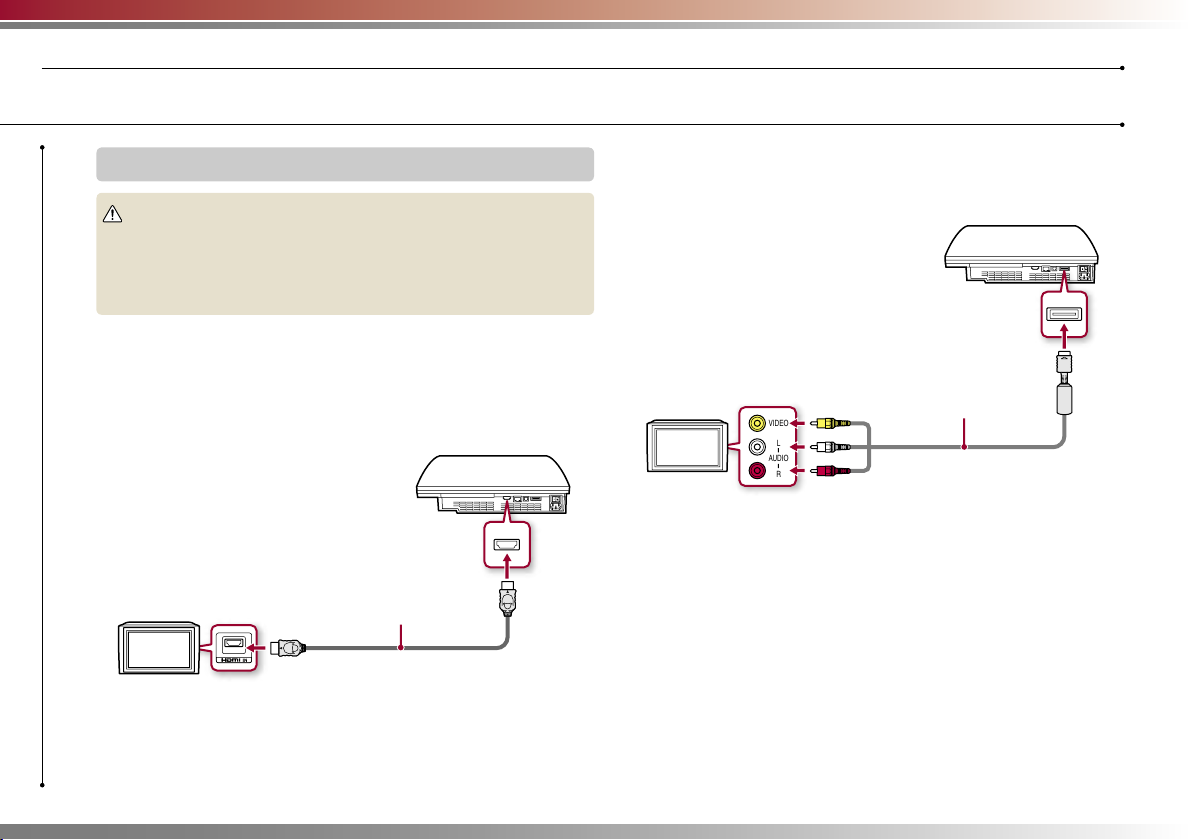

Connection methods
Caution
• Do not plug the AC power cord for the system into an electrical outlet until
you have made all other connections.
• The socket-outlet shall be installed near the equipment and shall be easily
accessible.
Connecting to a TV using an HDMI cable
Connect the system to the TV using an HDMI cable (sold separately).
An HDMI cable can output both video and audio and enables you to
enjoy digital-quality video and audio with minimal loss of picture
quality.
TV
HDMI IN connector
HDMI cable (sold separately)
HDMI OUT connector
Connecting with other types of cables
Connect cables other than the HDMI cable to the AV MULTI OUT
connector on the system.
VIDEO
AUDIO
L
R
TV
VIDEO IN connector
AV cable (supplied)
AV MULTI OUT connector
Example: When using the supplied AV cable
PS3-1001 2-894-629-12(1) US/FR/ES
9
US
FR
ES
Step 2: Connect digital audio devices
You can connect audio devices that support digital audio output,
such as an AV receiver for home entertainment use.
Hint
When connecting a digital audio device to the system, go to (Settings)
(Sound Settings) "Audio Output Settings", and adjust the settings as
necessary for the audio device.
Audio output on the PS3™ system
The supported channels may vary depending on the output
connector to be used.
PS3™ system output connectors Channels that can be used for output
2 Ch. 5.1 Ch. 7.1 Ch.
AV MULTI OUT connector
Digital out (optical) connector *1
HDMI OUT connector *2*3
*1 Audio from a Super Audio CD cannot be output from the digital out (optical)
connector. Multi-channel content from Super Audio CDs can only be output
from the HDMI OUT connector.
*2 A device compatible with Linear PCM 7.1 Ch. is required to output 7.1 Ch.
audio from the HDMI OUT connector.
*3 This system does not support output from the DTS-HD 7.1 Ch. DTS-HD 7.1
Ch audio is output from a 5.1 or lower channel.
Connecting with an optical cable
The audio will be output from the optical cable. The picture will be
output from the video output cable.
Optical cable for audio
(sold separately)
Digital audio device
such as an AV receiver
TV
Video output cable
for the TV in use
( page 7)
Getting started
Setting up the PS3™ system
10
PS3-1001 2-894-629-12(1) US/FR/ES
Getting started
Setting up the PS3™ system

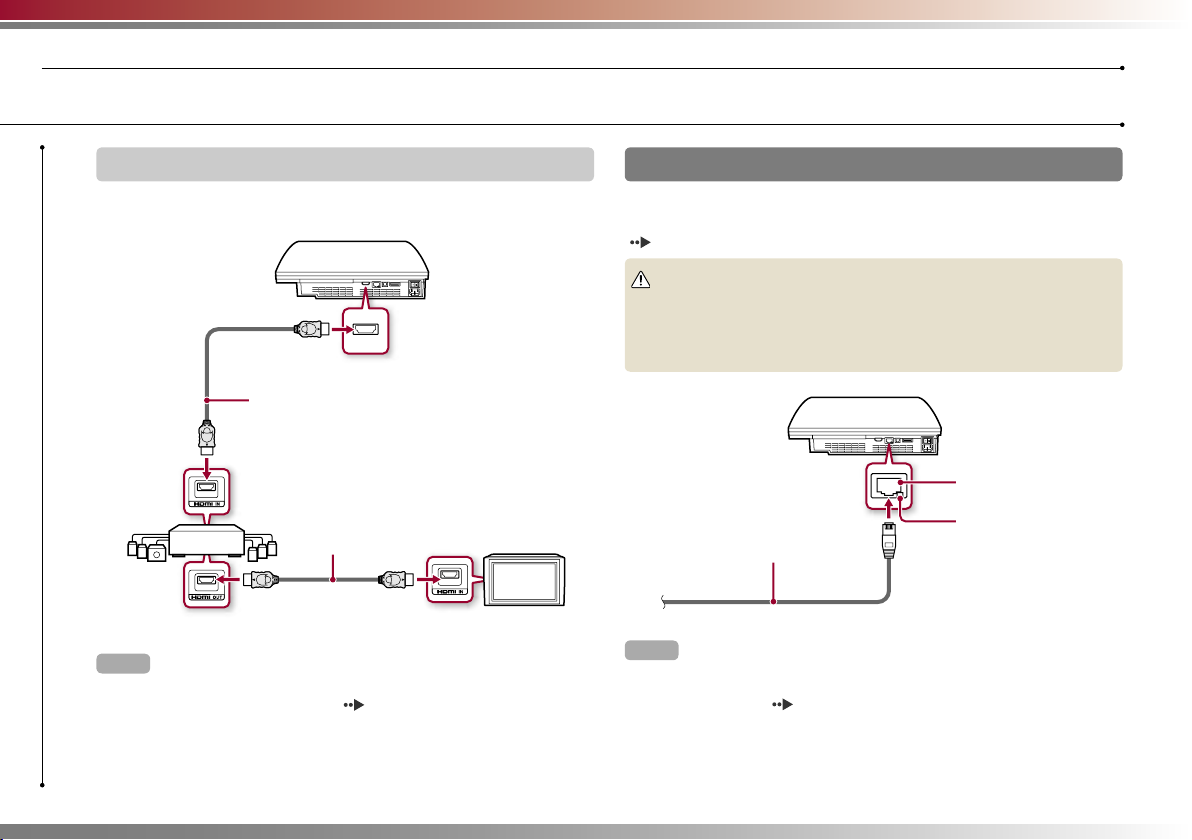

Connecting with an HDMI cable
Both audio and video will be output from the HDMI cable. You can
output the TV picture via an audio device.
HDMI cable (sold separately)
Digital audio device such
as an AV receiver
HDMI cable (sold separately)
TV
Hints
• If your TV is not equipped with an HDMI input connector, use a video output
cable of the correct type for your TV ( page 7) to connect it to the PS3™
system directly.
• If a device is connected to the PS3™ system via an HDMI cable, do not turn
off the device while the PS3™ system is turned on (power indicator is lit
green). Doing so may cause sound distortions or produce abnormal sounds.
Step 3: Connect the Ethernet cable
Using an Ethernet cable, you can connect the system to the Internet.
For details on network settings, see "Adjusting network settings"
( page 22).
Caution
The system supports 10BASE-T, 100BASE-TX and 1000BASE-T networks. Do
not connect a standard telephone line or other types of cords or cables that
are not compatible with the system, as this may cause heat build-up, fire or
malfunction.
LAN connector
Ethernet cable (supplied)
LAN access indicator
Hint
If using a PS3™ system that is equipped with the wireless LAN feature, you can
connect to the Internet without using an Ethernet cable. For details, see "Using
a wireless connection" ( page 23).
Otros manuales para PlayStation Playstation 3
1
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Idiomas:
Otros manuales de consola de juegos de Sony
Sony
Sony CUH-7108B Manual de instalación y funcionamiento
Sony
Sony PSP PSP-450 X Manual de usuario
Sony
Sony PlayStation 4 Guía de inicio rápido
Sony
Sony PS4 FORTNITE PRO Manual de usuario
Sony
Sony PlayStation3 CECH-2001A Instrucciones de instalación
Sony
Sony PS 2 SCPH-79001CB Manual de usuario
Sony
Sony PS3 CECH-4208C Instrucciones de instalación
Sony
Sony PS4 PRO CUH-7215B Manual de instalación y funcionamiento
Sony
Sony PlayStation 3 (Uncharted: Drake's Fortune Limited Edition... Manual de servicio
Sony
Sony PlayStation 3 (Uncharted: Drake's Fortune Limited Edition... Instrucciones de instalación
Sony
Sony SCPH-75001 Manual de usuario
Sony
Sony CECH-2006A Manual de usuario
Sony
Sony Playstation 3 PS3 Manual de usuario
Sony
Sony SCPH-70008 Manual de usuario
Sony
Sony 160GB Playstation 3 4-198-819-12 Manual de usuario
Sony
Sony CECHJ01 Instrucciones de instalación
Sony
Sony CECH-4301A PS3 Instrucciones de instalación
Sony
Sony PS4 CUH-2116B Manual de instalación y funcionamiento
Sony
Sony 160GB Playstation 3 4-126-895-11 Manual de usuario
Sony
Sony SCPH-50006 Manual de usuario
