Nintendo VS.-Pak Manual de usuario

(H\ ®A

1-800-633-3236

For VS-UniSystem"*; VS.DualSystem'*; and YS.Table

INSTRUCTIONS

Conten sof Pak:

FPU ROM Kit

Nameplate Overlay

Center Piece Label (Upright)

Instruction Label (Table)

Operation Manual

Dip Switch Settings Instruction Label

Factory Recommended Settings Sheet

VS. Pak Instruction Sheet

VS. Nameplate Glass (DualSystem)

VS. Nameplate Plexiglass (UniSystem)

Cardboard Header

Authorization Label

Header Strips

Header Angle

INTRODUCTION

This Pak contains parts to change any VS. UniSystem"'^** or VS.

DualSystein'''M game. Please be sure to save your FPU ROM kit and

literature from the VS. game you are converting so you can change

back to that VS. game if you so desire. By doing this, you will

be able to build alibrary of games for your VS. Systems.

Tools needed: small flathead screwdriver

medium phillips head screwdriver

staple gun

vs. UPRIGHT

PAK INSTALLATION PROCEDURE

I. New Style Nameplate Overlay

A. Adhere header strips to the back of plexiglass and glass

as shown

VS. UniSystem' VS. DualSystem^

HEADER STRIPS

PLEXIGLASS

SCOTCH TAPE SHOWN:VS. UniSyMtm

NAMEPLATE OVERLAY

B. Adhere Authorization label to the new nameplate overlay

where it will not cover any instructions or the game name.

C. Using scotch tape (not provided), tape new nameplate

overlay to the back of either UniSystem^^ plexiglass

or DualSysteni'''M glass depending on which game the pak

is being installed in first.

Note: This new header system allows the same nameplate

overlay to be moved between Uni plexiglass and

Dual glass an unlimited number of times.

D. Remove four (4) top trim screws and top trim.

(See Illus. 1-2 and 1-3)

E. Slide old nameplate up and out of game. (See

Illus. 1-2 and 1-3)

F. Replace nameplate and top trim. Be sure that nameplate

fits under plastic center trim and that the left and

right sides are correct. NOTE: Do not tighten top

trim screws until next step.

Note: Gumshoe is the first pak which uses this new

interchangeable nameplate overlay system. Older

VS. Pak overlays should be cut to the new size shown

below and asheet of clear mylar placed over the

adhesive. This will make older VS. Pak overlays

compatible with the new system. 22 "Ve

S^he new size

II .Cardboard Header

A. Fold cardboard header and slide under top trim. Tighten

top trim screws. (See Illus. 1-2 and 1-3)

III. Center Piece Label (VS. DualSystem'''" only)

A. Remove old center piece label (if necessary). (Illus. 1-2)

B. Clean surface and adhere new center piece label, being

careful to center it.

IV. PPU ROM Kit

A. Replace ROMs and PPUs as shown in VS. Game Operation

Manual

V. Factory Recommended Dip Switch Settings

A. Check dip switch settings on P.C. board so they match

the factory recommended dip switch settings sheet.

VI. Dip Switch Settings Instruction Label

A. Peel off backing sheet and staple label on back door

next to old label. NOTE: Do not remove old label!

cardboard header

1-2

Center piece label

cardboard header

1-3

vs. TABLE

PAK INSTALLATION PROCEDURE

I. Instruction Label (See Illus. 1-4)

A. Open table housing, remove the four (4) nuts holding

the plexiglass instruction label cover, and remove

the plexiglass cover.

B. Remove old instruction label carefully and save for

future use

C. Remove paper backing strip on new label and install.

D. Replace plexiglass cover.

II. Dip Switch Settings Instruction Label

A. Remove paper backing on label and place on any unused

surface inside table housing. (Remove old label if

necessary. Save for future use.)

III. PPU ROM Kit

A. Replace ROMs and PPUs as shown in VS. Game Operation

Manual

IV. Factory Recommended Dip Switch Settings

A. Check dip switch settings on P.C. board so they match

the factory recommended dip switch settings sheet.

FINAL CHECK SHEET

DFCC door installed correctly

DNameplate overlay installed correctly with

header strips in place

DDip switch set correctly (See factory

recommended sheet for this particular game)

nAll play buttons and controllers function

correctly

nColor on monitor looks good

DCoin acceptors give credit

CNinTendtf)

For VS. UniSystem^ ,VS. DualSystem™, and VS. Table

INSTRUCTIONS

Contents of Pak:

1PPTJ ROM Kit

1Nameplate Overlay

1Center Piece Label (Upright)

1Instrtiction Label (Table)

1Monitor Bezel

12 Black Adhesive Dots

1Operation Manual

1Dip Switch Settings Instruction Label

1Factory Recommended Settings Sheet

1VS. Pak Instruction Sheet

1VS. Nameplate Glass (DualSystem)

1VS. Nameplate Plexiglass (UniSystem)

1Cardboard Header

1Authorization Label

INTRODUCTION

This Pak contains parts to change any VS. UniSystem'^^ or VS.

DualSystem-'-''^ game. Please be sure to save your FPU ROM kit and

literature from the VS. game you are converting so you can change

back to that VS. game if you so desire. By doing this, you will

be able to build alibrary of games for your VS. Systems.

Tools needed; small flathead screwdriver

medium phillips head screwdriver

staple gun

(1)

vs. UPRIGHT

PAK INSTALLATION PROCEDURE

I. Nameplace Overlay

A. Adhere nameplate overlay to plexiglass or glass

nameplate and trim. NOTE: Be sure to center

carefully. (See Illus. 1-1)

left side

VS. UniSystem header VS. DxialSystem header

right side

trim overlay

I-l

Duck Hunt

and

Hogan's Alley

ONLY!

3eft side

right side

B. Remove four (4) top trim screws and top trim.

(See Illus. 1-2 and 1-3)

C. Slide old nameplate up and out of game. (See

Illus. 1-2 and 1-3)

D. Replace nameplate and top trim. 3e sure that nameplate

fits under plastic center trim and that the left and

right sides are correct. NOTE: Do not tighten top

trim screws until next step.

E. Place authorization label on nameplate overlay.

II. Cardboard header

A. Fold cardboard header and slide under top trim. Tighten

top trim screws. (See Illus. 1-2 and 1-3)

III. Center Piece Label (VS. DualSystem only)

A. Remove old center piece label (if necessary). (Illus. 1-2)

B. Clean surface and adhere new center piece label, being

careful to center it.

IV. Bezel

A. The play field for some games is slightly narrower than

previous games; therefore, to eliminate any unwanted

borders on the screen, please install the cardboard bezel.

(See Illus. 1-2)

B. Slide the six (6) tabs under the edge of the existing

bezel.

C. To prevent light leakage and movement of bezel, place the

provided black dots in the corners of each cab. There are

two (2) corners per tab, twelve (12) per bezel.

(2)

IV. FPU ROM Kit

A. Replace ROM's and FPU's as shown in VS. Game Operation

Manual

V. Factory Recommended Dip Switch Settings

A. Check dip switch settings on p.c. board so they match

the factory recommended dip switch settings sheet.

VI. Dip Switch Settings Instruction Label

A. Peel off backing sheet and staple label on back door

next to old label. NOTE: Do not remove old label!

cardboard hea ler

center piece

label

nameplate

overlay

(3)

vs. TABLE

PAK INSTALLATION PROCEDURE

I. Instruction Label (See Illus. 1-4)

A. Open table housing, remove the four (4) nuts holding

the plexiglass instruction label cover, and remove

the plexiglass cover.

B. Remove old instruction label carefully and save for

future use

C. Remove paper backing strip on new label and install.

D. Replace plexiglass cover.

II. Dip Switch Settings Instruction Label

A. Remove paper backing on label and place on any unused

surface inside table housing. (Remove old label if

necessary. Save for future use.)

III. PPU ROM Kit

A. Replace ROMs and PPUs as shown in VS. Game Operation

Manual

IV. Factory Recommended Dip Switch Settings

A. Check dip switch settings on P.C. board so they match

the factory recommended dip switch settings sheet.

FINAL CHECK SHEET

DFCC door installed correctly

DNameplate overlay installed correctly with

header strips in place

DDip switch set correctly (See factory

recommended sheet for this particular game)

nAll play buttons and controllers function

correctly

nColor on monitor looks good

DCoin acceptors give credit

Otros manuales de consola de juegos de Nintendo

Nintendo

Nintendo N64 - 64 Game Console Manual de usuario

Nintendo

Nintendo DSI Manual de usuario

Nintendo

Nintendo RVLSWC Manual de usuario

Nintendo

Nintendo 3DS Manual de usuario

Nintendo

Nintendo Wii U Deluxe Set Guía de instalación

Nintendo

Nintendo 2DS Manual de usuario

Nintendo

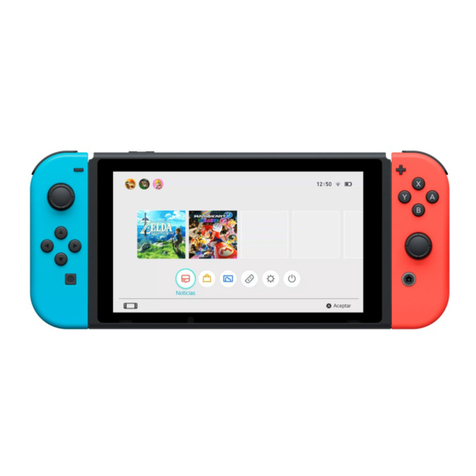

Nintendo Switch Manual de funcionamiento
